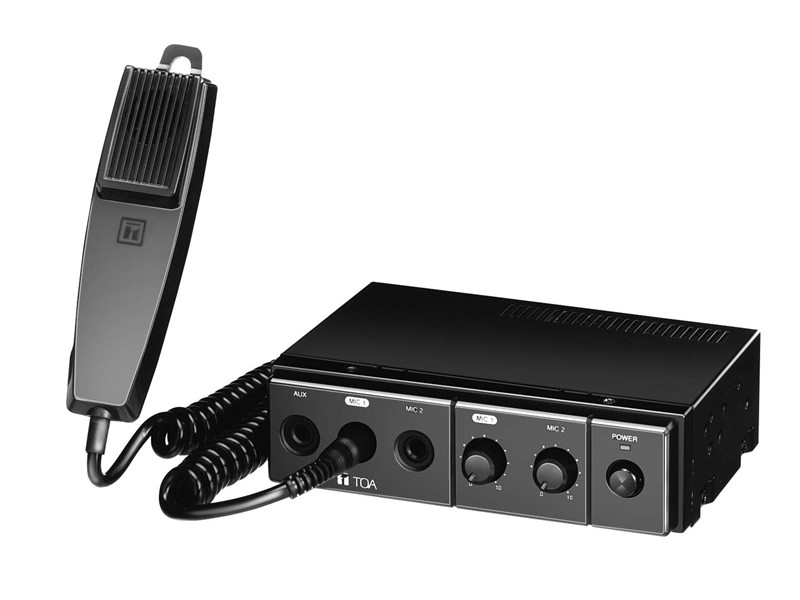

The CA-115 is a 1-DIN size unit 15 W car amplifier designed for use with a 12 V car battery.
| Power Source | Standard voltage: 14 V DC
Usable voltage: 10 - 16 V DC (12 V battery used) |
|---|---|
| Power Consumption | 3 A or less at rated output |
| Rated Output | 15 W |
| Output Impedance | 4 Ω (BRN), 8 Ω (ORG), Common (WHT)
Changeable by changing lead wire connections |
| Distortion | Less than 5% (at 1,000 Hz rated output) |
| Frequency Response | 100 - 10,000 Hz |
| Input | Mic1, 2: 600 Ω, 4 mV, phone jack
Aux : 10 kΩ, 500 mV, phone jack |
| Finish | Front panel: ABS resin, black
Case : Zinc plated steel sheet |
| Dimensions | 178 (W) × 50 (H) × 132 (D) mm (Mounting device excluded) |
| Weight | 900 g |
| Accessory | Microphone holder …… 1, Mounting bracket …… 1, Mounting screw …… 1set,
Fuse (4 A) …… 1, Connection cord …… 1set |
| Accessory Microphone | Unidirectional dynamic type with talk switch
Impedance: 600 Ω Sensitivity : -53 dB (1 kHz, 0 dB = 1 V/Pa) |
