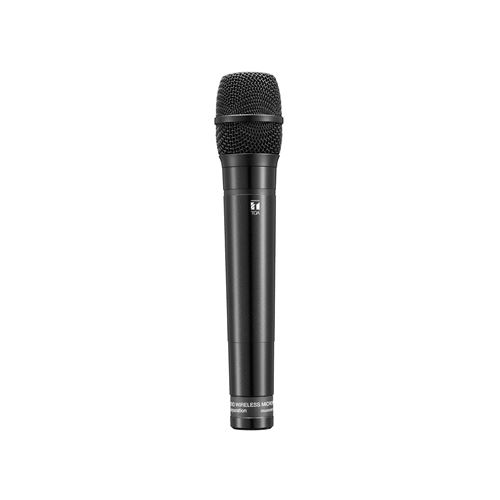

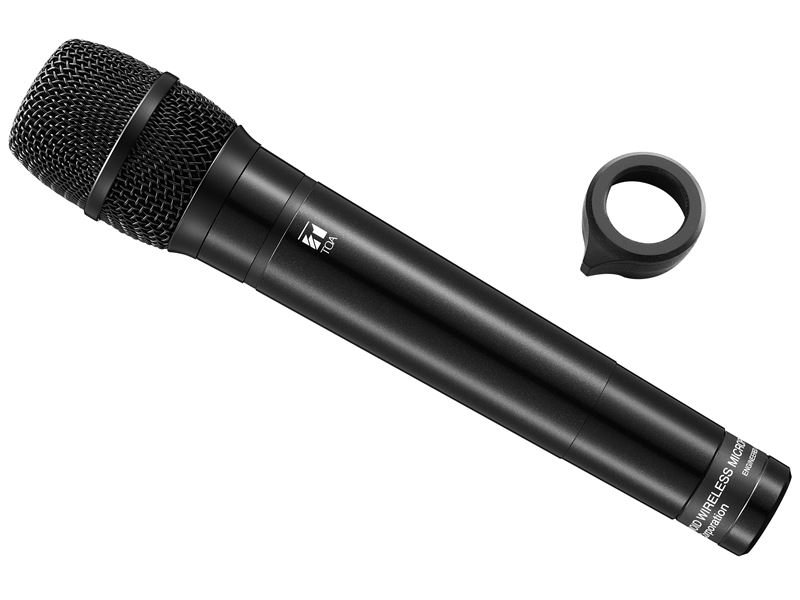

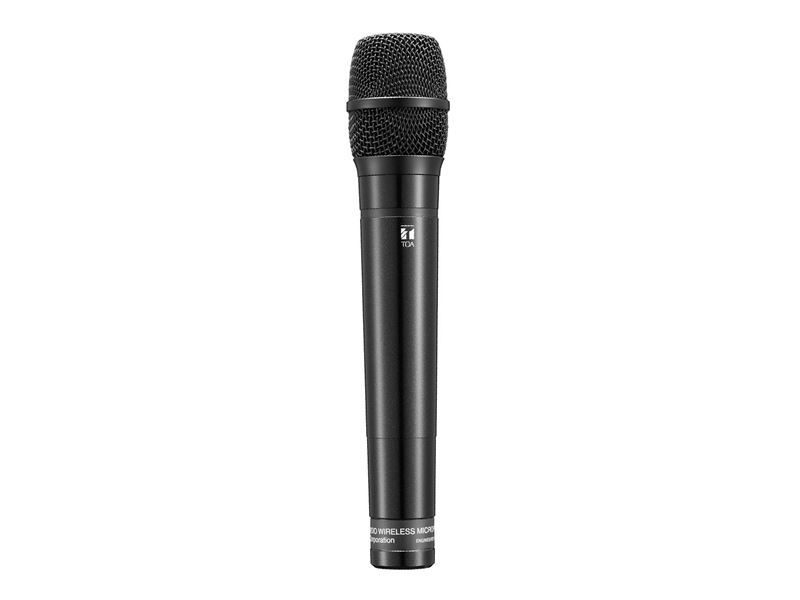

The WM-5270 Wireless Microphone employs a dynamic microphone capsule with high input handling capacity and is suitable for vocal application and other professional uses. Thanks to the PLL-synthesizer system, 16 different operating frequencies (4 banks) are made available. A high output power ensures stable radio signal transmission. The maximum input sound pressure can be set in the range of 130 dB SPL to 142 dB SPL by a PAD switch, permitting adaptation to wide range of input sound pressure.
| Microphone Element | Dynamic microphone unit: Unidirectional |
|---|---|
| Modulation | Frequency modulation |
| Frequency Range | 576 - 865 MHz*, UHF |
| Channel Selectable | 64 channels (the number of channels may differ from country to country) |
| RF Carrier Power | Less than 50 mW (Factory preset 10 mW ERP) |
| Tone Frequency | 32.768 kHz |
| Oscillator | PLL synthesized |
| Maximum Input Level | 142 dB SPL |
| Maximum Deviation | ±40 kHz |
| Audio Frequency Response | 80 Hz - 15 kHz |
| Dynamic Range (AF Circuit) | 95 dB or more (with WT-5800) |
| Battery | AA alkaline dry cell battery |
| Battery Life | Approx. 10 h (when the alkaline battery is used) |
| Indicator | Power/Battery lamps |
| Antenna | Built-in type |
| Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) (except battery) |
| Operating Humidity | 30 % to 85 %RH (no condensation) |
| Finish | Dark gray |
| Dimensions | ø48 × 244 mm (ø1.89" × 9.61") |
| Weight | 340 g (0.75 lb) (with battery) |
| Accessory | Microphone holder W3/8" (with stand adapter W5/8" -> W3/8") …1,
Screw driver (housed in the body) …1, Storage case …1, Rolling stopper …1 |
