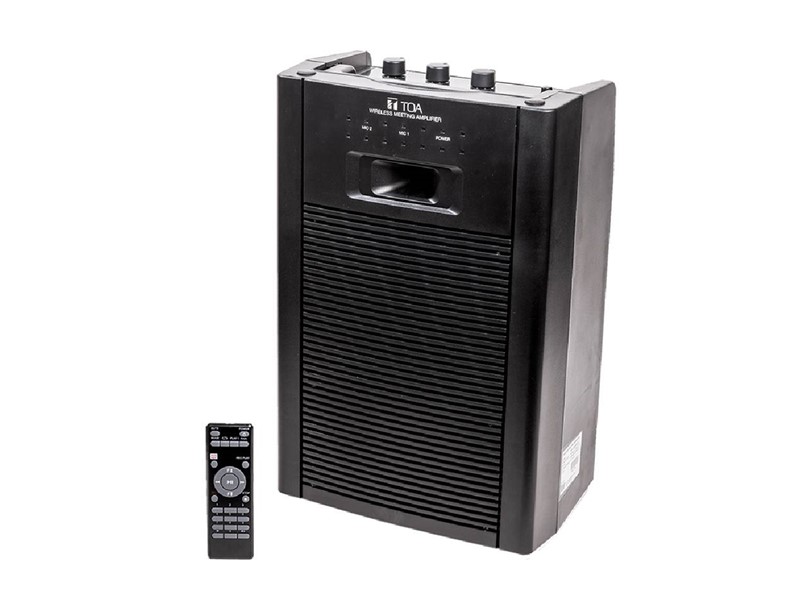

Searching around for a wireless, easy-to-setup yet compact and mobile meeting amplifier? The WA-1830 has exactly the what you are looking for.
The WA-1830 is a 30W rated output portable wireless meeting amplifier that can operate with up to 2 optional wireless tuner modules (WTU-4800) of UHF ultra band and any TOA 5000 Series microphones. The remote controller gives you the convenience to control the MP3 player and FM radio from where you are standing.
| Power Source | 230 V AC, 50/60 Hz; DC: 12V/2.3 Ah |
|---|---|
| Power Consumption | AC: 55 W (rated output) |
| Rated Output | AC: 30 W (40W max. including external speaker output); DC: 10 W |
| Applicable Tuner Unit | WTU-4800 (Optional) |
| Battery Life | Approx. 5 hours continuous music |
| Battery Charging Time | 12 hours, 12V/2.3 Ah x 1 pcs Lead Acid Battery (Battery not included) |
| Frequency Response | 50 Hz - 15 kHz, ±3 dB |
| Distortion | Under 5 % (rated output) |
| Input | Wired mic: -45 dB*, 600Ω, Unbalanced, 6.3 mm phone jack External Input: -15 dB*, 10kΩ, Unbalanced, RCA jack |
| Output | External speaker: 8 - 16Ω / over 20 W of rated input
External Output: 0 dB*, 1 kΩ, Unbalanced, 6.3 mm phone jack |
| Other Features | Internal speaker ON/OFF switch: Enables or Disables the internal speaker |
| S/N Ratio | Over 60 dB (Rated output) |
| Antenna | Internal antenna (PCB Antenna) |
| Internal Speaker | 2-way speaker system: 20cm full-range speaker and tweeter |
| MP3 Player | - Extension Type file is: MP3, WMA, WAV, AAC, FLAC
- Max. supported storage size of the medium (stick): 32 GB (FAT16/FAT32) - Source: USB, SD/MMC, BLUETOOTH, FM, AUX REC - Signal from input can be recorded to SD/USB in MP3 file format - We do not guarantee that it supports all kinds of USB/SD |
| Operating Temperature | -10 oC to +50 oC |
| Finish | ABS Resin, Black |
| Dimensions | 298 (W) x 460 (H) x 200 (D) mm |
| Weight | 5.3 kg |
| Accessory | Power Cord (YA-301) x 1, Dust Cover x 1, Remote x 1, Screw Driver x 1, Remote Controller x 1 |
