The powerful WS-420 is a single channel wireless microphone system set that combines exceptional performance with cost efficiency. The simplest plug and play system is designed to launch you into the world of wireless. The rugged and compact frame contains a reliable multifunctioning system that is optimised for use with a range of microphones from handheld to lapels, headsets, and even musical instruments.
| Product Composition | Handheld wireless microphone x 1
Receiver x 1 |
|---|---|
| Frequency Range | 694 - 806 MHz (*1), UHF |
| Channel Selectable | 4 channels |
| Tunable Frequencies | 25 kHz Steps |
| Pilot Tone | 32.768 kHz |
| Total Harmonic Distortion | <1% @ 1kHz |
| Function | IR sync, Channel scan, Battery indicator |
| Accessory | AC adapter x 1
Microphone holder x 1 |
Wireless Microphone
| Microphone Element | Dynamic with cardioid pattern |
|---|---|
| RF Carrier Power | 10 mW |
| Audio Frequency Response | 80 - 15,000 Hz |
| Audio Input Level | 140 dB SPL (Maximum) |
| Modulation System | PLL synthesizer |
| Battery | 1 AA size alkaline battery, 1.5V |
| Battery Life | Approx. 10 hours |
| Indicator | Battery Status LED, 7 Segments LED |
| Finish | Resin, coating |
| Dimensions | Approx. 250 x 50 mm |
| Weight | Approx. 245 g (with battery) |

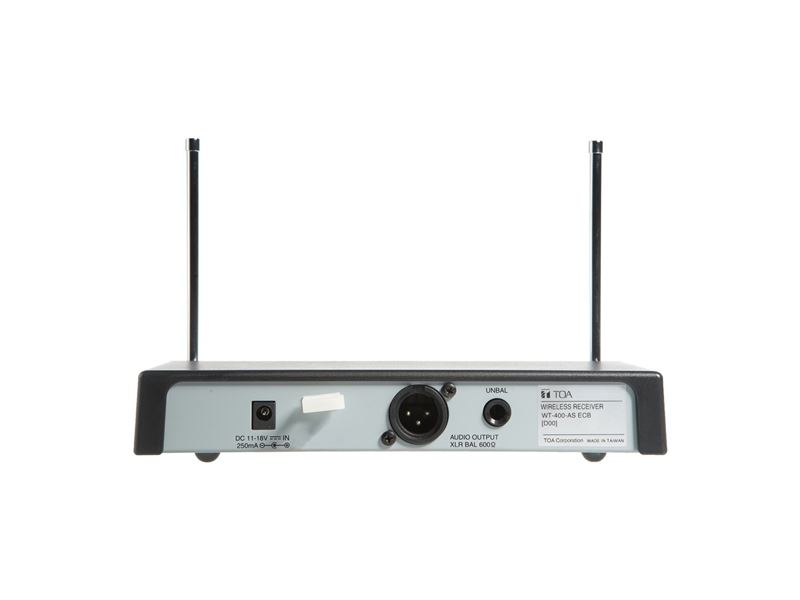

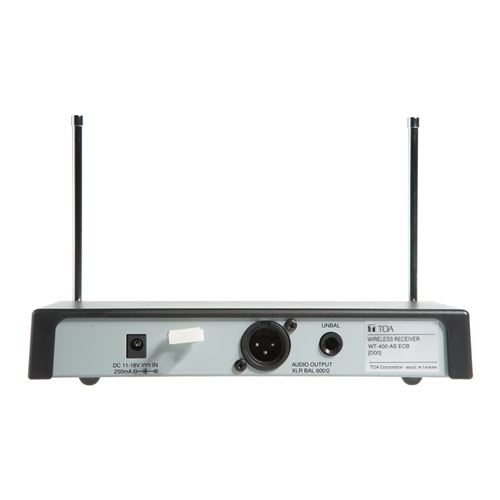

Wireless Receiver
| Diversity Reception | AC mains (supplied AC-DC adapter must be used) |
|---|---|
| Sensitivity | 10uV at 45dBA S/N |
| Squelch (SQ) | Tone SQ, Carrier SQ and Noise SQ |
| Audio Frequency Response | 50 - 15,000Hz |
| Audio Output Level (Maximum) | Balanced (XLR socket): -20dBu
Unbalanced (1/4" jack socket): 10dBu |
| Power Supply | 11-18 VDC 300mA |
| Dimensions | 215 (W) × 39 (H) × 102 (D) mm (excluding antenna and BNC) |
| Weight | 480 g |
(*1)
| Band | Frequency |
| A | 694 - 703 MHz, UHF |
| B | 748 - 758 MHz, UHF |
| C | 803 - 806 MHz, UHF |
