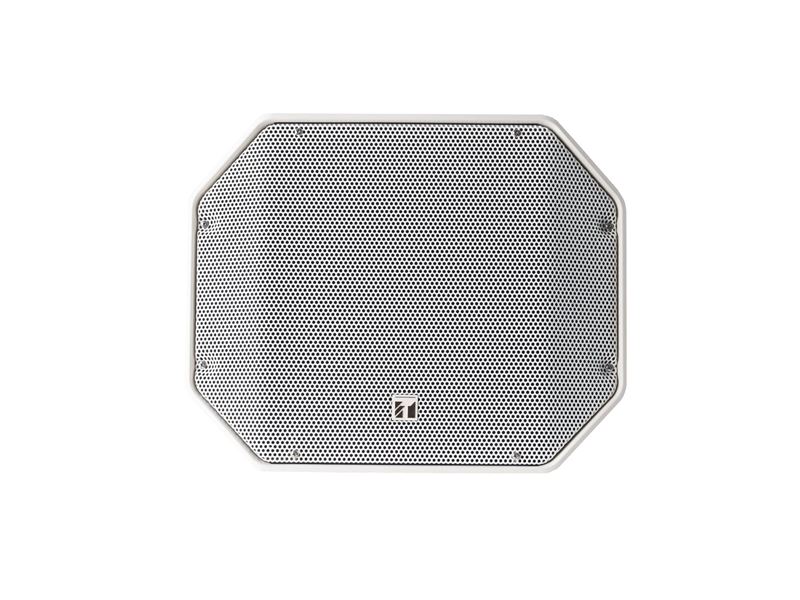

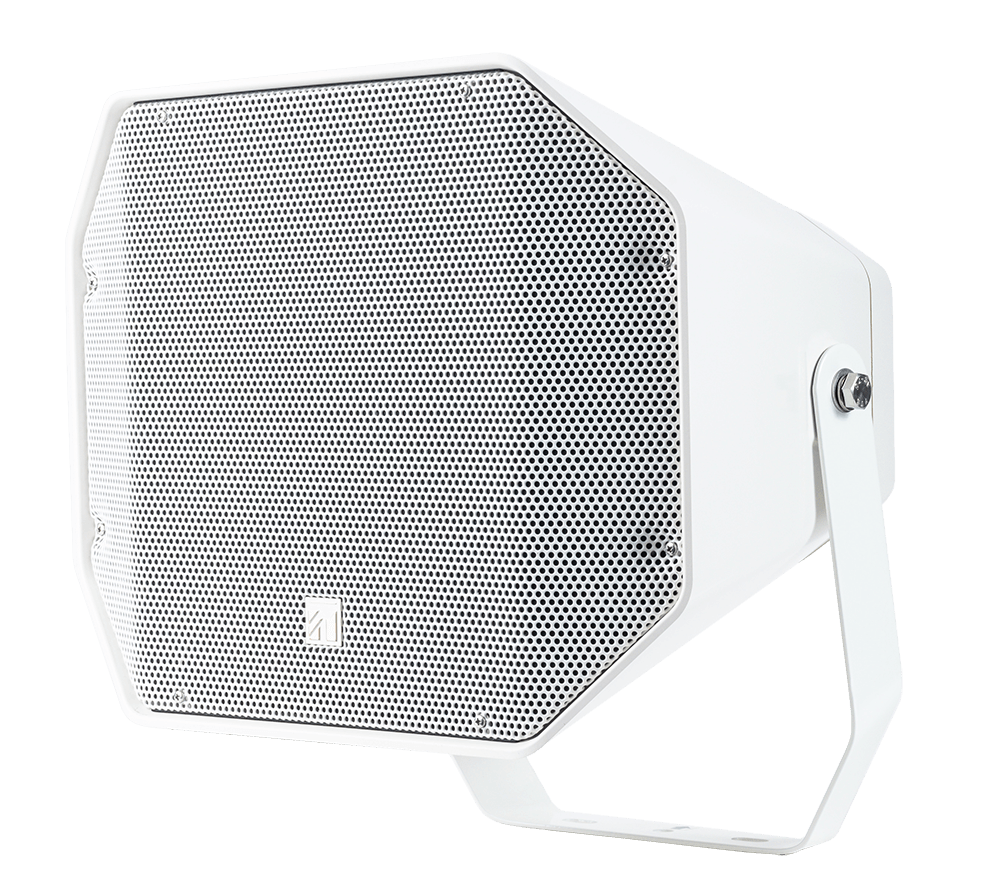

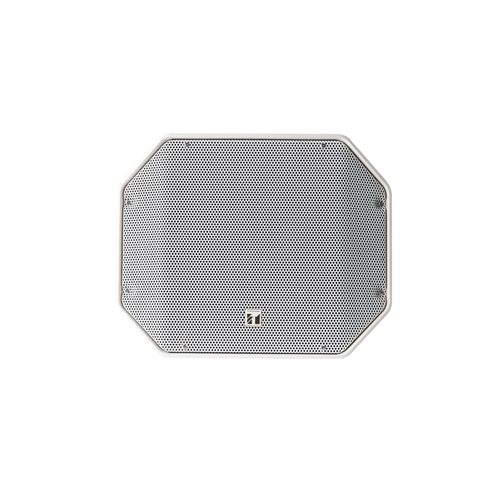

The CS-760W is a compact 2-way weatherproof speaker system designed for high efficiency, high power input handling capacity, and is a high intelligible speaker suited for public address announcement and BGM application in a fully outdoor environment. Being IP-66 certified, external speaker component finished to ensure the unit's weatherproof ability and special paint coat prevents color degradation, ensuring it's long-lasting exterior condition. This model is designed with a rotary switch that facilitates hassle-free impedance change.
| Rated Input | 60 W (high impedance) |
|---|---|
| Rated Impedance | 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W)
70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W) |
| Sensitivity | 100 dB (1 W, 1 m) |
| Maximum Sound Pressure Level | 117 dB (60W, 1 m) |
| Frequency Response | 100 - 20 kHz |
| Crossover Frequency | 2.5 kHz |
| Directivity Angle | Horizontal: 90° ; Vertical: 80° |
| Speaker Component | Low Frequency: 16 cm cone-type
High Frequency: 2.5 cm dome tweeter |
| Dust/Water Protection | IP 66 |
| Connection | Speaker Cord (Hot: Black ; Com: White) |
| Finish | Enclosure: ABS, White, paint coating
Punched net: Surface treated steel plate, White, paint coating Bracket: Stainless steel, White, powder coating |
| Dimensions | 388 (W) × 310 (H) × 367 (D) mm |
| Weight | 7.4 kg |
| Option | Pole Mounting Bracket: SP-131
Speaker Mounting Bracket: SP-201 Pole Band: YS-60B Speaker Stand: ST-34B |
