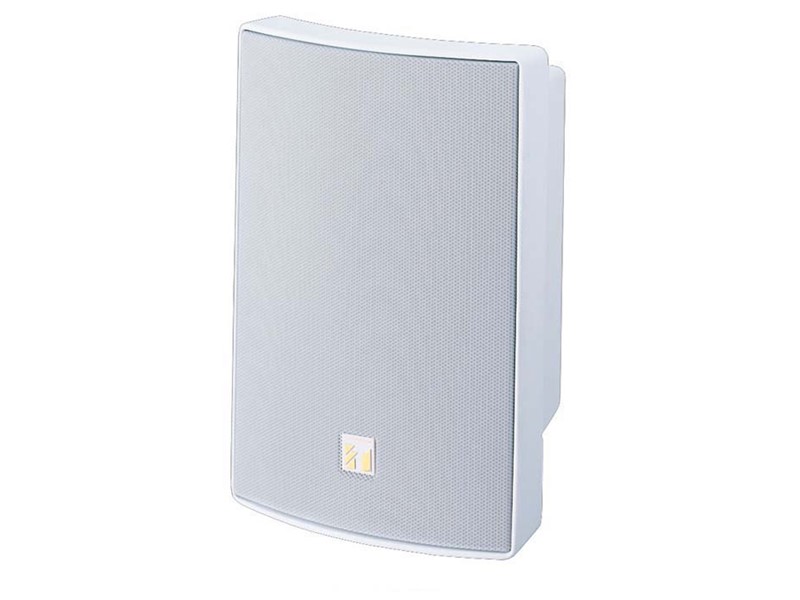

The BS-P1030W is a 2-way bass-reflex type speaker with a built-in 30W digital power amplifier, suitable for use for announcements and music playback. The speaker's splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain.
| Enclosure | 2-way bass-reflex type |
|---|---|
| Power Source | 24 V DC, 1.5 A (DC Socket "+" Type A: 5.5 x 2.1mm) |
| Power Consumption | 24 W (1A) at rated output |
| Input | 5 kΩ, unbalanced (RCA plug)
Maximum input: +6 dB V ( 2 Vrms) |
| Signal Gain | +30 dB |
| Volume Adjustment | Volume Control (Factory pre-set to middle position) |
| Sound Pressure Level | 90 dB (1 W, 1 m) |
| Frequency Response | 80 Hz - 20 kHz |
| Speaker Component | 12 cm cone-type + dome-type |
| Speaker Cord | Length: 2m Flying Lead (RCA plug) & DC socket ("+") |
| Operating Temperature | -10 ℃ to +50 ℃ |
| Water Protection | IPX4 (can be installed vertically or horizontally.*) |
| Finish | Enclosure: ABS resin, white (RAL9010 PURE WHITE), paint
Net: Surface treated steel plate, white (RAL9010 PURE WHITE), powder coating Bracket: Surface treated steel plate, white equivalent to RAL9010 PURE WHITE, powder coating |
| Dimension | 196 (W) × 290 (H) × 150 (D) mm (unit only) |
| Weight | 2.5 kg (unit only) |
| Accessory | Bracket…1, Bracket mounting screw…2, Bracket mounting washer…2 |
| Option | Applicable bracket: SP-410
Applicable stand: ST-16A |
