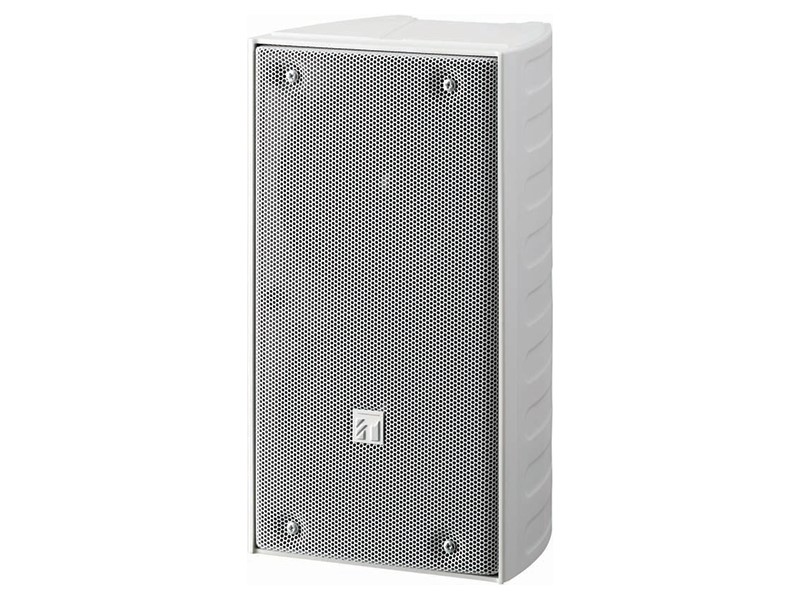

The TZ Series Column Speakers are highly efficient compact speakers that deliver excellent sound performance in medium sized venues such as houses of worship, gymnasiums, auditoriums and more.
| Enclosure | Sealed Type |
|---|---|
| Rated Input | 20 W |
| Rated Impedance | 100 V line: 500 Ω (20 W), 1 kΩ (10 W), 2 kΩ (5 W), 4 kΩ (2.5 W)
70 V line: 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 4 kΩ (1.3 W) |
| Sensitivity | 90 dB (1 W, 1 m) |
| Frequency Response | 150 Hz - 16,000 Hz |
| Speaker Component | 10 cm cone-type × 2 |
| Input Terminal | Push-In terminal |
| Finish | Enclosure: HIPS, white
Punched Net: Surface-tread steel plate, white, paint Speaker Bracket: Aluminum die-cast, white, paint Joint Bracket, Wall Bracket: Steel plate, t1.6, white, paint |
| Dimensions | 135 (W) × 250 (H) × 128 (D) mm |
| Weight | 1.9 kg (unit only) |
| Accessory | Speaker Bracket x 1, Joint Bracket x 1, Wall Bracket x 1, Fixing Bolt (M5 x 60) x 1, Hexagon Bolt (M6 x 12) (with plain washer and spring washer) x 2, Machine Screw (M5 x 20) (with plain washer and spring washer) x 2, Hexagon Bolt (M8x 15) x 1 |
| Option | Speaker Stand: ST-16A |
