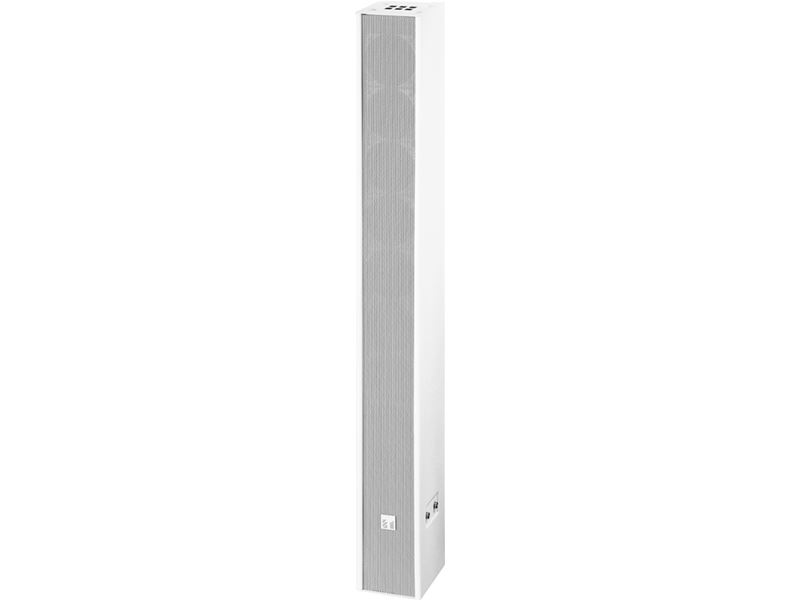

TOA TZ-S60W Slim Array Speaker, equipped with 9 vertically arrayed 8cm speaker units, delivers high clarity sound with a 90° horizontal x 0° vertical directivity control. This feature enables it to project clear sound even in rooms with reverberation problem. Two TZ-S60W can be stacked to improve sound transmission distance and the vertical coverage area. For installation flexibility, both low impedance and high impedance is available by a rotary switch.
| Enclosure | Bass Reflex Type |
|---|---|
| Max. Input Power
(Low Impedance) |
120 W (Continuous pink noise) |
| Rated Input
(High Impedance) |
60 W |
| Rated Impedance | Low Impedance: 8Ω
100 V line: 167 Ω (60 W), 330 Ω (30 W), 500 Ω (20 W), 1 kΩ (10 W): Selectable |
| Sensitivity | 95 dB (1 W, 1 m) |
| Frequency Response | 180 Hz - 15,000 Hz |
| Speaker Component | 8 cm (3") cone-type × 9 |

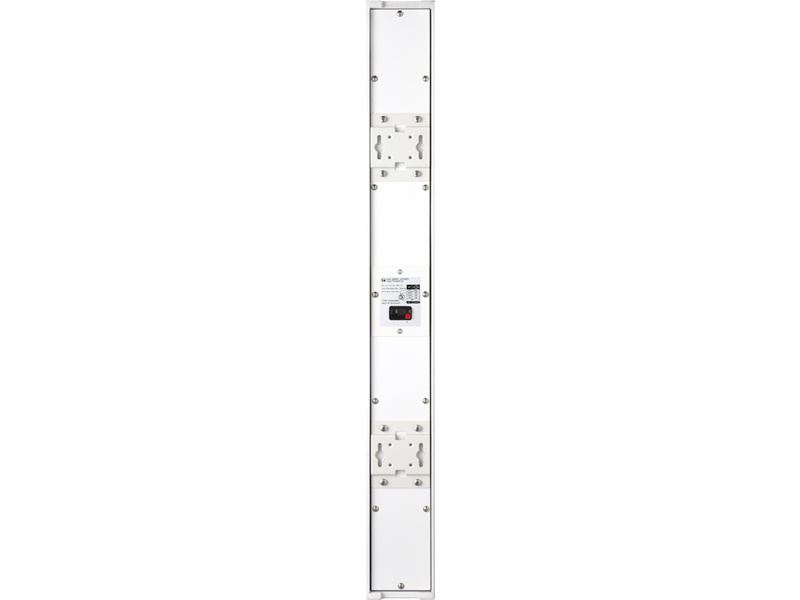

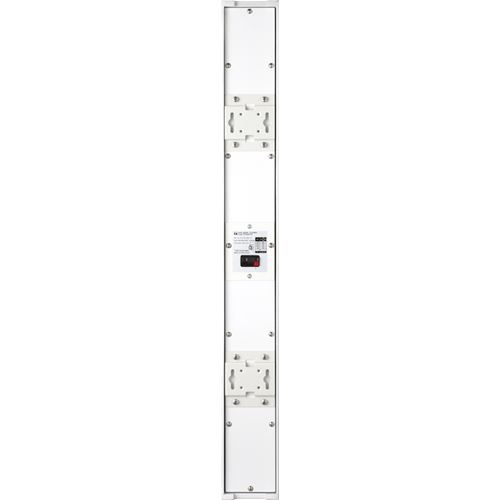

| Connection | Push-In Terminals |
| Operating Temperature | -10 °C - +50 °C |
| Directivity Angle | Horizontal: 90° / Vertical: 0° |
| Impedance Change | Rotary Switch (Selectable) |
| Finish | Enclosure: MDF, Wet Paint, White
Punched Net: SECC, Wet Paint, White Wall Bracket: SECC, Wet Paint, White Side Panel: SECC, Wet Paint, White Metal Cover: SECC, Wet Paint, White |
| Dimensions | 100 (W) × 883 (H) × 130 (D) mm |
| Weight | 8.2 kg (unit only) |
| Accessory | Speaker Bracket x 1, Joint Bracket x 1, Wall Bracket x 1, Fixing Bolt (M5 x 60) x 1, Hexagon Bolt (M6 x 12) (with plain washer and spring washer) x 2, Machine Screw (M5 x 15) (with plain washer and spring washer) x 4 |
| Option | HY-S60W: Side Stack Bracket x 2, Rear Stack Bracket x 1 |
