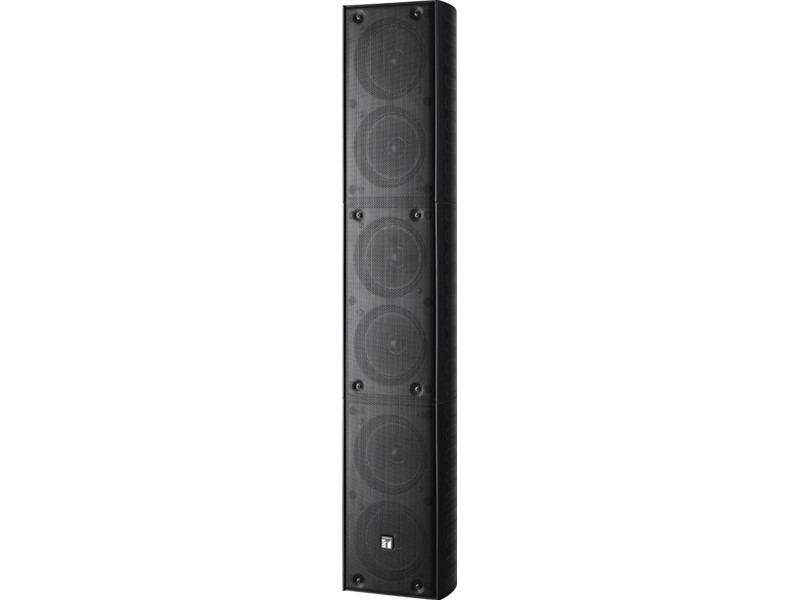

The TZ Series Column Speakers are highly efficient compact speakers that deliver excellent sound performance in medium sized venues such as houses of worship, gymnasiums, auditoriums and more. The weatherproof range of TZ Series Column Speakers has attained a rating of IP-65. They are capable of withstanding weather conditions in outdoor installations.
| Enclosure | Sealed Type |
|---|---|
| Rated Input | 60 W |
| Rated Impedance | 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W)
70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 1.3 kΩ (3.8 W) |
| Sensitivity | 94 dB (1 W, 1 m) |
| Frequency Response | 150 Hz - 13,000 Hz |
| Speaker Component | 10 cm cone-type × 6, waterproof |
| Input Terminal | Push-In terminals |
| Operating Temperature | -10 °C - +50 °C |
| Dust/Water Protection | IP 65 |
| Finish | Enclosure: HIPS, black, paint
Punched Net: Surface-tread steel plate, black, anticorrosive paint Speaker Bracket: Aluminum die-cast, black, paint Joint Bracket, Wall Bracket: Steel plate, t1.6, black, paint (ED Coating) |
| Dimensions | 135 (W) × 746 (H) × 128 (D) mm |
| Weight | 5.5 kg (unit only) |
| Accessory | Speaker Bracket x 1, Joint Bracket x 1, Wall Bracket x 1, Fixing Bolt (M5 x 60) x 1, Hexagon Bolt (M6 x 12) (with plain washer and spring washer) x 2, Machine Screw (M5 x 20) (with plain washer and spring washer) x 2, Hexagon Bolt (M8x 15) x 1, Terminal Cover x 1, Tapping Screw (4 x 12) x 4 |
| Option | Speaker Stand: ST-16A |
