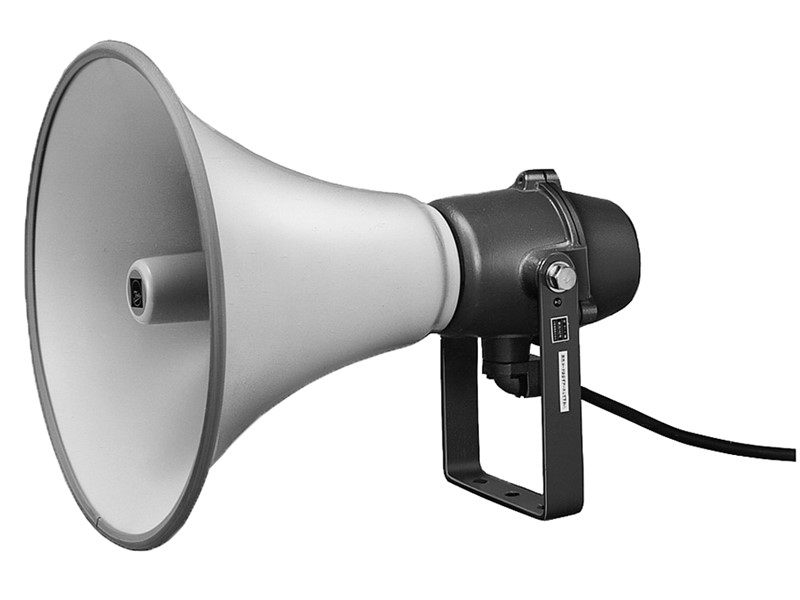

The TP-M15E Explosion-Proof Speaker provides added safety as to electrical operations, mechanical construction and temperature so as to prevent electrical equipment which do not generate sparks or heat that can ignite an explosive atmosphere under the condition of normal use from generating such sparks and heat.
| Rated Input | 15 W |
|---|---|
| Rated Impedance | 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) |
| Frequency Response | 300 Hz - 5.5 kHz |
| Sensitivity | 104 dB (1 W, 1 m) |
| Category | eG4 (Increased safety explosion-proof) |
| Standard Environmental Condition | Temperature: -20 ℃ to +40 ℃
Elevation: 1 km or less Relative humidity: 45 % to 85 % Others: Dust, corrosive gas or vibration which requires special considerations to be provided in the explosion-prof faciity must not exist. |
| Finish | Horn: Ivory
Others: Dark brown Bracket materials: Surface zinc treated steel plate (SECC, t3.2) |
| Dimensions | φ392 × 475 (D) mm |
| Weight | 4.9 kg |
