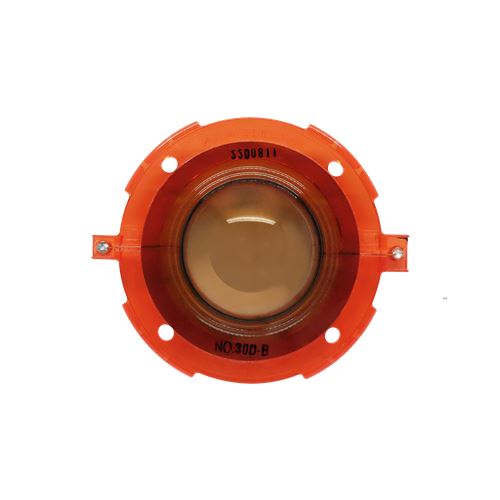

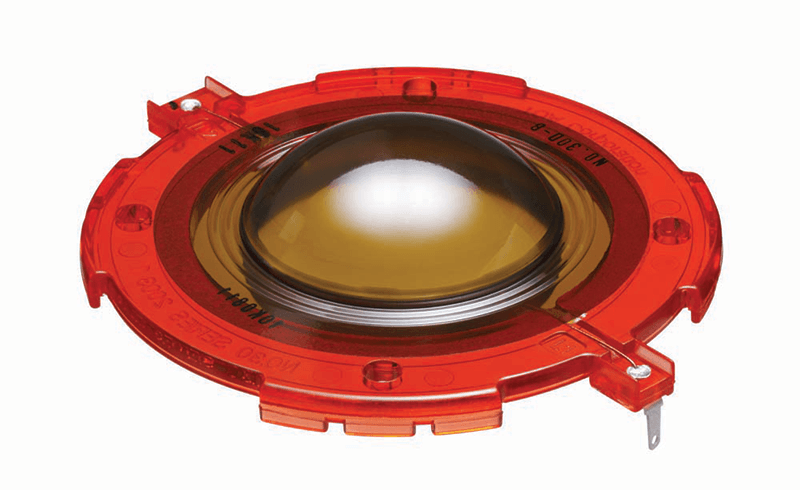

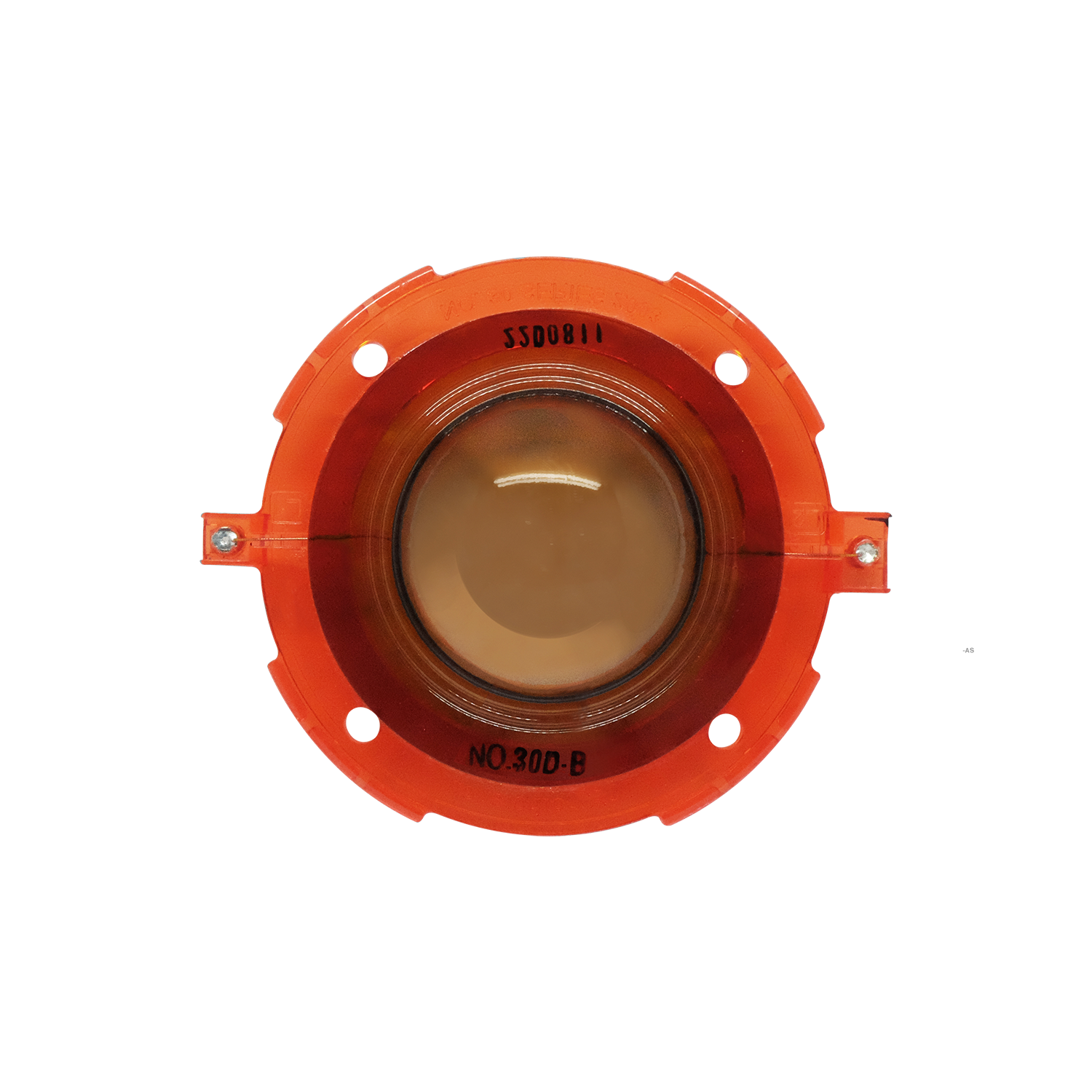

TOA-30D is a speaker diaphragm that is part of horn speaker. Designed to be made by polyimide material, this diaphgram can produce good quality sound and strong to power handling.
| Applicable Driver Units | TU-631, TU-631M, TU-651, TU-651M, TC-651M, TU-632, TU-632M, TU-652, TU-652M |
|---|---|
| Rated Input | 50 W (When operated with TU-652) |
| Rated Impedance | 16 Ω (When operated with TU-652 with TH-652) |
| Sound Pressure Level | 110 dB (1W, 1m) (When operated TU-652 with JIS C 5504 standard horn) |
| Frequency Response | 150 Hz - 6,000 Hz (When operated TU-652 with JIS C 5504 standard horn) |
| Dimensions | Φ104 × 24 (D) mm |
| Weight | 24 g |
