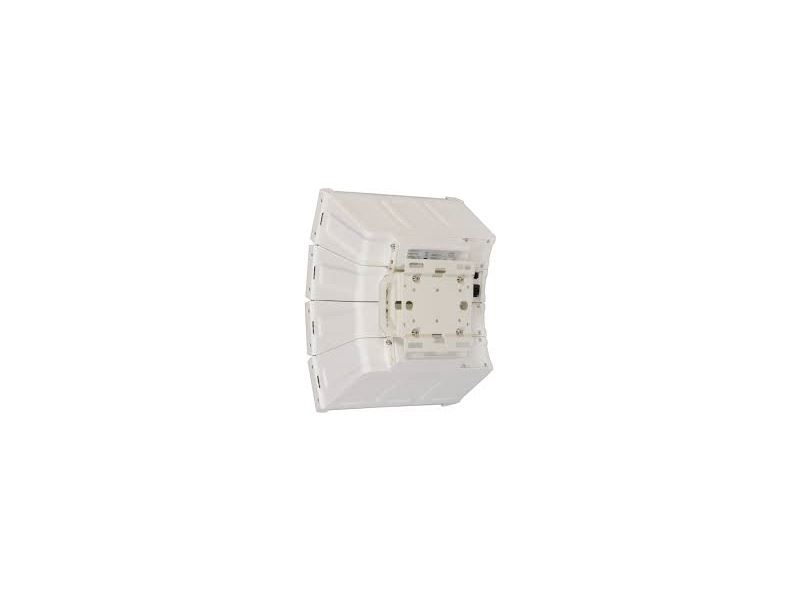

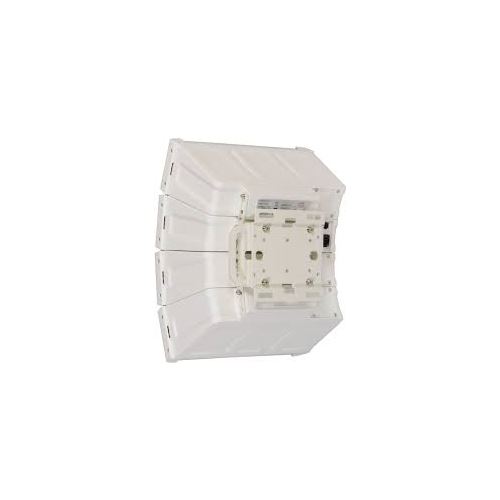

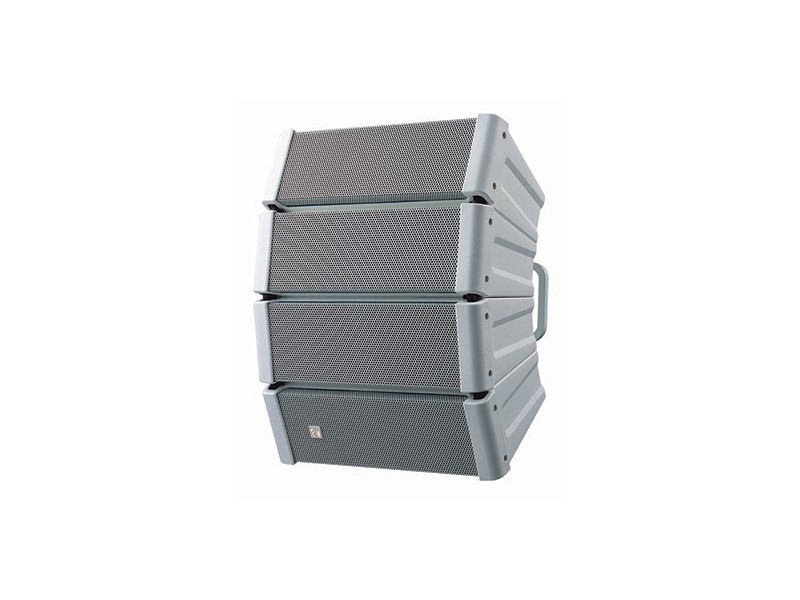

The HX-5W-WP is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in directivity. It is ideal for reproducing clear sound in spaces with long reverberation times or high background noises. In locations where the speaker is directly exposed to rain, periodical check is required as the deterioration of speaker may progress depending on the installation environments.
| Enclosure | Sealed type |
|---|---|
| Power Handling Capacity | Continuous pink noise: 200 W, Continuous program: 600 W |
| Rated Impedance | 8 Ω |
| Sensitivity (1 W, 1 m) | 96 dB (60゜ mode), 97 dB (45゜ mode), 98 dB (30゜ mode), 99 dB (15゜ mode) |
| Frequency Response | 95 Hz - 20 kHz (-10 dB) (60%%d mode), 100 Hz- 20 kHz (-10 dB) (45%%d mode),
105 Hz - 20 kHz (-10 dB) (30%%d mode), 110 Hz - 20 kHz (-10 dB) (15%%d mode) |
| Crossover Frequency | 4 kHz |
| Directivity Angle | Horizontal: 100゜ (2 kHz or more)
Vertical: 60゜ (800 Hz or more), 45゜ (1.2 kHz or more), 30゜ (1.6 kHz or more), 15゜ (3.2 kHz or more) variable |
| Speaker Component | Low frequency: 12 cm cone-type × 4, High frequency: Balanced dome-type × 12 |
| Speaker Cord | 2-core cabtyre cord with diameter of 6 mm |
| Water Protection | IPX4 (Install with the every speaker module downward.) |
| Operating Temperature | -15 ℃ to +50 ℃ |
| Finish | Enclosure: Polypropylene, white
Punched net: Surface-treated steel plate, white, rust proof coating |
| Dimensions | 408 (W) × 546 (H) × 342 (D) mm |
| Weight | 16 kg |
| Accessory | Hanging bracket …2, Hex. wrench …1 |
| Option | Matching transformer: MT-200
Speaker mounting bracket: HY-PF1WP, HY-CW1WP, HY-WM1WP, HY-WM2WP, HY-CN1W-WP |
