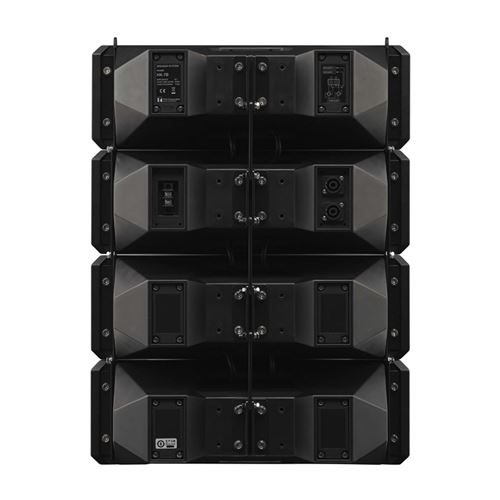

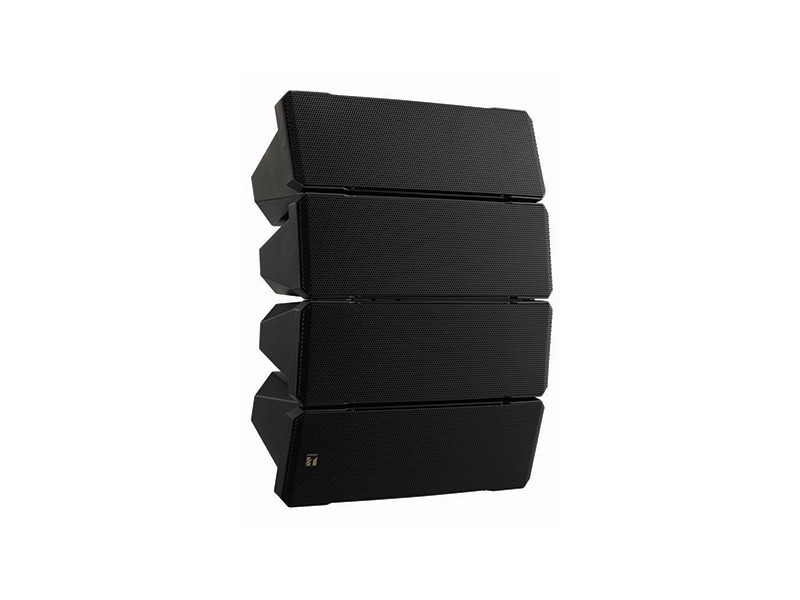

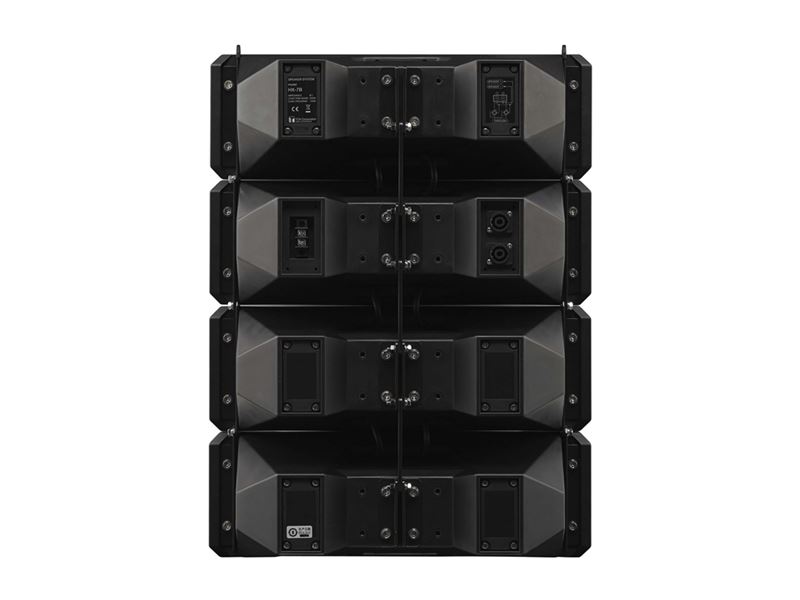

The HX-7B-WP is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in vertical directivity. Its adopted wave front control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise. The speaker is designed to be installed under the eaves when used outdoors.
| Enclosure | Sealed type |
|---|---|
| Power Handling Capacity | Continuous pink noise: 250 W (IEC60268-5: 350 W)
Continuous program: 750 W |
| Rated Impedance | 8 Ω |
| Sensitivity | 100 dB (1 W, 1 m) |
| Frequency Response | 75 Hz - 20 kHz |
| Crossover Frequency | 1.7 kHz |
| Directivity Angle | Horizontal: 100゜
Vertical: Depending on directivity angle mode |
| Speaker Component | Low frequency: 13 cm (5.5") cone-type × 8
High frequency: Wave front control horn with compression driver × 4 |
| Input Terminal | M4 screw terminal, distance between barriers: 9 mm (0.35") |
| Water Protection | IPX4 (Install with every speaker module tilted downward from the horizontal.) |
| Finish | Enclosure: Polypropylene, black
Punched net: Surface-treated steel plate, black, rust proof coating |
| Dimensions | 497 (W) × 664 (H) × 274 (D) mm (19.57" × 26.14" × 10.79") |
| Weight | 30 kg (66.14 lb) |
| Accessory | Terminal cover …1, Terminal cover mounting screw …4, Rubber packing …1 |
| Option | Matching transformer: MT-200*
Matching transformer adapter: HY-MT7 Speaker mounting bracket: HY-TM7B-WP, HY-MS7B-WP, HY-60DB-WP, HY-CN7B-WP |
