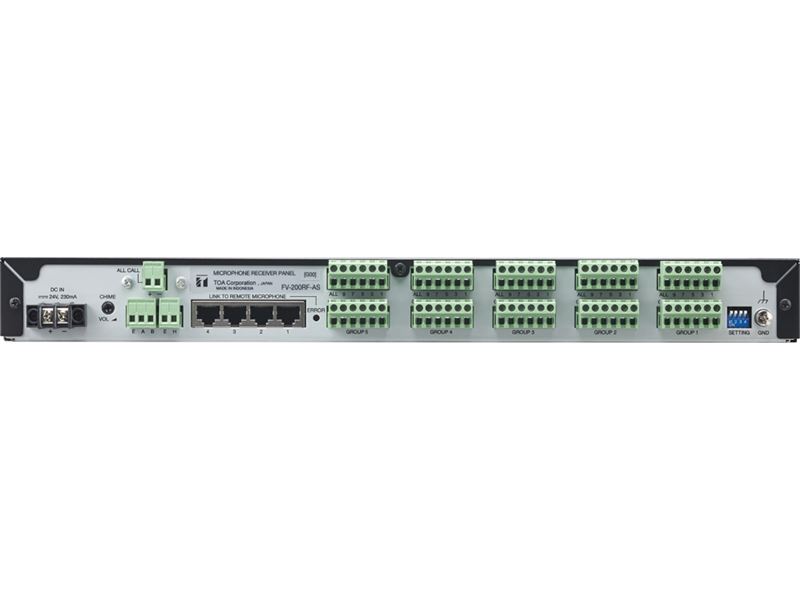

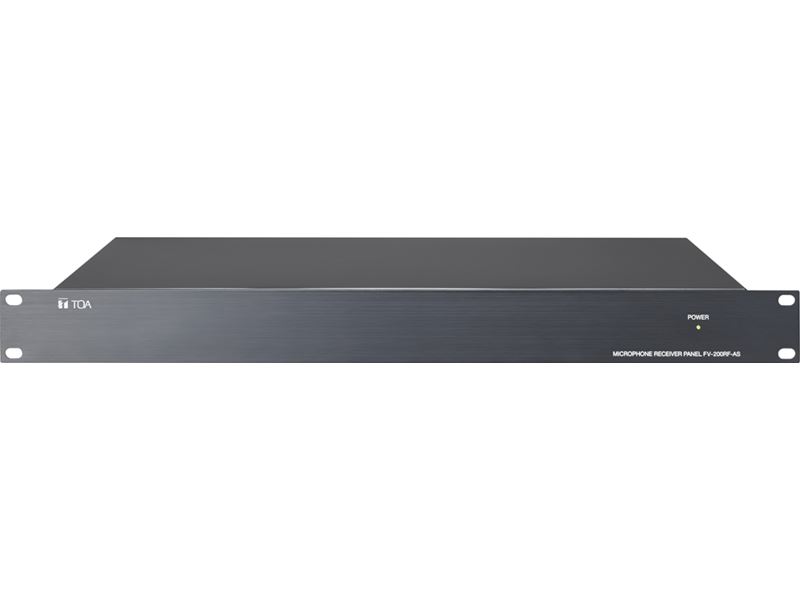

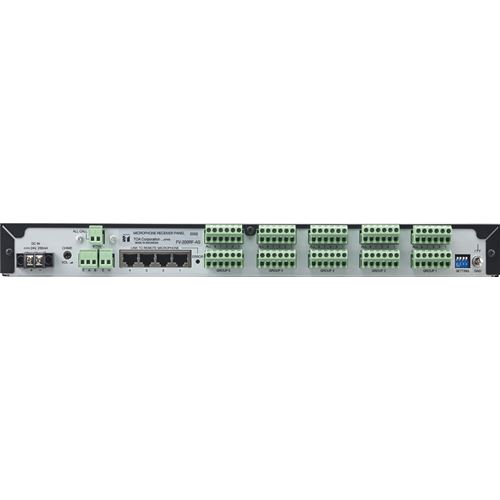

The FV-200RF Microphone Receiver Panel is used to connect the RM-200M Remote Microphone to the FV-200 Series Emergency Public Address System. Up to 4 RM-200M can be connected.
| Power Source | Usable Power Supply Unit: FV-200PS
24 V DC (operating range: 19.5 - 27 V), M3 screw terminal |
|---|---|
| Current Consumption | 230 mA |
| No. of Zone Groups in Speaker Selector | Max. 10 (SS-2010, SS-1010R, SS-1010) |
| Priority Control for Remote Microphone | Last-in-1st-out priority / 1st-in-1st-out priority / individual priority / selectable |
| Control Input | All call :1 input,No-voltage make contact input,open voltage 24V DC,
short-circuit current : Under 5 mA, removable terminal block (2 pins) |
| Control Output | SS Control : 55 outputs, open collector output, removable terminal block (6 pins) |
| Chime | Ascending 4-note tone |
| RF Link | |
| Audio Output | 0 dB*, unbalanced, removable terminal block (2 pins) |
| RM Link | |
| Usable Remote Microphone | RM-200M Remote microphone extention unit : RM-210 (Max. 4 units) |
| No. of Connectable to Remote Microphone | Max. 4 x RM-200M |
| Max. Cable Distance | Total 800 m |
| S/N Ratio | Over 60 dB |
| Distortion | Under 1% (1 kHz, rated output) |
| LED Indicator | Power (Green), Error (Red) |
| Operating Temperature | 0 ℃ to +40 ℃ |
| Operating Humidity | Under 90% RH (no condensation) |
| Finish | Front Panel : Aluminum, black, alumite |
| Dimensions | 482 (W) × 44 (H) × 320 (D) mm |
| Weight | 2.8 kg |
| Accessory | Removable terminal plug (2 pins) x 2, removable terminal plug (3 pins) x 1, removable terminal plug (6 pins) x 10, Instruction Manual x 1 |
