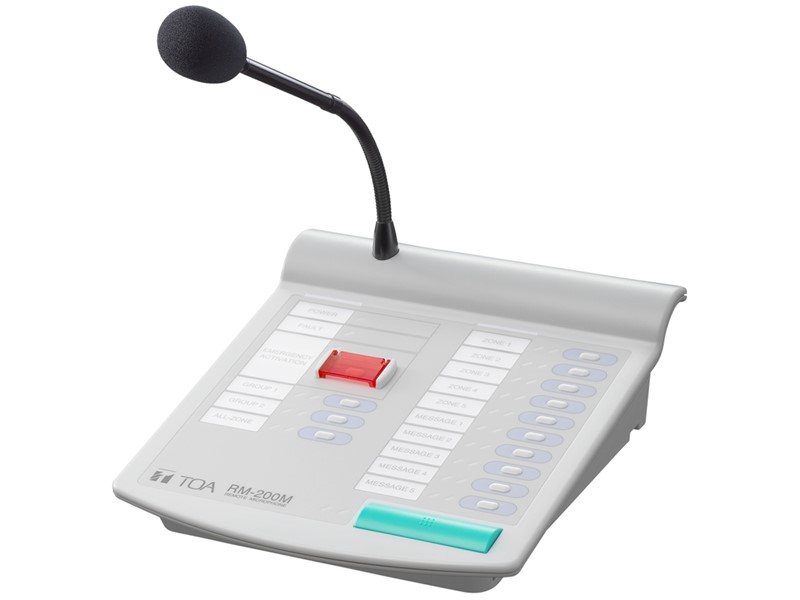

The RM-200M Remote Microphone connects to the VM-3240VA, VM-3360VA, VM-2120 and VM-2240 for the purpose of making emergency(*3)/general broadcast announcements.
| Power Source | 24 V DC (Operating range: 14 - 28 V DC)
Power input jack: Non-polarity type Usable power input plug(*2): Outer diameter ø5.5 mm, inner diameter ø2.1 mm, length 9.5mm |
|---|---|
| Current Consumption | 100 mA or less |
| Audio Output | 0 dB(*1), 600 Ω, balanced |
| Distortion | 1% or less |
| Frequency Response | 100 - 20 kHz |
| S/N Ratio | 60 dB or more |
| Microphone | Unidirectional electret condenser microphone |
| No. of Function Keys | 13, Emegency key (covered), Talk key |
| Emergency Broadcast(*3) | Activation of Emergency Broadcast (pre-recorded announcement or live
microphone announcement) by Emergency Broadcast Switch |
| Volume Control | Microphone volume control |
| Connection Cable and Connector | Category 5 STP cable, RJ45 connector |
| Finish | ABS resin, blueish gray (Pantone 538 or its equivalent) |
| Dimensions | 190 (W) × 76.5 (H) × 215 (D) mm (Gooseneck microphone excluded) |
| Weight | 750 g |
| Accessory | Link cable (3 m) ……1 |
| Option | Wall mounting bracket: WB-RM200 |
