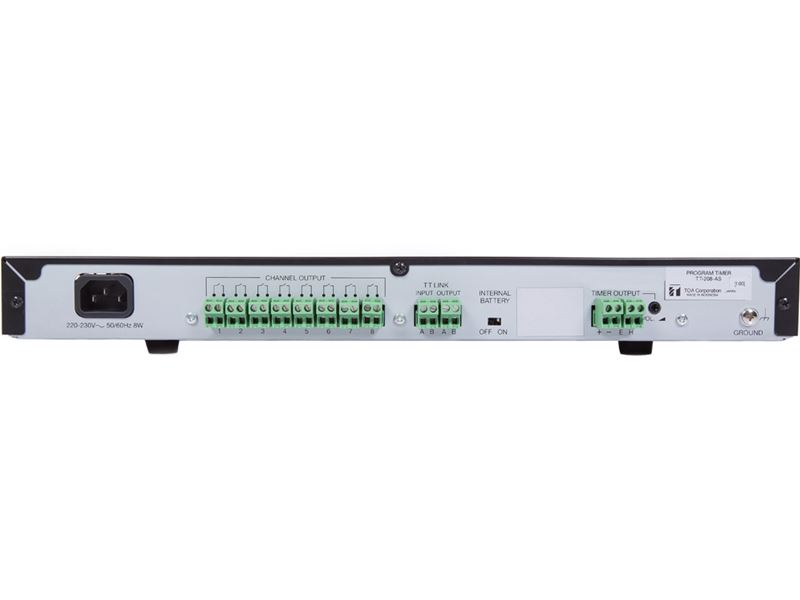

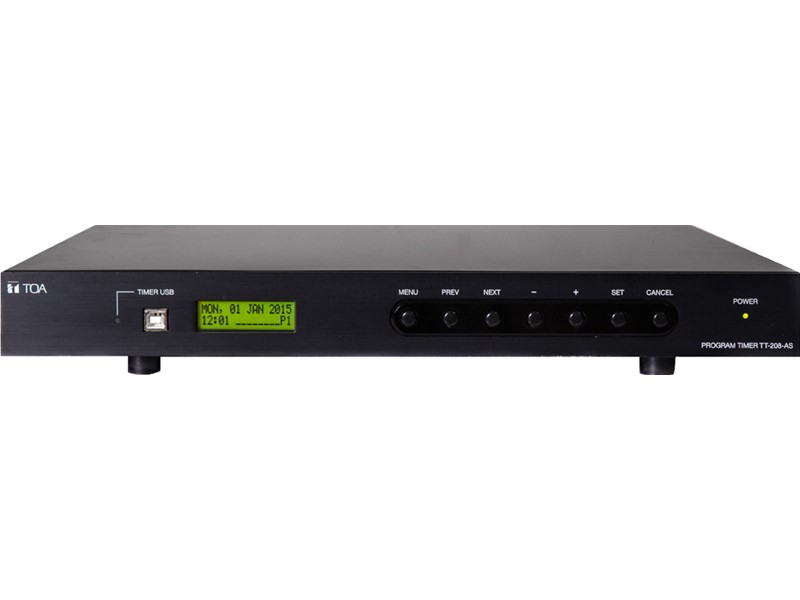

The TT-208 is a weekly program timer that comes with 8 channels out contact switch and 1 output contact with westminister chime audio. Can be use with an optional rack-mount bracket to mount on an EIA standard equipment rack, occupying 1 U size).
| Power Source | 220 - 230 V AC, 50/60 Hz |
|---|---|
| Power Consumption | 10 W |
| Audio Output | Westminster Chime, Level : 0 dB, 600 |
| Frequency Response | 20 Hz - 20 kHz |
| Synchronise Time | Send out pulse per 1 minute |
| Control Output | 8 channels contact switch (NO), 1 output contact switch (NO) |
| Display | Power Indicator : Green, LCD Character : Back light green, USB Indicator PC Link : Orange |
| Operating Temperature | 0 ℃ to +40 ℃ |
| Operating Humidity | Under 90% RH (no condensation) |
| Color | Front Panel : Aluminum, Black, Alumite
Case : SECC plate, black, paint |
| Dimensions | 420 (W) × 59 (H) × 342 (D) mm (16.54 × 2.32" × 13.46")" |
| Weight | 3.2 kg (7.05 lb) |
| Option | Rack-mounting bracket: MB-15B |
| Accessories | Power cable (YA-301) x 1, Removable terminal plug (2 pin) x 12, CD Rom (Software & Manual) x 1 |
