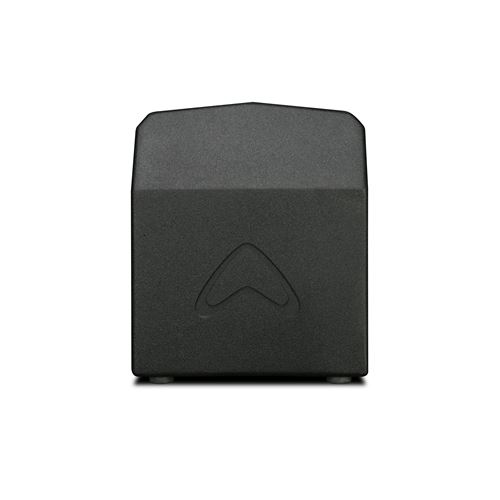

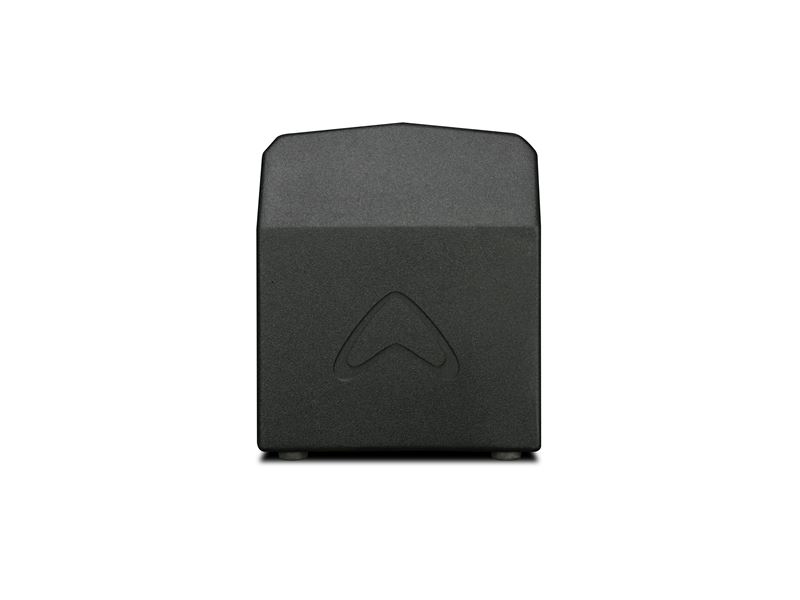

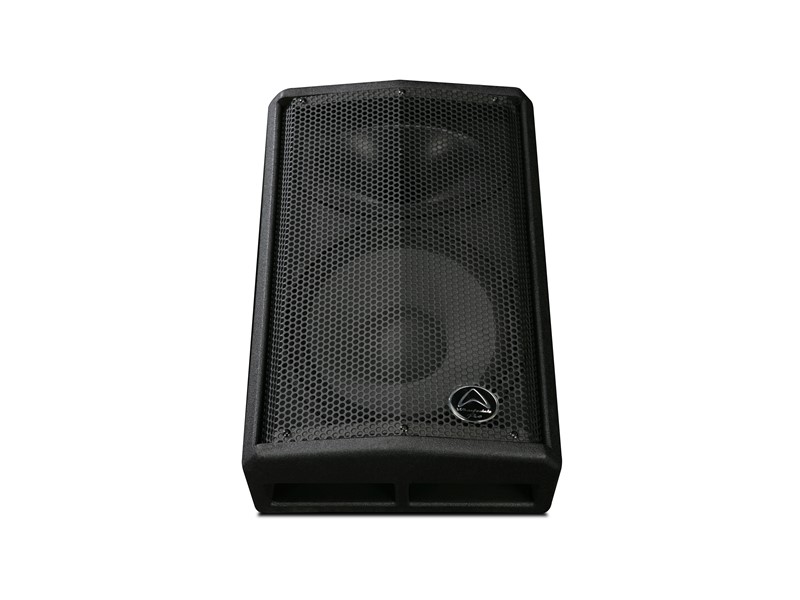

DVP-AX12M
- 12″ two-way bi-amplified monitor
- 250 watts Continuous power
- 500 watts Peak power
- 90° x 60° dispersion
- 1.75″ HF Compression driver
- 2.5″ LF voice coil
- 7-band Graphic EQ
- Power output for secondary passive loudspeaker
- 129 dB Max SPL @ 1 meter
DVP-AX is a comprehensive lineup of versatile and road-ready active loudspeakers. Class D amplification housed in ultra hard wearing cabinets make DVP-AX a perfect choice for hardworking DJ’s and musicians on the road.
The full-range models feature advanced DSP processing with 6 presets tailored to overcome many real-life sonic challenges and a practical 2 channel mic/line mixer makes life on stage easier.
The floor monitor models feature a 7-band EQ to help deliver maximum volume without feedback and a handy powered output for connecting to passive floor monitors.
While the electronics of DVP-AX set them apart from the competition, it is important not to overlook the custom Wharfedale Pro drivers in this lineup. Using dual layer LF transducers and the acclaimed IRIS X compression drivers, the mechanical features of DVP-AX have not been compromised.
DVP-AX delivers advanced electronics in a user-friendly format – but in a road-ready cabinet.
- Class D bi-amplified active loudspeakers
- Custom Wharfedale Pro transducers including IRIS-X HF drivers
- 2-way full range models feature internal 6-position DSP
- Subwoofers with Low Pass filter control
- Monitors with 7-band internal Graphic EQ and secondary output
- Large voice coils
- Impressive SPL figures
- For install or on the road
| Model Name | DVP-AX12M |
| System Type | Active 12″ 2-way monitor |
| Frequency Response (+/-3 dB) | 60-18 KHz |
| Frequency Range (-10 dB) | 55-20 KHz |
| Maximum SPL @1 m | 129 dB |
| Sensitivity @ 1 W / 1 m | 98 dB |
| LF transducer Size (mm / inches) | 305 mm / 12″ |
| LF Coil Size (mm / inches) | Dual layer 2.5″ |
| HF transducer : Type | Compression Driver |
| HF Coil Size (mm / inches) | 44 mm / 1.75″ |
| HF Exit Size (mm / inches) | 25 mm / 1″ |
| HF Diaphragm Material | Titanium |
| Nominal Coverage (H x V) | 90° x 60° |
| LF Power Amplifier -Class D, | 250 W / 500 W (8 Ω ) |
| RMS/Peak Watts | 500 W / 1000 W (4 Ω) |
| HF Power Amplifier -Class D, | N/A |
| RMS/Peak Watts | |
| DSP | 7-band EQ |
| Controls—D-EQ | 60 Hz 120 Hz 480 Hz 1 KHz 4 KHz |
| 8 KHz 16 KHz | |
| Amplifier Protection. Power On, Thermal, low voltage | Yes |
| Driver Protection,DC, Short, Clip indicator | Yes |
| Limiter Indicator | Red LED |
| Power Indicator | Green LED (Red LED front) |
| INPUTS : Input Sensitivity : Balanced | 775 mv |
| Maximum Input Level | 6 v |
| Input Connector | 2*XLR & 2*1/4″ (Line/MIC) |
| Input Impedance | Balanced:20 K |
| LPF control | N/A |
| Polarity Control | N/A |
| OUTPUTS : Line Output Connector | XLR(Balanced out) |
| AC Power Options : SMPS | 220-240 V 50/60 Hz |
| 100-120 V 50/60 Hz | |
| Pole socket | N/A |
| Handles | 2 carry handles (one on each side) |
| Enclosure Material and Finish | MDF / Black paint |
| Grille Material & Finish | steel |
| Dimensions – Unpacked (mm / inches): Height | 428 mm / 16.9”(SITU) |
| Width | 359 mm / 14.1” |
| Width (rear) | 359 mm / 14.1” |
| Depth | 537 mm / 21.1” |
| Dimensions – Packed (mm / inches):Height | 396 mm / 15.6” |
| Width | 396 mm / 15.6” |
| Width (rear) | 573 mm / 22.6” |
| Depth | 448 mm / 17.6” |
| Net Weight (kg / lbs) | 18.5 kg / 40.7 lbs |
| Gross Weight (kg / lbs) | 21.4 kg / 47.1 lbs |
