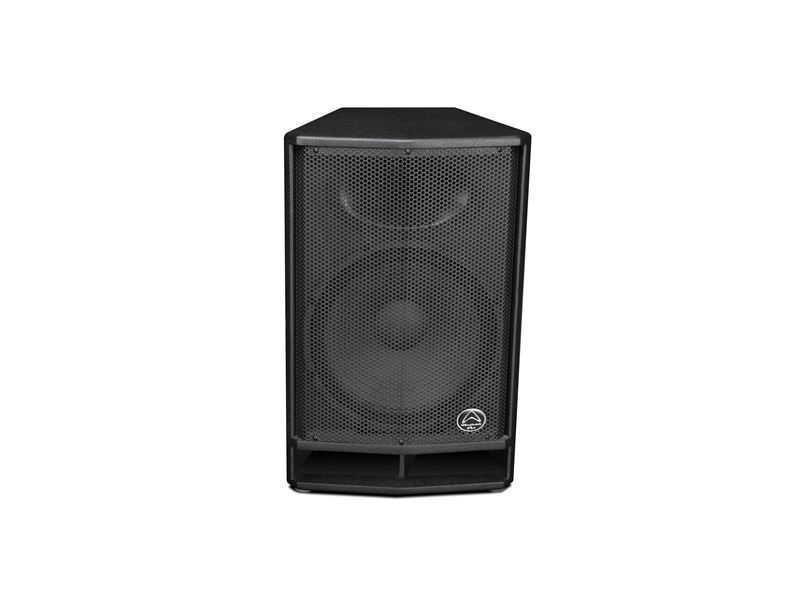

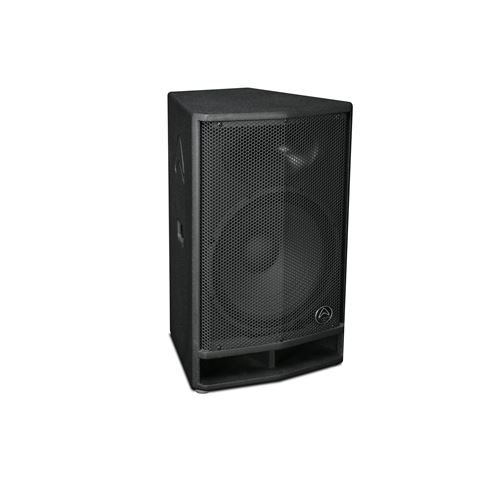

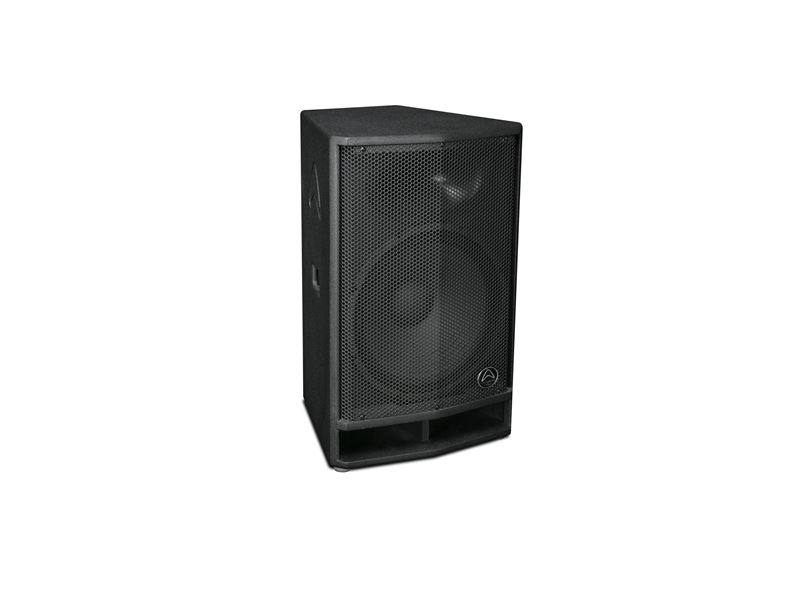

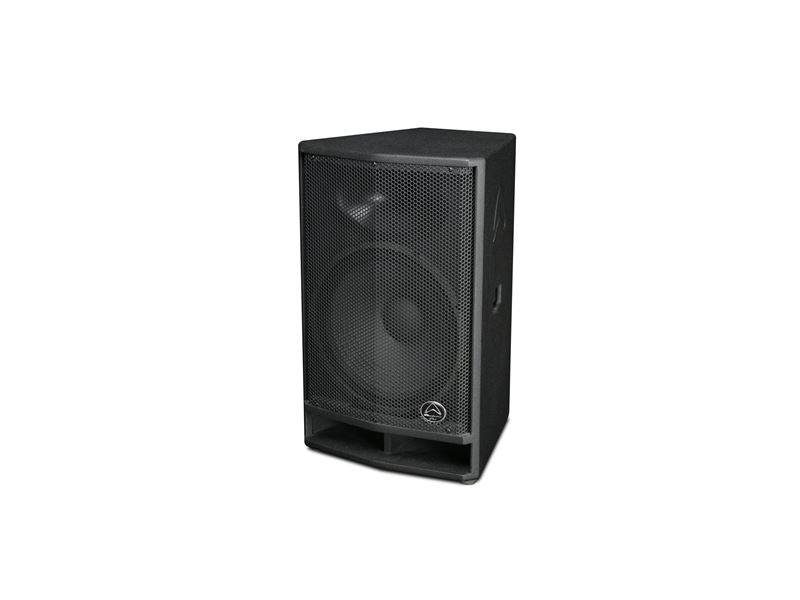

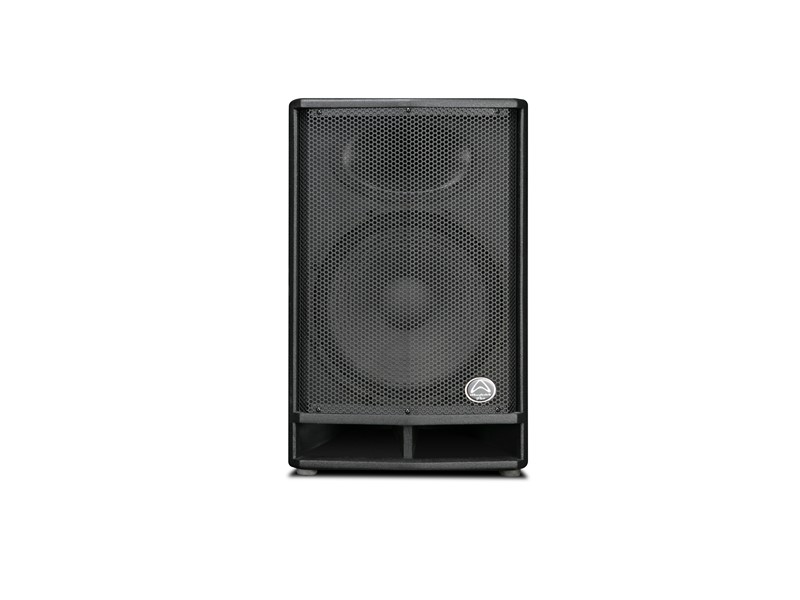

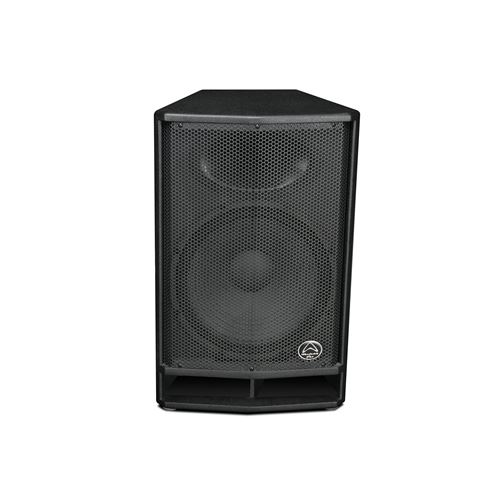

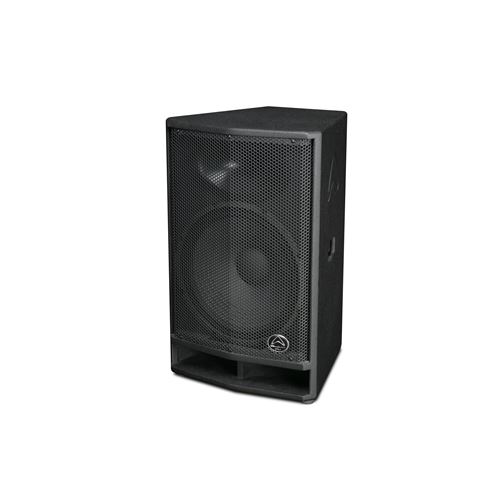

DVP-AX15
- 15″ two-way bi-amplified
- 400 watts Continuous power
- 800 watts Peak power
- 90° x 60° dispersion
- 1.75″ HF Compression driver
- 2.5″ LF voice coil
- 6 position DSP
- 130 dB Max SPL @ 1 meter
DVP-AX is a comprehensive lineup of versatile and road-ready active loudspeakers. Class D amplification housed in ultra hard wearing cabinets make DVP-AX a perfect choice for hardworking DJ’s and musicians on the road.
The full-range models feature advanced DSP processing with 6 presets tailored to overcome many real-life sonic challenges and a practical 2 channel mic/line mixer makes life on stage easier.
The floor monitor models feature a 7-band EQ to help deliver maximum volume without feedback and a handy powered output for connecting to passive floor monitors.
While the electronics of DVP-AX set them apart from the competition, it is important not to overlook the custom Wharfedale Pro drivers in this lineup. Using dual layer LF transducers and the acclaimed IRIS X compression drivers, the mechanical features of DVP-AX have not been compromised.
DVP-AX delivers advanced electronics in a user-friendly format – but in a road-ready cabinet.
- Class D bi-amplified active loudspeakers
- Custom Wharfedale Pro transducers including IRIS-X HF drivers
- 2-way full range models feature internal 6-position DSP
- Subwoofers with Low Pass filter control
- Monitors with 7-band internal Graphic EQ and secondary output
- Large voice coils
- Impressive SPL figures
- For install or on the road
| Model Name | DVP-AX15 |
| System Type | Active 15″ 2-way |
| Frequency Response (+/-3 dB) | 50-18 KHz |
| Frequency Range (-10 dB) | 45-20 KHz |
| Maximum SPL @1 m | 130 dB |
| Sensitivity @ 1 W / 1 m | 98 dB |
| LF transducer Size (mm / inches) | 381 mm / 15″ |
| LF Coil Size (mm / inches) | Dual 2 layer 2.5″ |
| HF transducer : Type | Compression Driver |
| HF Coil Size (mm / inches) | 44 mm / 1.75″ |
| HF Exit Size (mm / inches) | 25 mm / 1″ |
| HF Diaphragm Material | Titanium |
| Nominal Coverage (H x V) | 90° x 60° |
| LF Power Amplifier -Class D, | 350 W / 700 W |
| RMS/Peak Watts | |
| HF Power Amplifier -Class D, | 50 W / 100 W |
| RMS/Peak Watts | |
| DSP | Yes |

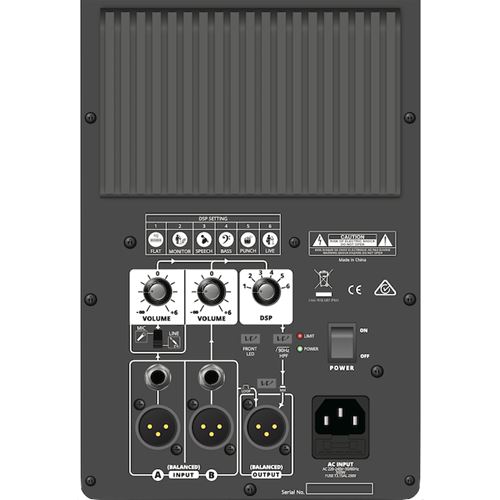

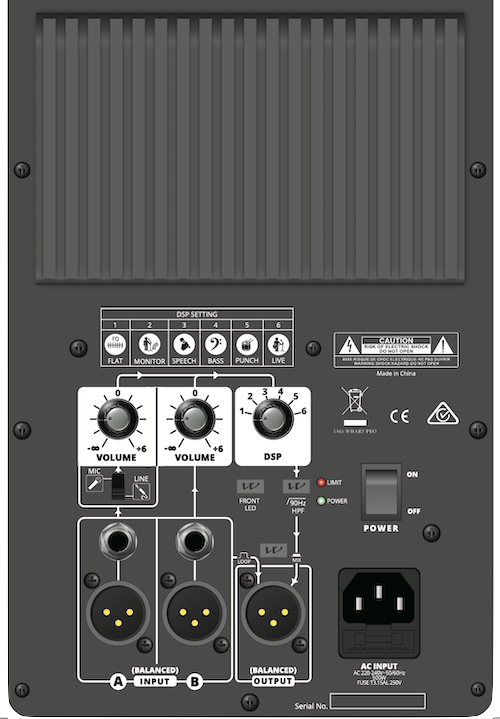

| Controls—D-EQ | 1:FLAT 2:MONITOR 3:SPEECH 4:BASS 5:PUNCH 6:LIVE |
| Amplifier Protection. Power On, Thermal, low voltage | Yes |
| Driver Protection,DC, Short, Clip indicator | Yes |
| Limiter Indicator | Red LED |
| Power Indicator | Green LED (Red LED front) |
| INPUTS : Input Sensitivity : Balanced | 775 mv |
| Maximum Input Level | 4 v |
| Input Connector | 2*XLR & 2*1/4″ (Line/MIC) |
| Input Impedance | Balanced:20 K |
| LPF control | N/A |
| Polarity Control | N/A |
| OUTPUTS : Line Output Connector | XLR |
| AC Power Options : SMPS | 220-240 V 50/60 Hz |
| 100-120 V 50/60 Hz | |
| Pole socket | Dual-angle (0°/10°) 35 mm socket |
| Handles | 2 carry handles (one on each side) |
| Enclosure Material and Finish | MDF / Black paint |
| Grille Material & Finish | steel |
| Dimensions – Unpacked (mm / inches): Height | 689 mm / 27.1” |
| Width | 443.5 mm / 17.5” |
| Width (rear) | 243.5 mm / 9.6” |
| Depth | 429.0 mm / 16.9” |
| Dimensions – Packed (mm / inches):Height | 750 mm / 29.5” |
| Width | 520 mm / 20.5” |
| Width (rear) | 290 mm / 11.4” |
| Depth | 485 mm / 19.1” |
| Net Weight (kg / lbs) | 23.8 kg / 52.4 lbs |
| Gross Weight (kg / lbs) | 27.3 kg / 60.1 lbs |
