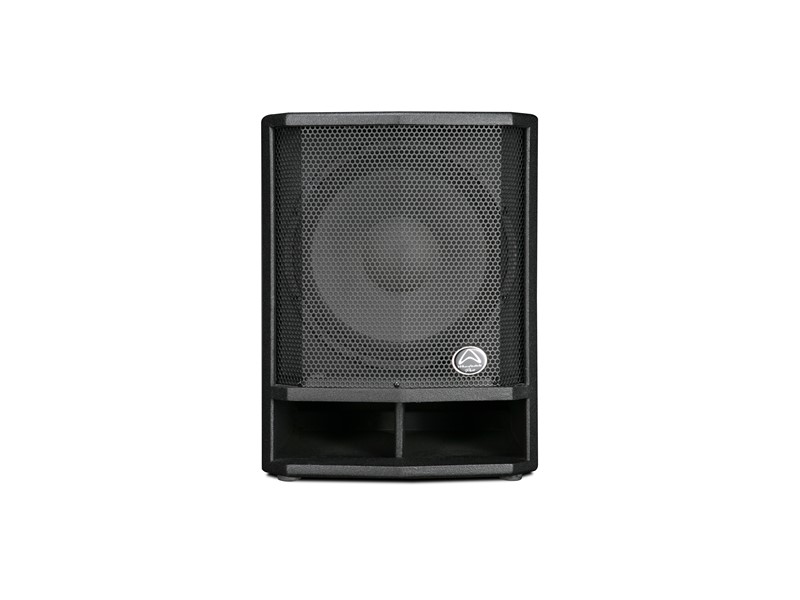

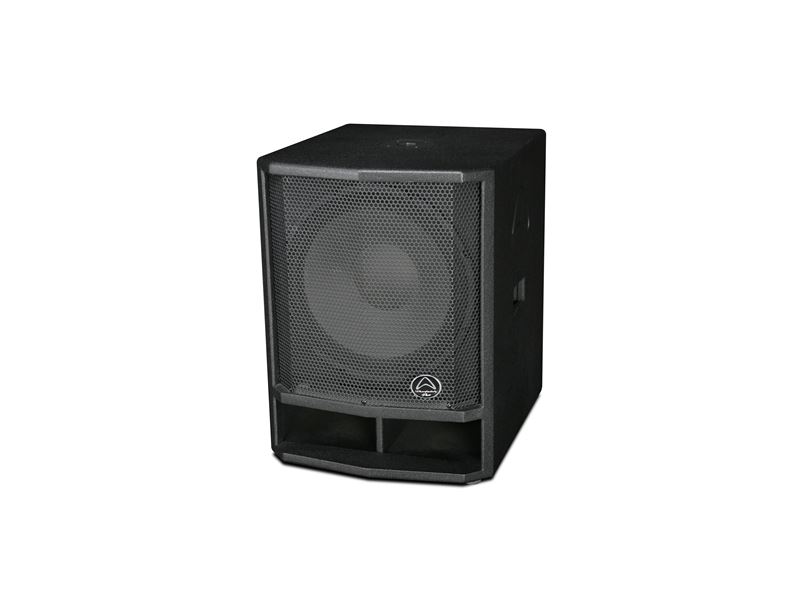

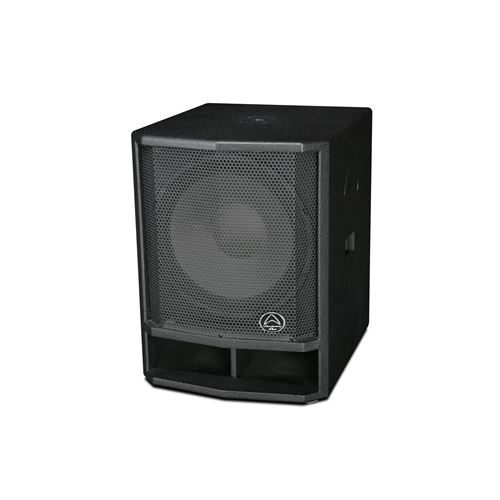

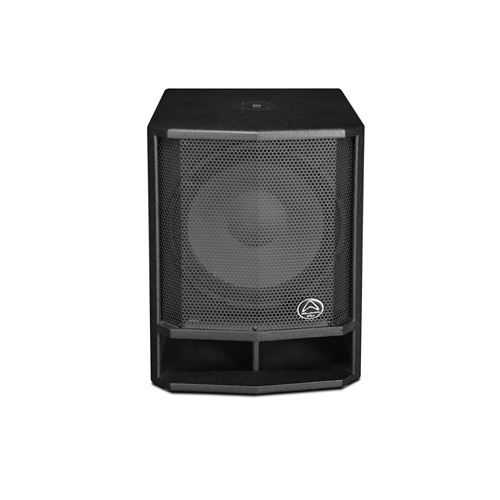

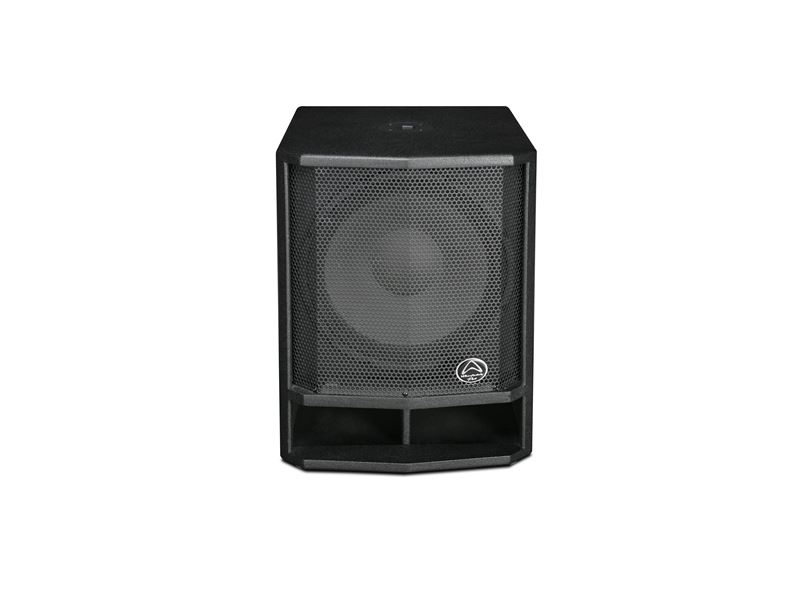

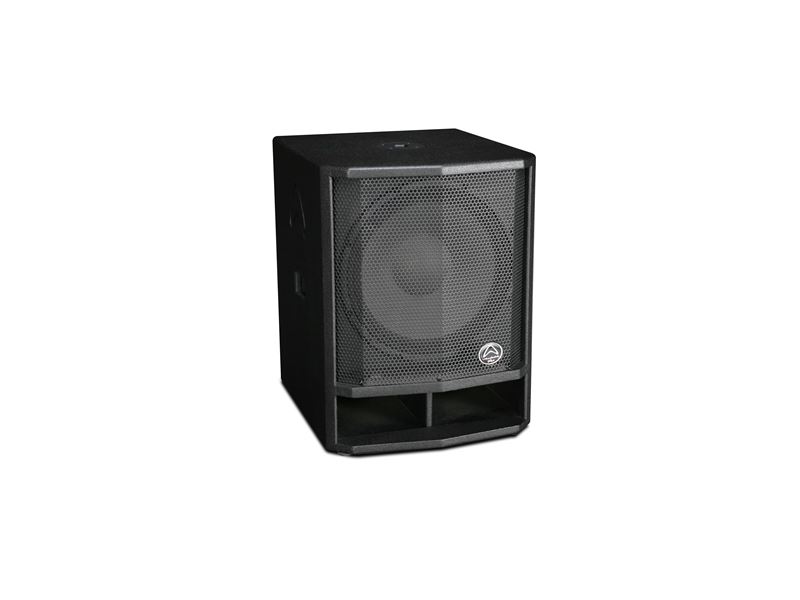

DVP-AX15B
- 15″ active subwoofer
- 600 watts Continuous power
- 1200 watts Peak power
- 2.5″ LF voice coil
- Adjustable Low pass filter
- 130 dB Max SPL @ 1 meter
DVP-AX is a comprehensive lineup of versatile and road-ready active loudspeakers. Class D amplification housed in ultra hard wearing cabinets make DVP-AX a perfect choice for hardworking DJ’s and musicians on the road.
The full-range models feature advanced DSP processing with 6 presets tailored to overcome many real-life sonic challenges and a practical 2 channel mic/line mixer makes life on stage easier.
The floor monitor models feature a 7-band EQ to help deliver maximum volume without feedback and a handy powered output for connecting to passive floor monitors.
While the electronics of DVP-AX set them apart from the competition, it is important not to overlook the custom Wharfedale Pro drivers in this lineup. Using dual layer LF transducers and the acclaimed IRIS X compression drivers, the mechanical features of DVP-AX have not been compromised.
DVP-AX delivers advanced electronics in a user-friendly format – but in a road-ready cabinet.
- Class D bi-amplified active loudspeakers
- Custom Wharfedale Pro transducers including IRIS-X HF drivers
- 2-way full range models feature internal 6-position DSP
- Subwoofers with Low Pass filter control
- Monitors with 7-band internal Graphic EQ and secondary output
- Large voice coils
- Impressive SPL figures
- For install or on the road
| Model Name | DVP-AX15B |
| System Type | Active 15″ subwoofer |
| Frequency Response (+/-3 dB) | 45-150 Hz |
| Frequency Range (-10 dB) | 38-150 Hz |
| Maximum SPL @1 m | 130 dB |
| Sensitivity @ 1 W / 1 m | 98 dB |
| LF transducer Size (mm / inches) | 381 mm / 15″ |
| LF Coil Size (mm / inches) | Dual layer 2.5″ |
| HF transducer : Type | |
| HF Coil Size (mm / inches) | |
| HF Exit Size (mm / inches) | |
| HF Diaphragm Material | |
| Nominal Coverage (H x V) | |
| LF Power Amplifier -Class D, | 600 W / 1200 W |
| RMS/Peak Watts | |
| HF Power Amplifier -Class D, | |
| RMS/Peak Watts | |
| DSP | N/A |
| Controls—D-EQ | N/A |
| Amplifier Protection. Power On, Thermal, low voltage | Yes |
| Driver Protection,DC, Short, Clip indicator | Yes |
| Limiter Indicator | Red LED |
| Power Indicator | Green LED (Red LED front) |
| INPUTS : Input Sensitivity : Balanced | 775 mv |
| Maximum Input Level | 6 v |
| Input Connector | XLR & 1/4″ (Line/MIC) |
| Input Impedance | Balanced:20 K |
| LPF control | 80 Hz-120 Hz |
| Polarity Control | 0°/180° |
| OUTPUTS : Line Output Connector | XLR THRU/HPF(OUT) |
| AC Power Options : SMPS | 220-240 V 50/60 Hz |
| 100-120 V 50/60 Hz | |
| Pole socket | 35 mm pole socket |
| Handles | 2 carry handles (one on each side) |
| Enclosure Material and Finish | MDF / Black paint |
| Grille Material & Finish | steel |
| Dimensions – Unpacked (mm / inches): Height | 591 mm / 23.3” |
| Width | 454 mm / 17.9” |
| Width (rear) | 454 mm / 17.9” |
| Depth | 534 mm / 21.0” |
| Dimensions – Packed (mm / inches):Height | 681 mm / 26.8” |
| Width | 620 mm / 24.4” |
| Width (rear) | 620 mm / 24.4” |
| Depth | 540 mm / 21.3” |
| Net Weight (kg / lbs) | 29.9 kg / 65.8 lbs |
| Gross Weight (kg / lbs) | 34.9 kg / 76.8 lbs |
