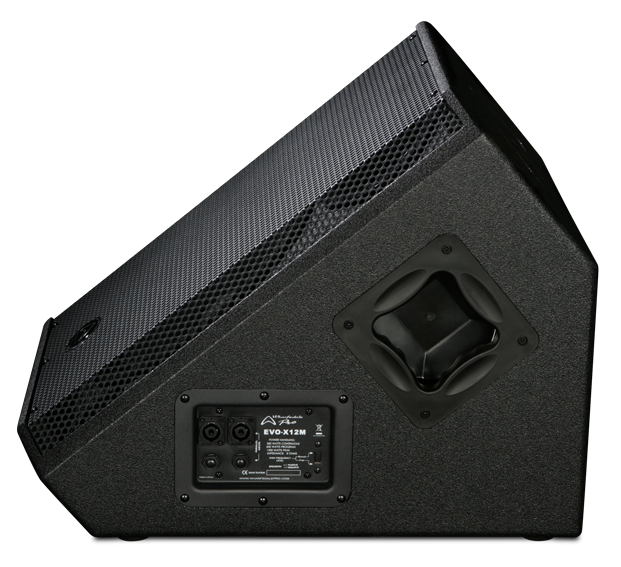

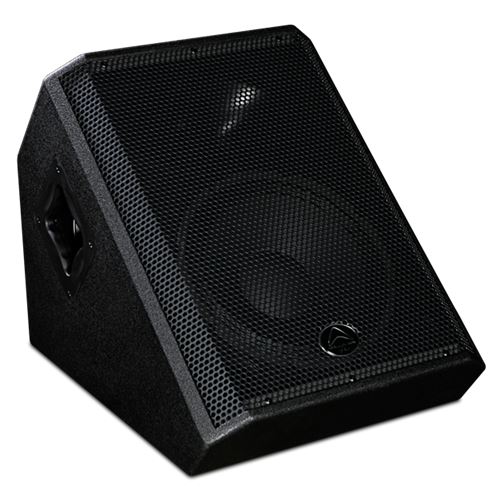

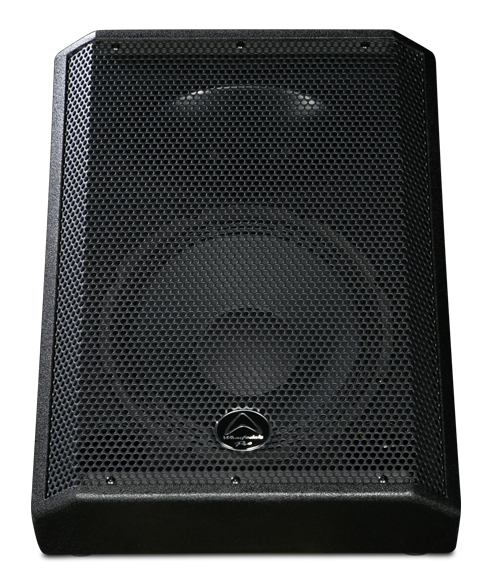

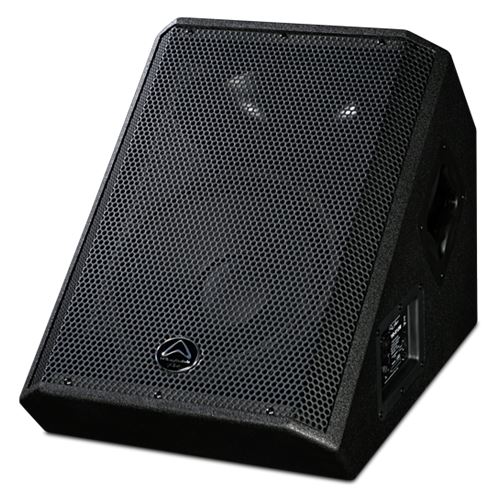

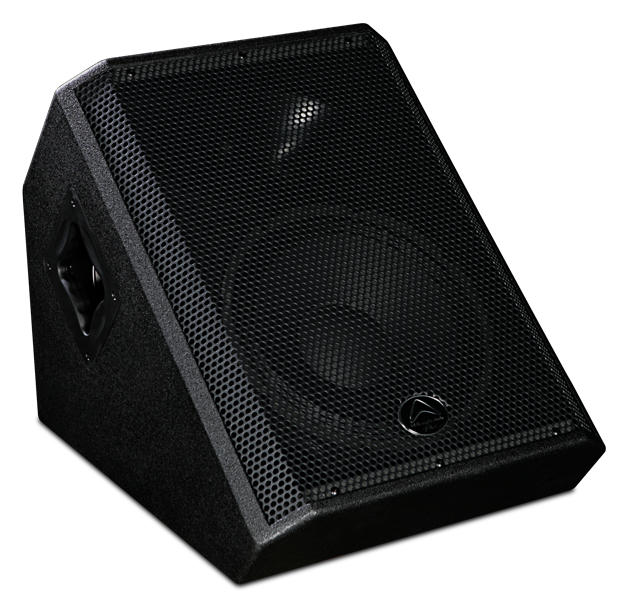

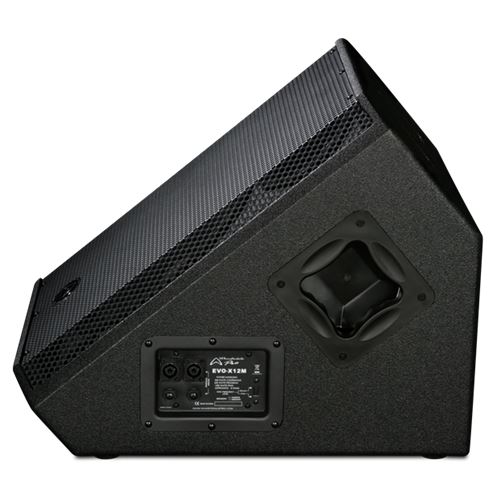

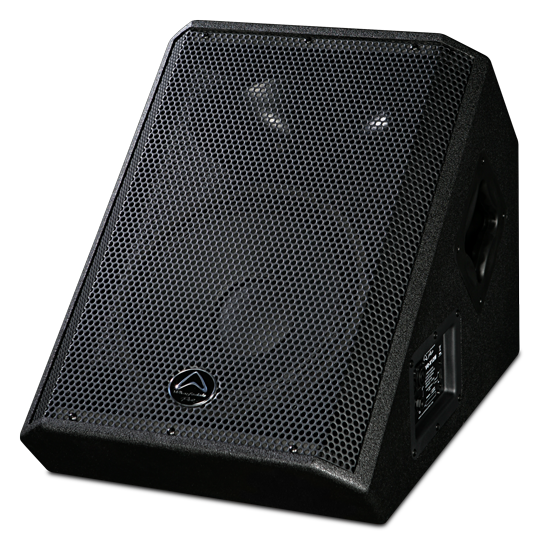

WHARFEDALE PRO EVO-X Series 300 Watts RMS 12" Passive Floor Monitor Speaker

EVO-X12M

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






EVO-X12M

300 watts
AES (RMS)
  • 12″ floor monitor
  • 1.75″ IRIS X HF driver
  • 12″ LF driver with 2.5″ voice coil
  • 300 watts AES (RMS)
  • 600 watts Programme
  • 1200 watts Peak
  • 129 dB Max SPL @ 1 meter

The EVO-X Series strikes the perfect balance between affordability and performance. Positioned in-between the Impact-X Series and the Delta-X Series of passive loudspeakers, EVO-X is a multipurpose lineup of 8 models featuring many useful and practical design elements.

All models benefit from a hardwearing Rhino Rock paint finish and are visually enhanced with the iconic Wharfedale Pro ‘boomerang’ logo being engraved onto their surface. All models also feature practical 4-way handles to make transportation simple and pain-free. Full range models feature a unique +3 dB HF boost switch allowing for quick, on-stage tweaks to be made to the sound as the crowd grows while the 3 subwoofer options all have high pass filter outputs, reducing onstage cabling and peripherals.

Robust crossover designs, elliptical waveguides and large voice coils ensure that the sound quality is as beautiful as the cosmetic design.

  • MDF construction
  • Durable Rhino Rock paint finish
  • 4-way rubberised handles
  • Elliptical 90° x 60° dispersion
  • Full series lineup consisting of 8 models
  • NL4 (speakON compatible)  and 1/4” connectors
  • Iconic Wharfedale Pro boomerang engraving
  • +3 dB HF Frequency boost switch
  • Subwoofers feature internal crossover


Model Name EVO-X12M
System Type Passive
Configuration Two-way Monitor
Frequency Response (+/-3 dB) 60 Hz – 20 KHz
Frequency Range (-10 dB) 55 Hz – 20 KHz
Sensitivity (2.83 v / 1 m) 98 dB
Calculated Maximum SPL @1 m 129 dB
System Rated Impedance 8 Ω
Low Frequency Transducer
Size 305 mm / 12″
Voice Coil Size 51.6 mm / 2″
Rated Impedance 8 Ω
LF Power (re:AES2-2012) 300 w
High Frequency Transducer
HF Driver Type Compression Driver
Voice Coil Size 44.5 mm / 1.75″
Exit Size 25 mm / 1″
Diaphragm Material Titanium
Rated Impedance 8 Ω
HF Power (re:AES2-2012) 40 w
Nominal Coverage (H x V) 90° x 60°
Power
System Continuous Power 300 w
System Programme Power 600 w
System Peak Power 1200 w
Crossover frequency 2.4 KHz
Input Connector 2 x NL4 (speakON Compatible)
+ 2 x 1/4″ Jacks
Hardware
Pole Mount
Handles 2 on Sides
Enclosure
Enclosure Material MDF
Finish Rhino rock black paint
Grille Material & Finish 1.2 mm Steel
Dimensions – Unpacked
Height 560 mm / 22.05″
Width Front 424 mm / 16.69″
Width Rear 424 mm / 16.69″
Depth 441 mm / 17.36″
Dimensions – Packed
Height 480 mm / 18.9″
Width Front 616 mm / 24.25″
Width Rear 616 mm / 24.25″
Depth 490 mm / 19.29″
Weight
Net Weight (kg / lbs) 18.1 kg / 39.8 lbs
Gross Weight (kg / lbs) 21.5 kg / 47.3 lbs
