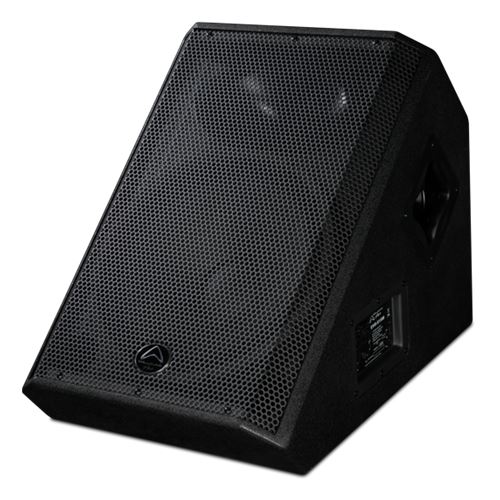

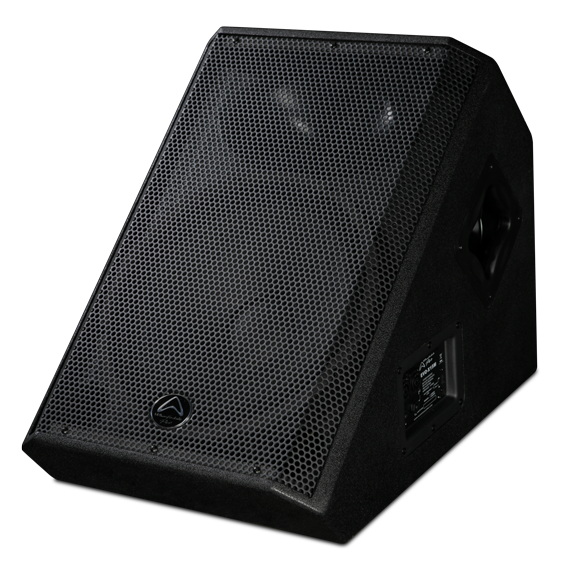

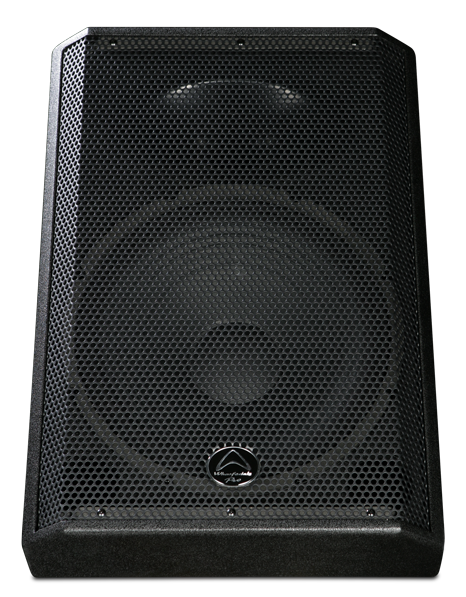

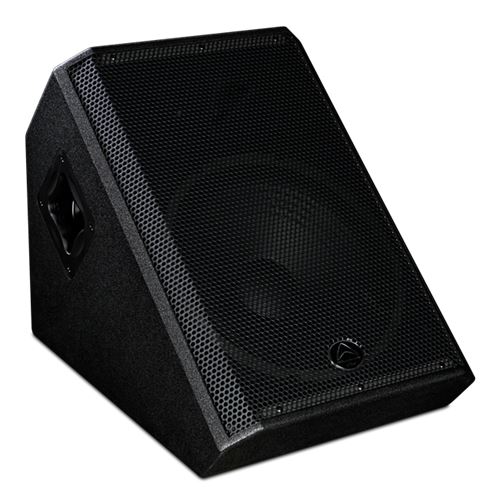

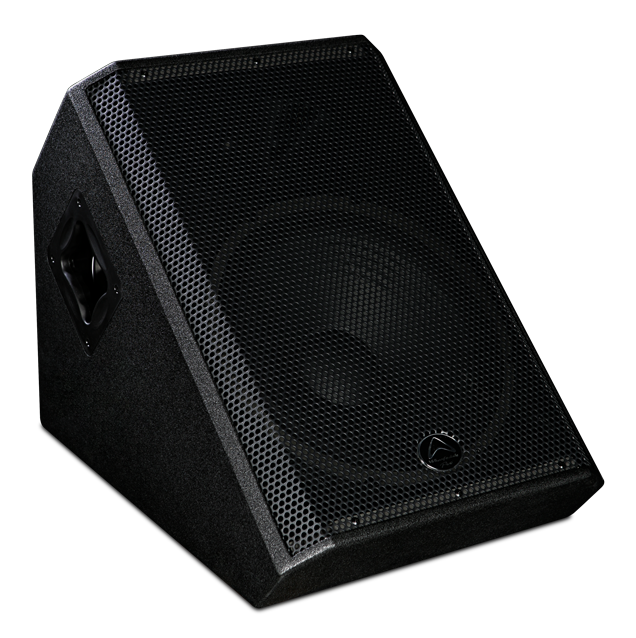

WHARFEDALE PRO EVO-X Series 350 Watts RMS 15" Passive Floor Monitor Speaker

EVO-X15M

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






EVO-X15M

350 watts
AES (RMS)
  • 15″ floor monitor
  • 1.75″ IRIS X HF driver
  • 15″ LF driver with 2.5″ voice coil
  • 600 watts AES (RMS)
  • 1200 watts Programme
  • 2400 watts Peak
  • 130 dB Max SPL @ 1 meter

The EVO-X Series strikes the perfect balance between affordability and performance. Positioned in-between the Impact-X Series and the Delta-X Series of passive loudspeakers, EVO-X is a multipurpose lineup of 8 models featuring many useful and practical design elements.

All models benefit from a hardwearing Rhino Rock paint finish and are visually enhanced with the iconic Wharfedale Pro ‘boomerang’ logo being engraved onto their surface. All models also feature practical 4-way handles to make transportation simple and pain-free. Full range models feature a unique +3 dB HF boost switch allowing for quick, on-stage tweaks to be made to the sound as the crowd grows while the 3 subwoofer options all have high pass filter outputs, reducing onstage cabling and peripherals.

Robust crossover designs, elliptical waveguides and large voice coils ensure that the sound quality is as beautiful as the cosmetic design.

  • MDF construction
  • Durable Rhino Rock paint finish
  • 4-way rubberised handles
  • Elliptical 90° x 60° dispersion
  • Full series lineup consisting of 8 models
  • NL4 (speakON compatible)  and 1/4” connectors

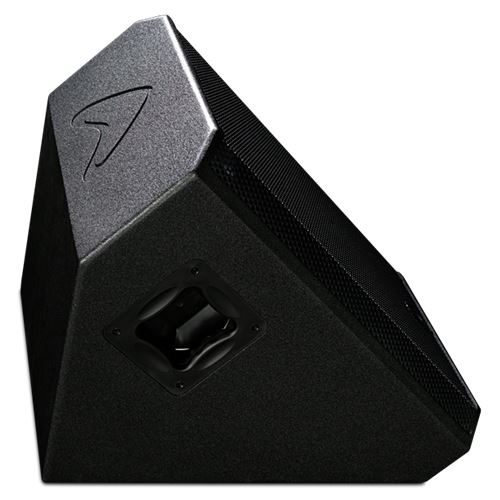

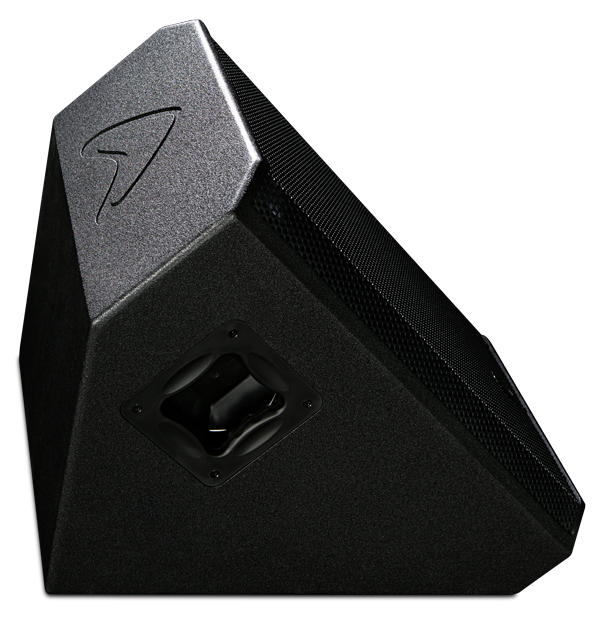

  • Iconic Wharfedale Pro boomerang engraving
  • +3 dB HF Frequency boost switch
  • Subwoofers feature internal crossover


Model Name EVO-X15M
System Type Passive
Configuration Two-way Monitor
Frequency Response (+/-3 dB) 50 Hz – 20 KHz
Frequency Range (-10 dB) 45 Hz – 20 KHz
Sensitivity (2.83 v / 1 m) 98 dB
Calculated Maximum SPL @1 m 130 dB
System Rated Impedance 8 Ω
Low Frequency Transducer
Size 381 mm / 15″
Voice Coil Size 64.26 mm / 2.5″
Rated Impedance 8 Ω
LF Power (re:AES2-2012) 350 w
High Frequency Transducer
HF Driver Type Compression Driver
Voice Coil Size 44.5 mm / 1.75″
Exit Size 25 mm / 1″
Diaphragm Material Titanium
Rated Impedance 8 Ω
HF Power (re:AES2-2012) 40 w
Nominal Coverage (H x V) 90° x 60°
Power
System Continuous Power 350 w
System Programme Power 700 w
System Peak Power 1400 w
Crossover frequency 2.3 KHz

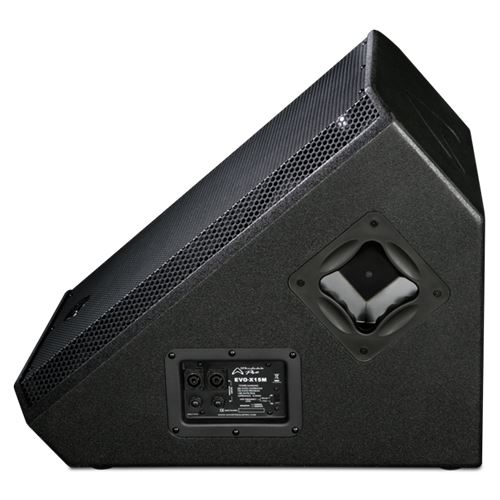

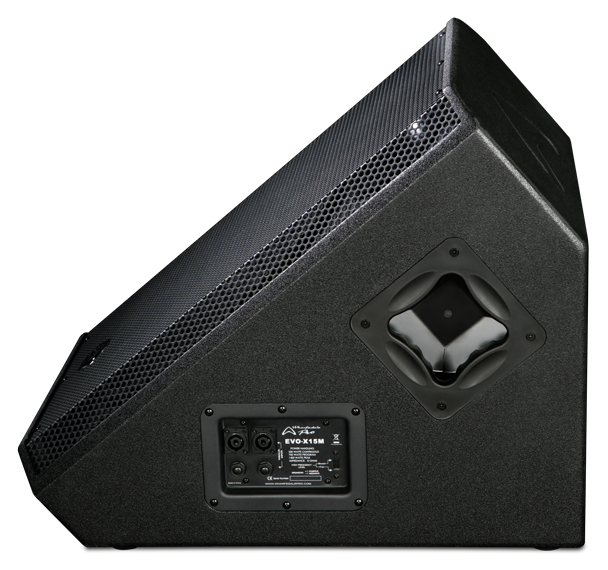

Input Connector 2 x NL4 (speakON Compatible)
+ 2 x 1/4″ Jacks
Hardware
Pole Mount
Handles 2 on Sides
Enclosure
Enclosure Material MDF
Finish Rhino rock black paint
Grille Material & Finish 1.2 mm Steel
Dimensions – Unpacked
Height 645 mm / 25.39″
Width Front 445 mm / 17.52″
Width Rear 445 mm / 17.52″
Depth 473.5 mm / 18.64″
Dimensions – Packed
Height 501 mm / 19.72″
Width Front 691 mm / 27.2″
Width Rear 691 mm / 27.2″
Depth 532 mm / 20.94″
Weight
Net Weight (kg / lbs) 21.4 kg / 47.1 lbs
Gross Weight (kg / lbs) 25.3 kg / 55.7 lbs
