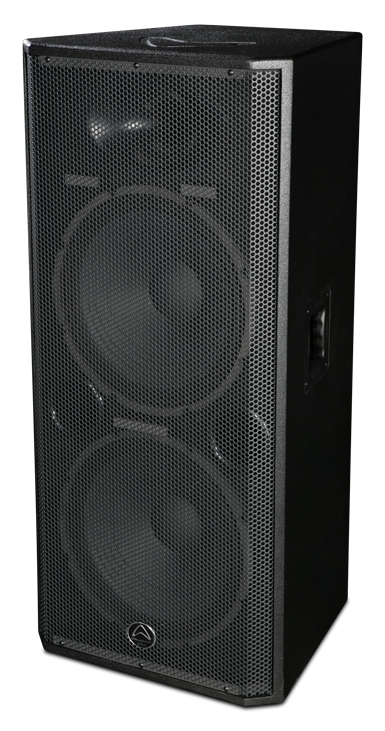

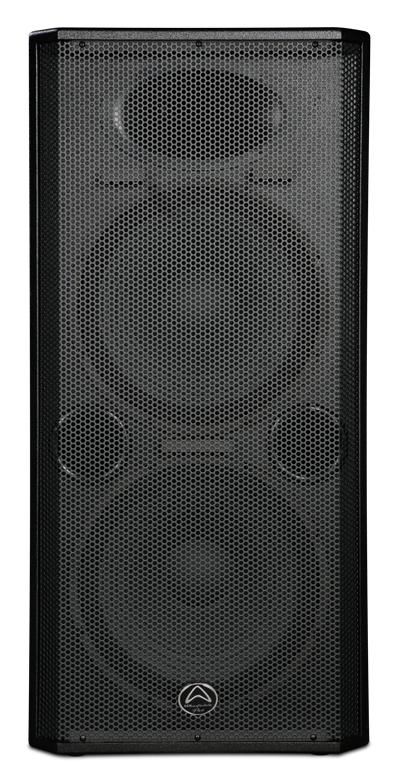

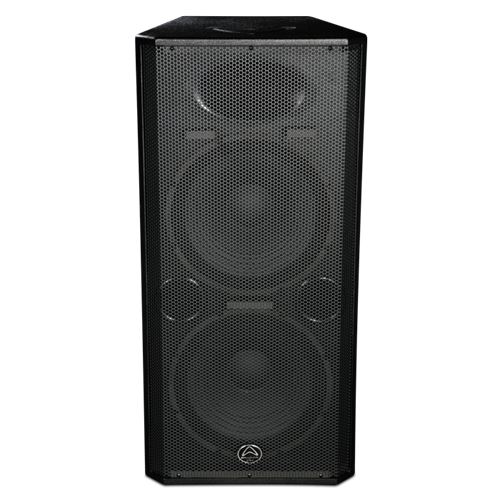

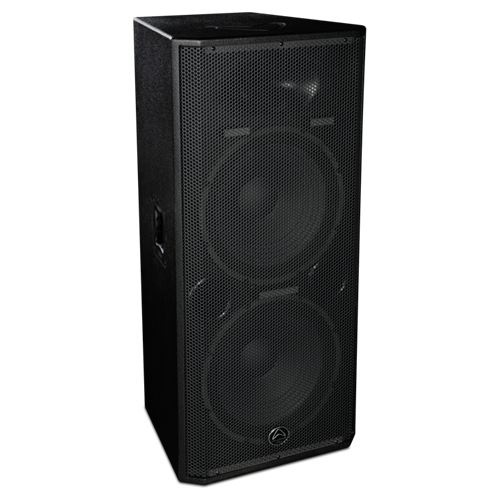

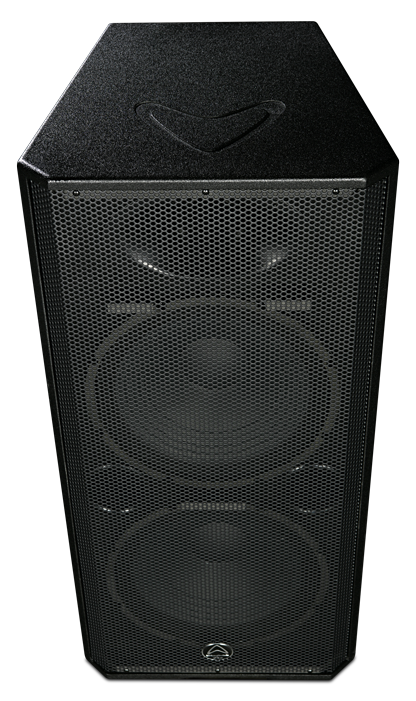

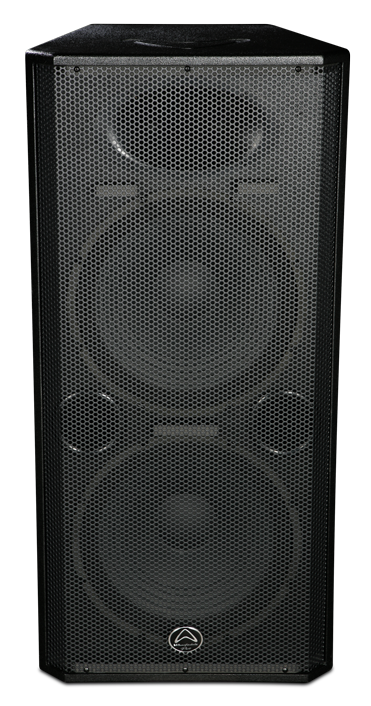

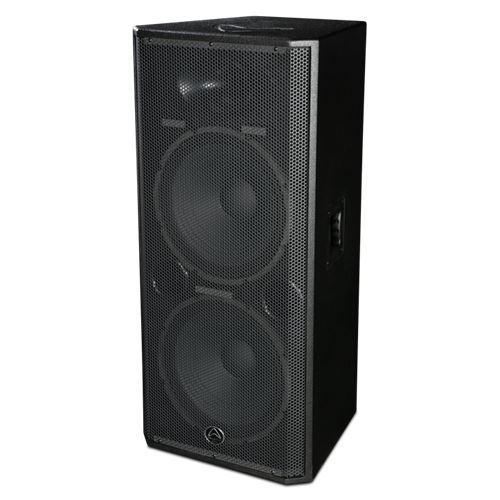

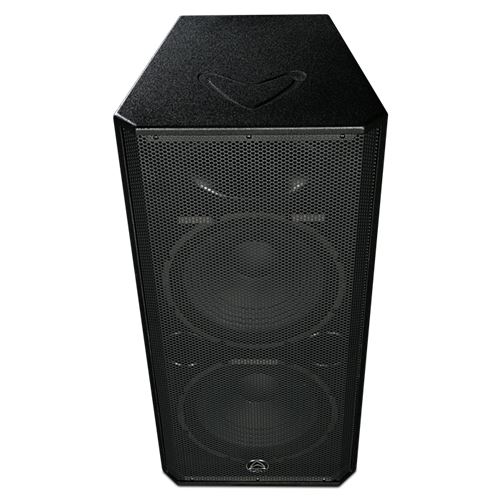

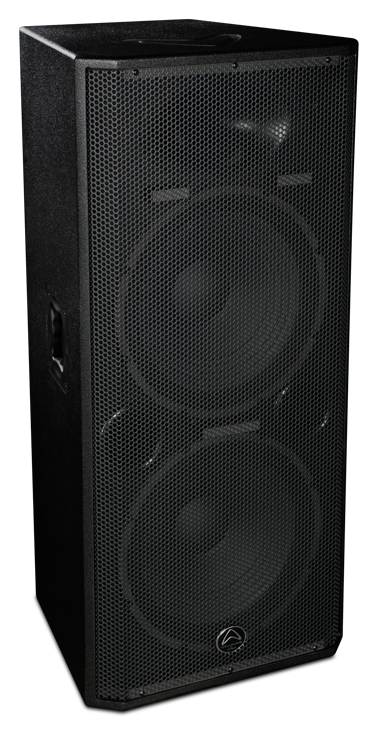

WHARFEDALE PRO EVO-X Series 700 Watts RMS Dual 15" 2-Way Passive Loudspeaker

EVO-X215

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






EVO-X215

700 watts
AES (RMS)
  • Dual 15″
  • 1.75″ IRIS X HF driver
  • 15″ LF drivers with 2.5″ coils
  • 700 watts AES (RMS)
  • 1400 watts Programme
  • 2800 watts Peak
  • 135 dB Max SPL @ 1 meter

The EVO-X Series strikes the perfect balance between affordability and performance. Positioned in-between the Impact-X Series and the Delta-X Series of passive loudspeakers, EVO-X is a multipurpose lineup of 8 models featuring many useful and practical design elements.

All models benefit from a hardwearing Rhino Rock paint finish and are visually enhanced with the iconic Wharfedale Pro ‘boomerang’ logo being engraved onto their surface. All models also feature practical 4-way handles to make transportation simple and pain-free. Full range models feature a unique +3 dB HF boost switch allowing for quick, on-stage tweaks to be made to the sound as the crowd grows while the 3 subwoofer options all have high pass filter outputs, reducing onstage cabling and peripherals.

Robust crossover designs, elliptical waveguides and large voice coils ensure that the sound quality is as beautiful as the cosmetic design.

  • MDF construction
  • Durable Rhino Rock paint finish
  • 4-way rubberised handles
  • Elliptical 90° x 60° dispersion
  • Full series lineup consisting of 8 models
  • NL4 (speakON compatible)  and 1/4” connectors
  • Iconic Wharfedale Pro boomerang engraving
  • +3 dB HF Frequency boost switch
  • Subwoofers feature internal crossover


Model Name EVO-X215
System Type Passive
Configuration Quasi Three-way
Frequency Response (+/-3 dB) 40 Hz – 20 KHz
Frequency Range (-10 dB) 35 Hz – 20 KHz
Sensitivity (2.83 v / 1 m) 100 dB
Calculated Maximum SPL @1 m 135 dB
System Rated Impedance 4 Ω
Low Frequency Transducer
Size 381 mm / 15″
Voice Coil Size 64.26 mm / 2.5″
Rated Impedance 8 Ω
LF Power (re:AES2-2012) 2 x 350 w
High Frequency Transducer
HF Driver Type Compression Driver
Voice Coil Size 44.5 mm / 1.75″
Exit Size 25 mm / 1″
Diaphragm Material Titanium
Rated Impedance 8 Ω
HF Power (re:AES2-2012) 40 w
Nominal Coverage (H x V) 90° x 60°
Power
System Continuous Power 700 w
System Programme Power 1400 w
System Peak Power 2800 w
Crossover frequency 2.3 KHz

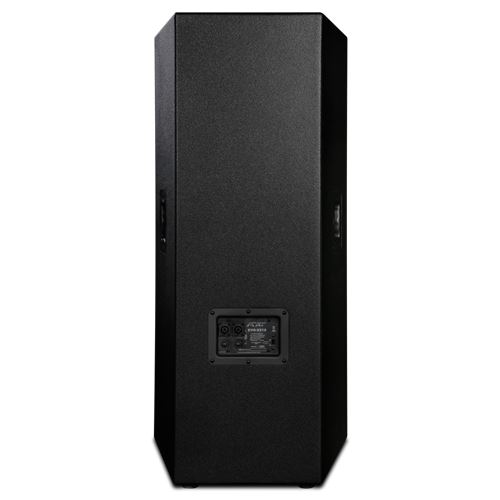

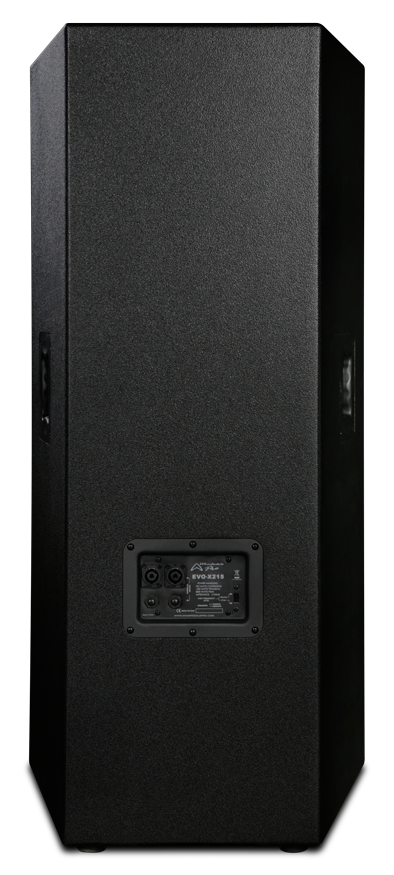

Input Connector 2 x NL4 (speakON Compatible)
+ 2 x 1/4″ Jacks
Hardware
Pole Mount
Handles 2 on Sides
Enclosure
Enclosure Material MDF
Finish Rhino rock black paint
Grille Material & Finish 1.2 mm Steel
Dimensions – Unpacked
Height 1058 mm / 41.65″
Width Front 502 mm / 19.76″
Width Rear 330 mm / 12.99″
Depth 467 mm / 18.39″
Dimensions – Packed
Height 1123 mm / 44.21″
Width Front 564 mm / 22.2″
Width Rear 362 mm / 14.25″
Depth 496 mm / 19.53″
Weight
Net Weight (kg / lbs) 42.0 kg / 92.4 lbs
Gross Weight (kg / lbs) 47.1 kg / 103.6 lbs
