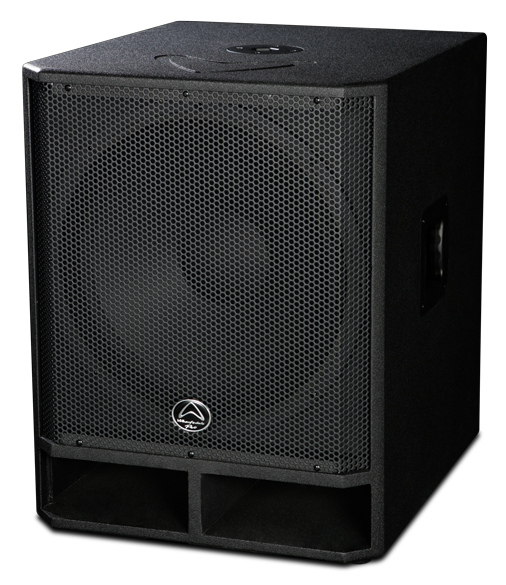

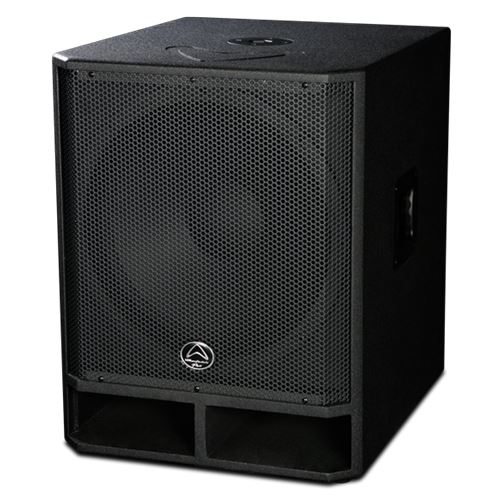

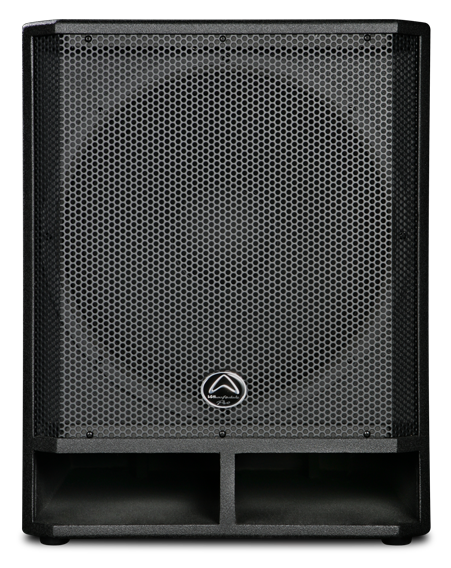

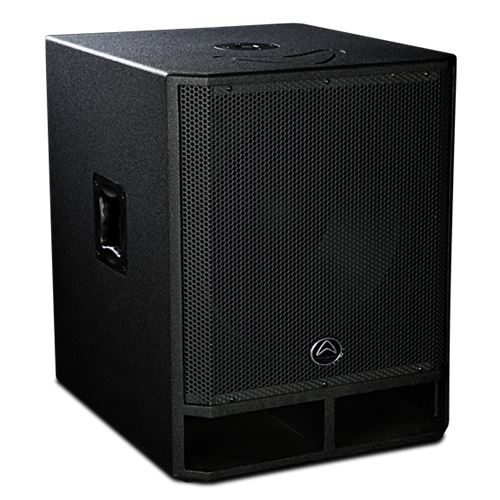

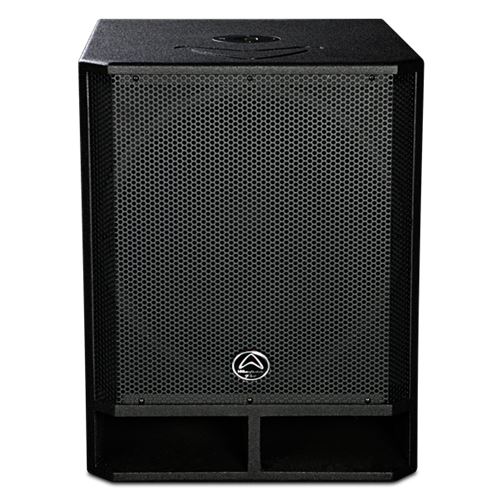

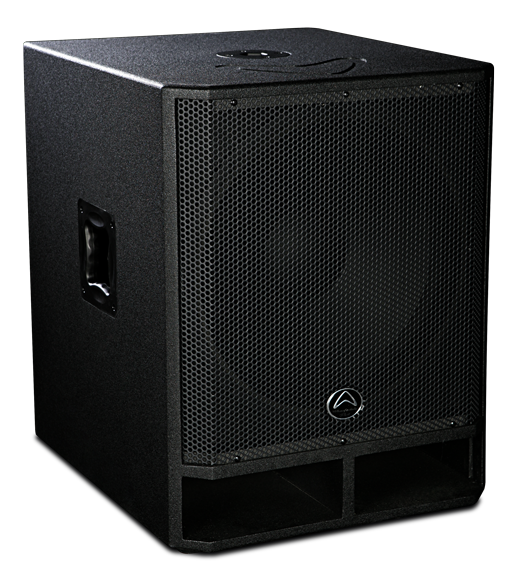

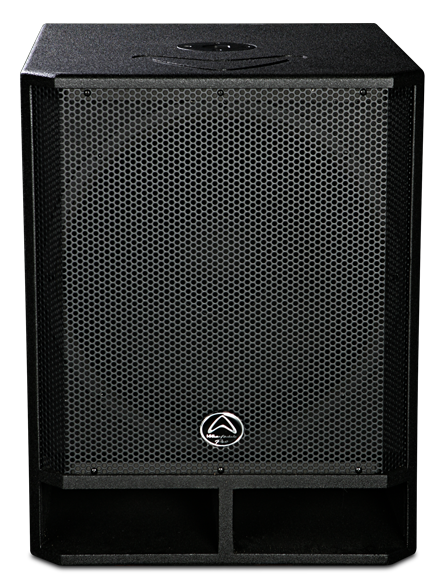

WHARFEDALE PRO EVO-X Series 600 Watts RMS 18" Passive Subwoofer

EVO-X18B

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






EVO-X18B

600 watts
AES (RMS)
  • 18″ passive subwoofer
  • 18″ LF driver with 3.0″ voice coil
  • 600 watts AES (RMS)
  • 1200 watts Programme
  • 2400 watts Peak
  • 134 dB Max SPL @ 1 meter

The EVO-X Series strikes the perfect balance between affordability and performance. Positioned in-between the Impact-X Series and the Delta-X Series of passive loudspeakers, EVO-X is a multipurpose lineup of 8 models featuring many useful and practical design elements.

All models benefit from a hardwearing Rhino Rock paint finish and are visually enhanced with the iconic Wharfedale Pro ‘boomerang’ logo being engraved onto their surface. All models also feature practical 4-way handles to make transportation simple and pain-free. Full range models feature a unique +3 dB HF boost switch allowing for quick, on-stage tweaks to be made to the sound as the crowd grows while the 3 subwoofer options all have high pass filter outputs, reducing onstage cabling and peripherals.

Robust crossover designs, elliptical waveguides and large voice coils ensure that the sound quality is as beautiful as the cosmetic design.

  • MDF construction
  • Durable Rhino Rock paint finish

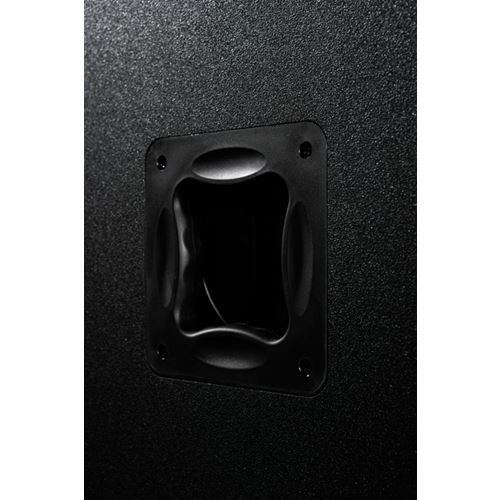

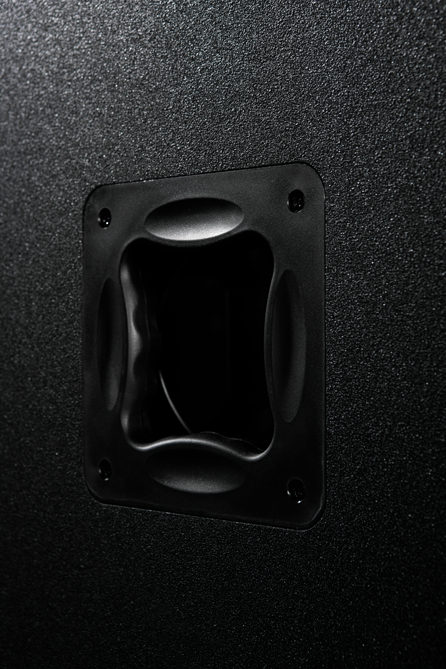

  • 4-way rubberised handles
  • Elliptical 90° x 60° dispersion
  • Full series lineup consisting of 8 models
  • NL4 (speakON compatible)  and 1/4” connectors
  • Iconic Wharfedale Pro boomerang engraving
  • +3 dB HF Frequency boost switch
  • Subwoofers feature internal crossover


Model Name EVO-X18B
System Type Passive
Configuration Subwoofer
Frequency Response (+/-3 dB) 35 Hz – 250 Hz
Frequency Range (-10 dB) 30 Hz – 250 Hz
Sensitivity (2.83 v / 1 m) 100 dB
Calculated Maximum SPL @1 m 134 dB
System Rated Impedance 4 Ω
Low Frequency Transducer
Size 470 mm / 18″
Voice Coil Size 76.2 mm / 3″
Rated Impedance 4 Ω
LF Power (re:AES2-2012) 600 w
High Frequency Transducer
HF Driver Type
Voice Coil Size
Exit Size
Diaphragm Material
Rated Impedance
HF Power (re:AES2-2012)
Nominal Coverage (H x V)
Power
System Continuous Power 600 w
System Programme Power 1200 w
System Peak Power 2400 w
Crossover frequency 150 Hz

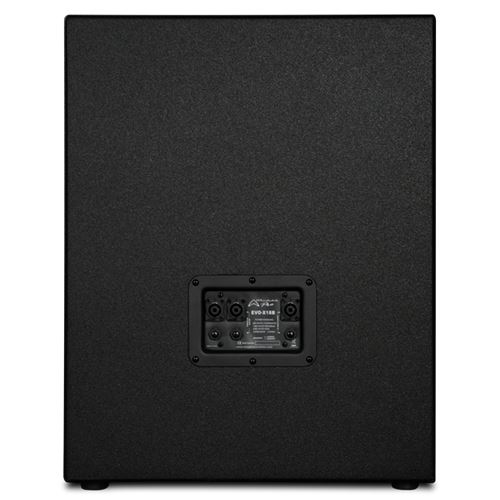

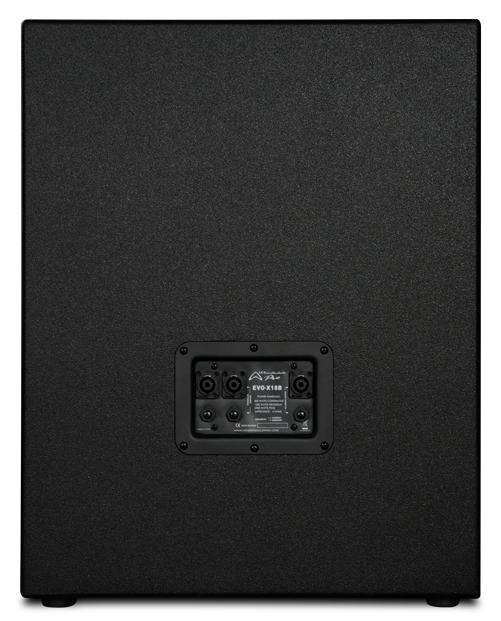

Input Connector 2 x NL4 (speakON Compatible)
+ 2 x 1/4″ Jacks
Hardware

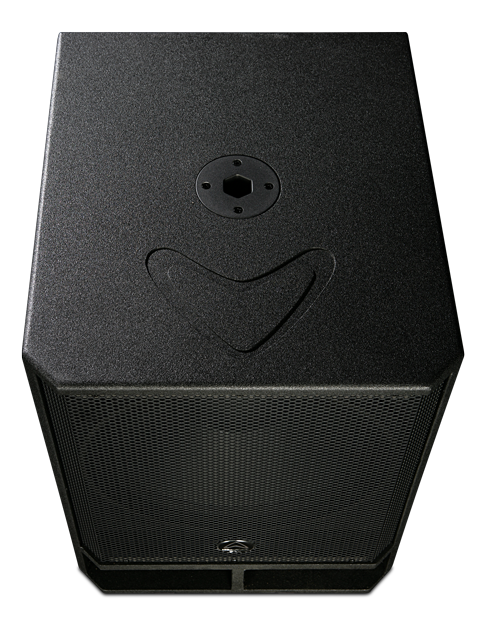

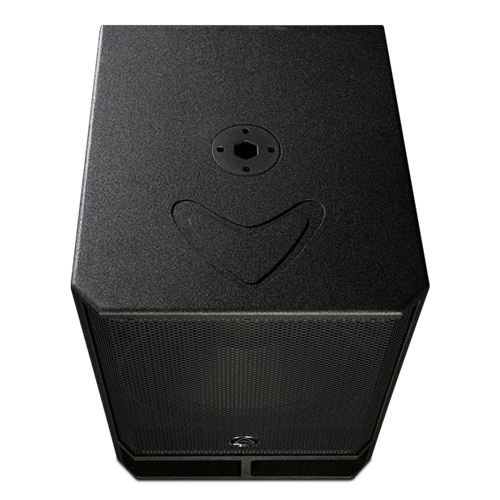

Pole Mount 35 mm Pole Socket
Handles 2 on Sides
Enclosure
Enclosure Material 15mm MDF
Finish Rhino rock black paint
Grille Material & Finish 1.2 mm Steel
Dimensions – Unpacked
Height 650 mm / 24.02″
Width Front 522 mm / 20.55″
Width Rear 522 mm / 20.55″
Depth 610 mm / 24.02″
Dimensions – Packed
Height 715 mm / 28.15″
Width Front 656 mm / 25.83″
Width Rear 656 mm / 25.83″
Depth 568 mm / 22.36″
Weight
Net Weight (kg / lbs) 40.1 kg / 88.2 lbs
Gross Weight (kg / lbs) 45.2 kg / 99.4 lbs
