The EVO-X Series strikes the perfect balance between affordability and performance. Positioned in-between the Impact-X Series and the Delta-X Series of passive loudspeakers, EVO-X is a multipurpose lineup of 8 models featuring many useful and practical design elements.
All models benefit from a hardwearing Rhino Rock paint finish and are visually enhanced with the iconic Wharfedale Pro ‘boomerang’ logo being engraved onto their surface. All models also feature practical 4-way handles to make transportation simple and pain-free. Full range models feature a unique +3 dB HF boost switch allowing for quick, on-stage tweaks to be made to the sound as the crowd grows while the 3 subwoofer options all have high pass filter outputs, reducing onstage cabling and peripherals.
Robust crossover designs, elliptical waveguides and large voice coils ensure that the sound quality is as beautiful as the cosmetic design.
- MDF construction
- Durable Rhino Rock paint finish
- 4-way rubberised handles
- Elliptical 90° x 60° dispersion
- Full series lineup consisting of 8 models
- NL4 (speakON compatible) and 1/4” connectors
- Iconic Wharfedale Pro boomerang engraving
- +3 dB HF Frequency boost switch
- Subwoofers feature internal crossover

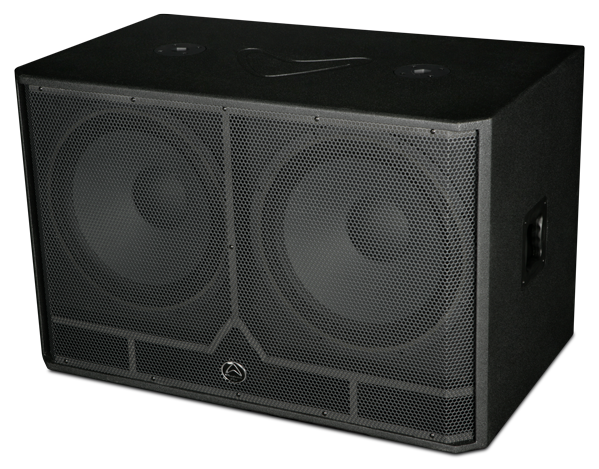

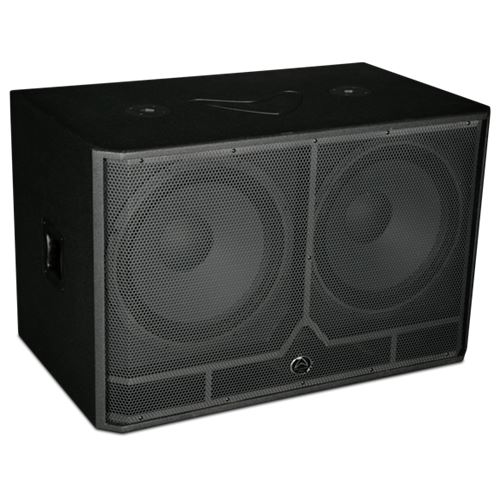

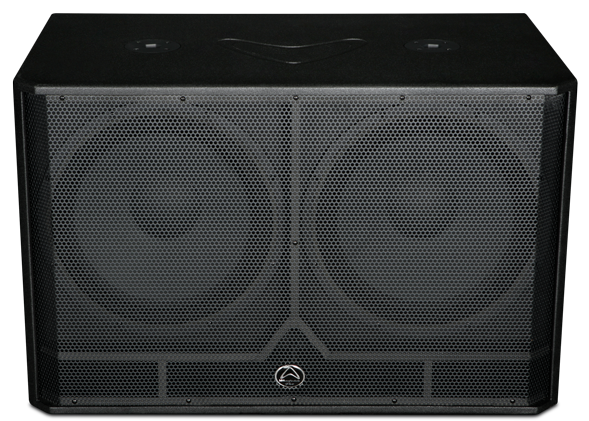

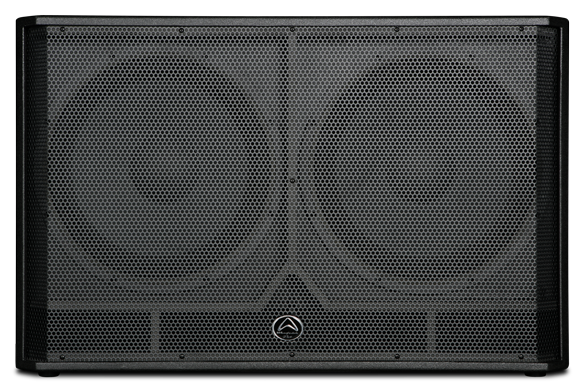

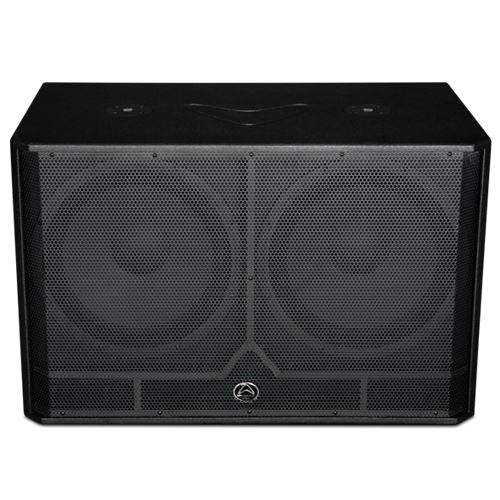

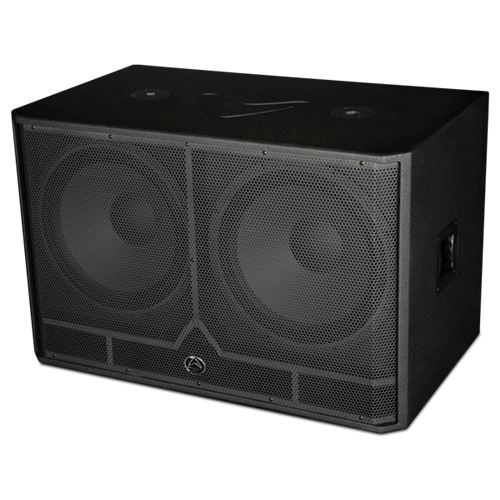

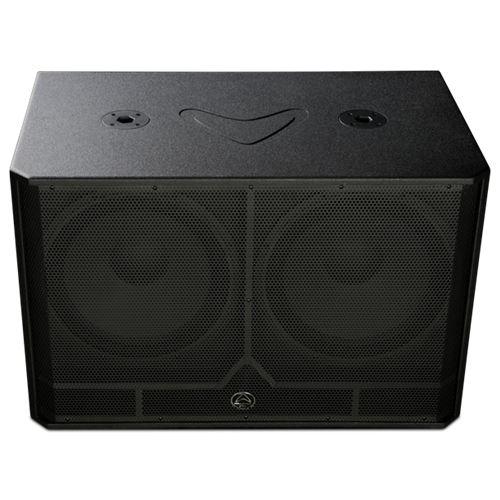

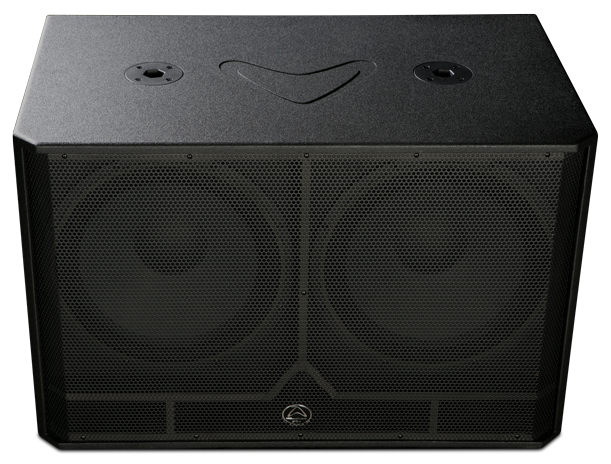

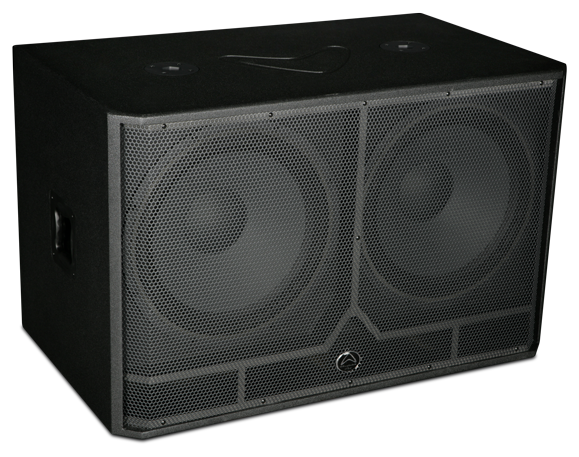

Model Name | EVO-X218B |
System Type | Passive |
Configuration | Subwoofer |
Frequency Response (+/-3 dB) | 30 Hz – 250 Hz |
Frequency Range (-10 dB) | 28 Hz – 250 Hz |
Sensitivity (2.83 v / 1 m) | 107 dB |
Calculated Maximum SPL @1 m | 137 dB |
System Rated Impedance | 4 Ω |
Low Frequency Transducer | |
Size | 470 mm / 18″ |
Voice Coil Size | 76.2 mm / 3″ |
Rated Impedance | 8 Ω |
LF Power (re:AES2-2012) | 2 x 600 w |
High Frequency Transducer | |
HF Driver Type | |
Voice Coil Size | |
Exit Size | |
Diaphragm Material | |
Rated Impedance | |
HF Power (re:AES2-2012) | |
Nominal Coverage (H x V) | |
Power | |
System Continuous Power | 1200 w |
System Programme Power | 2400 w |
System Peak Power | 4800 w |
Crossover frequency | 150 Hz |

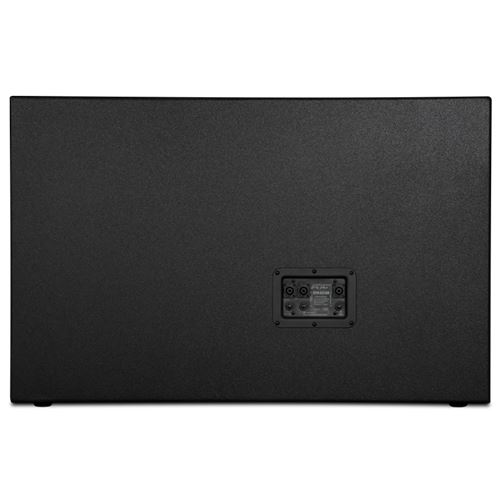

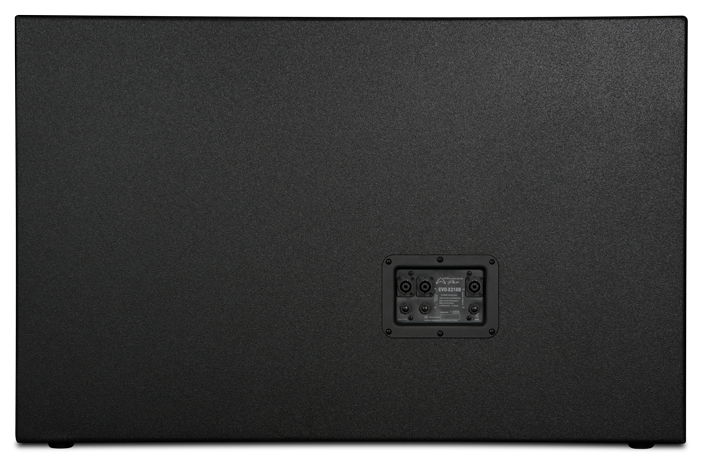

Input Connector | 2 x NL4 (speakON Compatible) |
+ 2 x 1/4″ Jacks | |
Hardware | |
Pole Mount | 35 mm Pole Socket |
Handles | 2 on Sides |
Enclosure | |
Enclosure Material | 15mm MDF |
Finish | Rhino rock black paint |
Grille Material & Finish | 1.2 mm Steel |
Dimensions – Unpacked | |
Height | 650 mm / 25.59″ |
Width Front | 610 mm / 24.02″ |
Width Rear | 610 mm / 24.02″ |
Depth | 1020 mm / 40.16″ |
Dimensions – Packed | |
Height | 765 mm / 30.12″ |
Width Front | 710 mm / 27.95″ |
Width Rear | 710 mm / 27.95″ |
Depth | 1120 mm / 44.09″ |
Weight | |
Net Weight (kg / lbs) | 67.3 kg / 148.1 lbs |
Gross Weight (kg / lbs) | 79.9 kg / 175.8 lbs |
