Portable PA

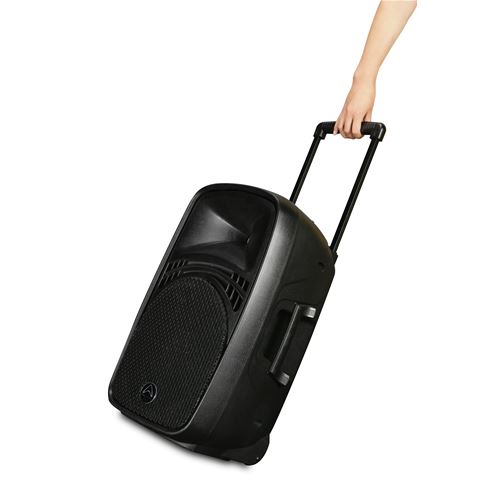

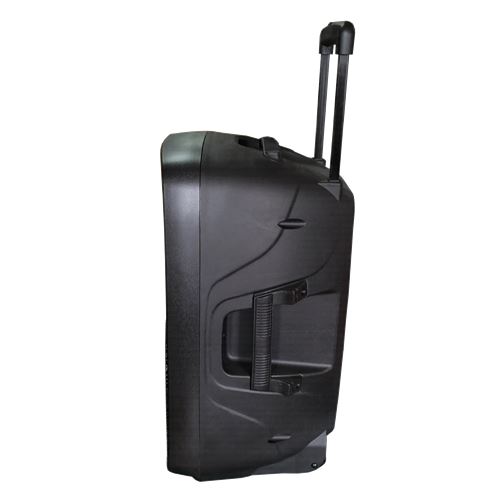

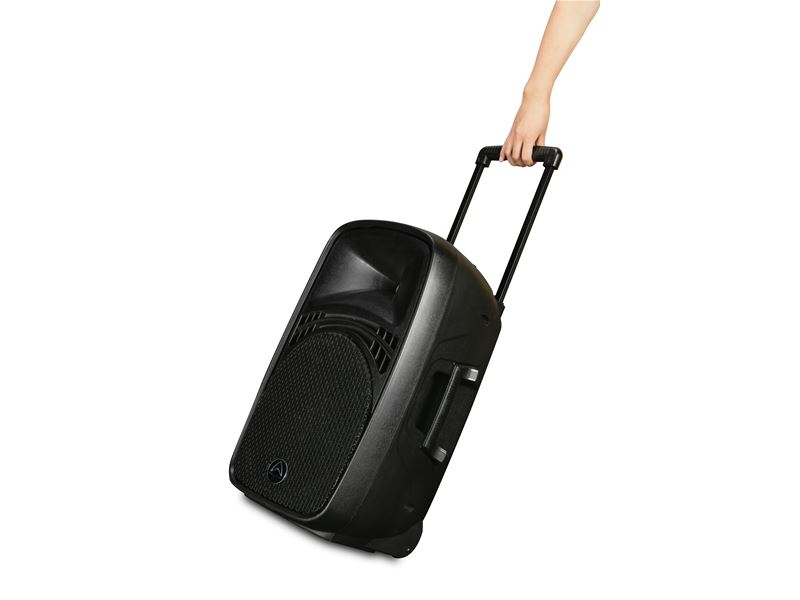

Bringing power, easy user control and portability together into a lightweight road-ready cabinet.

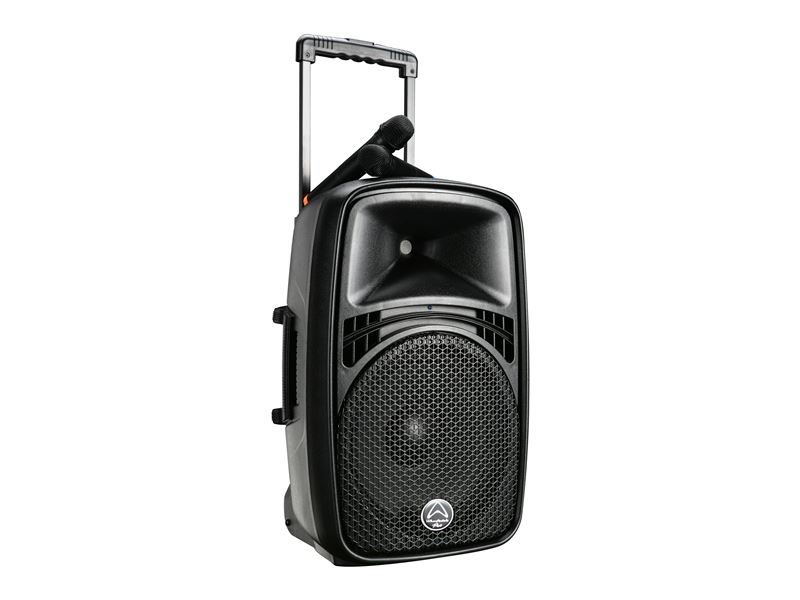

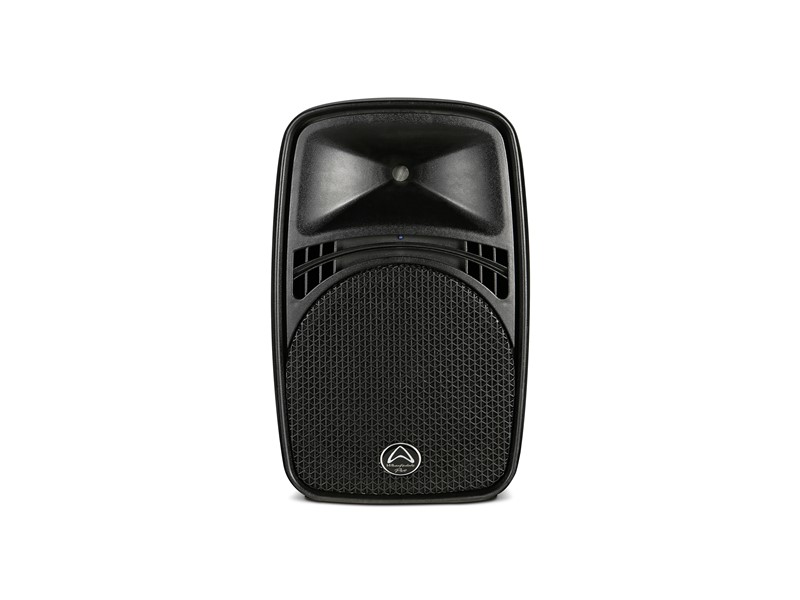

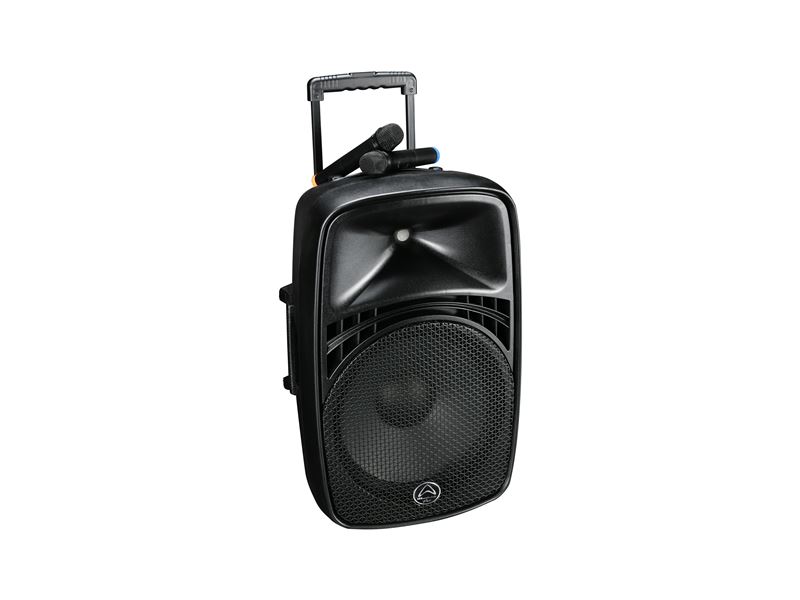

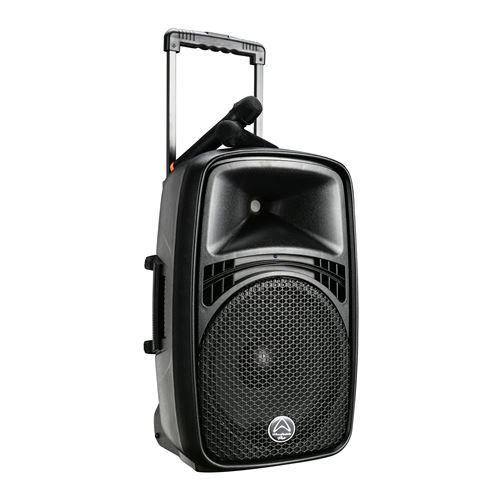

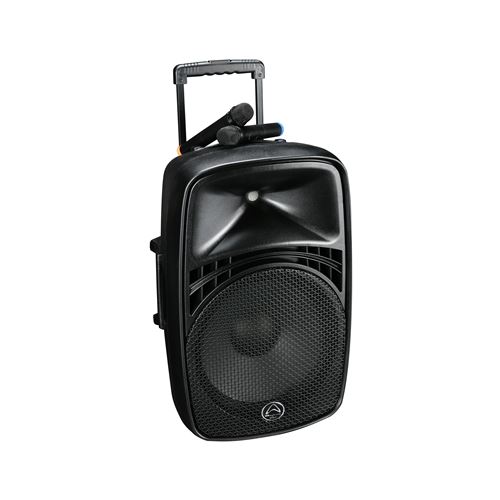

The EZ-12A and EZ-15A have been developed to answer a specific need for entertainers, presenters and performers who demand high powered PA systems but in any location. Powered by an internal battery or by a versatile 100v-240v mains input, these systems can go anywhere. With an internal MP3 player, wireless mic input, Bluetooth connectivity and even standard analogue connectors, the new EZ series are ready to accept inputs from anywhere.
Model Name | EZ-15A |
System Type | Active portable PA |
Frequency range | 55 Hz – 18 KHz |
Frequency range | 4 Ω |
LF Transducer size | 15” |
LF Transducer voice coil | 38 mm / 1.5” |
HF Transducer | 1” |
Dispersion (H x V) | 90° x 50° |
Max SPL | 118 dB |

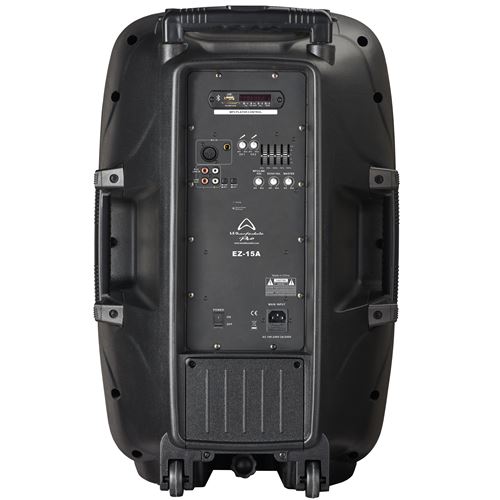

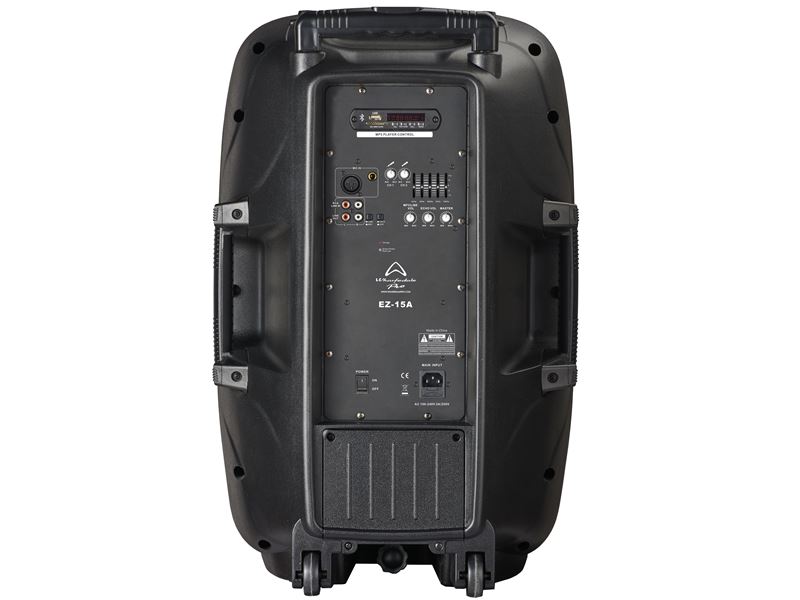

Mic input | XLR and 1/4” jack |
Line input | L/R RCA connector |
Line output | L/R RCA connector |
5-Band graphic EQ | 63 Hz / 80 Hz / 480 Hz / 3 KHz / 10 KHz +/-12 dB |
Rx : Wireless mic | 2 models available (600 – 606 MHz or |
863 – 865 MHz) | |

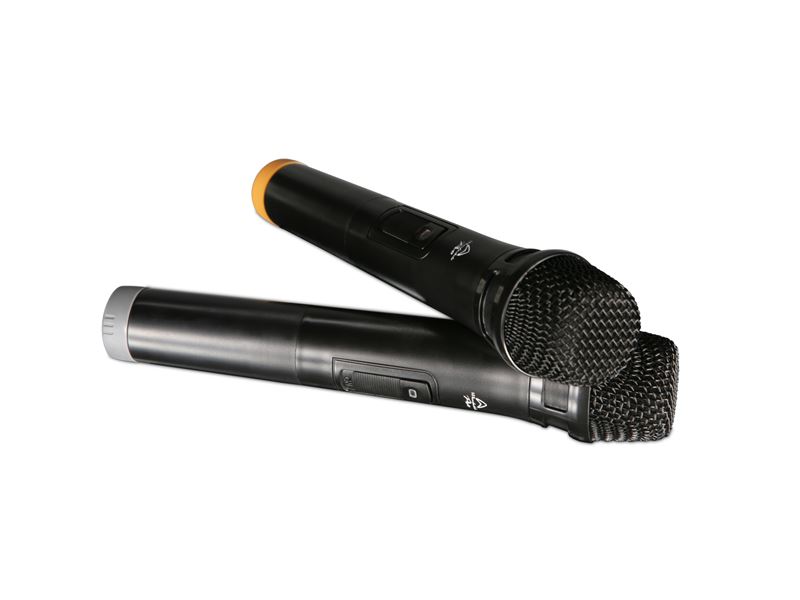

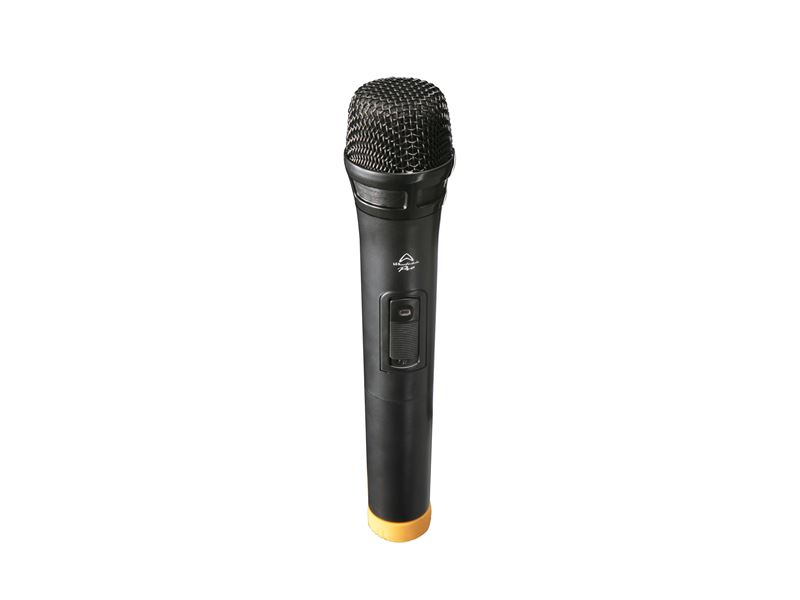

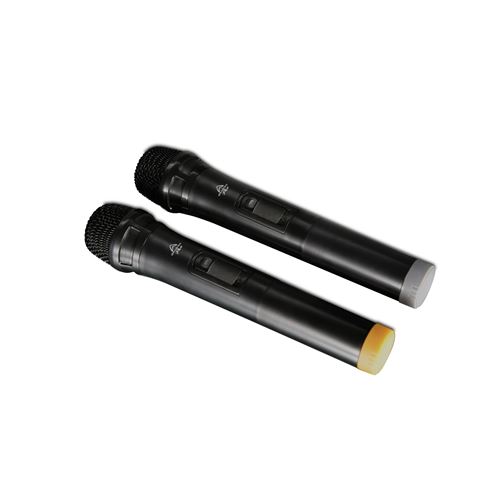

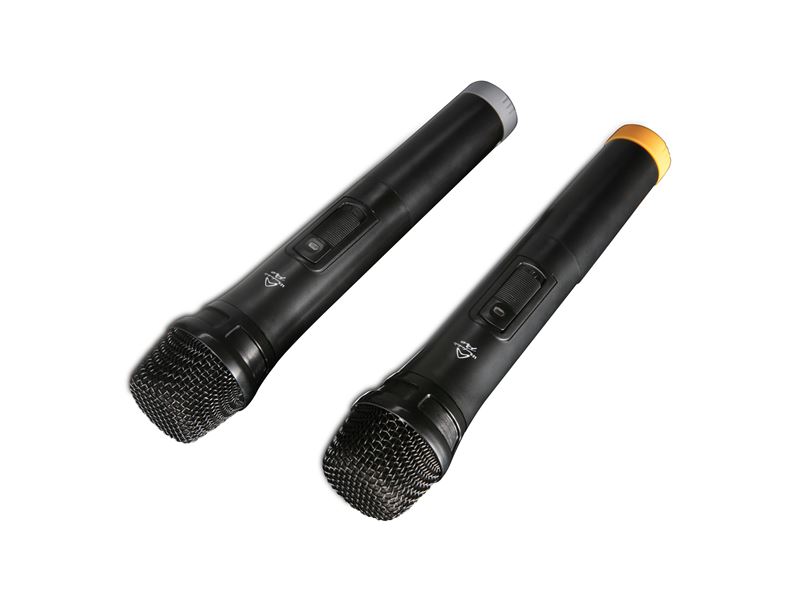

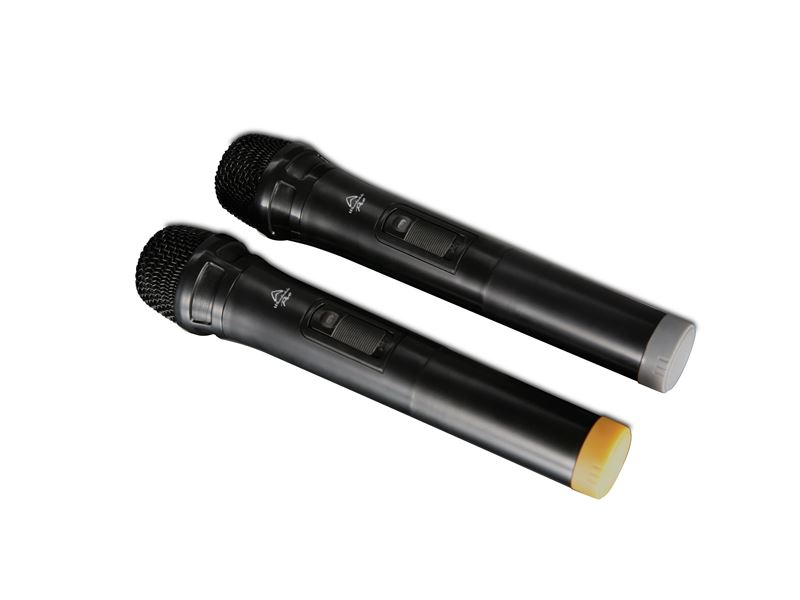

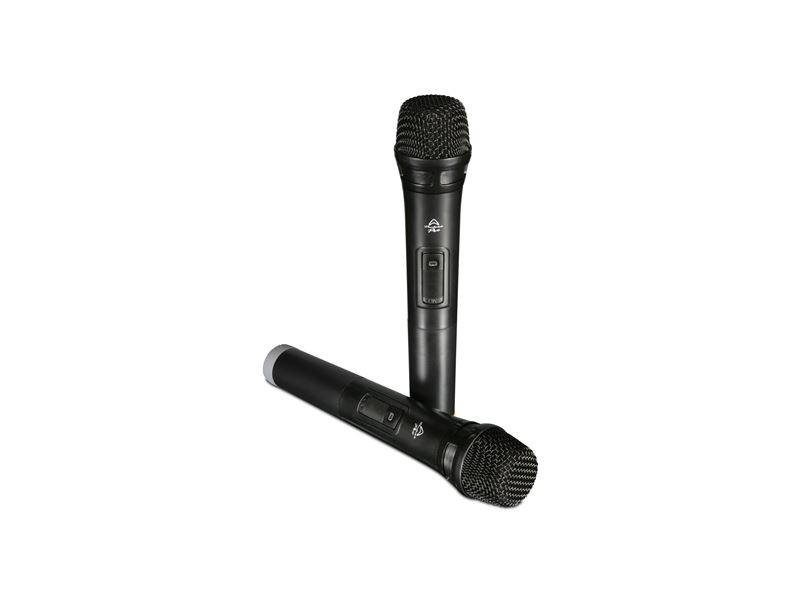

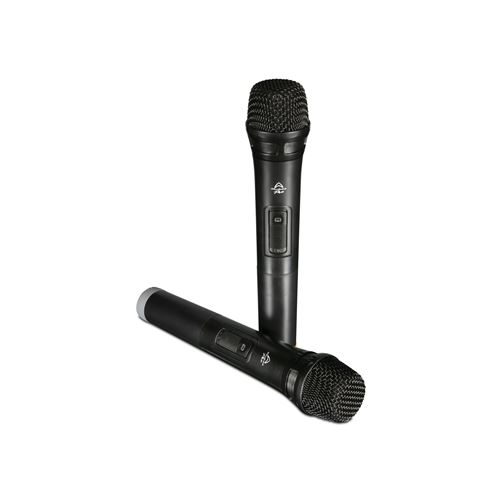

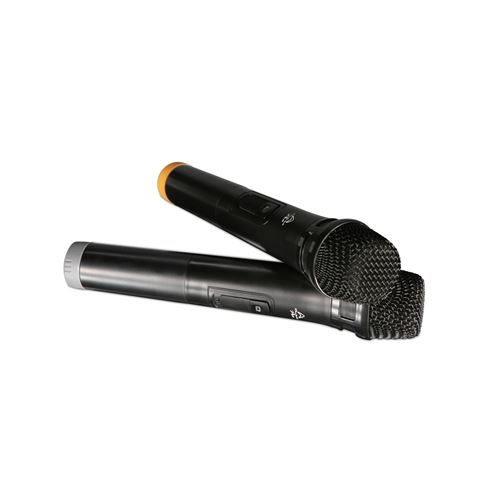

Wireless handheld microphones | 2 pcs included |
Wireless microphone range | 40 m (theoretical value) |
Echo | Yes |
MP3 player | Yes (USB/TF) |
Bluetooth range | 10 m |
Power (Peak) | 140 w |
Battery power | Up to 5 hours. (6 hours charge time) |
12 v, 7.5 Ah lead acid battery | |
Amp THD | 0.1% 20 Hz-20 KHz |
Amp frequency response | 20 Hz – 20 KHz +/-1 dB |
Input voltage | 100 v-240 v 50 Hz / 60 Hz |
Dimensions | 490 x 400 x 740 mm |
Net weight | 13.7 kg |
Gross weight | 15.8 kg |
