6.5"
- 6.5″ LF driver
- 1.0″ HF done tweeter
- ABS plastic construction
- Wall brackets included
- 8 Ω or 70v/100v versions available

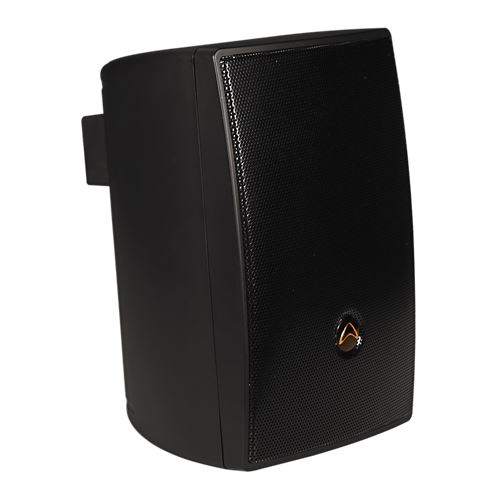

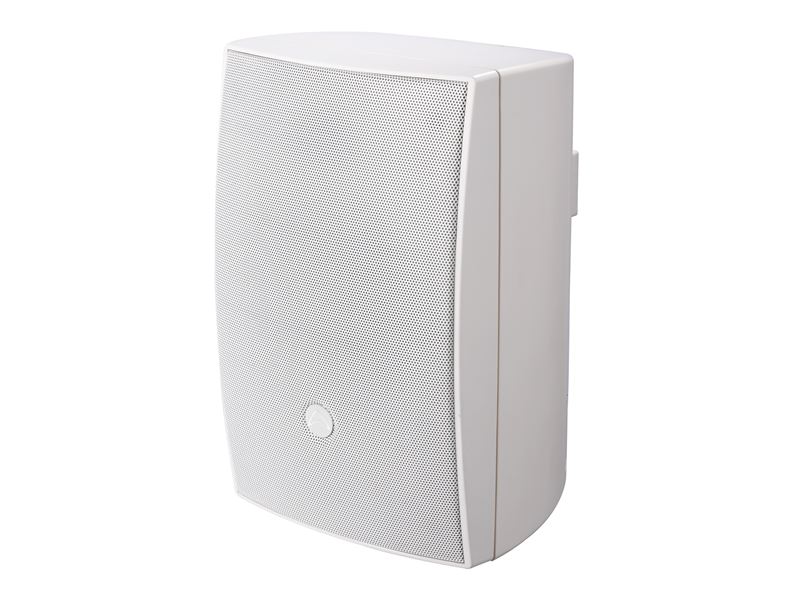

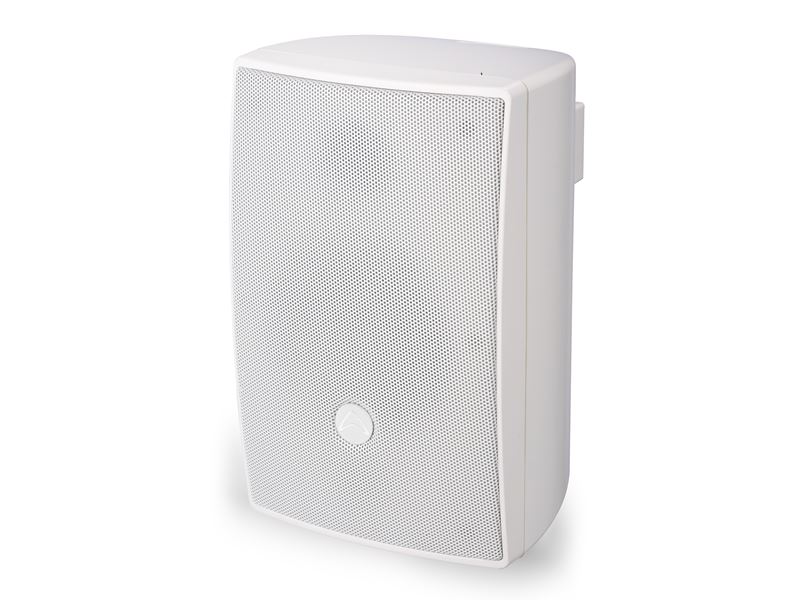

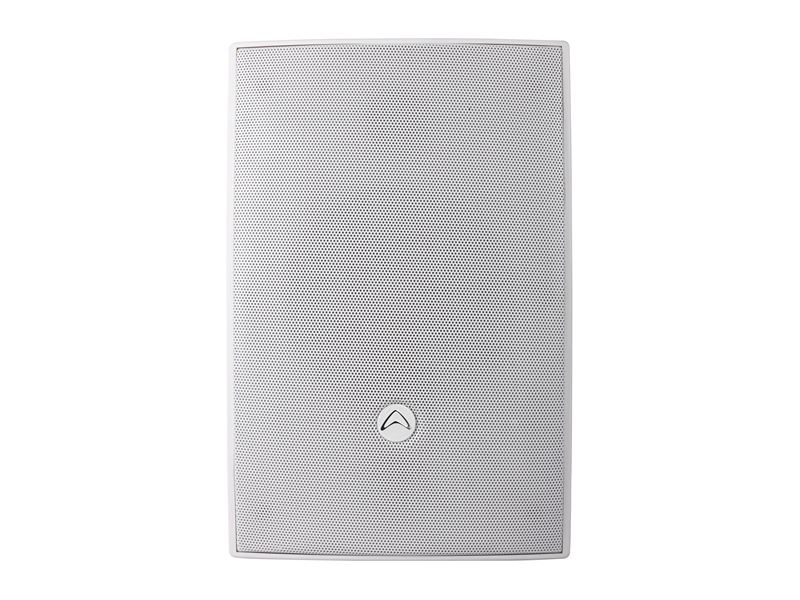

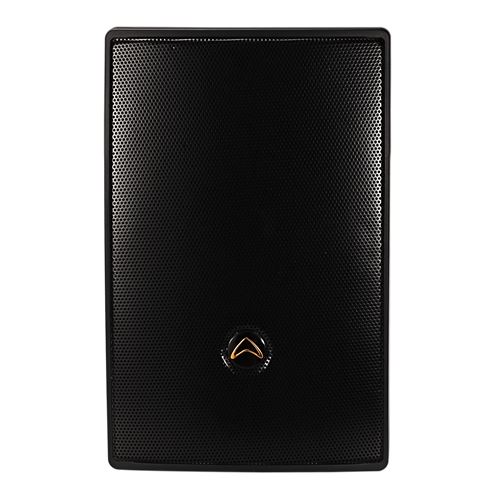

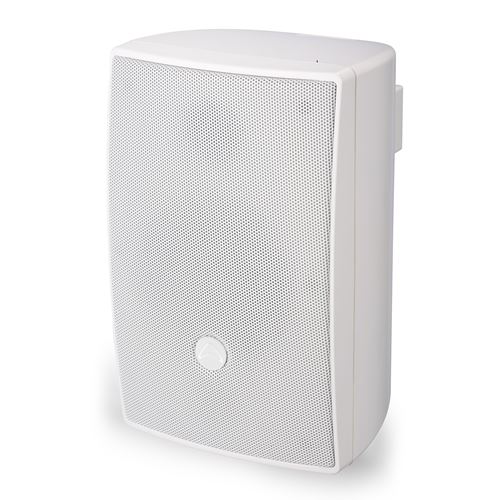

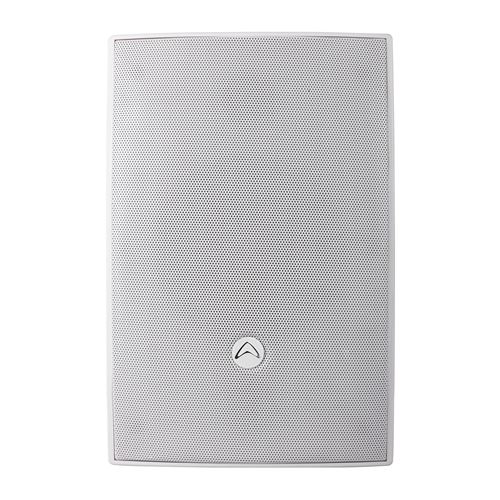

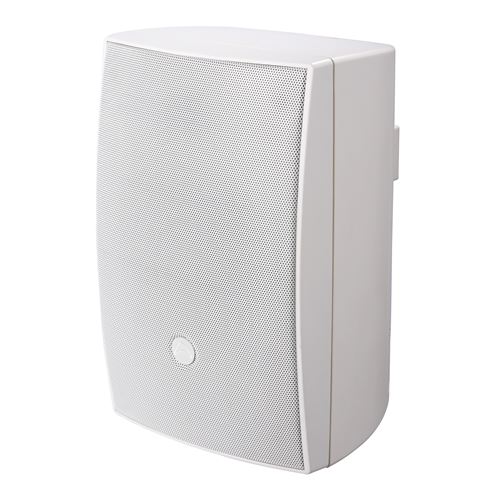

- Available in black or white
ABOUT THE i SERIES
Designed specifically for small to medium scale commercial installations, the ‘i series' is made up of 3 ABS plastic models (4", 6.5" and 8"). Each model is available in a 70v/100v or in a 8Ω low impedance configuration and is available in Black or White.
MOUNTING
All models are supplied with fully adjustable steel wall mounting brackets. (No more searching through websites looking for compatible mounting hardware! The brackets come inside the These brackets are simple to install and give comprehensive adjustment angles due to the semi-circular 'ball and socket' design. i series are easy to mount, easy to adjust and simple to securely lock in place. There is also a threaded insert for attachment of the included seismic restraint tether.
DRIVERS
Internally, the i series use a two-way design with a 1.0" silk dome tweeter and custom Wharfedale Pro 4", 6.5" or 8" low frequency drivers. This combination results in a natural sounding speaker that suits both prereco rd ed musi c playbac k o r voic e applications.
FULL METAL BRACKET
The beauty of I series is that you don’t have to worry about finding specialist mounting hardware. The fully-adjustable mounting brackets are included.
These brackets are simple to install and give comprehensive adjustment angles due to the semi-circular ‘ball and socket’ design.
I series are easy to mount, easy to adjust and simple to securely lock in place. There is also a threaded insert for attachment of the included seismic restraint tether.
- 8″, 6.5″ and 4″ models
- 8 Ω and 70 v and 100 v transformer models
- Available in Black or White
- Supplied in Pairs
- Supplied with adjustable mounting brackets
- IP54 certified
- ABS construction
- Full frontal steel grilles
- Perfect for distributed audio installations
| Model Name | i6 |
| System Type | Passive |
| Configuration | Two-way |
| Frequency Response (+/-3 dB) | 70 Hz – 20 KHz |
| Frequency Range (-10 dB) | 50 Hz – 20 KHz |
| Sensitivity (2.83v/1 m) | 86 dB |
| Calculated Maximum SPL @ 1 m | 109 dB |
| System Rated Impedance | 8Ω |
| Low Frequency Transducer | |
| Size | 6.5″ |
| Voice Coil Size | 1″ |
| Rated Impedance | 8Ω |
| LF Power (re:AES2-2012) | 50 w |
| High Frequency Transducer | |
| HF Driver Type | Soft dome tweeter |
| Voice Coil Size | 1″ |
| Diaphragm Material | Silk |
| Rated Impedance | 8 Ω |
| HF Power (re:AES2-2012) | 10 w |
| Nominal Coverage (H x V) | 150° x 170° |
| Power | |
| System Continuous Power | 50 w |
| System Programme Power | 100 w |
| System Peak Power | 200 w |
| Crossover frequency | 2.2 KHz |
| Input Connector | Phoenix terminal |
| Hardware | Wall mount bracket included |
| Enclosure | |
| Enclosure Material and finish | Plastic (ABS) |
| Colour Options | Black or White |
| Grille Material & Finish | Aluminium |
| Dimensions – Unpacked | |
| Height | 370 mm/14.6″ |
| Width | 245 mm/9.6″ |
| Depth | 216 mm/8.5″ |
| Dimensions – Packed(1 PAIR) | |
| Height | 495 mm/19.5″ |
| Width | 565 mm/22.3″ |
| Depth | 340 mm/13.4″ |
| Weight | |
| Net Weight (single speaker) | 4.3 kg / 9.46lbs |
| Gross Weight(1PAIR,Include Bracket) | 11.12 kg / 24.5lbs |
