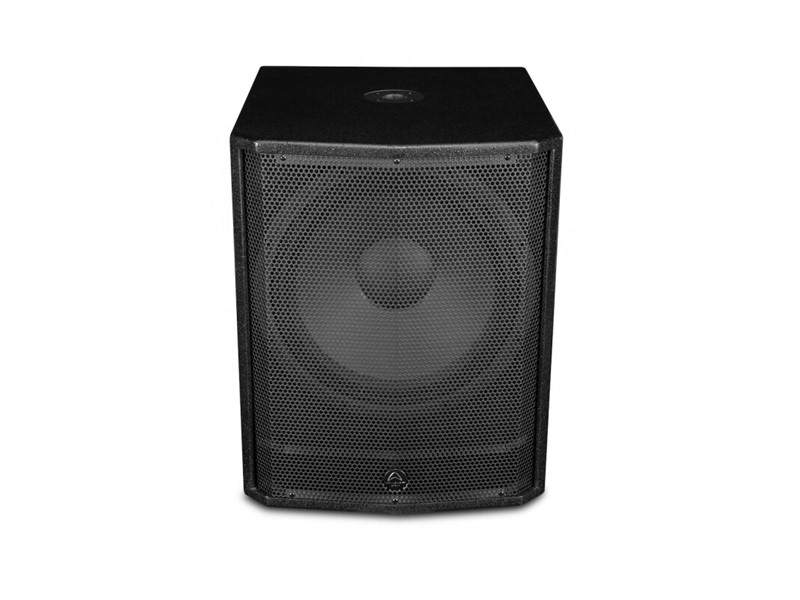

IMPACT-X18BL
600 watts
- 18″ Passive Subwoofer
- 134 dB max SPL @ 1 meter
- 30Hz – 250Hz
- 2.5″ LF voice coil
- MDF construction
- Combi connector inputs
- 600 watts AES (RMS)
- 1200 watts Programme
- 2400 watts Peak
ELIPTICAL WAVEGUIDES
Full range models feature a 90° x 60° Elliptical Waveguide
In real-world terms this means that the higher frequencies can be heard with definition at 90° in the horizontal plane, and 60° in the vertical.
All full range models in the Impact-X series use this same elliptical waveguide design which makes for controllable coverage when using multiple Impact series loudspeakers.
IRIS X COMPRESSION DRIVERS
The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance. Impact-X loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity. The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.
A hot transducer wastes energy, risks damage and distorts. IRIS X reduces this through improved heat dissipation and improved efficiency.
In real-world terms, IRIS X transducers deliver higher SPL with less distortion. They lead the market with specifications and are designed and built entirely within Wharfedale Pro.
Increased Radius Increased Sensitivity
ROUTED LOGO
Impact-X features a routed Wharfedale Pro logo.
It is a logo to be proud of. A logo that lets your audience know that the sound of your even will be of the highest possible quality.
COMBI JACK INPUTS
A handy feature are the NL2 combi jack connectors which are used in all models of Impact-X.
These accept both speakON compatible cabling or 1/4″ jack speaker cables. It means that you’ve usually got the right cables on hand!
- 9 models
- Constructed of premium MDF
- Durable Rhino rock paint finish
- IRIS X HF compression drivers
- Custom Wharfedale Pro LF drivers
- speakON compatible + jack combi connectors
- Iconic boomerang Wharfedale Pro logo
- For touring
- For entertainers
- For hardworking performers
| Model Name | IMPACT-X18BL |
| System Type | Passive |
| Configuration | 18″ Subwoofer |
| Frequency Response (+/-3 dB) | 40-220 Hz |
| Frequency Range (-10 dB) | 30-250 Hz |
| Sensitivity (2.83 v / 1 m) | 100 dB |
| Calculated Maximum SPL @1 m | 134 dB |
| System Rated Impedance | 4 Ω |
| Low Frequency Transducer | |
| Size | 470 mm / 18″ |
| Voice Coil Size | Quad layer 3.0″ |
| Rated Impedance | 4 Ω |
| LF Power (re:AES2-2012) | 600 W |
| High Frequency Transducer | |
| HF Driver Type | |
| Voice Coil Size | |
| Exit Size | |
| Diaphragm Material | |
| Rated Impedance | |
| HF Power (re:AES2-2012) | |
| Nominal Coverage (H x V) | |
| Nominal Impedance | |
| Power | |
| System Continuous Power | 600 W |
| System Programme Power | 1200 W |
| System Peak Power | 2400 W |
| Crossover frequency | 250 Hz |
| Input Connector | 2 x NL2 combi jack |
| Hardware | 35 mm pole socket |
| 2 carry handles | |
| Enclosure | |
| Enclosure Material and finish | MDF |
| Colour Options | black paint |
| Grille Material & Finish | steel |
| Dimensions – Unpacked | |
| Height | 650 mm / 25.6″ |
| Width Front | 528 mm / 20.8″ |
| Width Rear | 528 mm / 20.8″ |
| Depth | 639 mm / 25.2″ |
| Dimensions – Packed | |
| Height | 740 mm / 29.1″ |
| Width Front | 725 mm / 28.5″ |
| Width Rear | 725 mm / 28.5″ |
| Depth | 614 mm / 24.2″ |
| Weight | |
| Net Weight | 40.0 kg / 88.0 lbs |
| Gross Weight | 44.2 kg / 97.3 lbs |
