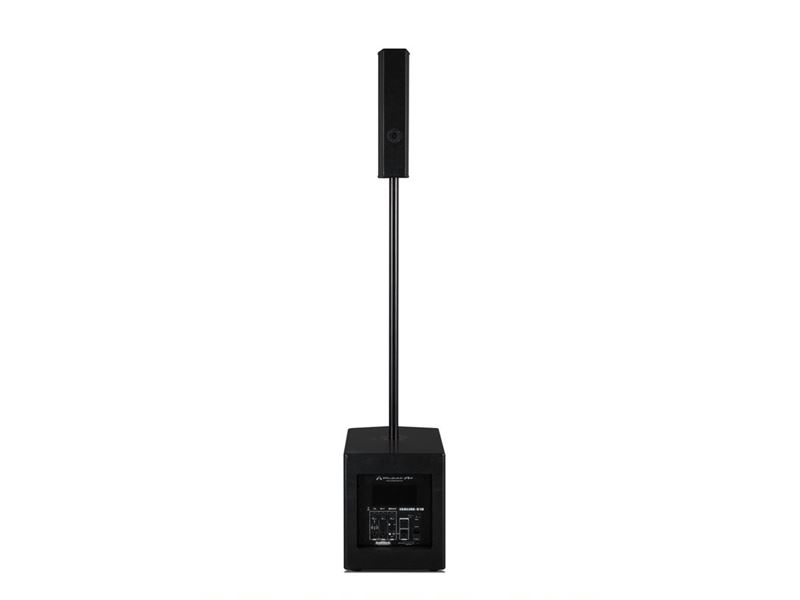

The all-new Isoline Series from Wharfedale Pro is your fastest route to a professional, compact PA system. Compromising of a column formation loudspeaker interconnected with a high powered subwoofer with its own built-in amplifier and DSP, users can expect a full-range sound from a system that is easily packed down into your car boot with ease. For ultimate convenience Isoline comes complete with a built-in mixer and wireless bluetooth input.
Active PA, All-In-On

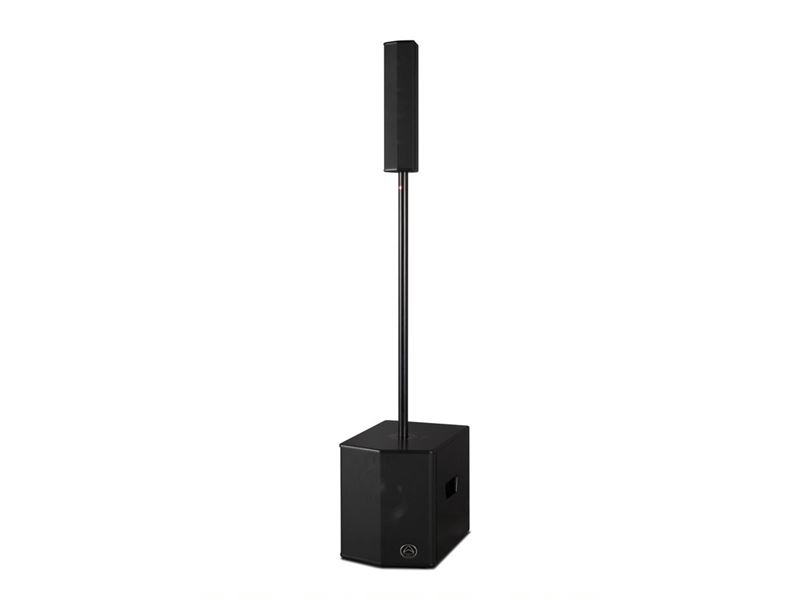

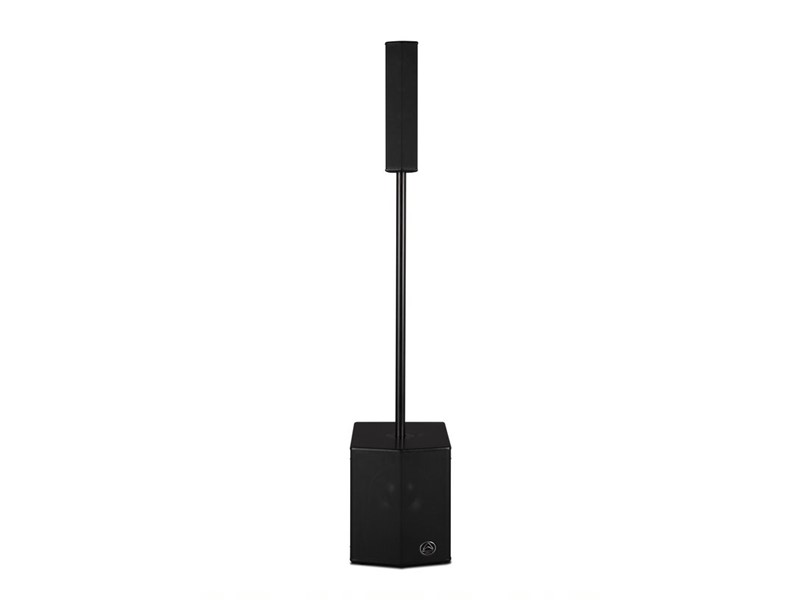

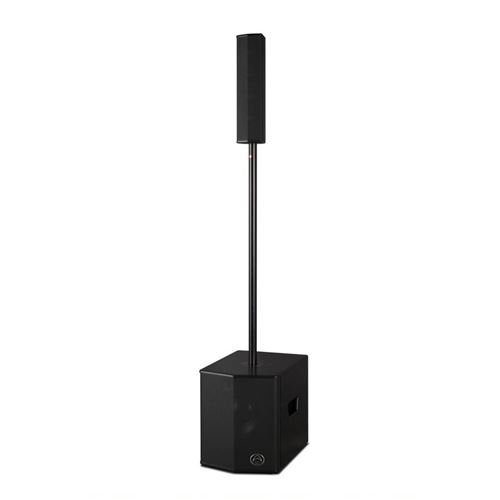

The Isoline Series is available in two different models, the Isoline 410 and the Isoline 812. The 410 column speaker compromises of 4 high powered 3” wideband drivers, covering the high/mid range with a long throw 10” subwoofer. This is perfect for corporate presentations and smaller singer-songwriter style performances.
Powerful, Yet Discreet
The larger Isoline 812 makes use of 8 x 3” wideband drivers combined with a larger 12” subwoofer. Extending to a lower frequency response and a higher output of 800W peak (500W RMS) the larger system applies itself to applications including for Mobile DJs and events requiring a more demanding system yet is equally portable with a discreet aesthetic. For even more power, two systems can be used in a stereo pair, or linked together via the built-in XLR output.
More Connection, Less Gear
Isolines’ built-in mixer offers complete control over 2 x XLR / Jack combi inputs (with mic and line level) plus a phono input to mix a combination of backing tracks, live vocals and instruments. In keeping with modern tech savvy DJs and engineers with wireless mixers and controllers a bluetooth input is also easily paired with your mobile device in seconds. This also gives less experienced presenters an intuitive interface between a tablet or mobile device and the PA system. Either way - Isoline offers complete convenience.
- Lightweight, portable active column pa systems
- XLR, Jack and RCA Phono inputs
- Bluetooth wireless connectivity
- Each unit includes pole and speaker cable
- Multiple high powered 3″ High / Mid Drivers (4 or 8)
- 10″ / 12″ long throw subwoofer
- Rhino Rock black paint finish
- Link multiple systems via XLR output
- Lightweight and portable
- Slimline formation
- Built-in DSP
- Optional Isoline Tour bags available
Model Name | Isoline-410 |
System Type | Active |
Frequency Response (+/-3 dB) | 50 Hz-20 KHz |
Frequency Range (-10 dB) | 45 Hz-20 KHz |
Sensitivity Maximum SPL @1m | 121 dB |
Transducers | |
Low Frequency Transducer | |
Size ( mm / inches) | 254 mm / 10” |
Coil Size ( mm / inches) | φ51.3 / 2′ |
Impedance | 8 Ω |
High Frequency Transducer | |
Type | 4 x Wideband Drivers |
Coil Size ( mm / inches) | φ32.5 / 1.3′ |
Diaphragm Material | paper cone |
Impedance | 8 Ω |
Nominal Coverage (H x V) | 80 Horizontal |
Electronics | |
Amplifiers [footnote] | |
Low-Frequency Power Amplifier RMS/Peak Watts | 250/500 W |
High-Frequency Power Amplifier RMS/Peak Watts | 150/300 W |
Amplifier class | class D |
DSP | |
Controls—D-EQ | |
Amplifier Protection | Yes |
Power On Protection | Yes |
Thermal Protection | Yes |
Low Line Voltage Shut Down | Yes |
Driver Protection | Independent LF limiters |
DC Protection | Yes |
Short Protection | Yes |
Clip Limiter | Yes |
Limiter Indicator | LED |
Power Indicator | LED |
Connectors | |
Inputs | |
Input Sensitivity | Switchable balanced mic or line level input |
Input A (Line / Mic balanced) | Mic:Line:10 dBu -60 dBu |
Input B (Balanced) | -10 dBu |
input C (RCA / Bluetooth) | 0 dBu |
Maximum Input Level | 20 dBu |
Input Connector | 2 x XLR Jack Combi, RCA |
Input Impedance | Balanced:20 KΩ Unbalanced:10 KΩ |
Input A (Line / Mic balanced) | 22 KΩ Balanced and 11 KΩ Unbalanced |
Input B (Balanced) | 22 KΩ Balanced and 11 KΩ Unbalanced |
input C (RCA / Bluetooth) | 11 KΩ Unbalanced |
Maximum Input Level | 20 dBu |
Line Output Connector | Female XLR |
Impedance Balanced | Balanced: 50 Ω Unbalanced:100 Ω |
Loop Gain | 0dB |
AC Power | |
AC Power details | |
Power Supply | High Efficiency Switching Mode Power Supply |
AC Power Options | AC100-120V~/220-240V~,50/60HZ |
Power On Indicator | Limiter Indicator: Red LED |
Power Indicator: Green LED | |
Bluetooth Pairing: Blue LED | |
Hardware | |
Rigging / Bracket / Mounting Options | Standard Pole Mount |
Enclosure | |
Enclosure Material and finish | MDF cabinet,resistant black paint,metal grille,rubber feet handles |
Colour Options | Black |
Grille Material & Finish | Steel |
Dimensions and Weight | |
Dimensions – Unpacked ( mm / inches): | |
Height | 400 mm / 15.75″ |
Width | 350 mm / 13.78″ |
Depth | 500 mm / 19.69″ |
Dimensions – Packed ( mm / inches): | |
Height | 475 mm / 18.7″ |
Width | 418 mm / 16.46″ |
Depth | 568 mm / 18.43″ |
Weight | |
Net Weight (kg / lbs) | 20.6 kg / 45.4 lbs |
Gross Weight (kg / lbs) | 24.4 kg / 53.8 lbs |
