Wharfedale Programme Series loudspeakers are the result of many years of experience in the use, design and manufacturing of professional loudspeaker products. We take great pride in engineering and building every Wharfedale Pro loudspeaker and wish to thank you for entrusting us with your sound.
Please take a few minutes to read this manual completely in order to ensure that you get the most out of your Programme Series Loudspeaker system.
PROGRAMME SERIES OVERVIEW:

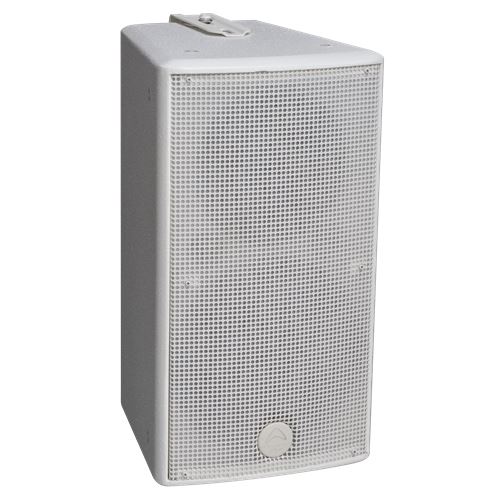

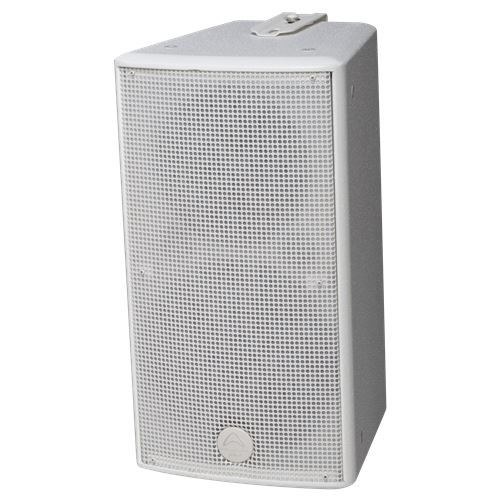

The Programme Series loudspeaker systems are designed to deliver accurate, high power sound in a lightweight, compact and easy to install package.
Each Programme Series speaker may also be used in constant voltage distributed systems. With an internal, switchable transformer, you can economically install a background music or paging system, while still only using one amplifier.
The Programme Series has a speaker to fit your sound requirements. From the compact, lightweight Programme105 to the multiple driver Programme406, or adding the Programme Sub, you have the flexibility you need to provide the best sound value. With the included mounting brackets, transformer option (full range), you will be impressed with the ease of wall or ceiling mounting as well as the clear, accurate sound coming out of these speakers.
- 2-way installation speaker systems
- Mylar, silk and titanium HF drivers used across range
- Low distortion, high power woofers
- M6 or M8 high hanging points
- speakON compatible, parallel spring and barrier inputs
- Supplied with adjustable heavy duty steel mounting bracket

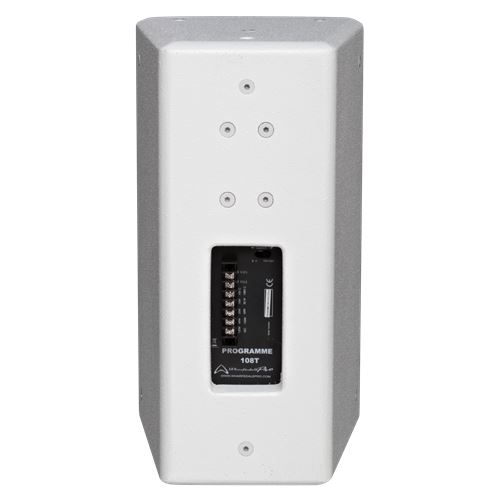

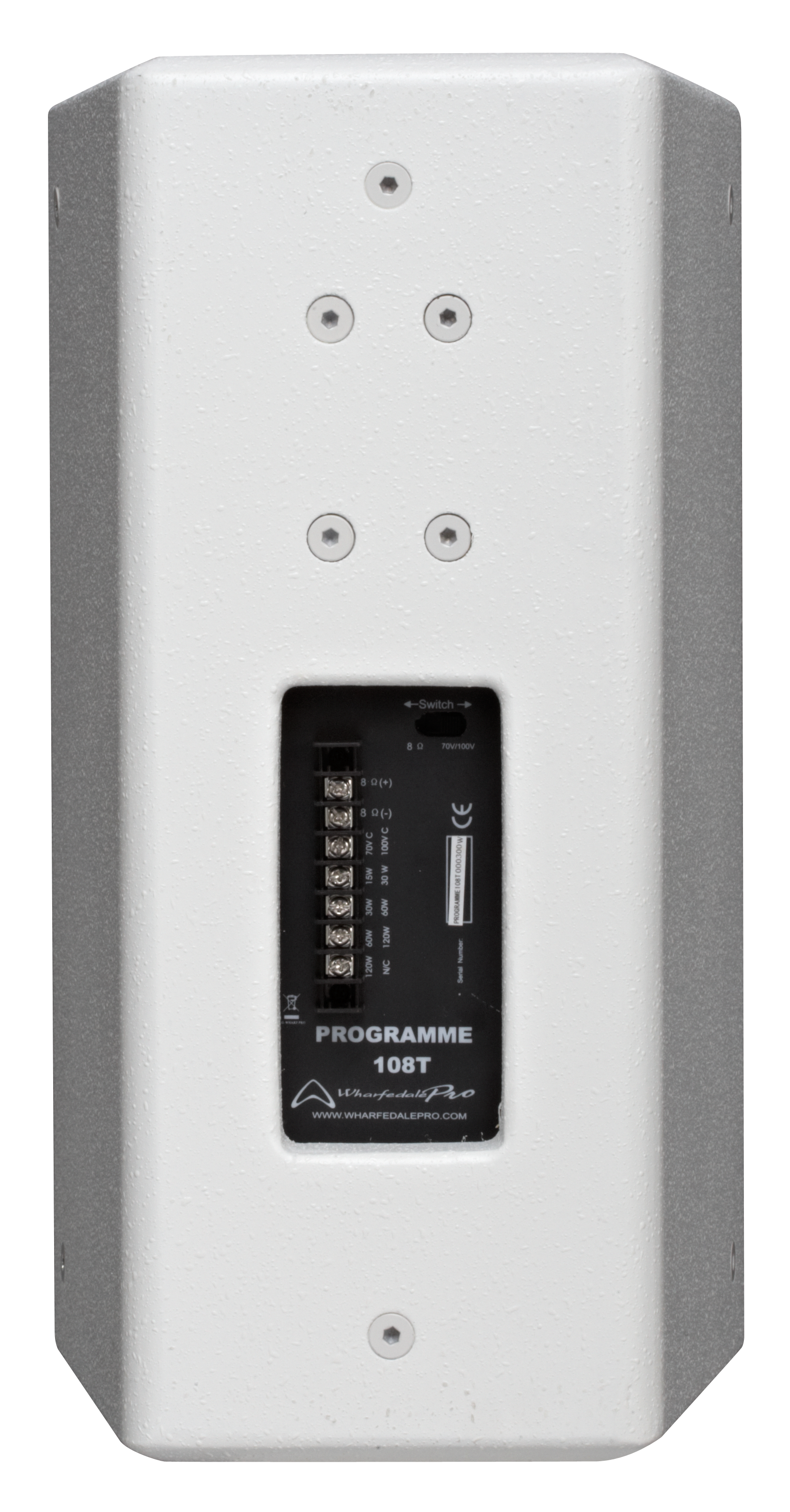

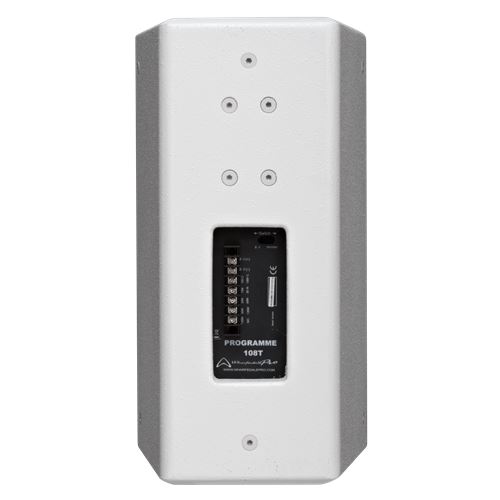

- Models available with 70 v/100 v Transformer (‘T’ models)
- For venues including houses of worship, retail shops and other public areas
- White finishes also available
Model Name | Programme |
108 / 108T | |
System Type | Passive |
Configuration | Two-way |
Freq Response (+/-3 dB) | 60 Hz – 20 KHz |
Frequency Range (-10 dB) | 55 Hz – 20 KHz |
Sensitivity (2.83 v / 1 m) | 90 dB |
Calculated Max SPL @1 m | 118 dB |
System Rated Impedance | 8 Ω |
LF Transducer | |
Size | 203.2 mm / 8″ |
Voice Coil Size | 51.5 mm / 2″ |
Rated Impedance | 8 Ω |
LF Power (re:AES2-2012) | 150 w |
HF Transducer | |
HF Driver Type | |
Voice Coil Size | 25.4 mm / 1″ |
Exit Size | 25.4 mm / 1″ |
Diaphragm Material | titanium |
Rated Impedance | 8 Ω |
HF Power (re:AES2-2012) | 15 w |
Nominal Coverage (H x V) | 60˚ x 60˚ |
Power | |
System Continuous Power | 150 w |
System Programme Power | 300 w |
System Peak Power | 600 w |
Crossover frequency | 2.3 KHz |
Input Connector | 2 x NL4 |
+ Barrier Strip | |
Hardware | |
Rigging | M8 x 18 |
Mounting bracket | Included |
Enclosure | |
Enclosure Material | MDF |
Finish | Black / White Paint |
Grille Material & Finish | Black / White Full (Steel) |
Dimensions – Unpacked | |
Height | 458 mm / 18.03″ |
Width Front | 248 mm / 9.76″ |
Width Rear | 248 mm / 9.76″ |
Depth | 275 mm / 10.83″ |
Dimensions – Packed | |
Height | 543 mm / 21.4″ |
Width Front | 311 mm / 12.2″ |
Width Rear | 311 mm / 12.2″ |
Depth | 346 mm / 13.6″ |
Weight | |
Net Weight / T-model | 9.34 kg / 10.8 kg |
Gross Weight / T-model | 12.66 kg / 15.16 kg |
