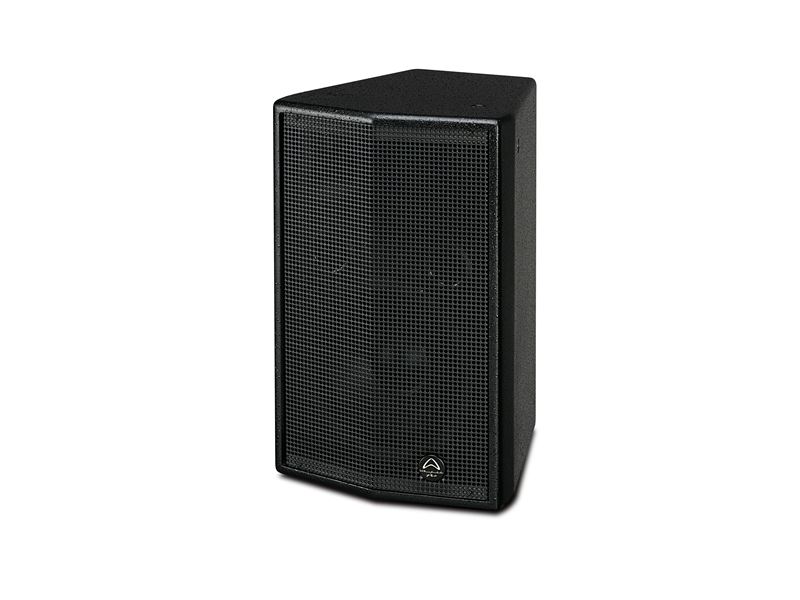

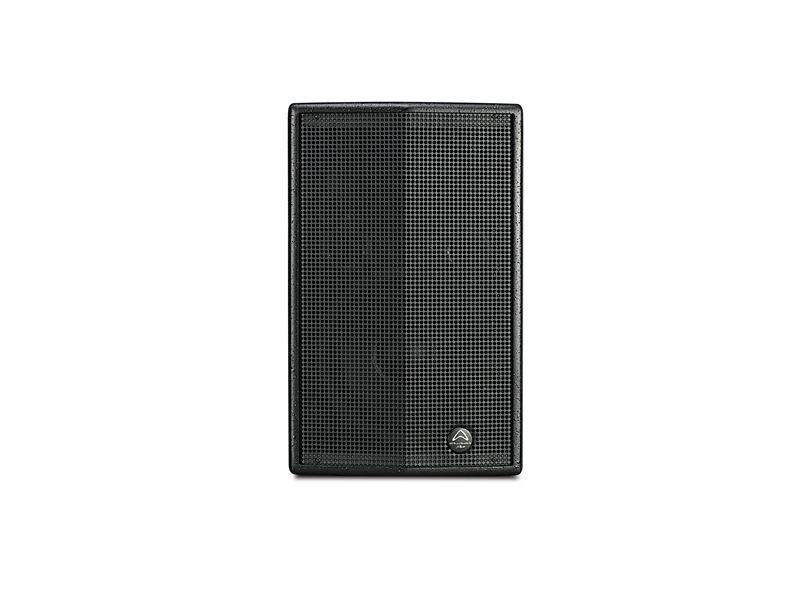

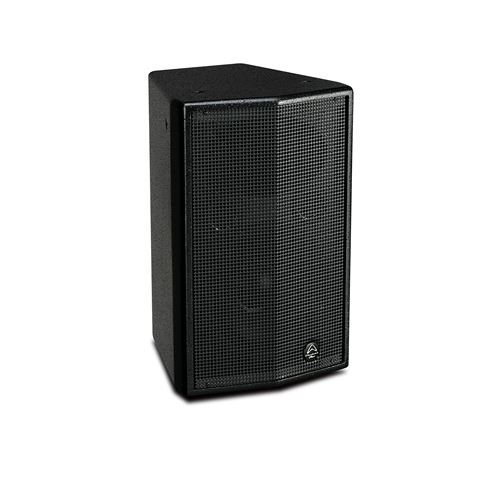

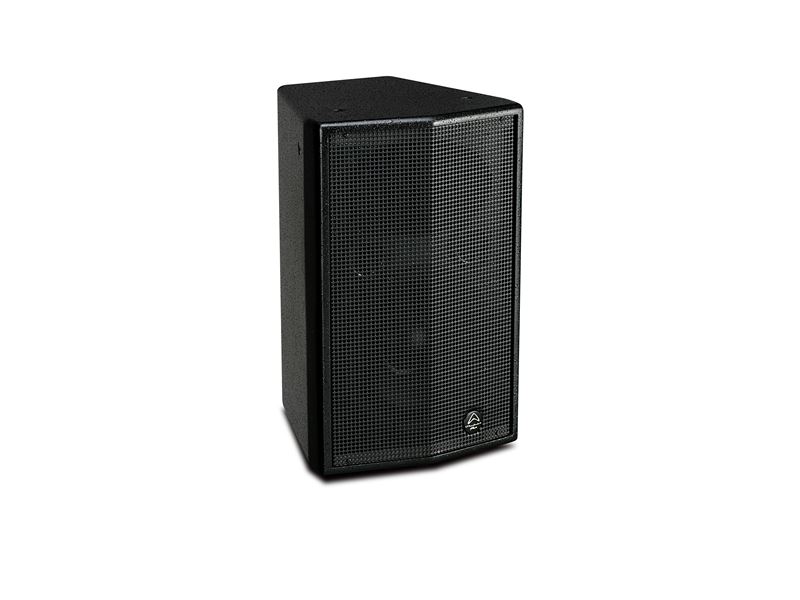

WHARFEDALE PRO Sigma Series 200 Watts RMS 10" 2-Way Passive Loudspeaker

SIGMA-10

Wharfedale Pro

Whatsapp for enquiry Email for enquiry






SIGMA 10

200 watts
AES (Continuous)
  • 10″ LF driver
  • 1.5″ LF voice coil
  • 1.75″ HF compression driver
  • 124 dB Max SPL @ 1 m
  • 400 watts Programme
  • 800 watts Peak

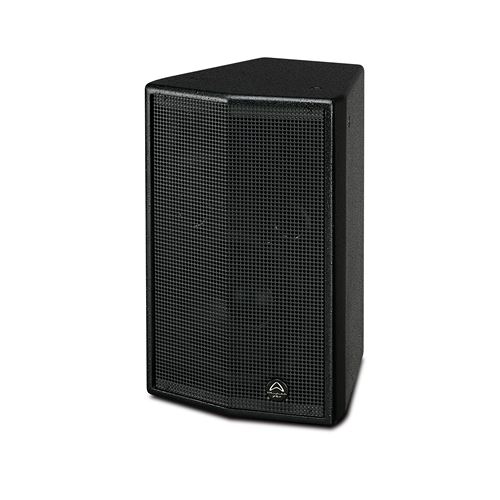

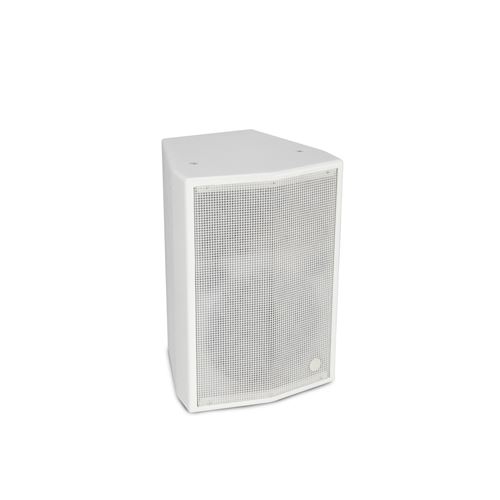

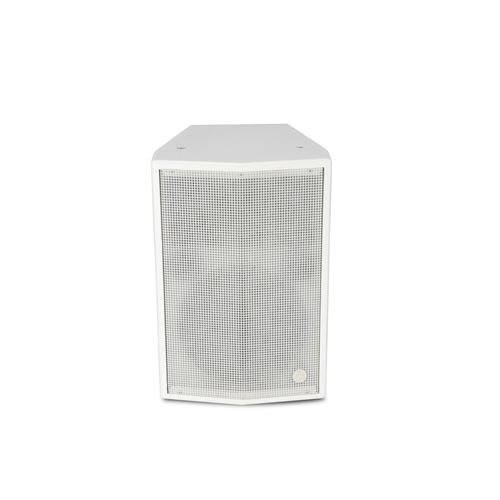

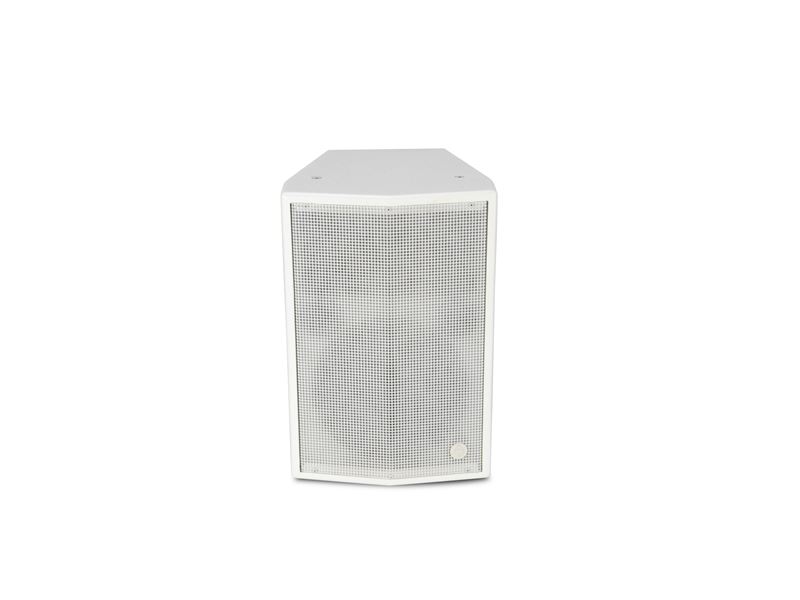

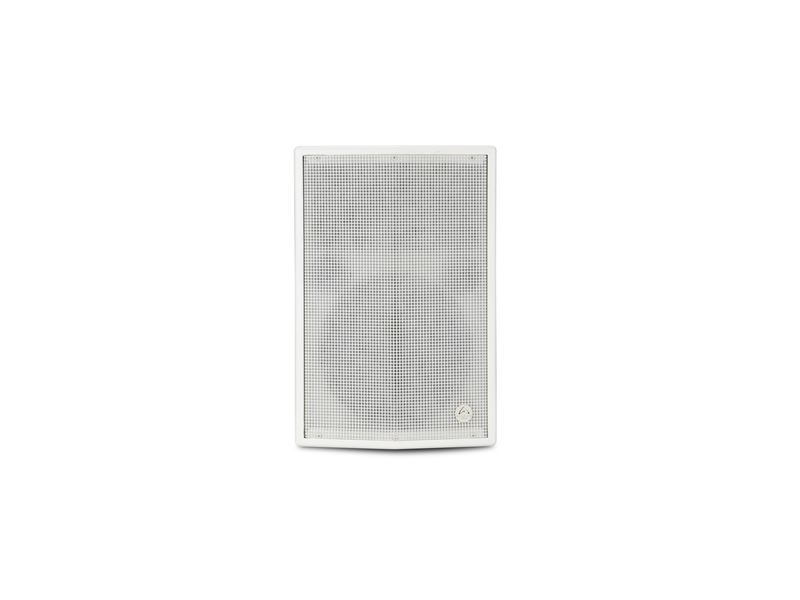

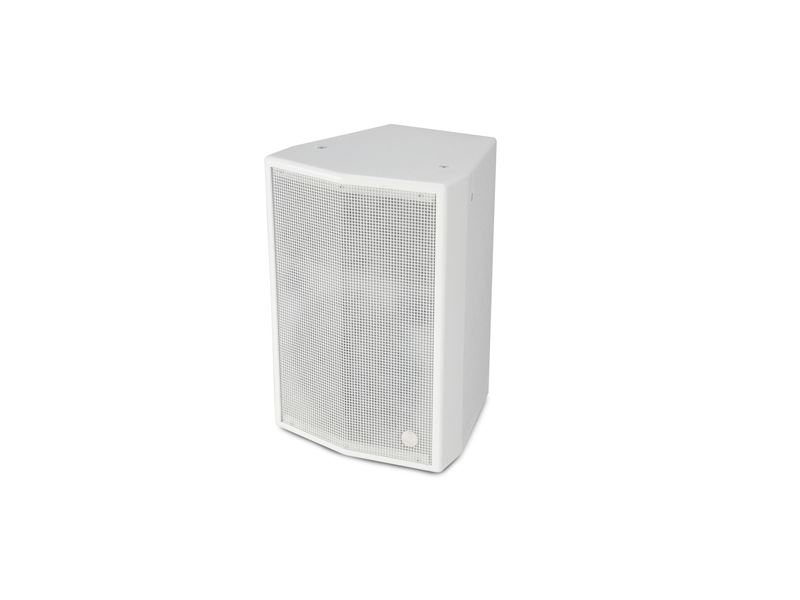

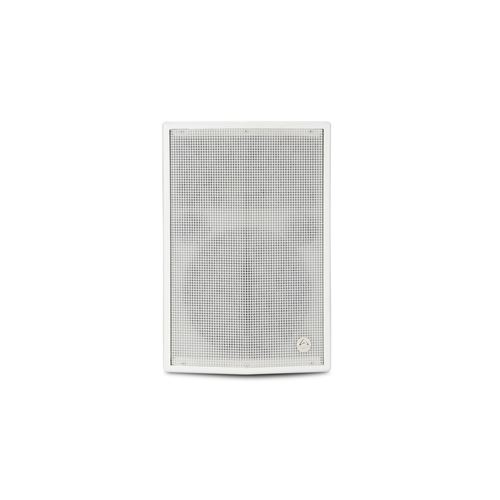

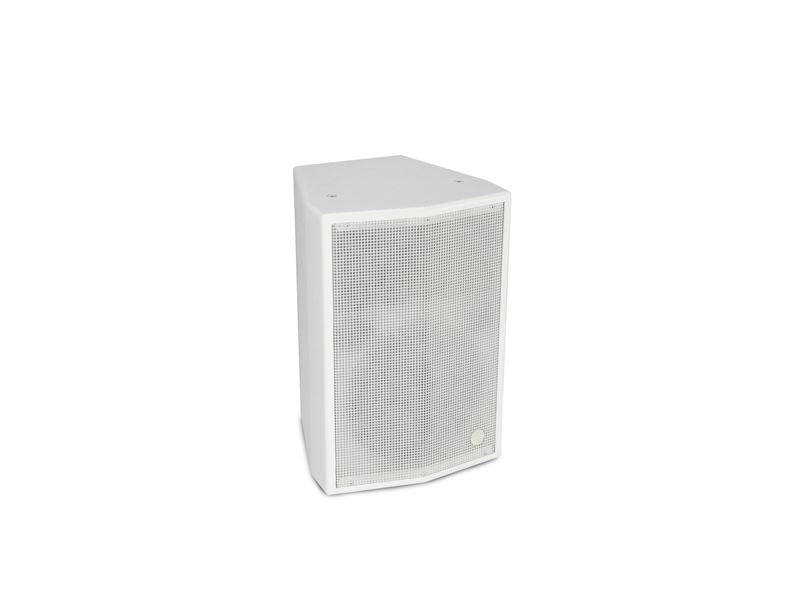

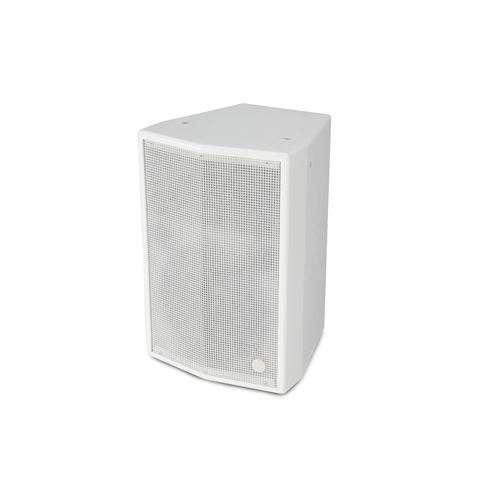

BLACK OR WHITE

Sigma series are covered in our durable Rhino Rock paint finish.  Make your choice – Black or white!  Both look great and last a lifetime.

Wharfedale Pro introduces the SIGMA SERIES of passive loudspeakers – specifically engineered for fixed installations.

With their unobtrusive design, the new SIGMA SERIES is perfect for installations where audio quality, rigging options and discreet cosmetics are critical. The series initially consists of 4 two-way models (8, 10, 12 and 15”) and an 18” subwoofer. All models are available in both black or white finishes.

Each model of SIGMA features the latest proprietary Wharfedale Pro driver technology. Using a curvilinear, double-roll surround system for the LF driver, Wharfedale Pro engineers have ensured stability for low through to mid-range frequencies. Meanwhile the HF compression driver features a 44mm diaphragm using a solid aluminium rear plate which assists heat dissipation in demanding environments.

Constructed from up to 18mm of MDF, the height and overall size of the cabinet has been reduced thanks to a newlydeveloped angled-corner port system. These ports have been individually tuned to maximise low end punch.

“We previewed the SIGMA series to our Distributors during ProLight and Sound and received very positive reactions.” said Wharfedale Pro. “Our Engineers had researched the market and listened to many installers requests. The result is SIGMA which offers the installer an MDF alternative in a category and at a price point which historically has been forced towards plastics.”


  • Discreet and unobtrusive design
  • Newly developed angled corner port system to reduce dimensions
  • Multiple M8 rigging points and a two way pole mount for easy installation
  • Crossovers tailored for vocal intelligibility
  • Chip resistant Rhino Rock paint
  • Double roll surround LF driver
  • High performance HF driver with aluminium rear cover for maximum heat dissipation
  • 2.5” voice coils on 12”, 15” and 18B models
  • 7 SIGMA series models available in black or white in the range for maximum flexibility.

  • Model Name SIGMA-10
    System Type Passive
    Configuration Two-way
    Frequency Response (+/-3 dB) 65 Hz – 18 KHz
    Frequency Range (-10 dB) 60 Hz – 20 KHz
    Sensitivity 2.83 v / 1 m 97 dB
    Calculated Maximum SPL @1 m 126 dB
    System Rated Impedance 8 Ω
    Low Frequency Transducer
    Size (mm / inches) 254 mm / 10”
    Voice Coil Size (mm / inches) 38 mm / 1.5”
    Rated Impedance 8 Ω
    LF Power re:AES2-2012 200 w
    High Frequency Transducer
    HF Driver Type Compression Driver
    Coil Size (mm / inches) 44 mm / 1.75”
    Exit Size (mm / inches) 1″
    Diaphragm Material Titanium
    Rated Impedance 8 Ω
    HF Power re:AES2-2012 40 w
    Nominal Coverage (H x V) 90˚ x 60˚
    Power
    System Continuous Power 200 w
    System Programme Power 400 w
    System Peak Power 800 w
    Crossover frequency 2.4 KHz

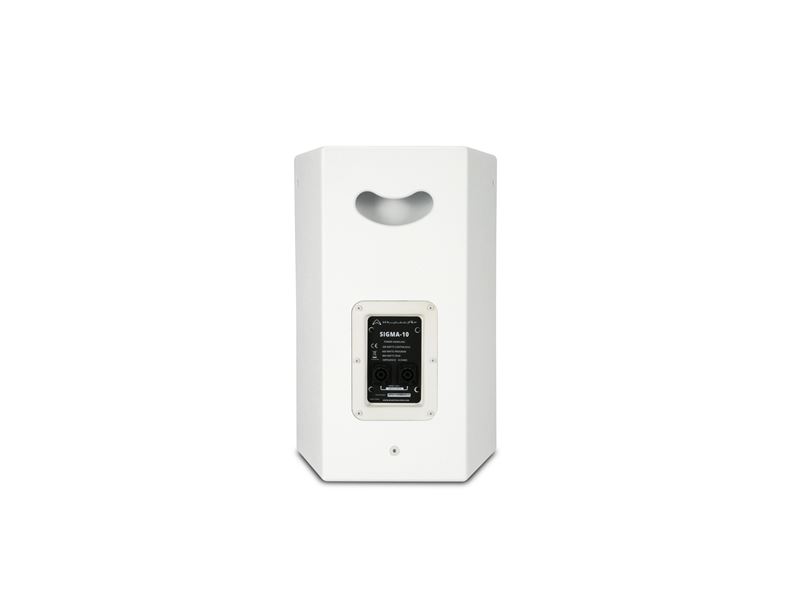

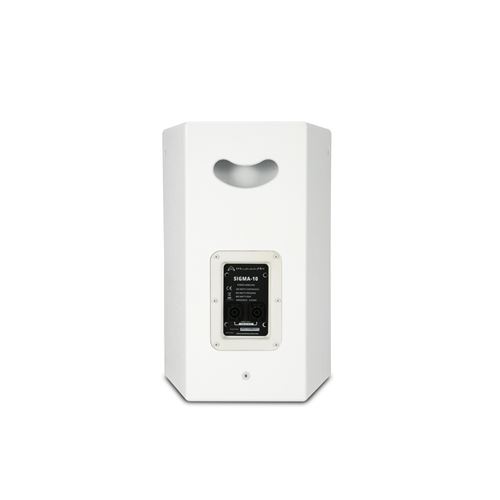

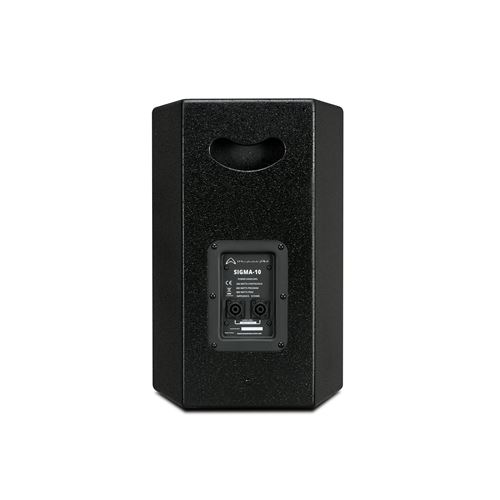

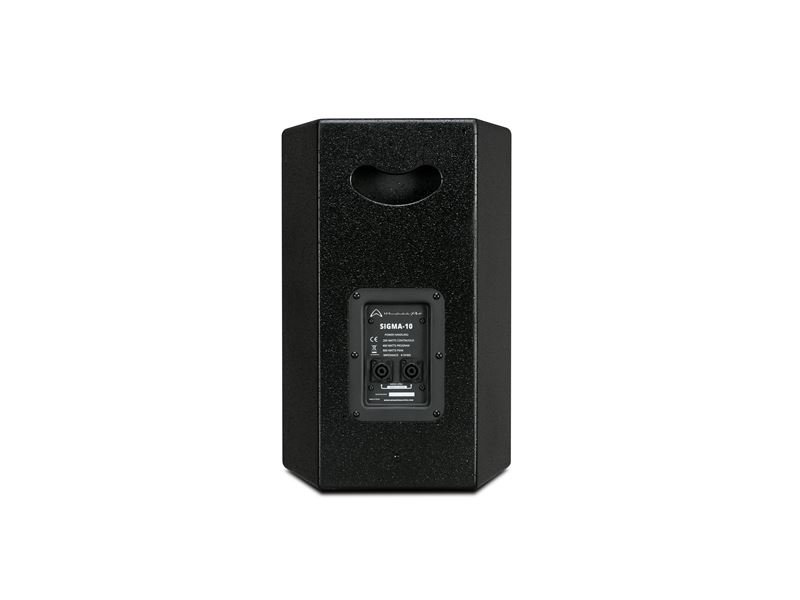

    Input Connector 2 x NL4 (speakON compatible)
    Hi Pass output connector
    Hardware Dual-angle (0° /10°) 35 mm socket
      M8 x 5
      1 handle on back
    Enclosure
    Enclosure Material 15 mm MDF
    Finish Black Paint / White Paint
    Grille Material & Finish 1.2 mm steel, painted
    Dimensions – Unpacked
    Height 500 mm / 19.5″
    Width Front 383 mm / 13.3″
    Width Rear 213 mm / 8.4″
    Depth 339 mm / 13.3″
    Dimensions – Packed
    Height 585 mm / 23″
    Width Front 451 mm / 18″
    Width Rear 254 mm / 10″
    Depth 384 mm / 13.3″
    Weight
    Net Weight 15.4 kg / 34 lbs
    Gross Weight 17.8 kg / 38.5 lbs
