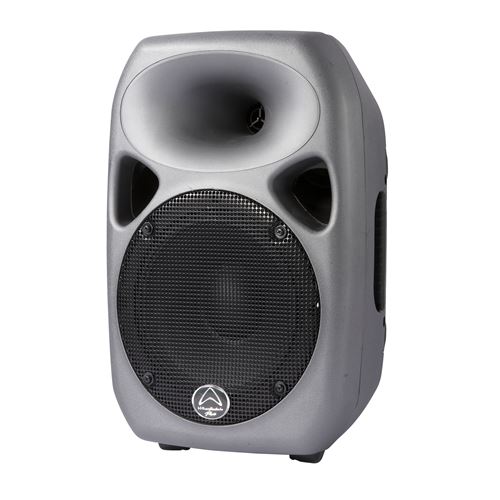

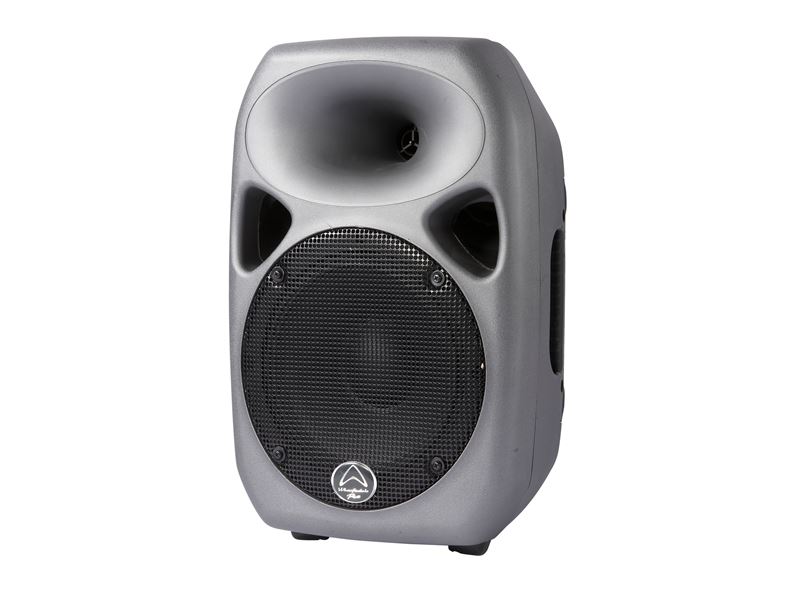

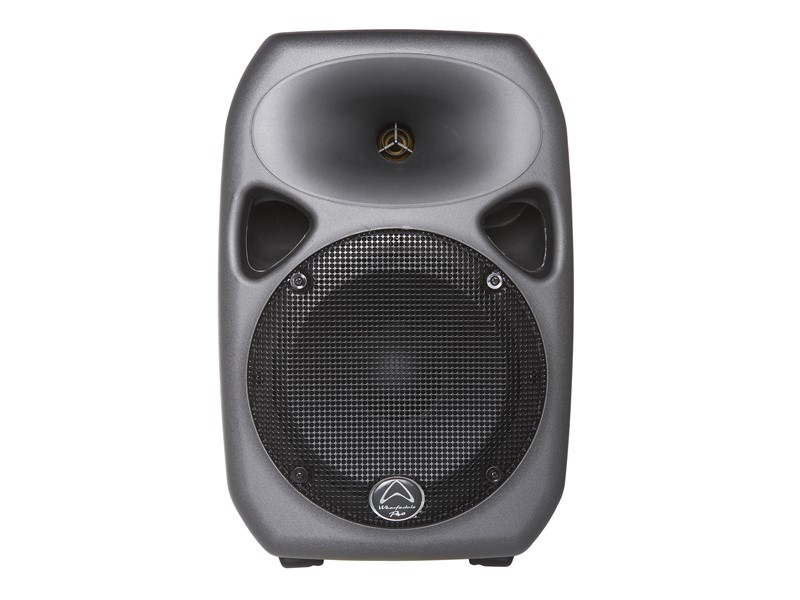

TITAN 8
- 8″ passive
- 1.0″ HF compression driver
- 150 watts AES (RMS)
- 300 watts Programme
- 600 watts Peak
- 124 dB Max SPL @ 1 meter
Titan™ Series --- VERSATILE LIGHTWEIGHT PA SPEAKERS, DURABLE FOR INDOORS AND OUT

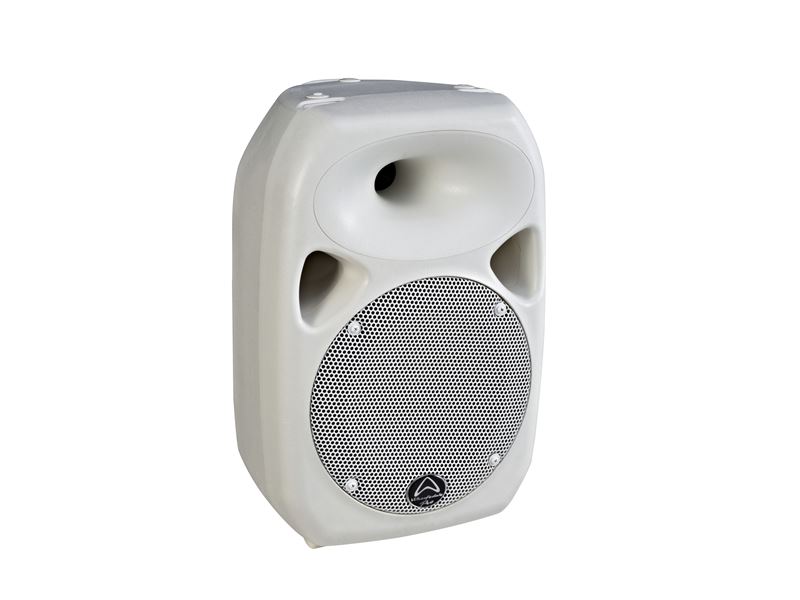

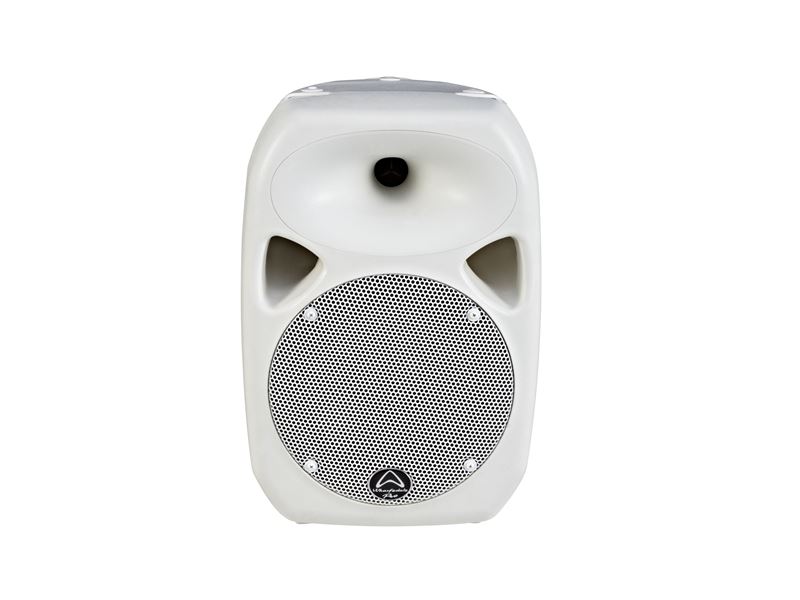

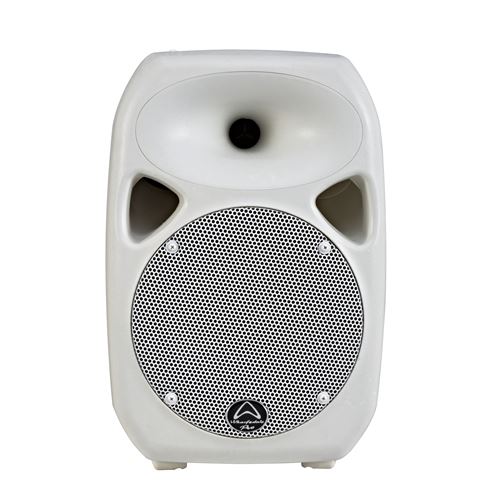

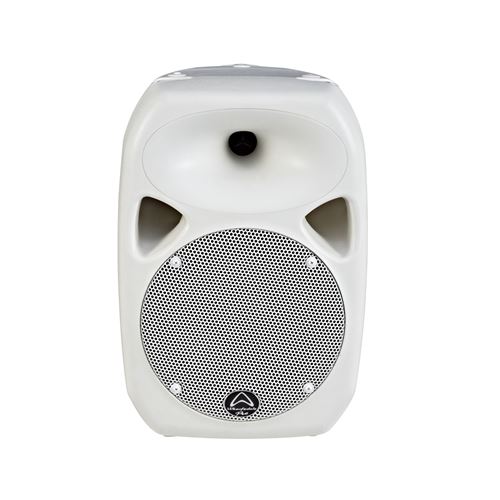

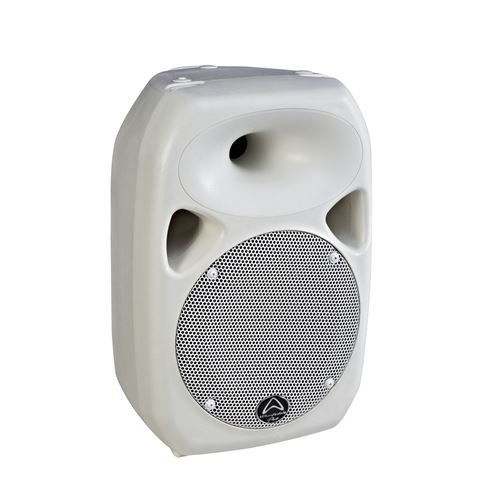

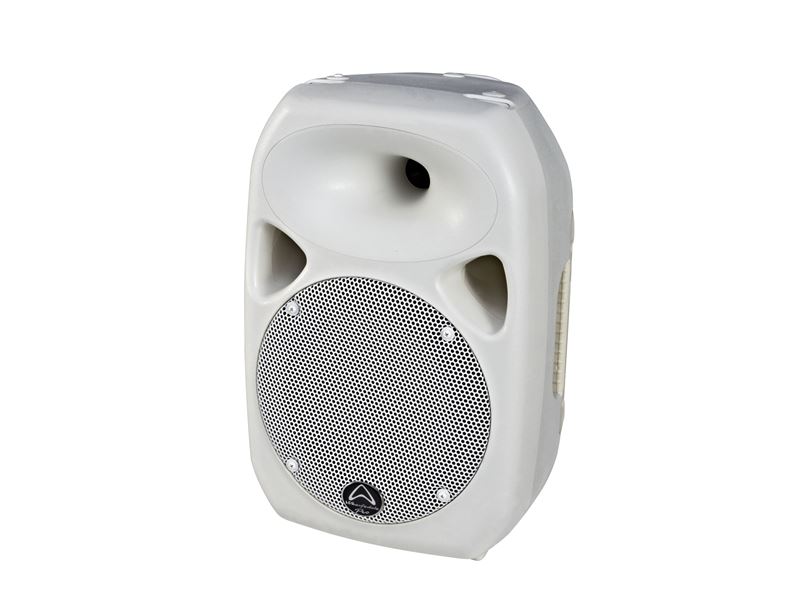

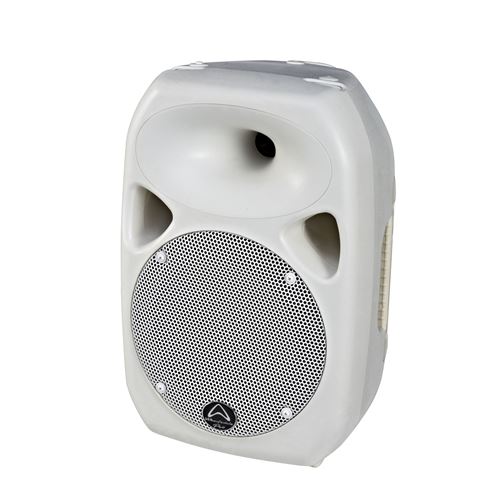

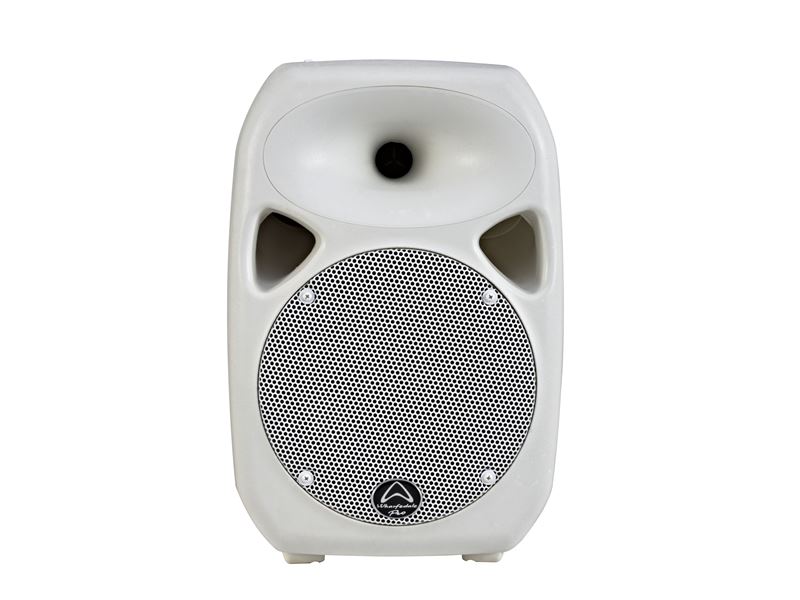

For many years the name ‘Titan’ has become the benchmark for portable and versatile loudspeakers. Titans are used day in, night out around the world in almost every audio environment imaginable.Available in active or passive, black or white, Titans deliver high quality audio with peace of mind reliability.

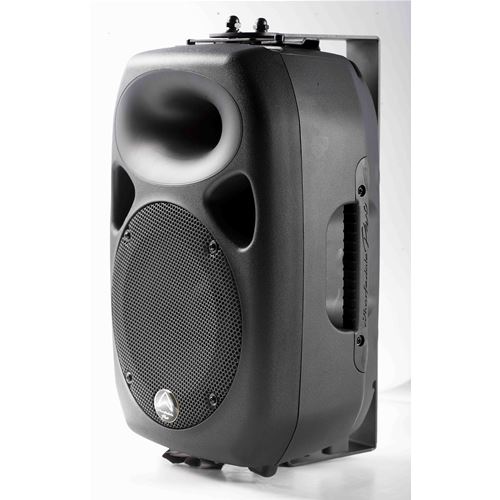

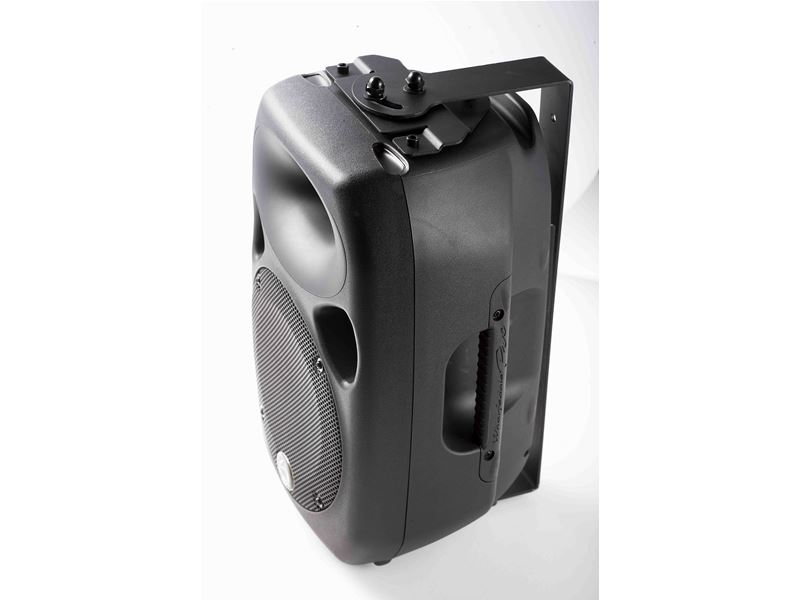

Designed to perform in portable and fixed installation applications alike Titans, with their ultra-lightweight composite enclosure, offer a range of mounting options including tripod floor stands, wall mounting brackets or even on their side as a floor monitor.
Titans use state of the art, gas assist injection moulding technology, plus an internal laminar flow rib pattern, increasing rigidity and reducing its weight compared with standard injection moulded enclosures.

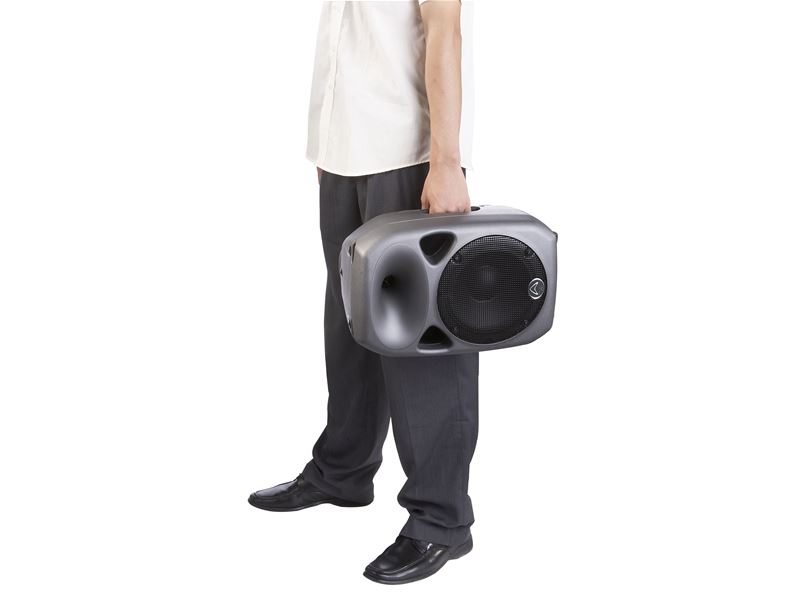

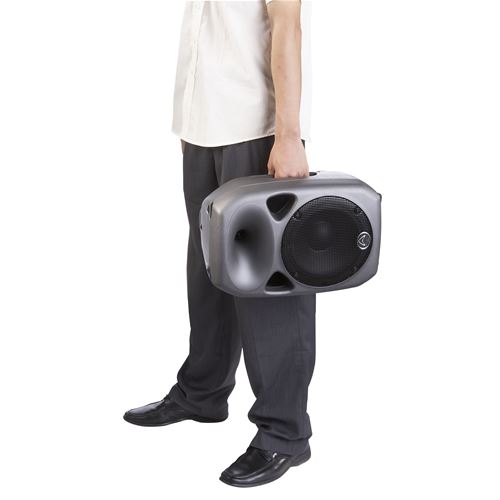

Although the product weight and rubberised handles are perfect for the mobile musician, this technology also lends itself to installations where weight is an issue, not to mention that the polypropylene material and moisture proof woofers can withstand extreme outdoor conditions.
- 8″, 12″ and 15″ Plastic, passive loudspeakers
- IP54 Certified
- Installation, DJs, bands and performance
- Wharfedale Pro drivers
- Portable and powerful
- M8 rigging points

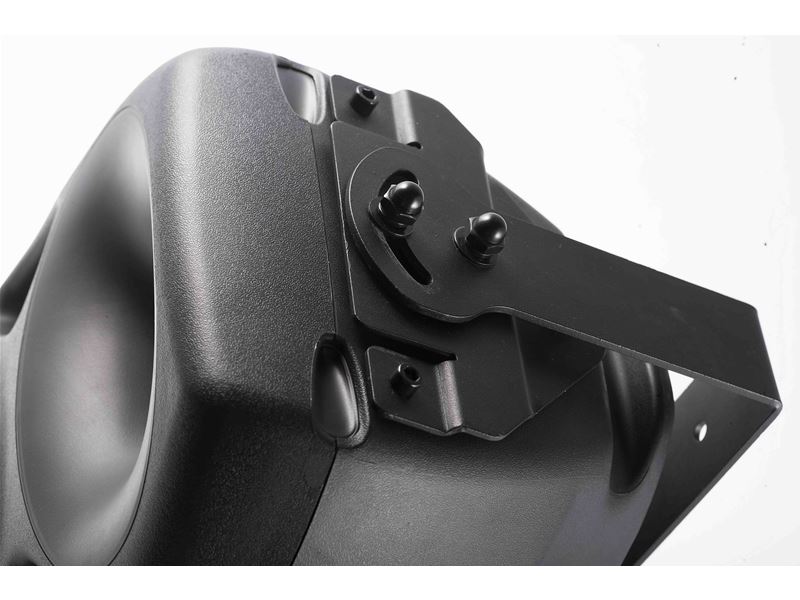

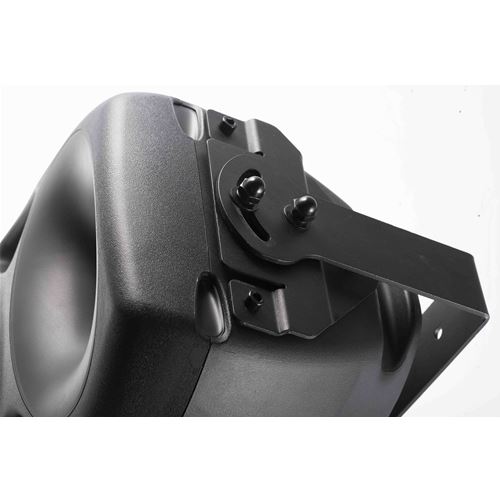

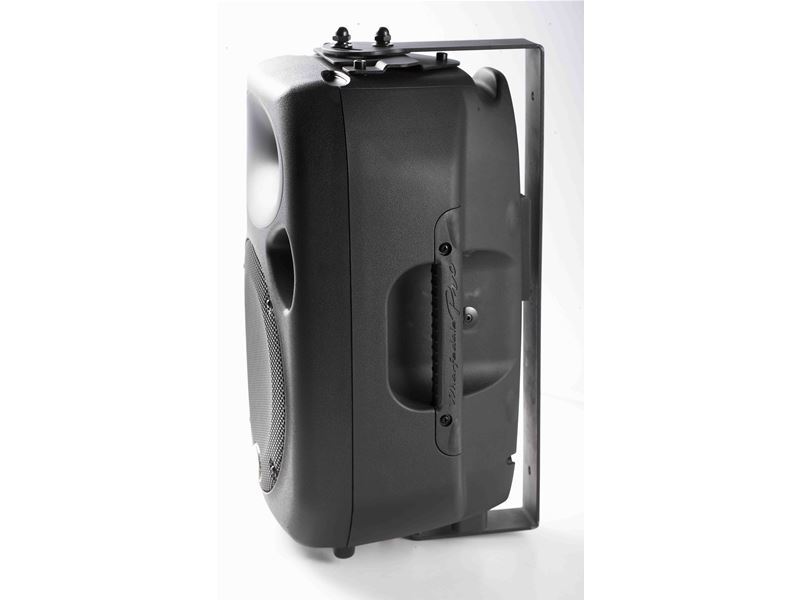

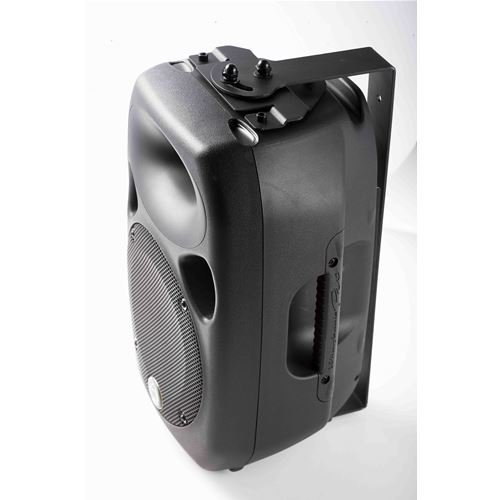

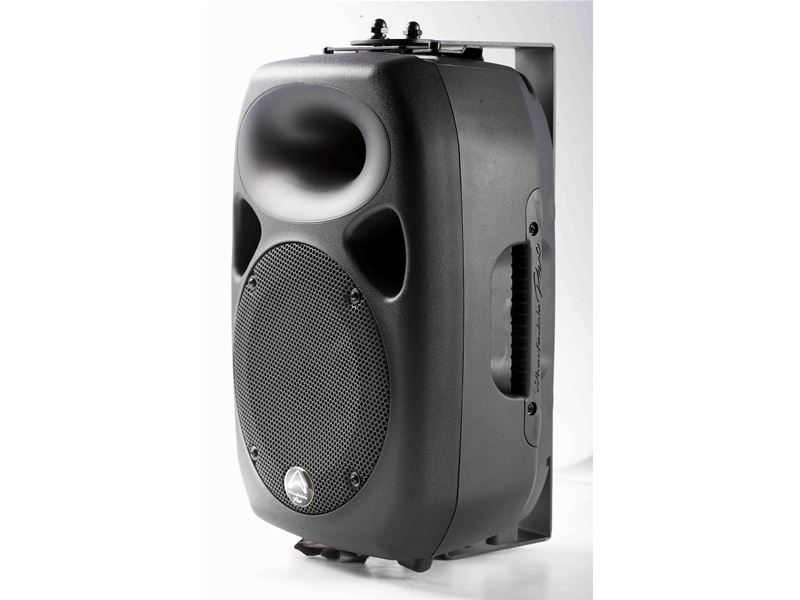

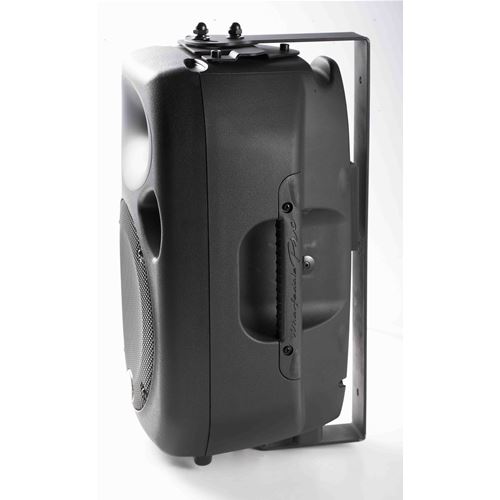

- Optional wall brackets
- Optional tour bags
- Versatile !
| Model Name | Titan 8 |
| System Type | Passive |
| Configuration | 8″ 2-way |
| Frequency Response (+/-3 dB) | 70 – 20 KHz |
| Frequency Range (-10 dB) | 65 – 20 KHz |
| Sensitivity (2.83 v / 1 m) | 96 dB |
| Calculated Maximum SPL @1 m | 124 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 203 mm / 8″ |
| Voice Coil Size | 38.86 mm / 1.53″ |
| Rated Impedance | 8 Ω |
| LF Power (re:AES2-2012) | 150 w |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Voice Coil Size | 25 mm / 1″ |
| Exit Size | 30 mm / 1.2″ |
| Diaphragm Material | Mylar |
| Rated Impedance | 8 Ω |
| HF Power (re:AES2-2012) | 20 w |
| Nominal Coverage (H x V) | Elliptical waveguide 90° x 60° |
| Power | |
| System Power AES (RMS) | 150 w |
| System Programme Power | 300 w |
| System Peak Power | 600 w |
| Crossover frequency | 2-way 2.4 KHz / Linkwitz-Riley |

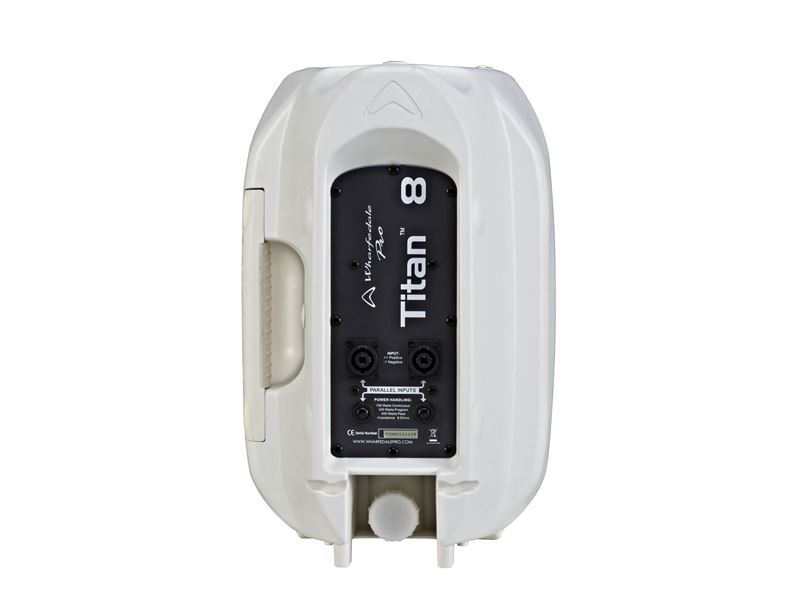

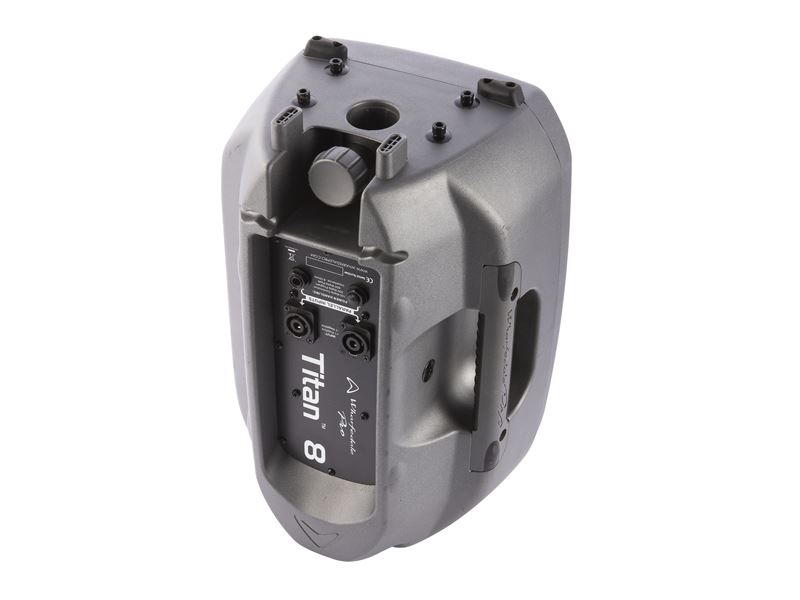

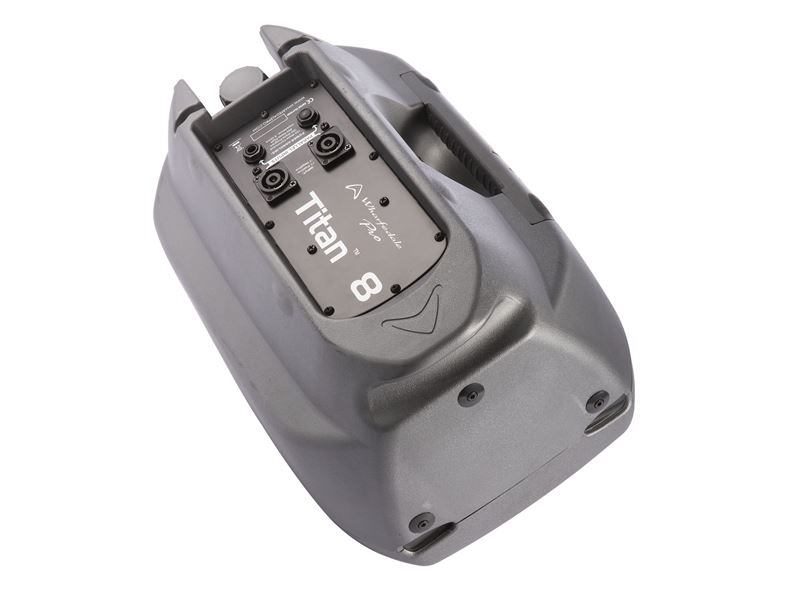

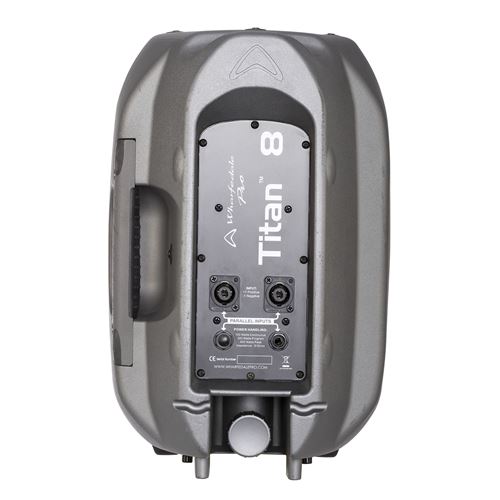

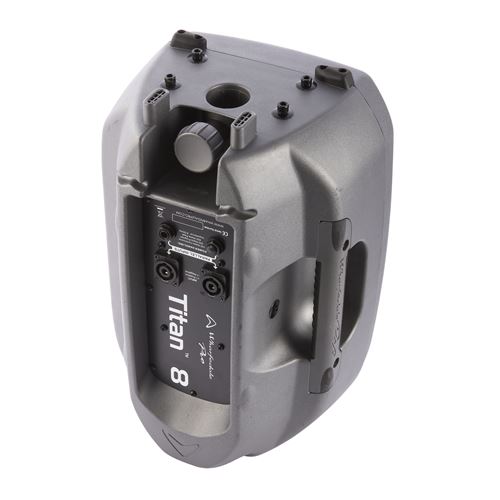

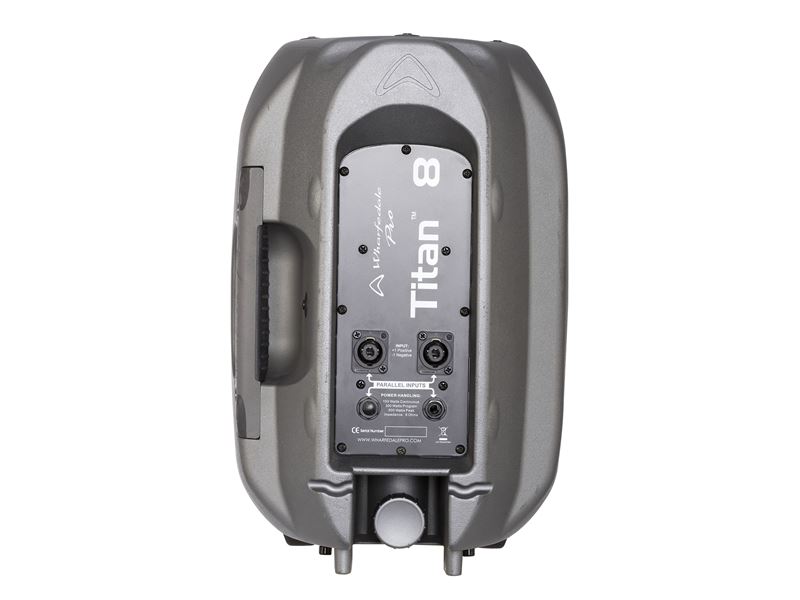

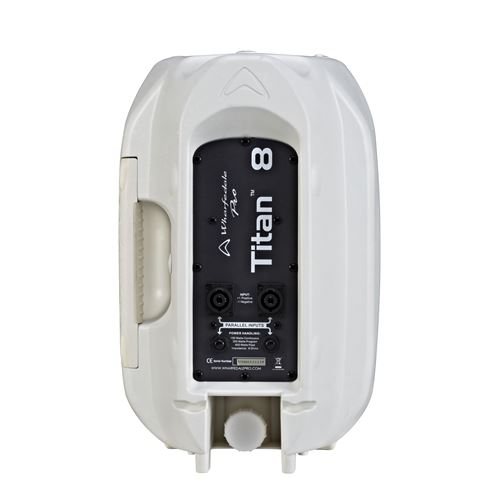

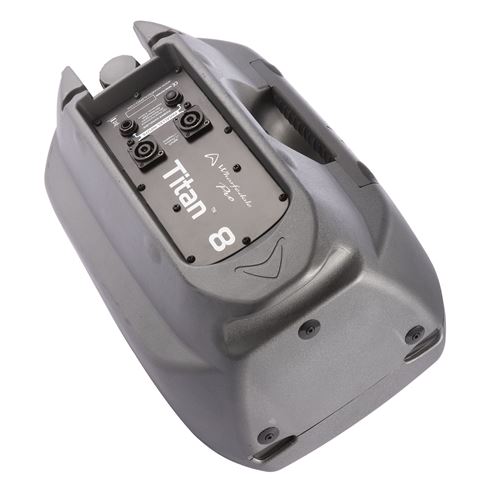

| Input Connector | 2 x NL4 (speakON compatible) |
| 2 x 1/4″ Jack | |
| Hardware | |
| Pole Mount | 35 mm with lock screw |
| Handles | 1 on side |
| Mounting points | M6 * 8 |
| Enclosure | |
| Enclosure Material | Trapezoidal / Polypropylene |
| Finish | Grey, Black, White |
| Grille Material & Finish | 1.2 steel |
| Dimensions – Unpacked | |
| Height | 396 mm / 15.59″ |
| Width Front | 266 mm / 10.47″ |
| Width Rear | 266 mm / 10.47″ |
| Depth | 221 mm / 8.7″ |
| Dimensions – Packed | |
| Height | 463 mm / 18.2″ |
| Width Front | 325 mm / 12.8″ |
| Width Rear | 325 mm / 12.8″ |
| Depth | 282 mm / 11.1” |
| Weight | |
| Net Weight (kg / lbs) | 5.5 kg / 12.1 lbs |
| Gross Weight (kg / lbs) | 7.5 kg / 16.5 lbs |
