TITAN 8A MKII
180 wattsContinuous
- 8″ Bi-amplified active loudspeaker
- 1.0″ HF compression driver
- Treble & Bass controls + / – 12 dB
- 180 w Continuous
- 360 w Peak
Versatile, lightweight and powered.
The Titan 8A MKII active PA speaker combines the Titan technology, materials and design topology, including a titanium compression driver and heavy-duty cast-frame woofer, to ensure absolute accuracy, high output and the smooth, wide dispersion of the critical mid and high frequency ranges. Whilst being ultra-compact and light weight it lends itself to a whole host of audio applications from gym installations, DJ booth monitors and public address.
Indoor and outdoor installation
Although the product weight and rubberised handles are perfect for the mobile musician, this technology also lends itself to installations where weight is an issue, not to mention that the polypropylene material and moisture proof woofers can withstand outdoor conditions.
Additional protection can be found with the Titan Tourbags, custom made speaker bags with an unzippable front panel meaning your Wharfedale Pro loudspeaker is always protected.

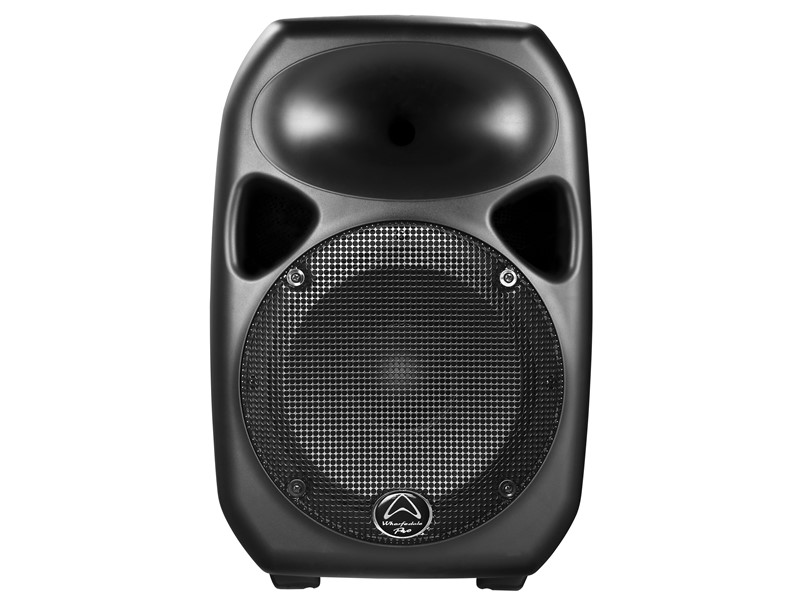

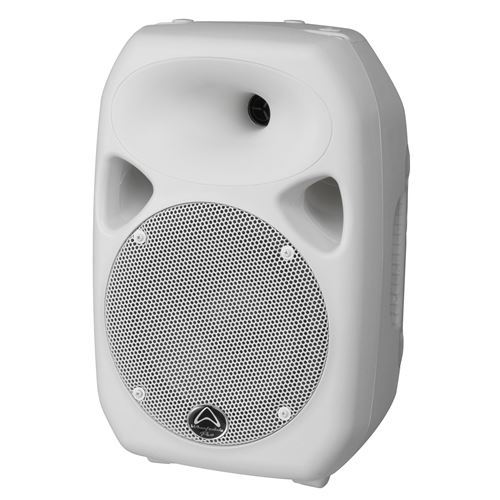

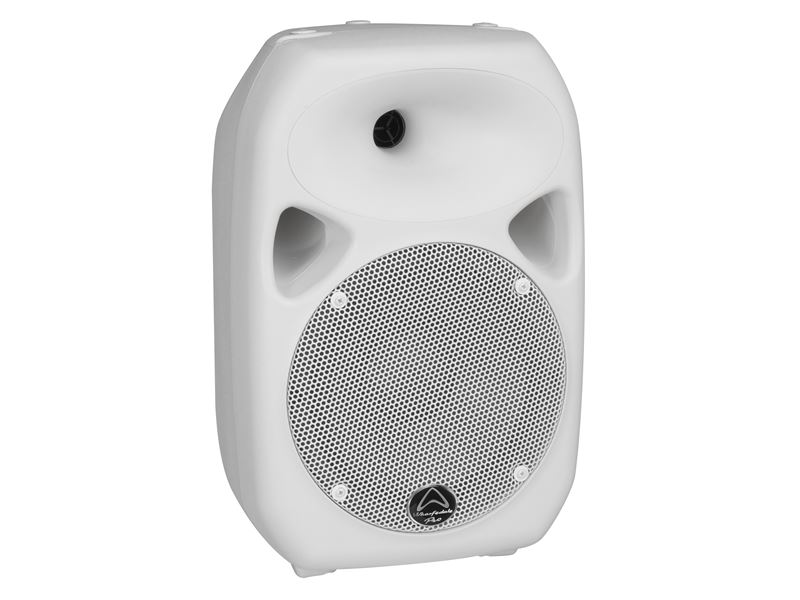

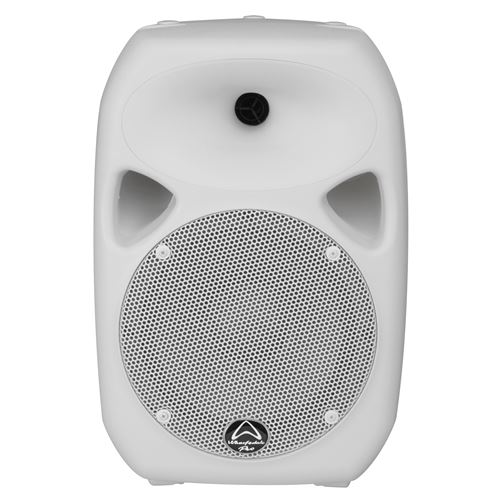

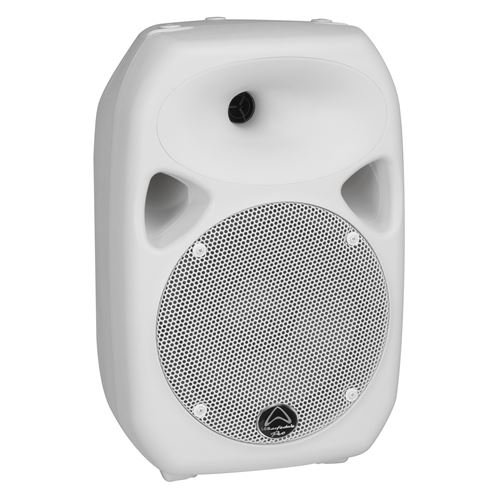

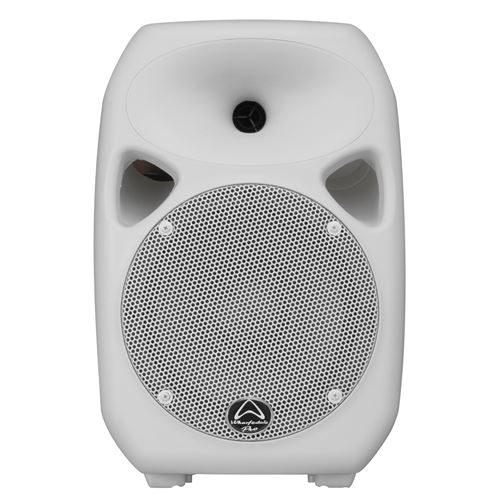

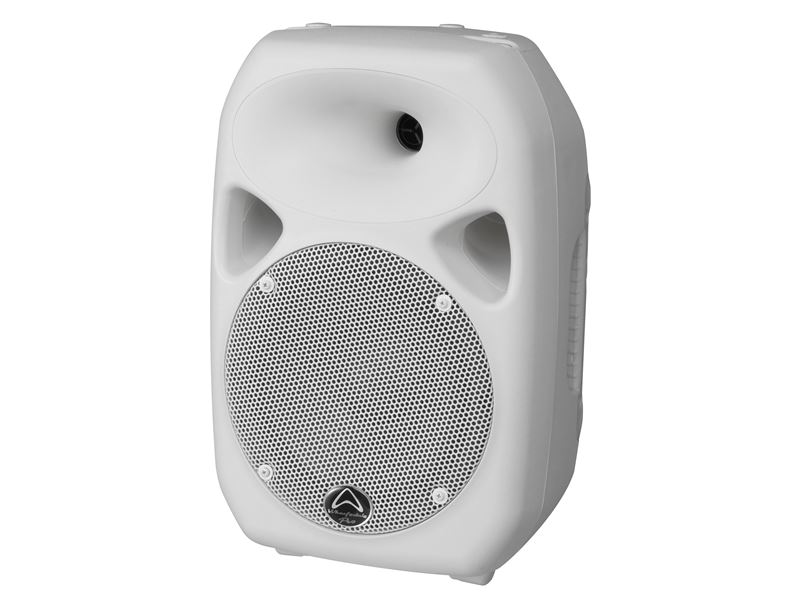

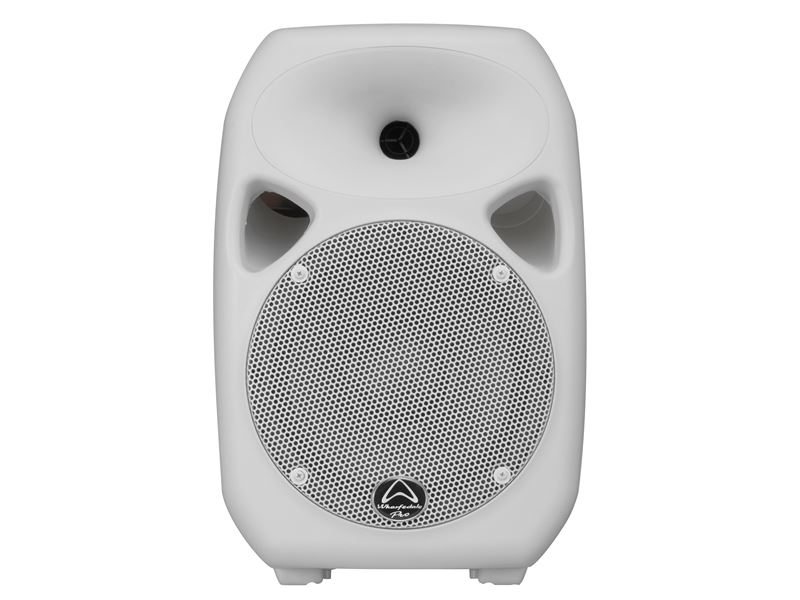

Titan 8A MKII is available in Black or White.
| Model Name | Titan 8A MKII |
| System Type | Active 8” 2-way Bi-Amplified |
| Frequency Response (+/-3 dB) | 70 Hz-20 KHz |
| Frequency Range (-10 dB) | 65 Hz-20 KHz |
| Calculated Maximum SPL @1 m | 124 dB |
| LF Transducer Size (mm / inches) | 205 mm / 8” |
| Coil Size (mm / inches) | 38.86 mm / 1.53” |
| HF Transducer Type | Compression Driver |
| Coil Size (mm / inches) | 25 mm / 1” |
| Exit Size (mm / inches) | 30 mm / 1.2” |
| Diaphragm Material | Mylar |
| Nominal Coverage (H x V) | Elliptical waveguide 90° x 60° |
| Amplifiers | |
| Low-Frequency Power Amplifier | 150/300 W (Class D) |
| RMS/Peak Watts | |
| High-Frequency Power Amplifier RMS/Peak Watts | 30/60 W (Class D) |
| Controls—EQ | High (±10 dB)10 KHz Shelving |
| Low (±10 dB) 100 Hz Shelving | |
| DSP | None |
| Hi Pass switch | |
| Amplifier Protection / Thermal protection | Yes |
| Low Line Voltage Shut Down | 60% Nominal line voltage |
| Driver Protection | Independent LF and HF limiters |
| DC Protection / Short Protection | Yes |
| Clip Limiter | Turns on ~150 W output |
| Limiter Indicator / Power Indicator | Red LED / Green LED |

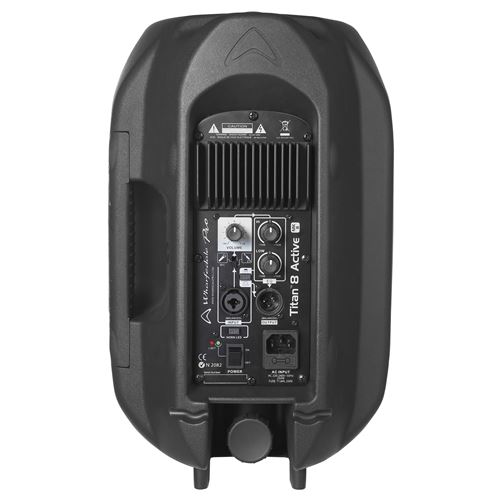

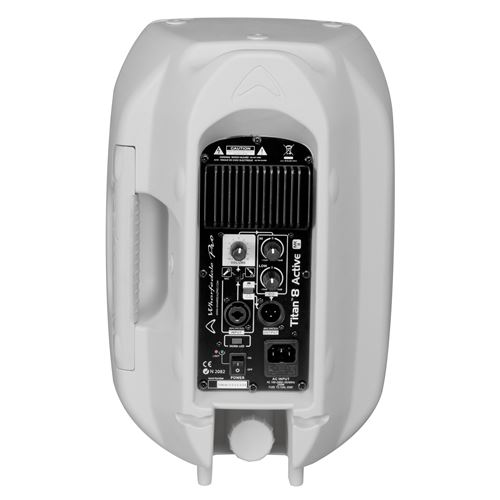

| Connectors | |
| Input – type | Switchable balanced mic/line level |
| Input Connector | XLR 1/4”Combo Jack |
| Line Output Connector | Switchable LOOP/MIX Balanced Female XLR |
| AC Power Supply | SMPS |
| AC Power Options | AC100-120 V~/220-240 V~,50/60 Hz |
| Hardware | |
| Rigging / Bracket / Mounting Options | 8 M6 threaded inserts inc 4 M6 threaded inserts on base in OmniMount 30.0-type footprint |
| 35 mm with lock screw | |
| 1 carry handle on side | |
| Optional wall-mount bracket | |
| LED Horn lighting (On/Off switch) | Yes |
| Enclosure Material and finish | Injection Moulded Polypropylene |
| Colour Options | Grey / White / Black |
| Grille Material & Finish | 1.2 mm steel |
| Dimensions – Unpacked – Height | 396 mm / 15.59” |
| Width Front | 266 mm / 10.47” |
| Depth | 221 mm / 8.7” |
| Dimensions – packed – Height | 463 mm / 18.2” |
| Width Front | 325 mm / 12.8” |
| Depth | 282 mm / 11.1” |
| Net Weight (kg / lbs) | 6.25 kg / 13.75 lbs |
| Gross Weight (kg / lbs) | 8.75 kg / 17.94 lbs |
