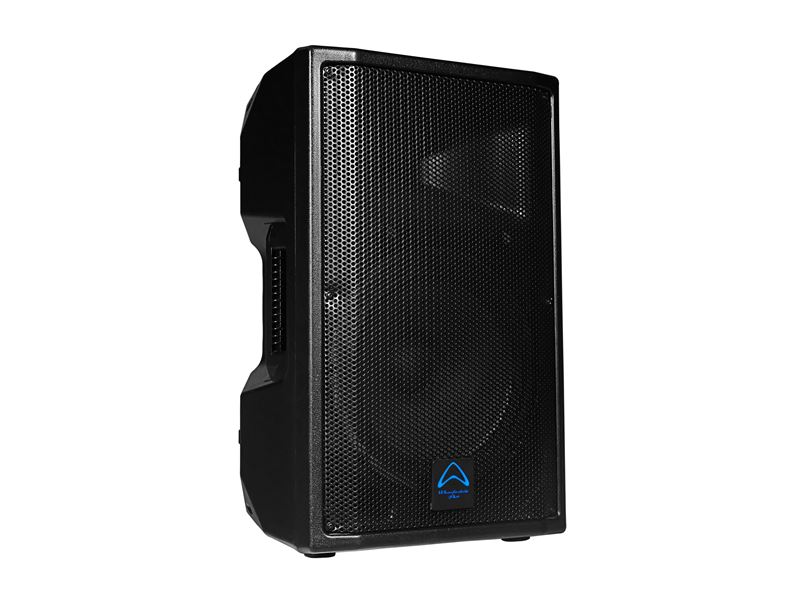

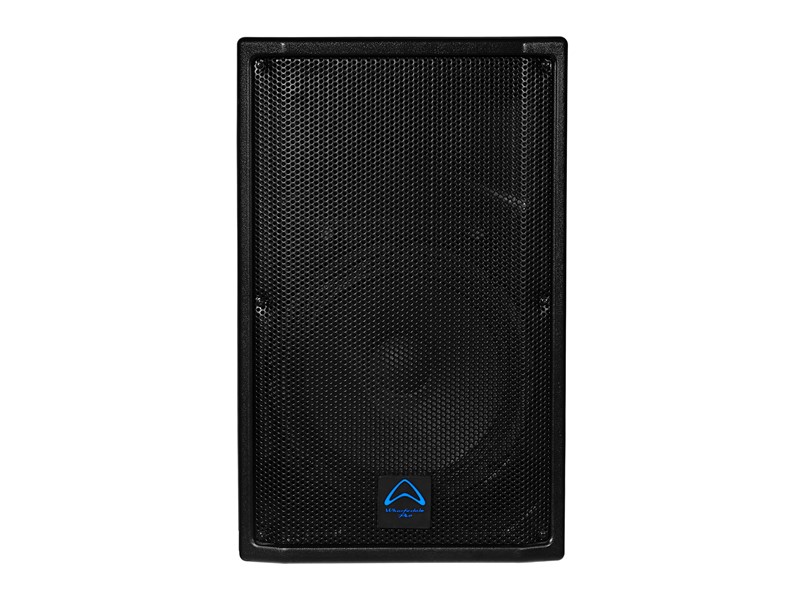

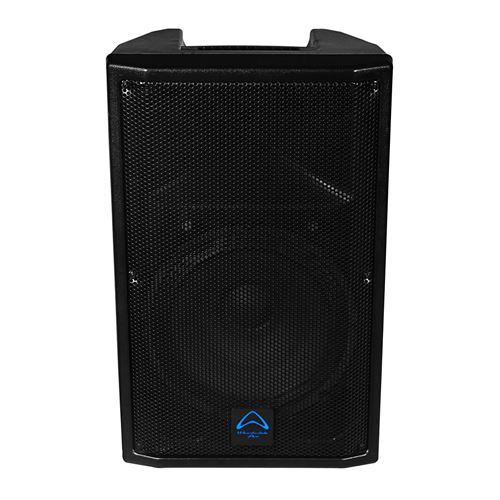

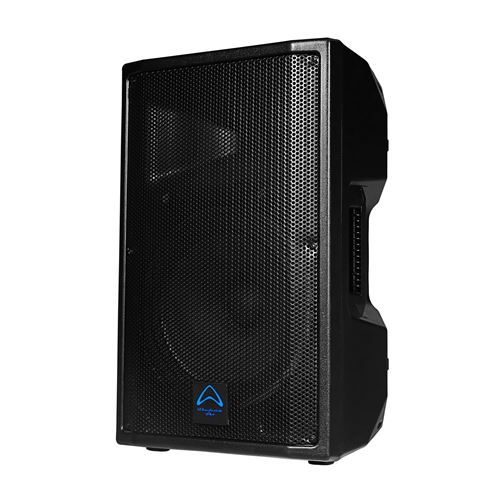

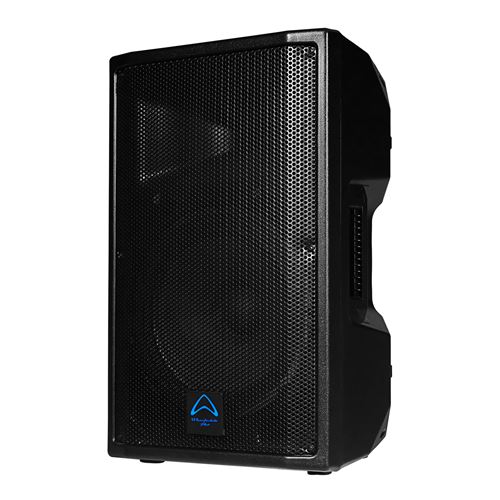

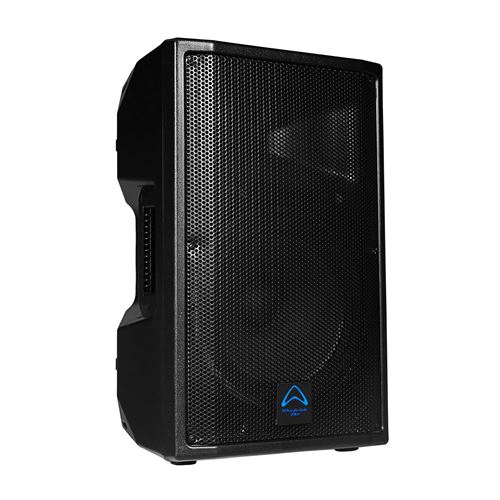

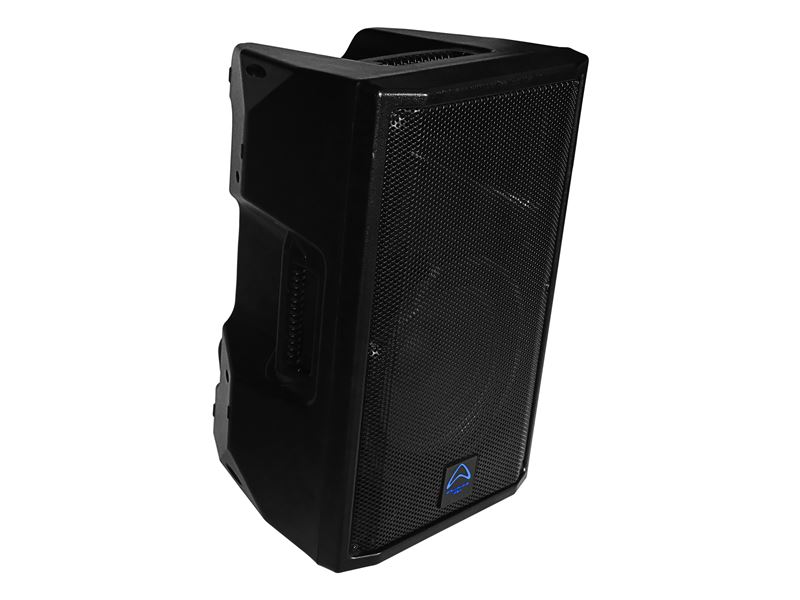

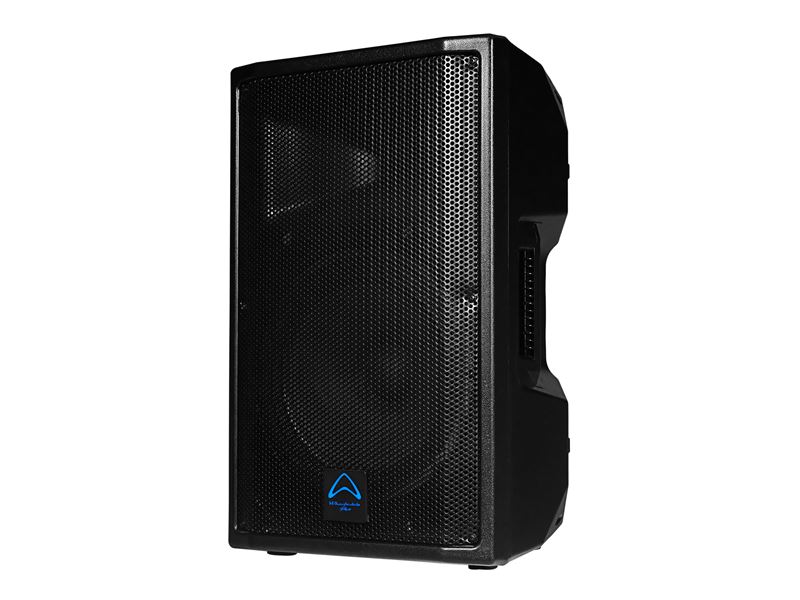

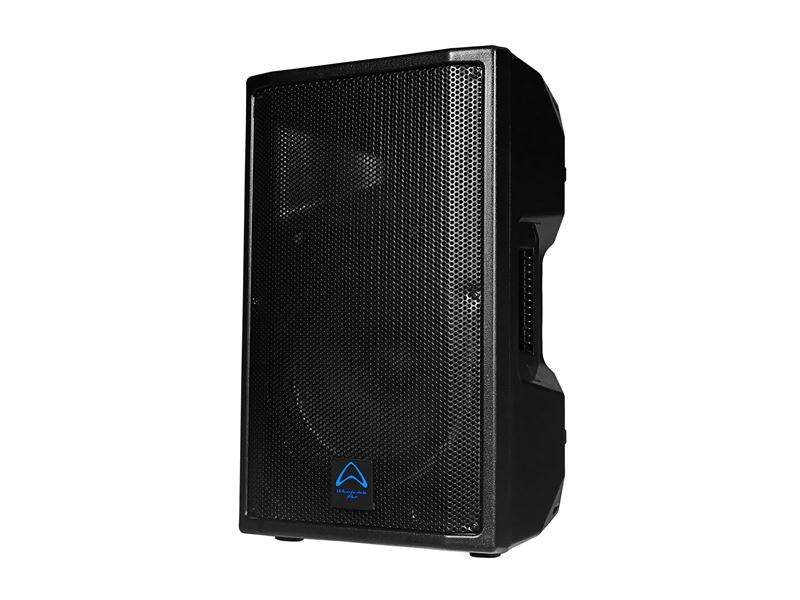

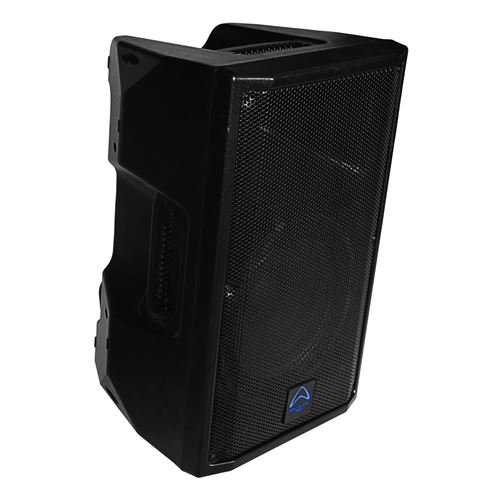

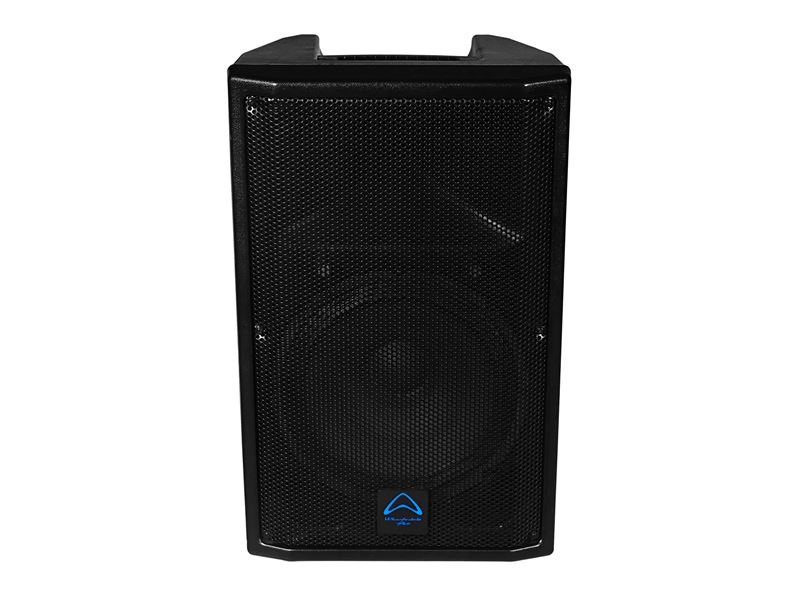

TOURUS-AX12
- 12″ Bi-amplified active loudspeaker
- 1.75″ HF compression driver
- 350 w Continuous
- 700 w Peak
Wharfedale Pro announce a new series of plastic, active loudspeakers delivering power, value and versatility. Introducing TOURUS.
Positioned beneath the well established TITAN and the flagship TYPHON series, the new TOURUS series are affordable, powerful and versatile. With a 12” and a 15” version available and with “MBT” models featuring USB mp3 playback and Bluetooth connectivity with TWS stereo link mode, the new series is for anyone needing big power and features on a compact budget.
Custom WP drivers have been selected to ensure that this affordable series have the power and timbre expected from a Wharfedale Pro loudspeaker. In addition, the amplification stages deploy both Class D (LF) and Class AB (HF) to bring power and value to this new series.
With full steel grilles, multiple handles and 4 x M8 rigging points, Tourus is well suited for installations and for hard work on the road.
A new illuminated Wharfedale Pro logo badge is also proudly shown on the front so that Tourus looks as good as it sounds.
- 8″, 12″ and 15″ Plastic, active loudspeakers
- On stage, DJ, bands and performance
- Bi-amplified
- Wharfedale Pro drivers
- Portable and powerful
- Huge power output
- RCA, XLR and Jack inputs
- M8 rigging points
- Optional soft covers
| Model Name | TOURUS-AX12 |
| System Type | Active 12” 2-way Bi-Amplified |
| Frequency Response (+/-3 dB) | 55-20 KHz |
| Sensitivity @ 1 w / 1 meter | 96 dB |
| Maximum SPL (peak @ 1 meter) | 128 dB |
| Low Frequency Transducer | |
| Size (mm / inches) | 305 mm / 12” |
| Coil Size (mm / inches) | 50.8 mm / 2.0” |
| Impedance | 4 Ω |
| High Frequency Transducer | |
| Type | Compression Driver |
| Coil Size (mm / inches) | 44.5 mm / 1.75” |
| Exit Size (mm / inches) | 25 mm / 1” |
| Diaphragm Material | Titanium |
| Impedance | 8 Ω |
| High Frequency Coverage (H x V) | 90° x 60° |
| Amplifiers | HF Amp Class AB : LF Amp Class D |
| Low-Frequency Power Amplifier | 250 w Continuous / 500 w Peak |
| High- Frequency Power Amplifier | 100 w Continuous / 200 w Peak |
| Electronic Crossover | |
| Crossover Frequency | HI PASS 2.5 KHz LOW PASS 2.5 KHz |
| Controls | |
| Equalization | +/-12 dB Gain for bass and treble |
| Amplifier Protection | |
| Power On Protection | Power switch on / off mute |
| Thermal Protection | Amplifier shutdown, auto reset |
| Driver, DC and Short Protection | Yes |
| Limiter Indicator | Red LED |
| Power Indicator | Green LED |
| Input type | Balanced |

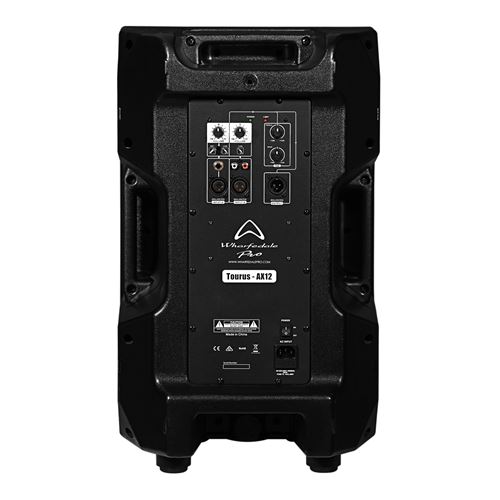

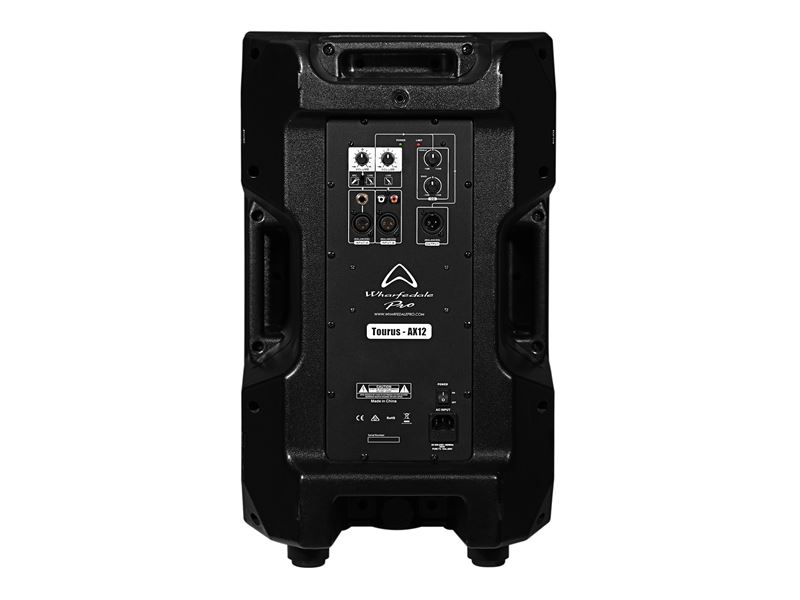

| Input Connectors | 2 x TRS JACK, 2 x RCA AND 2 x FEMALE XLR |
| Input Impedance | 47 KΩ Balanced |
| Maximum Input Level | 5 V |
| Line Input Sensitivity | -10 dB |
| Mic Input Sensitivity | -40 dB |
| Line Output Connector | MALE XLR |
| AC Power details | |
| Power Supply | SMPS |
| AC Power Options | 100 V – 120 V and 220 V – 240 V |
| Power On Indicator | LED |
| Rigging / Bracket / Mounting Options | 4 x M8 |

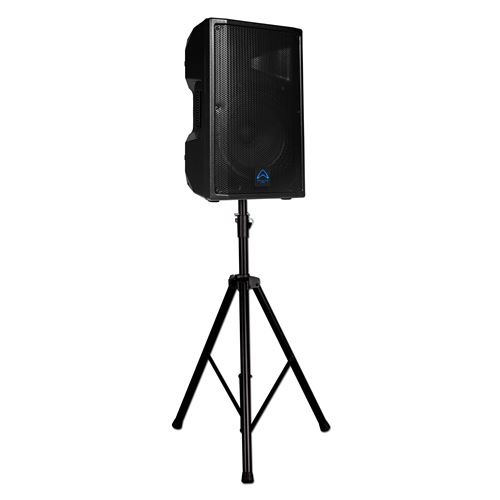

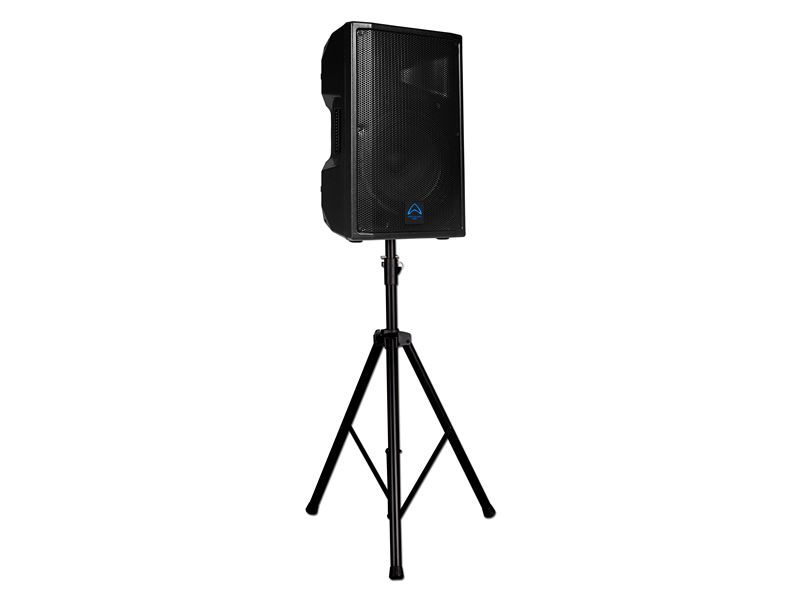

| 35 mm Pole-mount with lock screw | |
| 3 carry handles (one on each side, one on top) | |
| Optional wall-mount bracket (WPB-2) | |
| Enclosure | |
| Enclosure Material | Injection Moulded Polypropylene |
| Colour | black |
| Grille | 1.2 mm steel |
| Dimensions (Unpacked)(mm / inches): | |
| Height | 603 mm / 23.7” |
| Width – Front | 377 mm / 14.8” |
| Width – Rear | 217 mm / 8.54″ |
| Depth | 347 mm / 13.7” |
| Dimensions (packed)(mm / inches): | |
| Height | 666 mm / 26.2” |
| Width | 430 mm / 16.9” |
| Depth | 408 mm / 16.1” |
| Weight | |
| Net Weight (kg / lbs) | 15.0 kg / 33.0 lbs |
| Gross Weight (kg / lbs) | 17.0 kg / 37.4 lbs |
