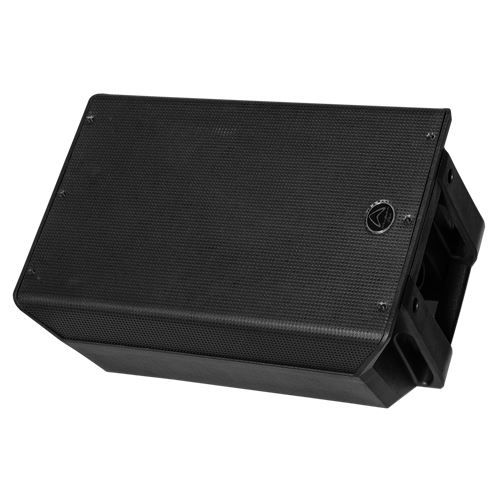

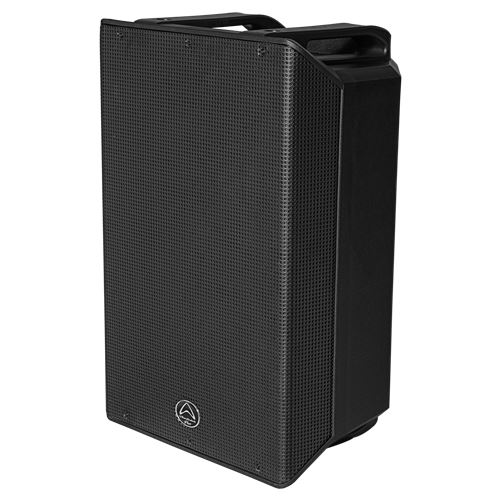

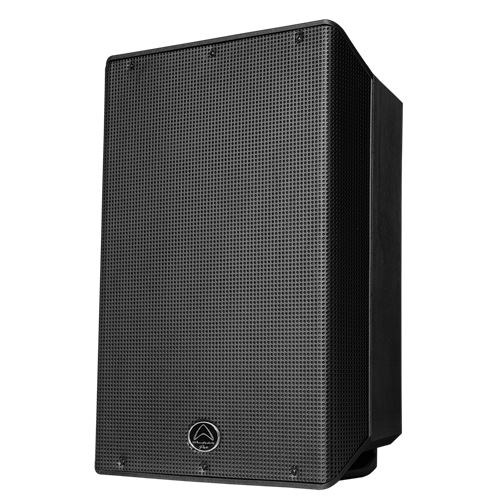

TYPHON-AX15
- 15″ Bi-amplified active loudspeaker
- 1.75″ HF compression driver
- 770 w Continuous
- 1540 w Peak
- 130 dB Max SPL @ 1 meter
- Huge 3.0″ LF voice coil
In ancient mythology, Typhon was a giant who brought fear to his enemies. From a similar era to the Titans, it is said that the God Typhon had the power to create and control massive wind tornadoes in his battles. Mythology also often refers to him as being invincible.
The Typhon series are powerful, portable and versatile active loudspeakers available as a 15”, 12” or highly portable 8” model. Suitable for many professional audio applications a Typhon is ideal for DJ’s, live bands, small to medium size stages, installations and houses of worship.
All Typhon models feature…

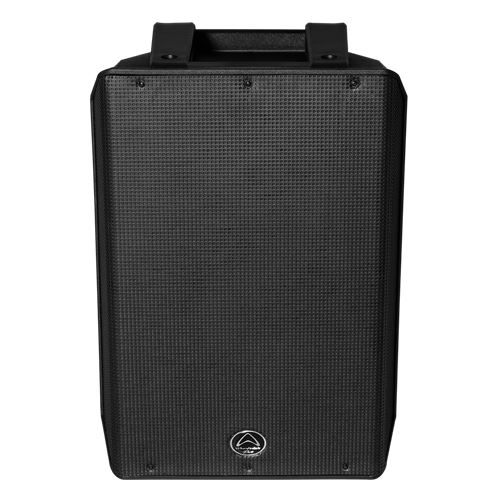

- Fresh new design with full frontal steel grills

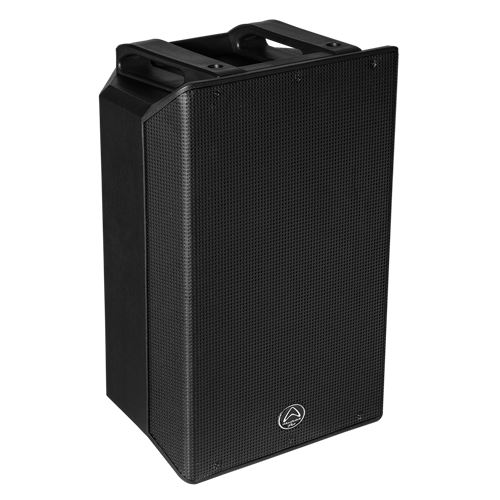

- Top and bottom practical handles
- Bluetooth models with TWS linking
- Bi-amplified with Class D amps
- 4 position DSP

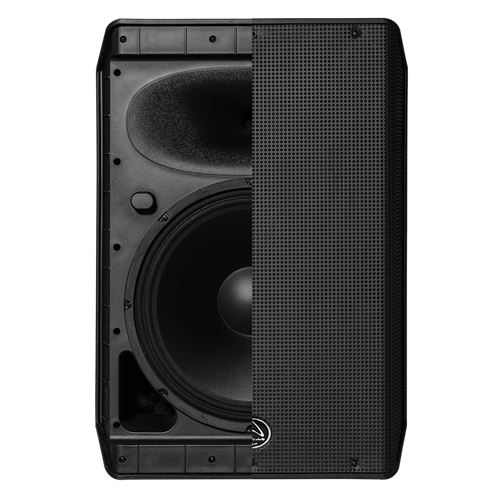

BEHIND THE GRILL

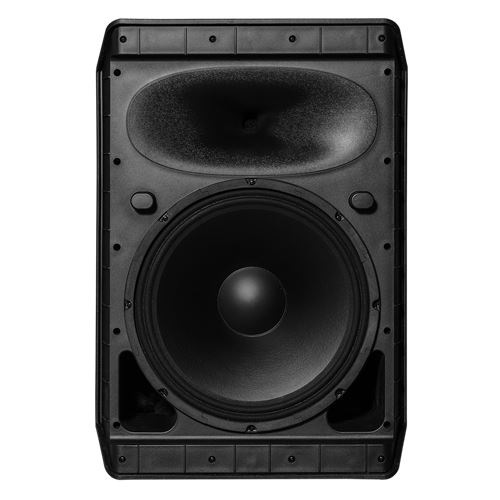

Custom Wharfedale Pro transducers have been selected for Typhon.
The custom compression driver features a large 1.75” voice coil. This is coupled to a 100° x 80° waveguide for smooth HF dispersion.
The custom Wharfedale Pro LF transducers have a newly designed ferrite core, use flat coil windings to aid cooling, and feature a moisture rejecting cone material which allows Typhon to be used in damp or humid conditions.
In fact…..all Typhon loudspeakers are IP54 Certified !
- 15″, 12″ and 8″ Plastic Active loudspeakers
- Class leading power – blow them away!
- Internal 4-position DSP
- Custom Wharfedale Pro drivers
- Full steel front grill
- Multiple handles
- Multiple rigging points
- Class D Bi-amplified
- Bluetooth models with TWS Linking
| Model Name | Typhon-AX15 |
| System Type | Active 15″ 2-way |
| Frequency Response (+/-3 dB) | 45 Hz-20 KHz |
| Frequency Range (-10 dB) | 40 Hz-20 KHz |
| Maximum SPL (peak @1 m) | 130 dB |
| Sensitivity (@ 1 W / 1 m) | 99 dB |
| Low Frequency Transducer | |
| Size (mm / inches) | 381 mm / 15″ |
| Voice-Coil Size (mm / inches) | 75 mm / 3.0″ |
| Rated Impedance | 4 Ω |
| High Frequency Transducer | |
| HF Driver Type: | Compression Driver |
| Coil Size (mm / inches) | 44 mm / 1.75″ |
| Exit Size (mm / inches) | 25 mm / 1″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8 Ω |
| Nominal Coverage (H x V) | Hybrid Symmetry Horn |
| 100° x 80° | |
| Amplifiers | 2 x Class D |
| Power Rating: | 1540 W Peak (1300 W LF + |
| 240 W HF), 770 W Continuous | |
| (650 W LF + 120 W HF) | |
| DSP Controls—D-EQ | FLAT/MONITOR/BASS/PUNCH |
| Amplifier Protection | |
| Power On Protection | Yes |
| Thermal Protection | Yes |
| Low Line Voltage Shut Down | Yes |
| Driver Protection | Yes |
| DC Protection | Yes |
| Short Protection | Yes |
| Clip Limiter | Yes |
| Limiter Indicator | Yes |
| Power Indicator | Yes |
| Inputs | |
| Input A – type | Balanced |
| Input Sensitivity | 775 mV(0 dBu) |
| Maximum Input Level | 4 V |
| Input Connector | 2 x XLR, 2 x 6.3 mm jack (Line/MIC) |
| Input Impedance | 20 K ohms |
| Line Output | |
| Line Output Connector | XLR |
| Loop Gain | 0 dB |
| AC Power details | |
| Power Supply | 220~240 V AC/100~120 V AC 50/60 Hz |
| Rigging / Bracket / Mounting Options | 9 x M8 threaded inserts |

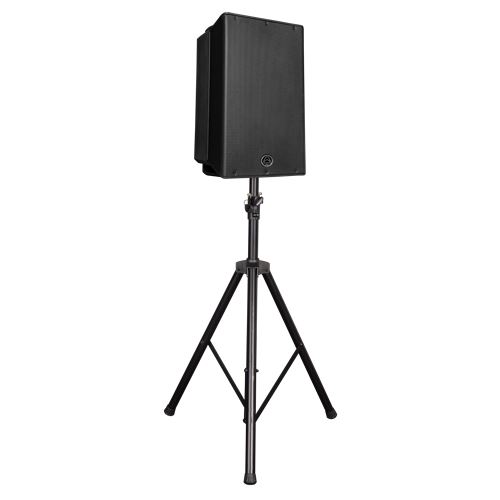

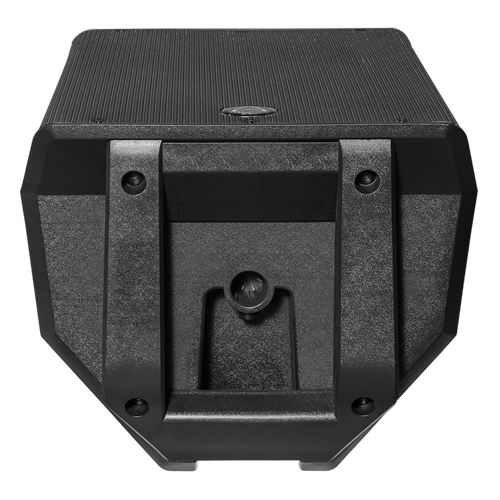

| Pole-mount receptacle with lock screw | |
| Optional WPB-2 wall-mount bracket | |
| Handles | 2 carry handles (on top and bottom side) |
| Enclosure | |
| Enclosure Material and finish | Injection Moulded Polypropylene |
| Colour Options | Black paint |
| Grille Material & Finish | steel |
| Dimensions – Unpacked | |
| Height | 697.7 mm / 27.5″ |
| Width Front | 480 mm / 18.9″ |
| Width Rear | 186.2 mm / 7.3″ |
| Depth | 400 mm / 15.7″ |
| Dimensions – Packed | |
| Height | 788 mm / 31.02″ |
| Width Front | 550 mm / 21.9″ |
| Width Rear | 550 mm / 21.9″ |
| Depth | 475 mm / 18.7″ |
| Net Weight (kg / lbs) | 27.3 kg / 60.06 lbs |
| Gross Weight (kg / lbs) | 30.0 kg / 66 lbs |
