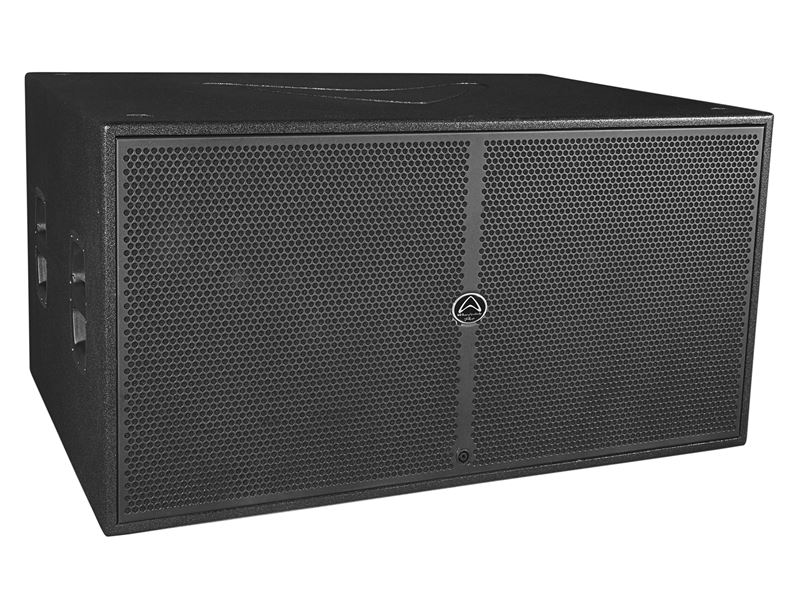

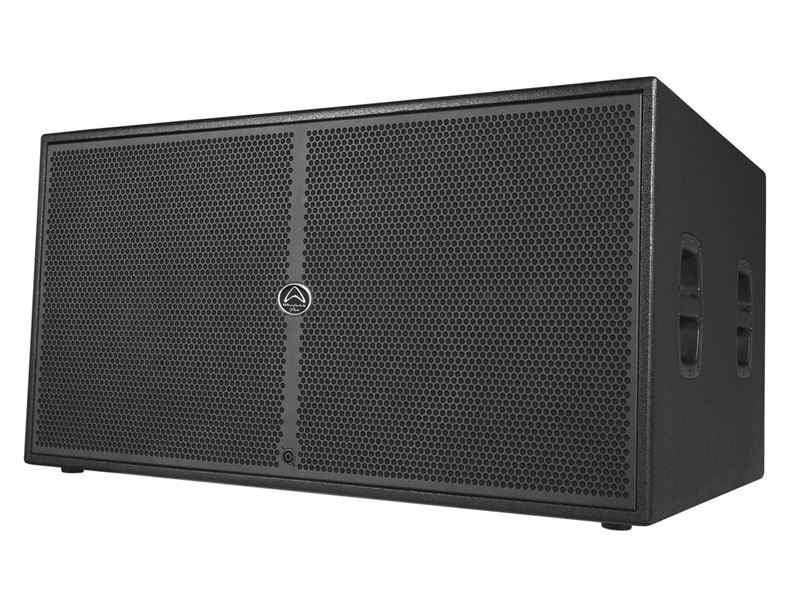

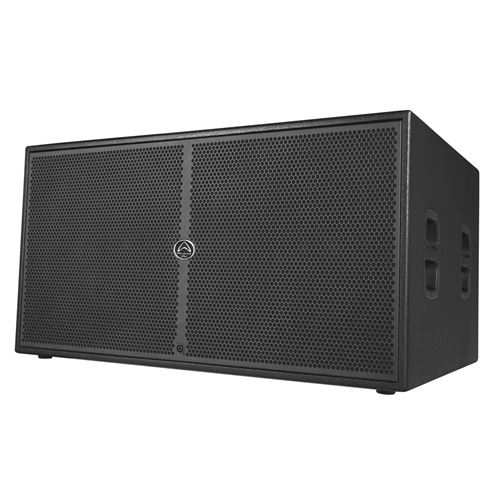

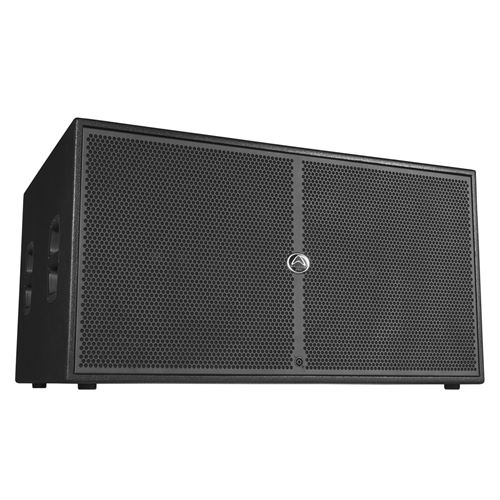

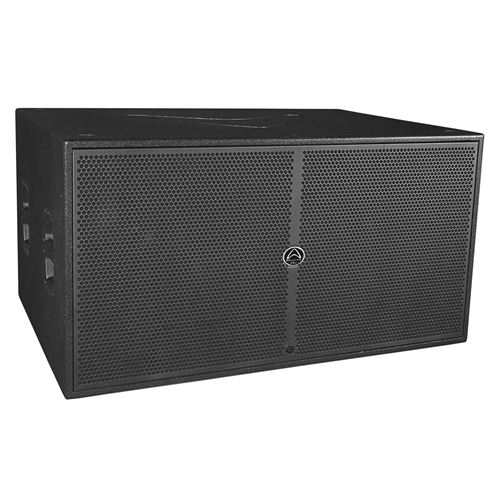

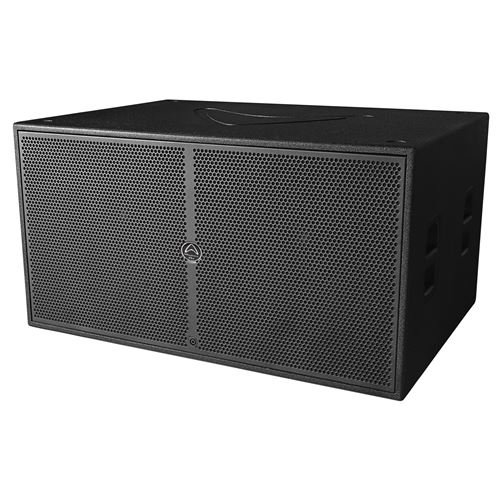

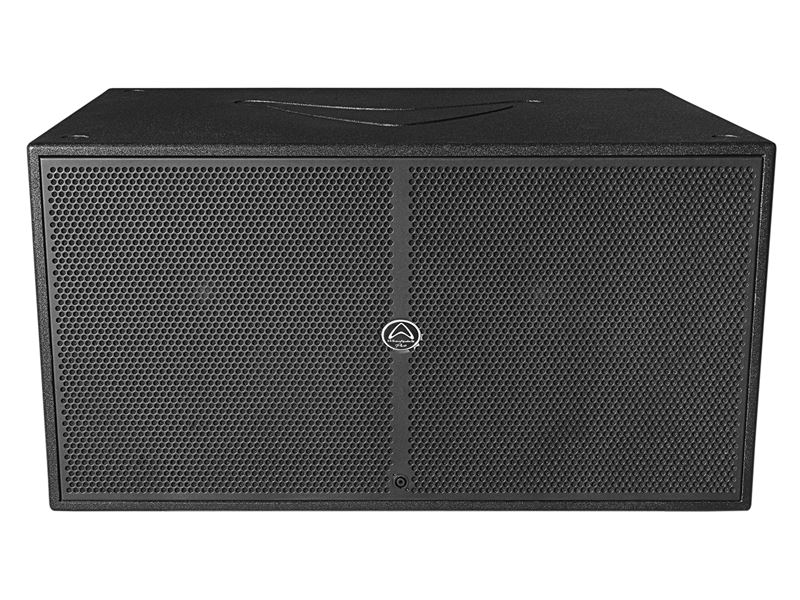

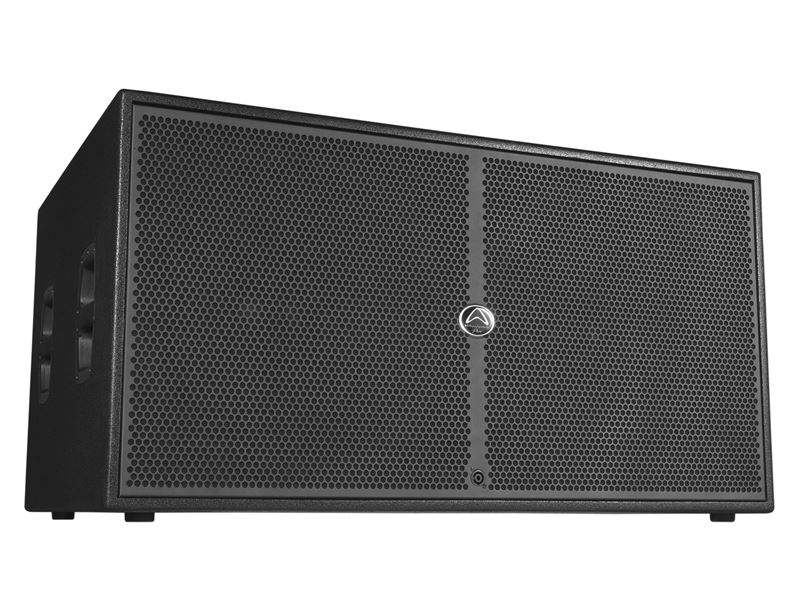

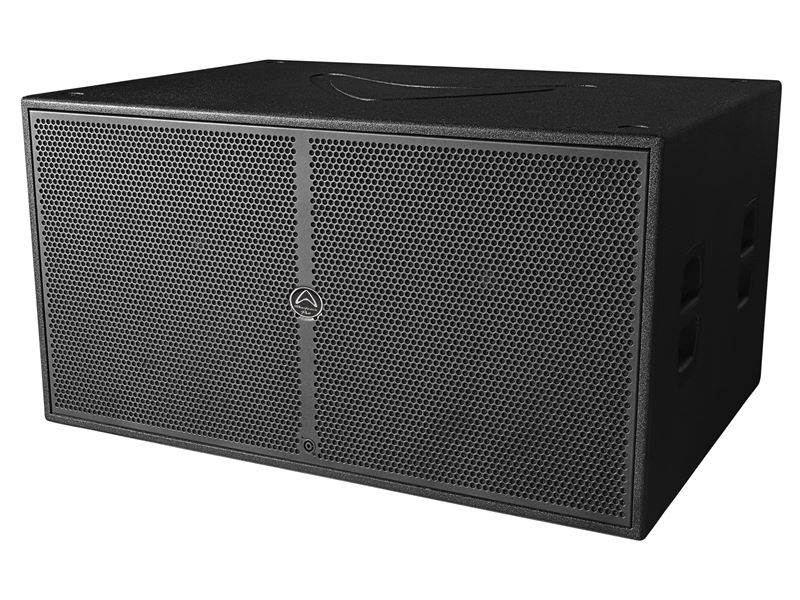

WLA-218BX
2 x 18″ LF drivers
4.0″ voice coils
Inverted Stack Gradient Array (iSGA) configuration
18 mm Baltic Birch plywood construction
2000 W AES (Continuous)
4000 W Programme
8000 W Peak
Impedance 4 Ohms
A powerful sub with cardioid functionality
148 dB Max SPL @ 1 meter
Low frequencies usually go everywhere.
Alot of output energy can end up in places where the audience do not benefit from it. Having great low frequencies behind the stage is a waste of power and energy.
It’s for this reason the new WLA-218BX can be easily deployed in an Inverted Stack Gradient Array (iSGA) configuration.
WLA-218BX uses the acclaimed Reason-X 18” subwoofer drivers. With 4.0” voice coils and an impedance boost around 35 Hz, these efficient drivers simply deliver extreme bass.
And, when used in the iSGA configuration, they deliver that bass directly into the face of the audience.
SERIOUS DRIVERS
∮102.6 diameter voice coil.
Thats OVER 4.0″ but we say 4.0″ because of number rounding
Double-layer spider bonding.
Updated glue is used. This bonding can eliminate brittle cracking and reduces harmonic distortion.
112 g Membrane.
The WLA-218BX driver has a heavier membrane which can withstand more power without breaking.
31 mm voice coil cavity.
A larger internal cavity for the coil windings allows WLA-218BX to have lower response by 5 Hz.
6.2 ohm impedance.
The impedance peak is higher in the Reason-X driver at 35 Hz. This results in superior low end strength.
- 2 x 18″ LF drivers
- 4.0″ voice coils
- Inverted Stack Gradient Array (iSGA) configuration
- 18 mm Baltic Birch plywood construction
- 2000 W AES (Continuous)
- 4000 W Programme
- 8000 W Peak
- Impedance 4 Ohms
- A powerful sub with cardioid functionality
- 148 dB Max SPL @ 1 meter
| Model Name | WLA-218BX |
| System Type | Passive |
| Configuration | Dual 18″ Subwoofer |
| Frequency Response (+/-3 dB) | 30-800 Hz |
| Frequency Range (-10 dB) | 25-800 Hz |
| Sensitivity 2.83V/1M | 109 dB |
| Calculated Maximum SPL @1 Meter | 148 dB |
| System Rated Impedance | 4 Ω |
| Low Frequency Transducer | |
| Size | 2 x 470 mm / 18″ |
| Voice Coil Size | 102 mm / 4.0″ |
| LF Magnet Material | Ferrite |
| LF Frame Material | Aluminium |
| Rated Impedance | 2 x 8 Ω |
| LF Power re:AES2-2012 | 2 x 1000 W |
| Nominal Impedance | 4 Ω |
| Power | |
| System AES (RMS) Power | 2000 watts |
| System Programme Power | 4000 watts |
| System Peak Power | 8000 watts |
| Crossover Frequency | |

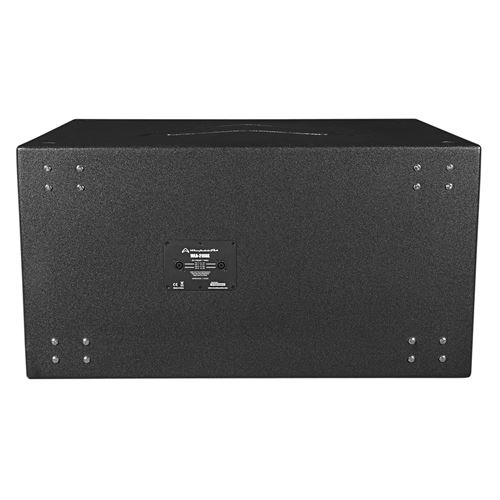

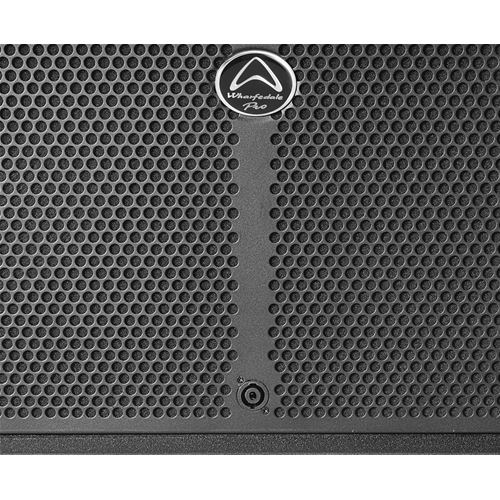

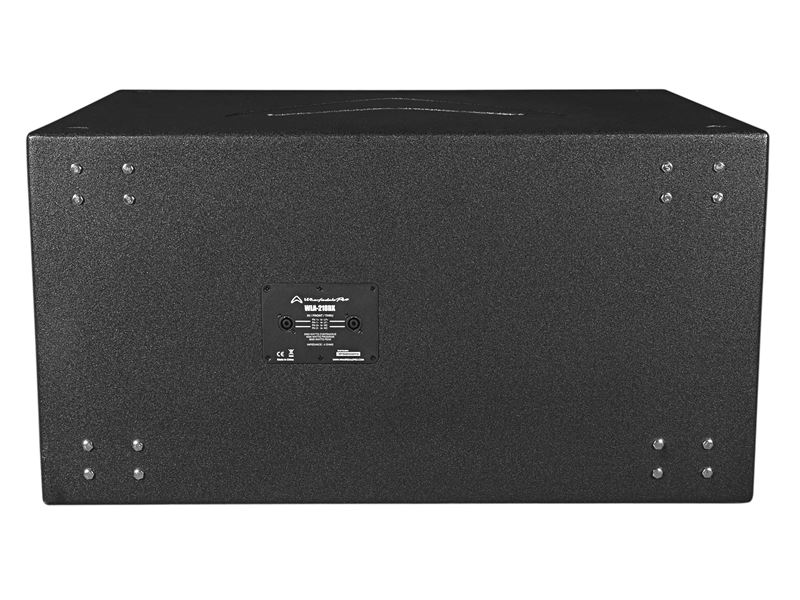

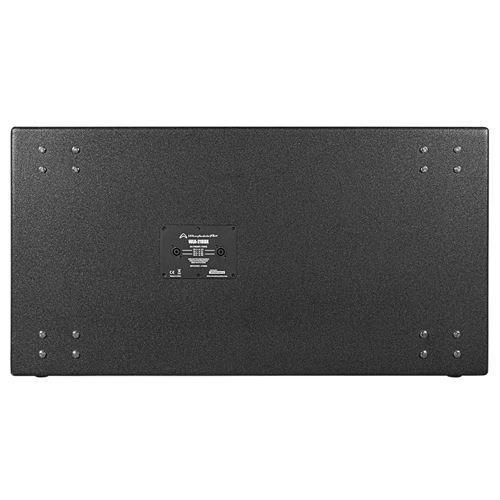

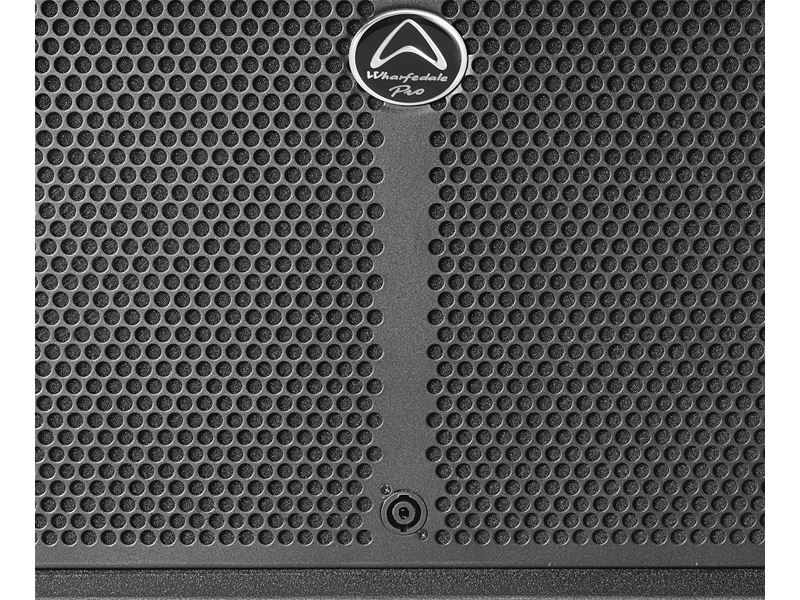

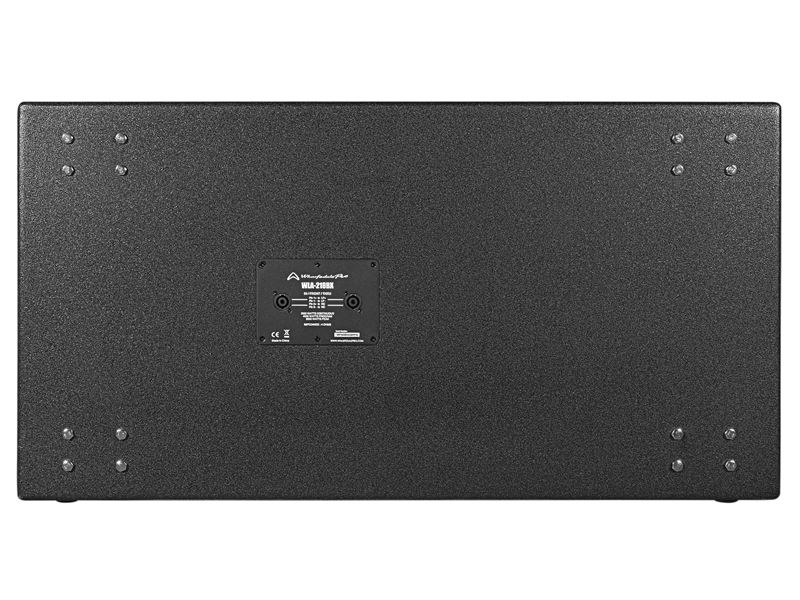

| Input Connectors | 3 x speakON NL4 (speakON compatible) (2 rear, 1 front) |
| Rigging | No |
| Pole Mount | No |
| Handles | 4 on Sides |
| Enclosure | |
| Cabinet Type | Rectangle |
| Enclosure Material and finish | 18 mm plywood |
| Colour Options | black paint |
| Grille Material & Finish | steel |
| Dimensions – Unpacked (mm / inches): | |
| Height | 560 mm / 22.0″ |
| Width Front | 1065 mm / 41.9″ |
| Width Rear | 1065 mm / 41.9″ |
| Depth | 756 mm / 29.8″ |
| Dimensions – Packed (mm / inches): | |
| Height | 638 mm / 25.1″ |
| Width Front | 1138 mm / 44.8″ |
| Width Rear | 1138 mm / 44.8″ |
| Depth | 829 mm / 32.6″ |
| Weight | |
| Net Weight | 75.0 kg / 165 lbs |
| Gross Weight | 87.7 kg / 192.9 lbs |
