Around the world WLA series line arrays are used in demanding environments. Systems expand and customers demand larger rigs with more configuration flexibility.
To answer this need Wharfedale Pro introduce WLA series floor monitors. Constructed of the finest 15mm Baltic birch plywood and using custom Wharfedale Pro drivers with high flux densities, they have the performance and construction quality for relentless touring and demanding on-stage abuse.
UPDATED FLOOR MONITORS - Let’s be clear about this!
Around the world WLA series line arrays are used in demanding environments. Systems expand and customers demand larger rigs with more configuration flexibility. WLA series floor monitors are the perfect addition to any WLA series rig (….or any other system that needs power, versatility and definition)
With new 3.0” Neo HF compression drivers, the new and improved ‘MX’ floor monitor models have more clarity and HF space than ever before.

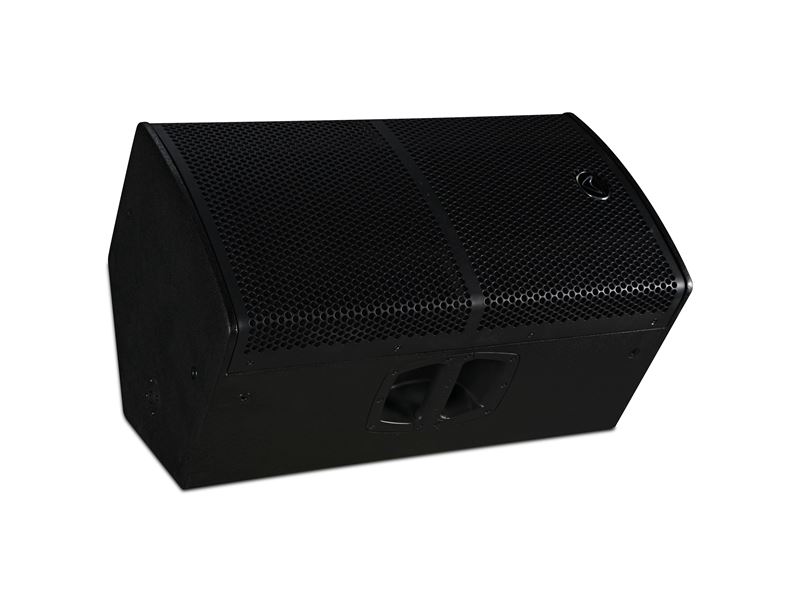

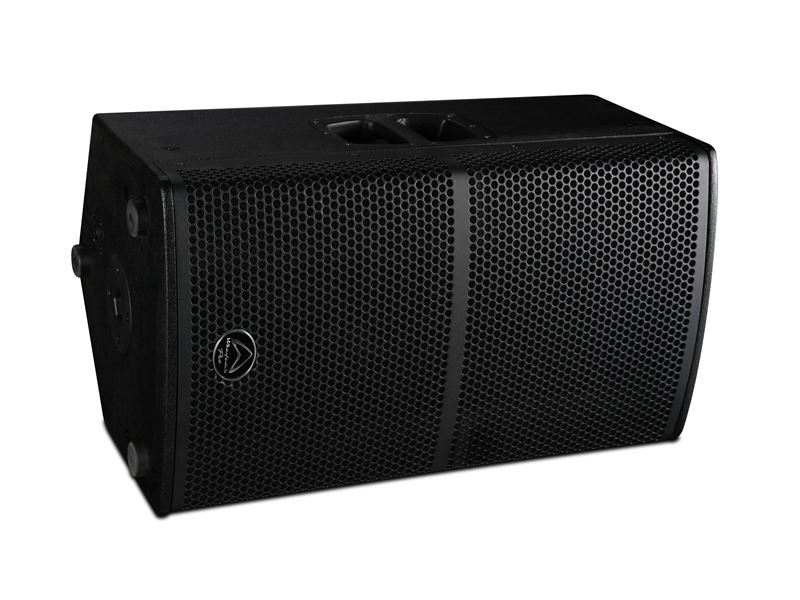

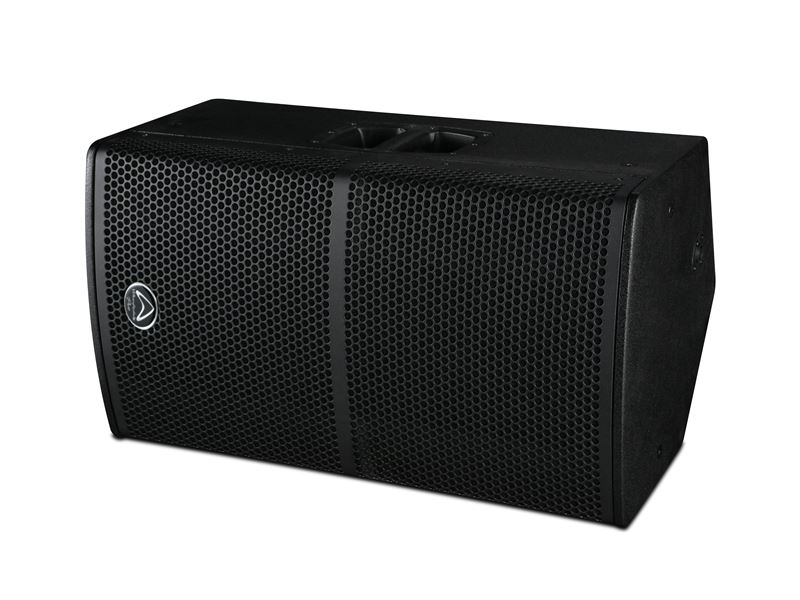

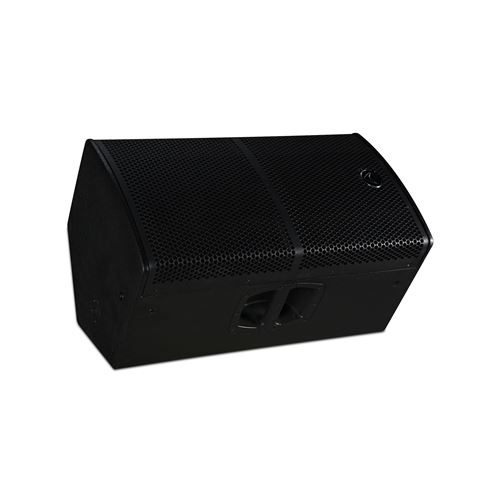

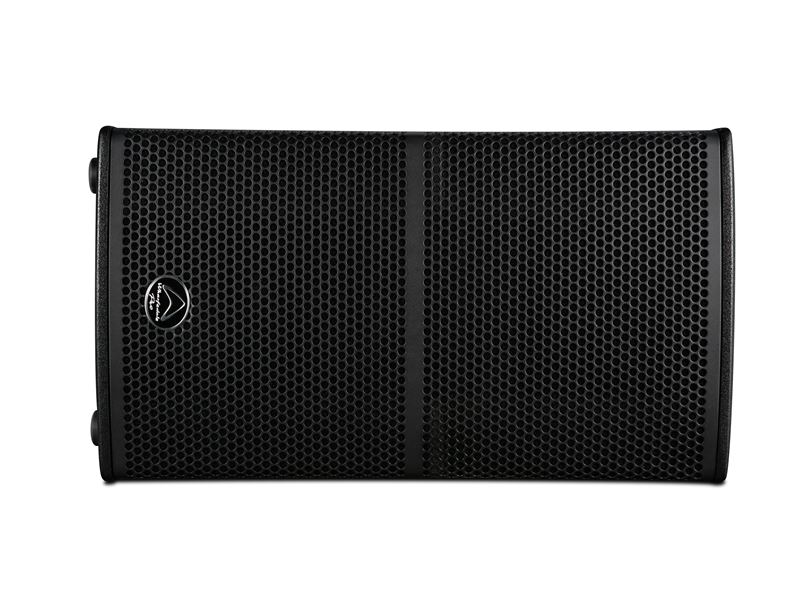

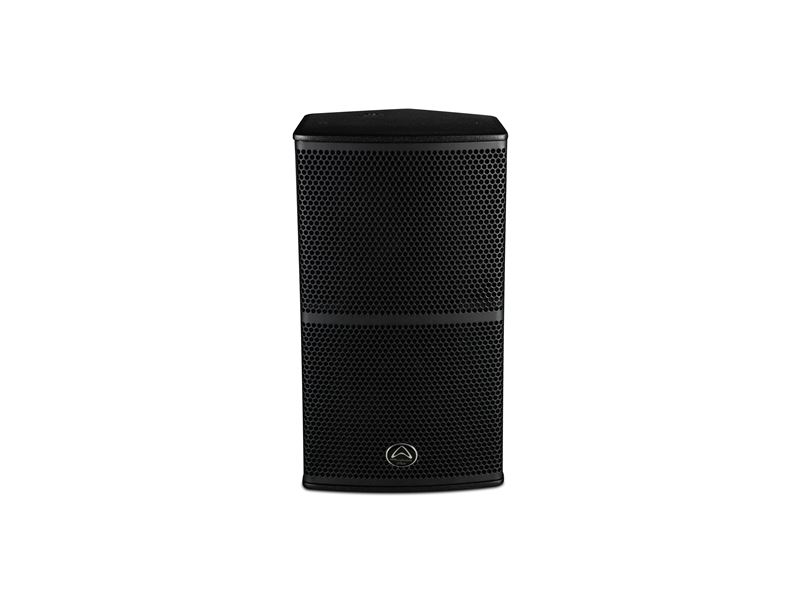

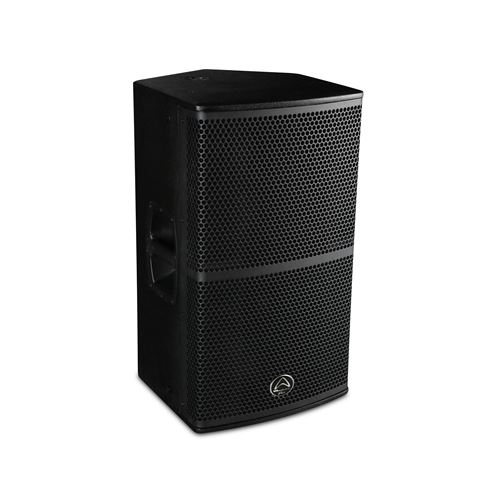

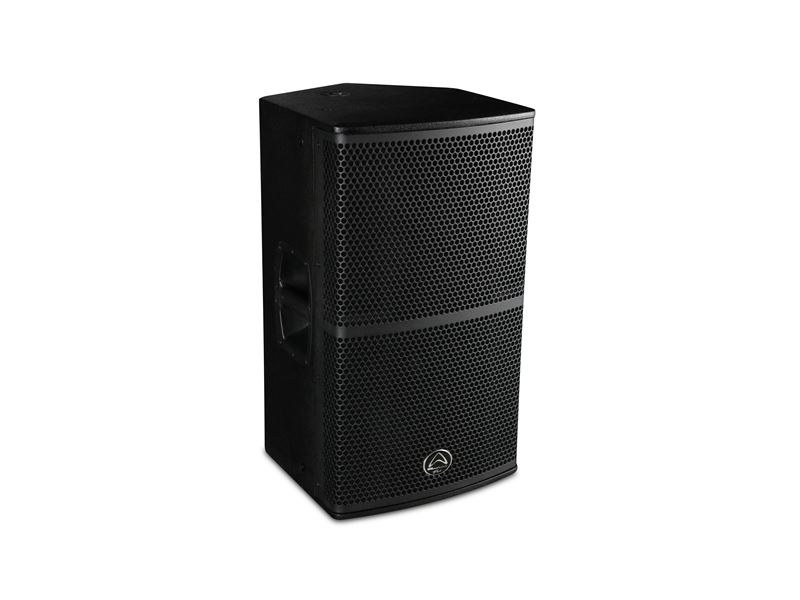

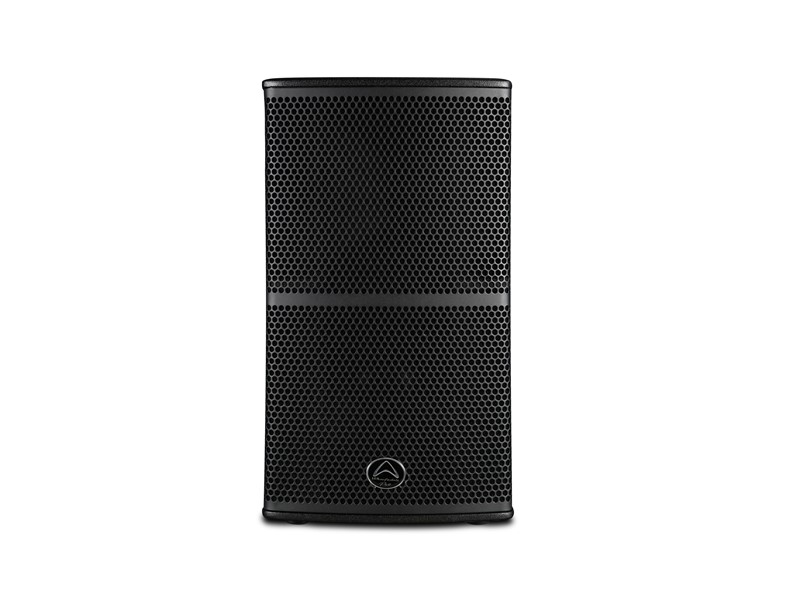

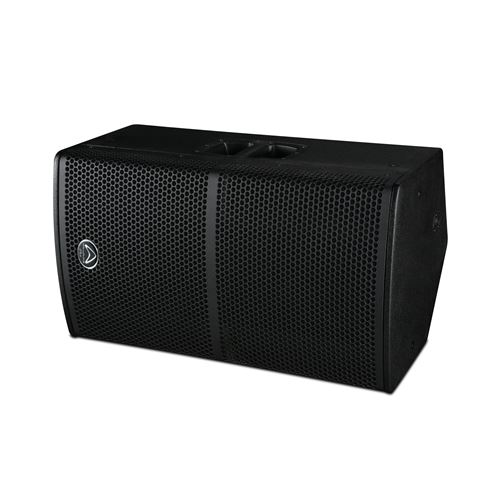

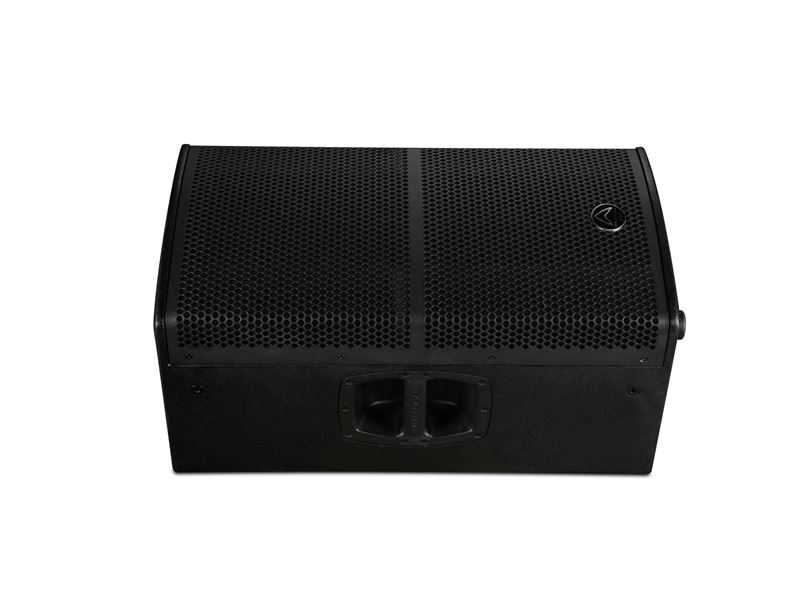

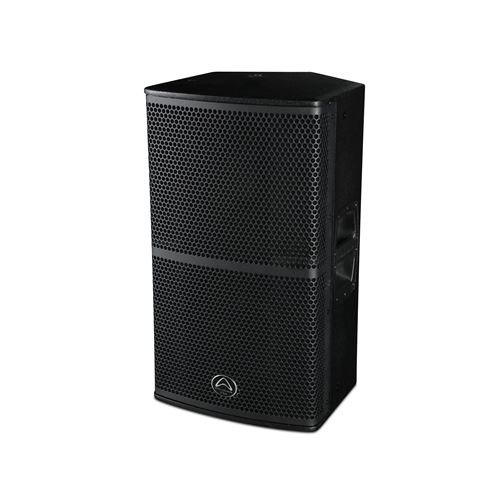

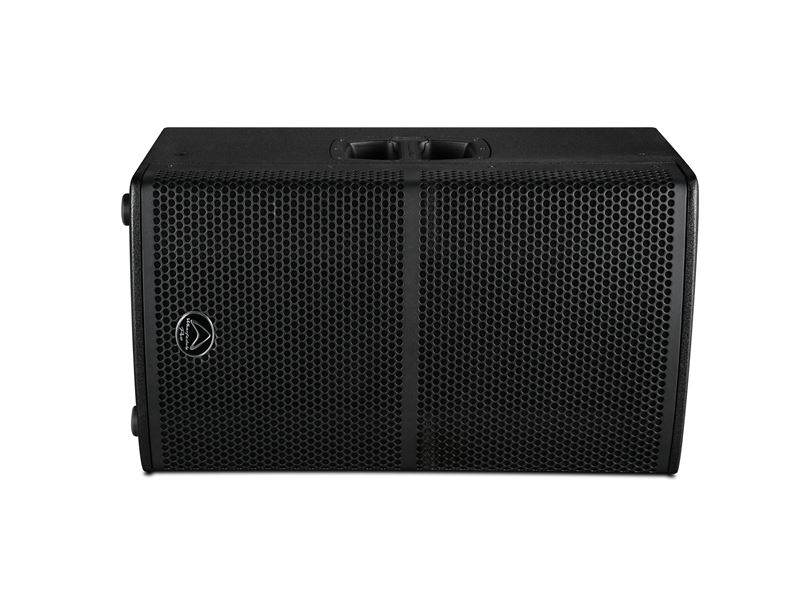

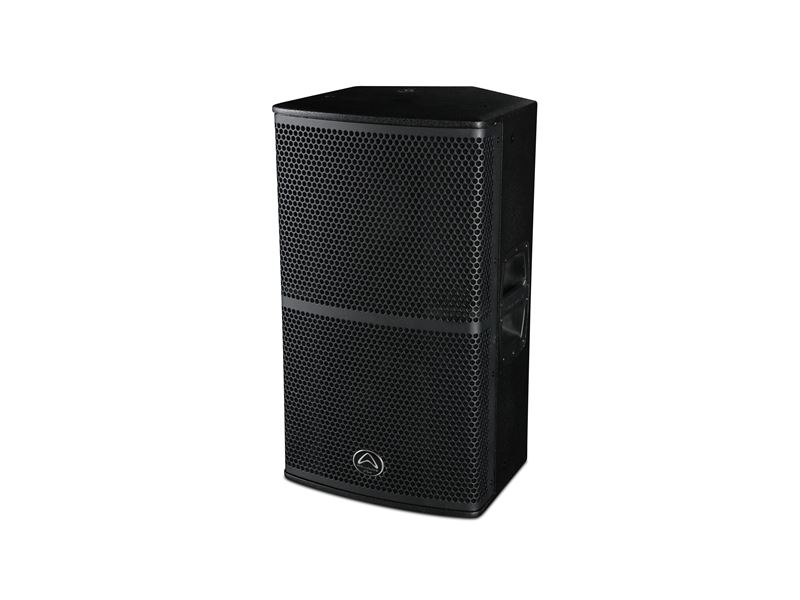

Constructed of the finest 15 mm Russian birch plywood and using custom Wharfedale Pro drivers with high flux densities, the updated WLA-12MX and 15MX models have the performance and construction quality for relentless touring and demanding on-stage abuse. It’s clear!
- 3.0” Neo HF compression drivers with high flux density
- Rotatable horns for horizontal or vertical applications

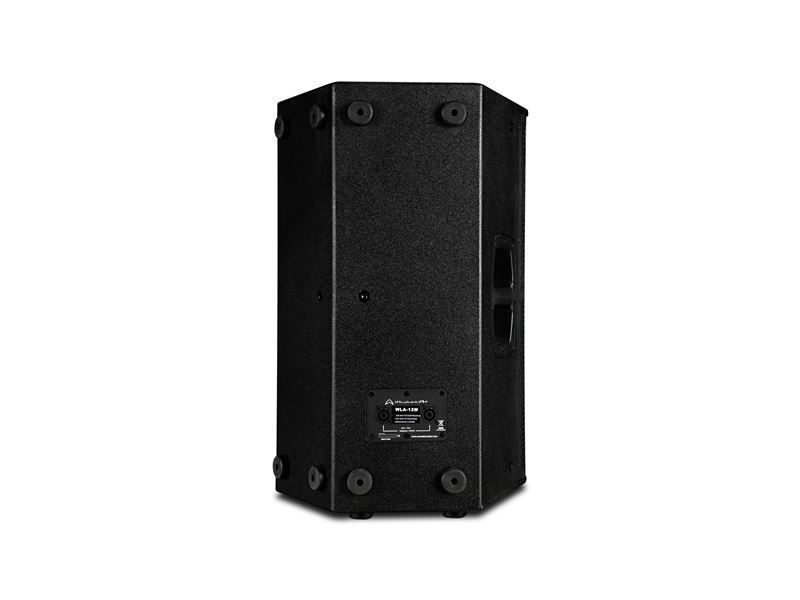

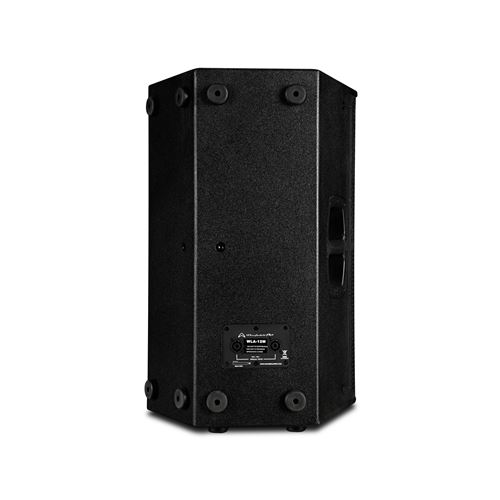

- Multiple NL4MP speakON compatible connectors on top, side and rear
- 35 mm pole socket for vertical performance
- 15 mm Baltic birch plywood construction.

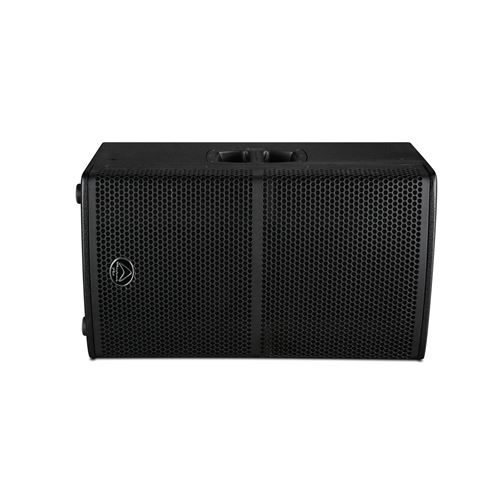

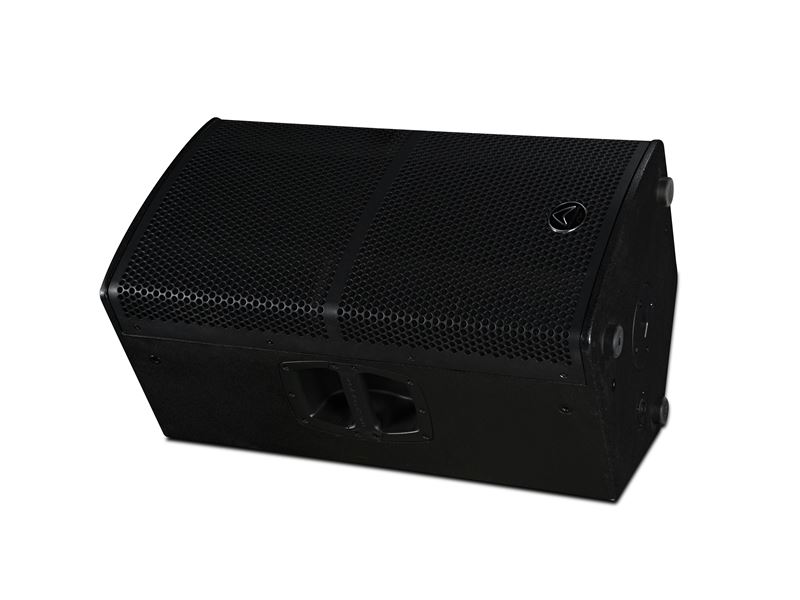

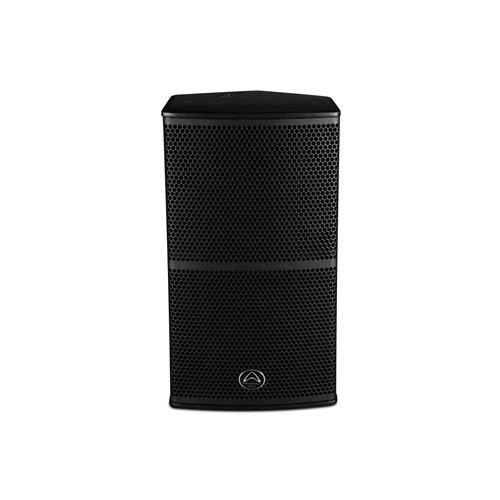

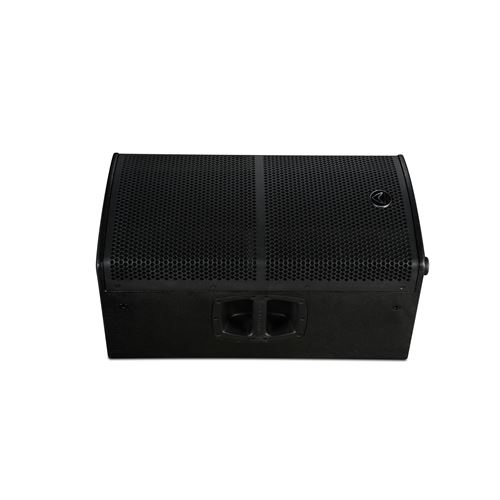

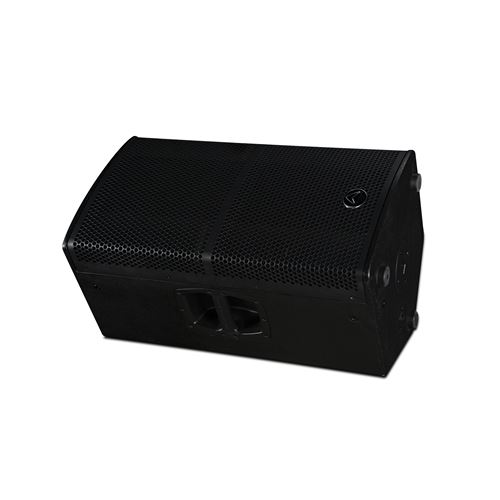

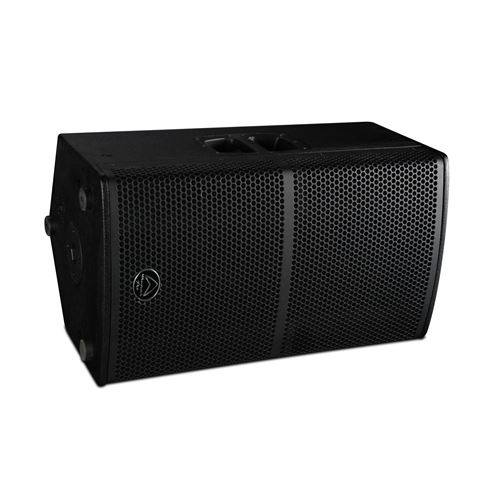

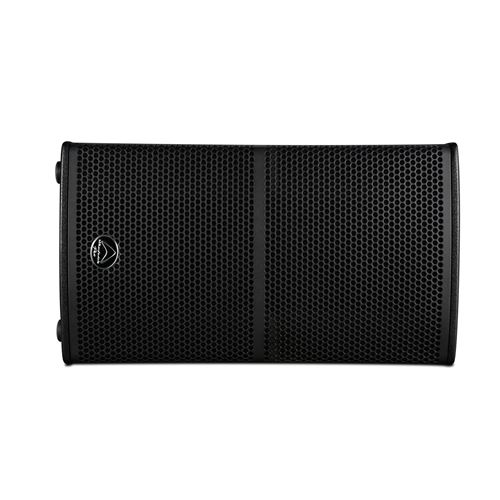

Model Name | WLA-12MX |
System Type | Passive |
Configuration | Two-way Monitor |
Frequency Response (+/-3 dB) | 55-20 KHz |
Frequency Range (- 10 dB) | 50-20 KHz |
Sensitivity 2.83 V / 1 M | 98 dB |
Calculated Maximum SPL @1 M | 131 dB |
System Rated Impedance | 8 Ω |
Low Frequency Transducer | |
LF Size (mm / inches) | 331 mm / 12″ |
LF Voice Coil Size (mm / inches) | 76.2 mm / 3″ |
LF Magnet Material | ferrite |
LF Frame Material | aluminium |
Rated Impedance | 8 Ω |
LF Power re:AES2-2012 | 500 W |
High Frequency Transducer | |
HF Driver Type | Compression Driver |
Coil Size (mm / inches) | 75 mm / 3.0″ |
Exit Size (mm / inches) | 35.5 mm / 1.4″ |
HF Magnet Material | NdFeB |
Diaphragm Material | Titanium |
Rated Impedance | 8 Ω |
HF Power re:AES2-2012 | 90 W |
Waveguide Type | square |
Nominal Coverage (H x V) | 90° x 60° (Rotatable) |
Power | |
System Continuous Power (w) | 500 W |
System Programme Power (w) | 1000 W |
System Peak Power (w) | 2000 W |
Input Connector | 4 x NL4MP |
(speakON Compatible) | |
Rigging | M10 x 10 |
pole mount | 35 mm |
handles | 2 on Sides |
Enclosure | |
cabinet type | polygon |
Enclosure Material and finish | 15 mm plywood |
Colour Options | black paint |
Grille Material & Finish | steel |
Dimensions – Unpacked (mm / inches): | |
Height | 658 mm / 25.9″ |
Width | 372 mm / 14.6″ |
Depth | 400.1 mm / 15.8″ |
Dimensions – Packed (mm / inches): | |
Height | 746 mm / 29.4″ |
Width | 442 mm / 17.4″ |
Depth | 470 mm / 18.5″ |
Weight | |
Net Weight (kg / lbs) | 25.5 kg / 56.1 lbs |
Gross Weight (kg / lbs) | 27.8 kg / 61.2 lbs |
