- 2 models available
- 200 channels – 650-700 MHz
- 81 channels – 863-865 MHz
- 324 channels – 598-694 MHz (discontinued)
- Easy to setup with infrared syncing
- Backlit LCD’s on mic and receiver. Easy to see on-stage.
- High quality vocal microphone capsule design
- True diversity system signal stability over long distances

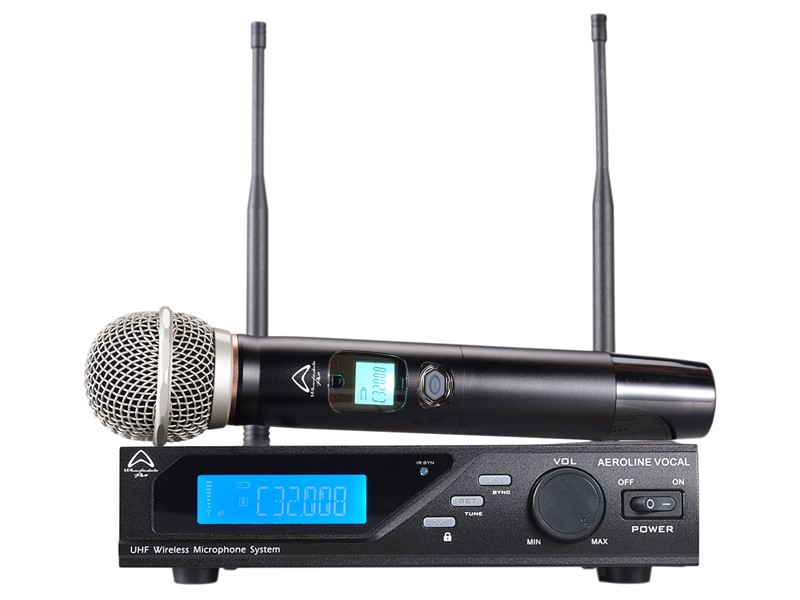

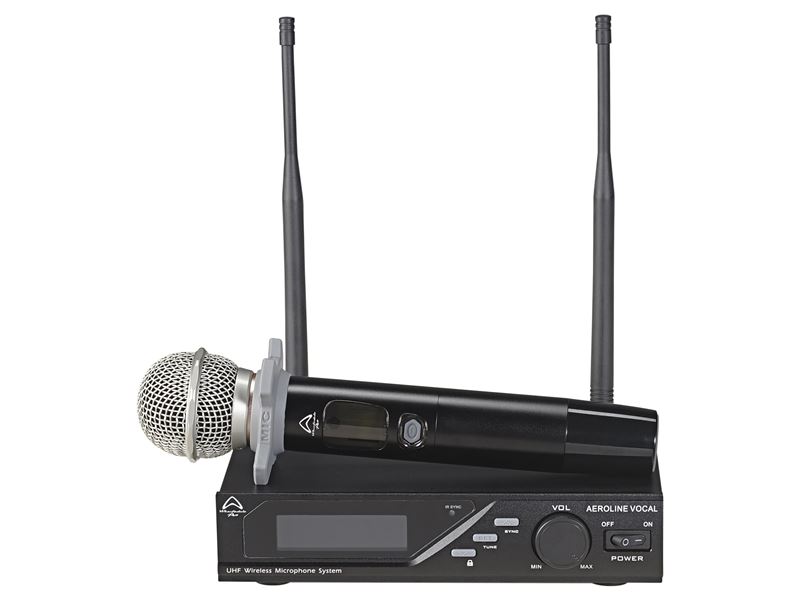

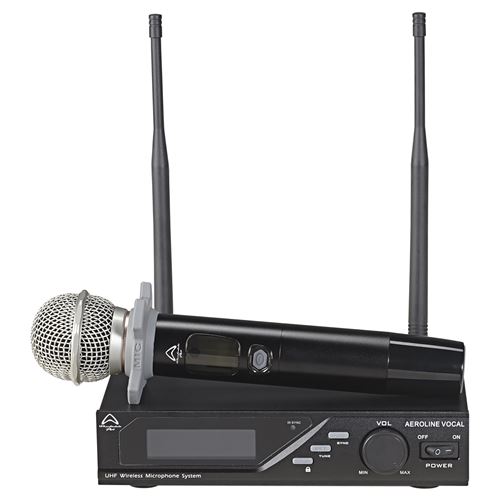

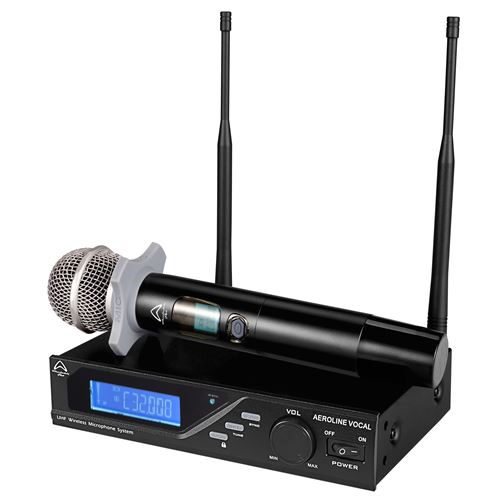

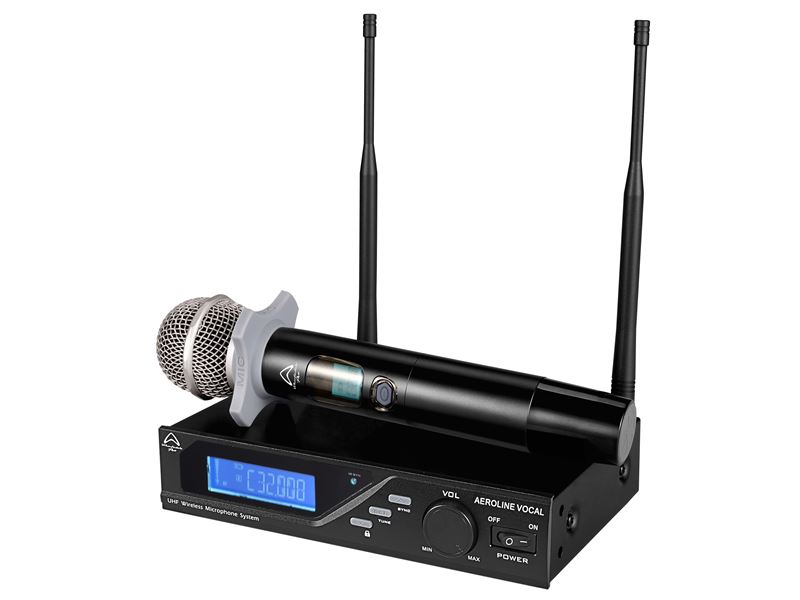

Made specifically for solo vocal performances the Aeroline Vocal Wireless mic system delivers perfect vocal clarity over long distances, in a simple to use package.
A specially designed microphone capsule captures the detail and warmth of the voice, ensuring that the system gets the best possible quality audio input.

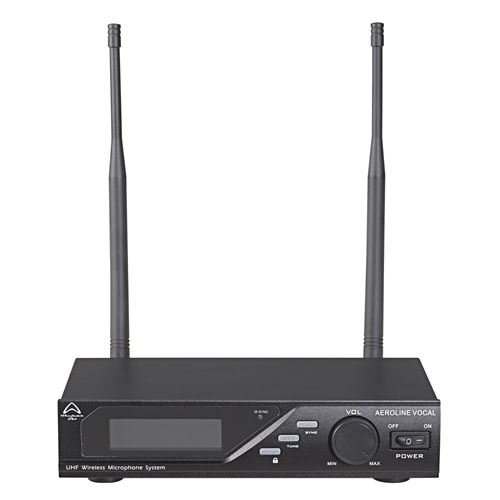

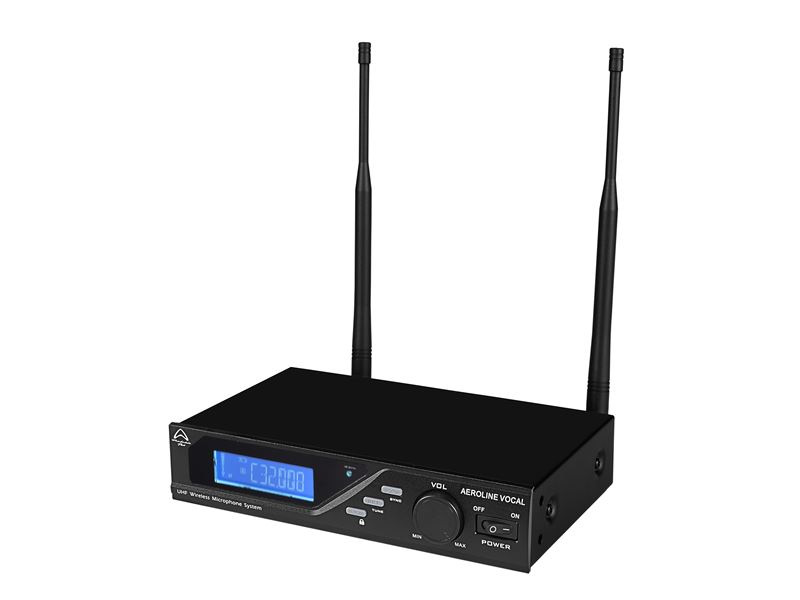

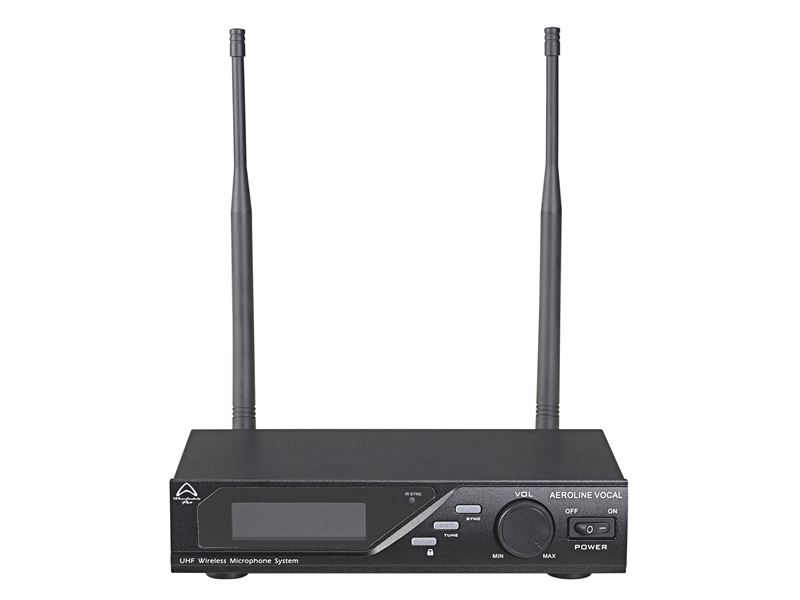

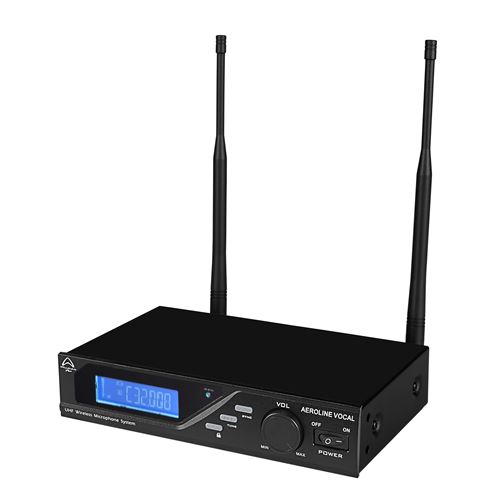

This signal is then transmitted to the ‘small footprint’ receiver with dual antennae using True Diversity technology. This results in a system which works over long distances without drop-outs.
Unique to products at this price point are the backlit LCD displays on both the mic and the receiver. This makes setup and control simple.
With its high quality capsule, superb long range performance and easy operation, Aeroline Vocal delivers everything the vocalist or presenter needs.

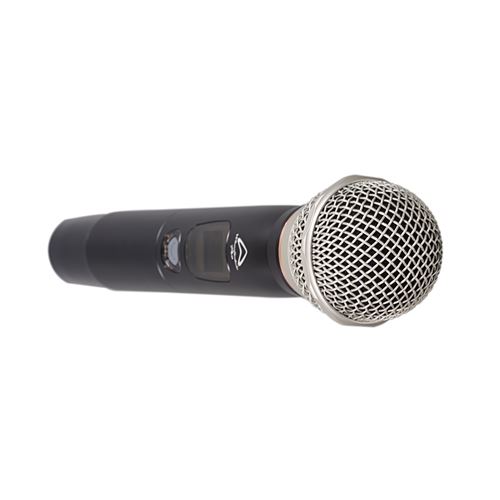

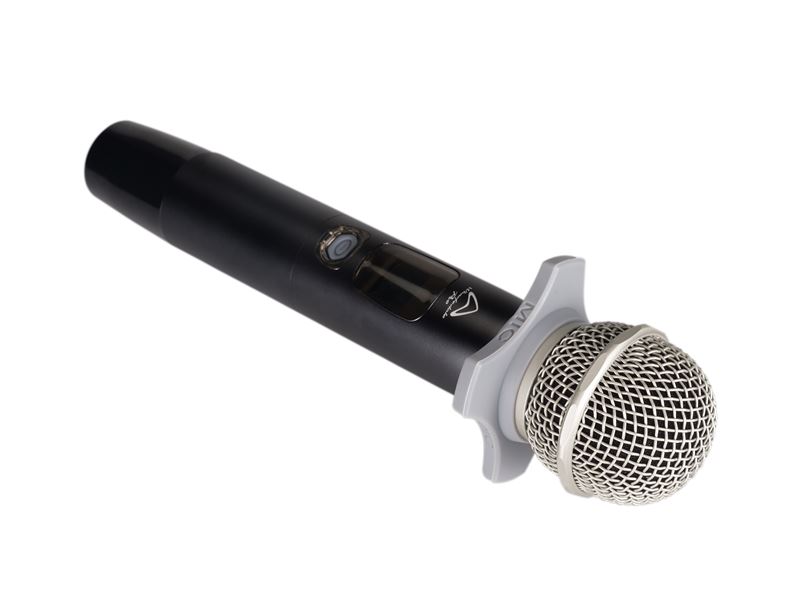

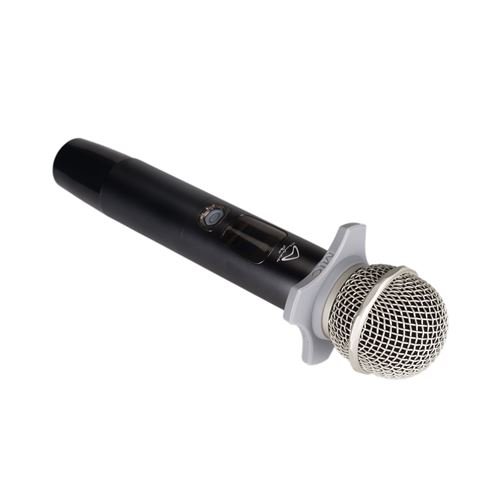

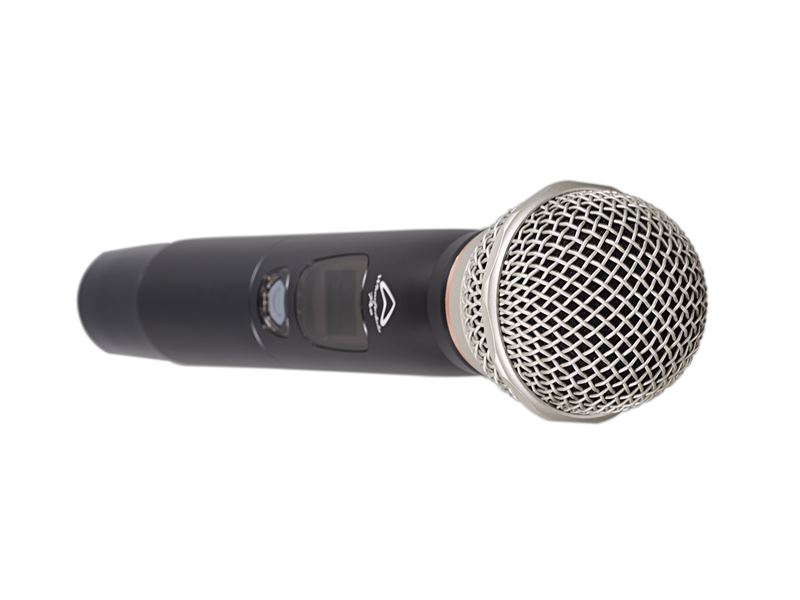

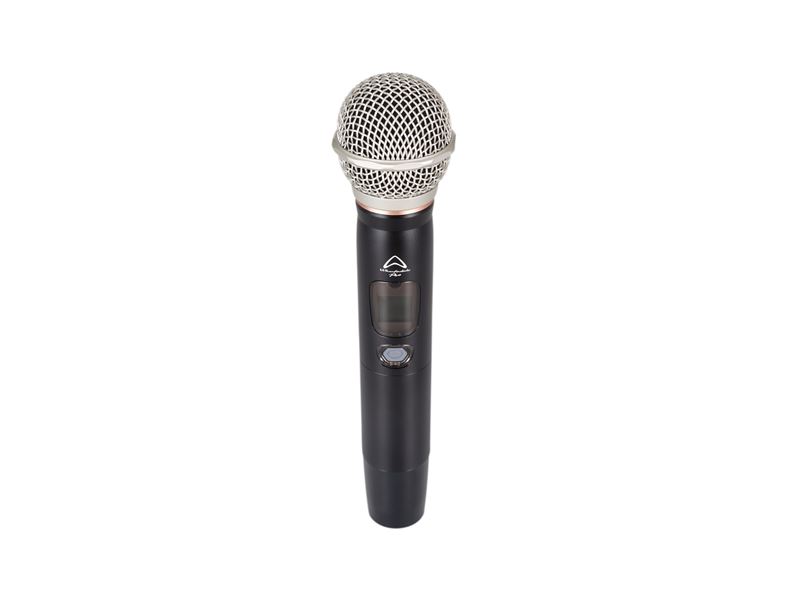

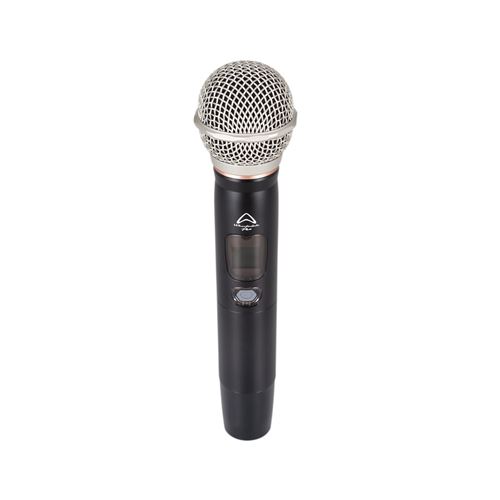

CAPSULE - MADE FOR THE VOICE
The moving coil capsule is robust and durable. It is tough enough to ensure drops and road-damage.
The response pattern is super cardioid which gives good upfront coverage while rejecting from the rear. This reduces the chance of feedback.
For singers, the capsule delivers a warm tone and the internal electronics have been prepared to handled the highest of dynamics.
For Presenters, the well-tuned frequency response of the capsule will ensure that your audience will hear each nuance and the finer detail of your voice.
WHAT'S IN THE BOX ?
Receiver : 1 pc
Handheld wireless mic : 1 pc
Power supply : 1 pc
User manual : 1 pc
Antennae : 2 pcs
| Included items | AEROLINE VOCAL | AEROLINE VOCAL |
| Working frequency: | 863-865 MHz | 650-700 MHz |
| Modulation mode: | UHF | UHF |
| Channels: | 81 | 200 |
| Operating distance: | about 120m (line of sight) | about 120m (line of sight) |
| RF generator mode: | PLL Frequency Synthesizer | PLL Frequency Synthesizer |
| RF bandwidth: | 2 MHz | 96 MHz |
| RF frequency precision: | +/- 10 ppm | +/- 20 ppm |
| Audio frequency response: | 60 Hz-15 KHz (100 mV input ) | 60 Hz-15 KHz (100 mV input ) |
| SNR: | > 98 dB (A weighted) | > 98 dB (A weighted) |
| THD: | <1% / 1 KHz (300 mV output ) | <1% / 1 KHz (300 mV output ) |
| Transmitter | ||
| Dynamic range: | > 95 dB | > 90 dB |
| Output Power: | 30 mW | 30 mW |
| Display: | LCD | LCD |
| Current consumption: | <120 mA / 3 v | <120 mA / 3 v |
| Power supply: | 1.5 x AA or AA rechargeable batteries | 1.5 x AA or AA rechargeable batteries |
| Transducer pickup head: | Moving coil | Moving coil |
| Pickup mode: | Super cardioid | Super cardioid |
| Sensitivity: | <- 55 dB ± 3 dB (0dB = 1 V / Par at 1 KHz) | <- 55 dB ± 3 dB (0dB = 1 V / Par at 1 KHz) |
| Maximum SPL: | > 105 dB SPL | > 105 dB SPL |
| Battery life: | About 8 hours(related to the battery quality) | About 6 hours(related to the battery quality) |
| Receiver | ||
| Sensitivity: | 103 dBm (20 dB SINAD) | 103 dBm (20 dB SINAD) |
| Harmonic distortion: | <0. 5% / 1 KHz (200 mV output) | <0. 5% / 1 KHz (300 mV output) |
| Display: | LCD | LCD |

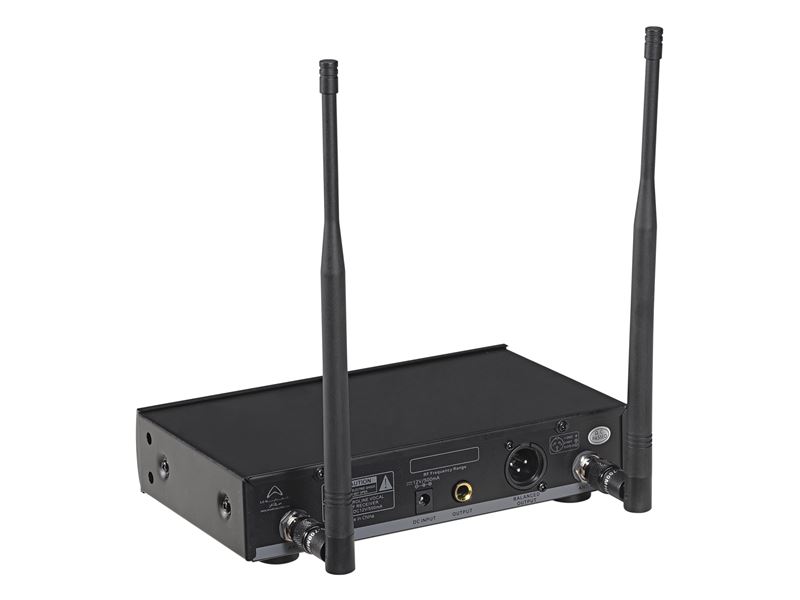

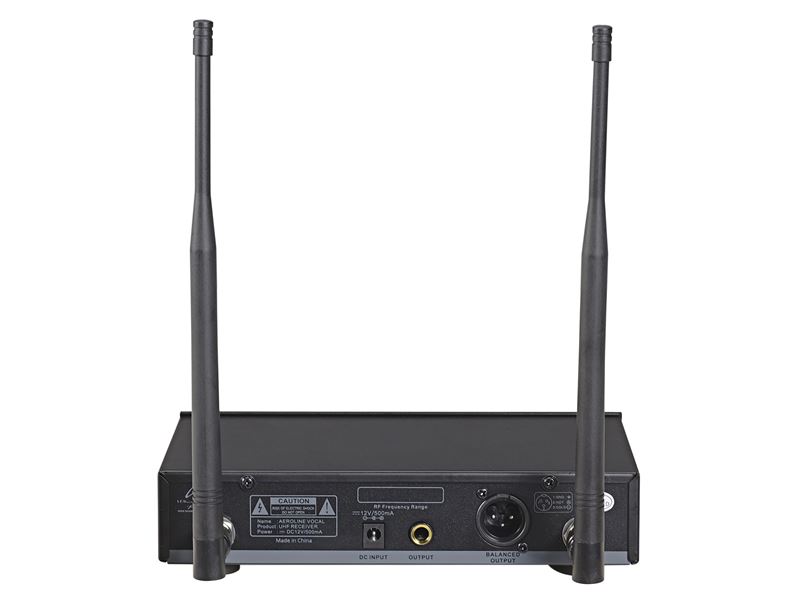

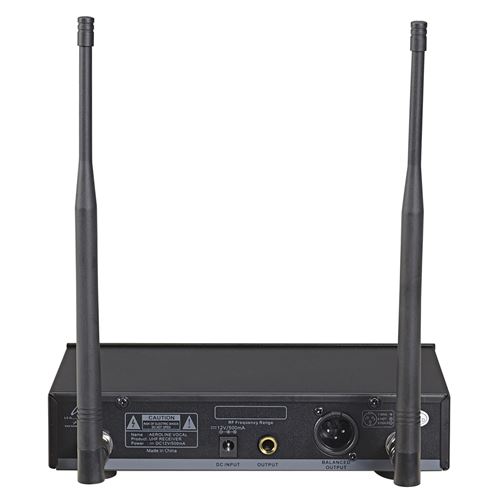

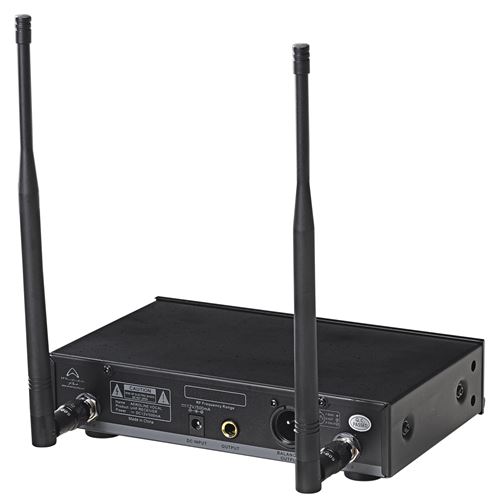

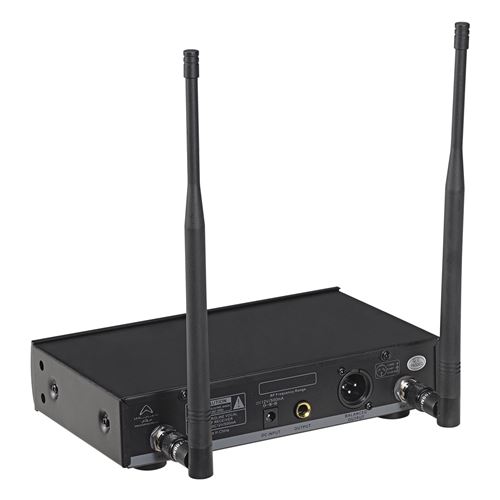

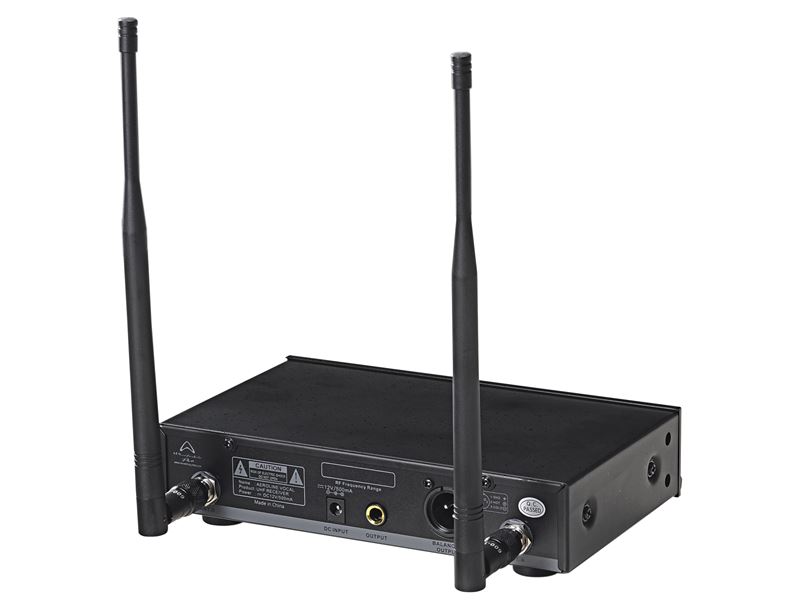

| Audio outputs: | Balanced XLR plus 1/4” jack | Balanced XLR plus 1/4” jack |
| Power supply: | 12 V / 500 mA | 12 V / 500 mA |
