- 5 x Internal EQ settings embedded inside mics
- Easy to change the EQ to suit the performer
- Long range – in excess of 100 meters line of sight
- Simple IR syncing
- Large LCD backlit displays
- Robust dynamic mics with gyroscopic automute / unmute
- 2 Models : 600-690 MHz OR 863-865 MHz
The WF-300 Wireless Microphone system brings advanced digital signal transmission technologies together with the highest quality audio components to create a wireless mic system that is both simple to use and delivers great quality audio – over a long range!
The two most important features of any wireless mic system have been addressed during its development.
1 – Range
WF-300 line of sight working range is over 100 meters
2 – Audio quality
WF-300 features 5 specially tuned EQ settings embedded inside its microphones. These allow the user to adjust the EQ curve of the mics to suit the character of their voice. This makes using the WF-300 a pleasure and helps the performer feel ‘comfortable’ with their sound.
___

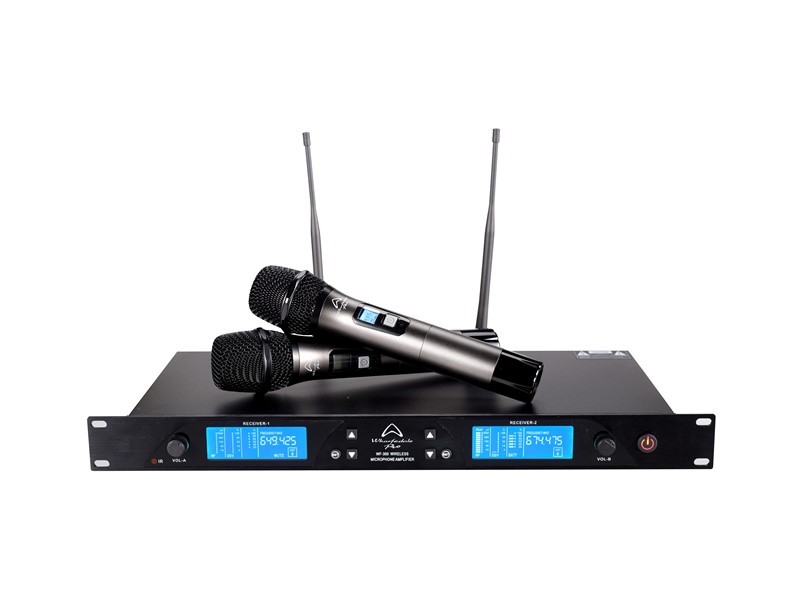

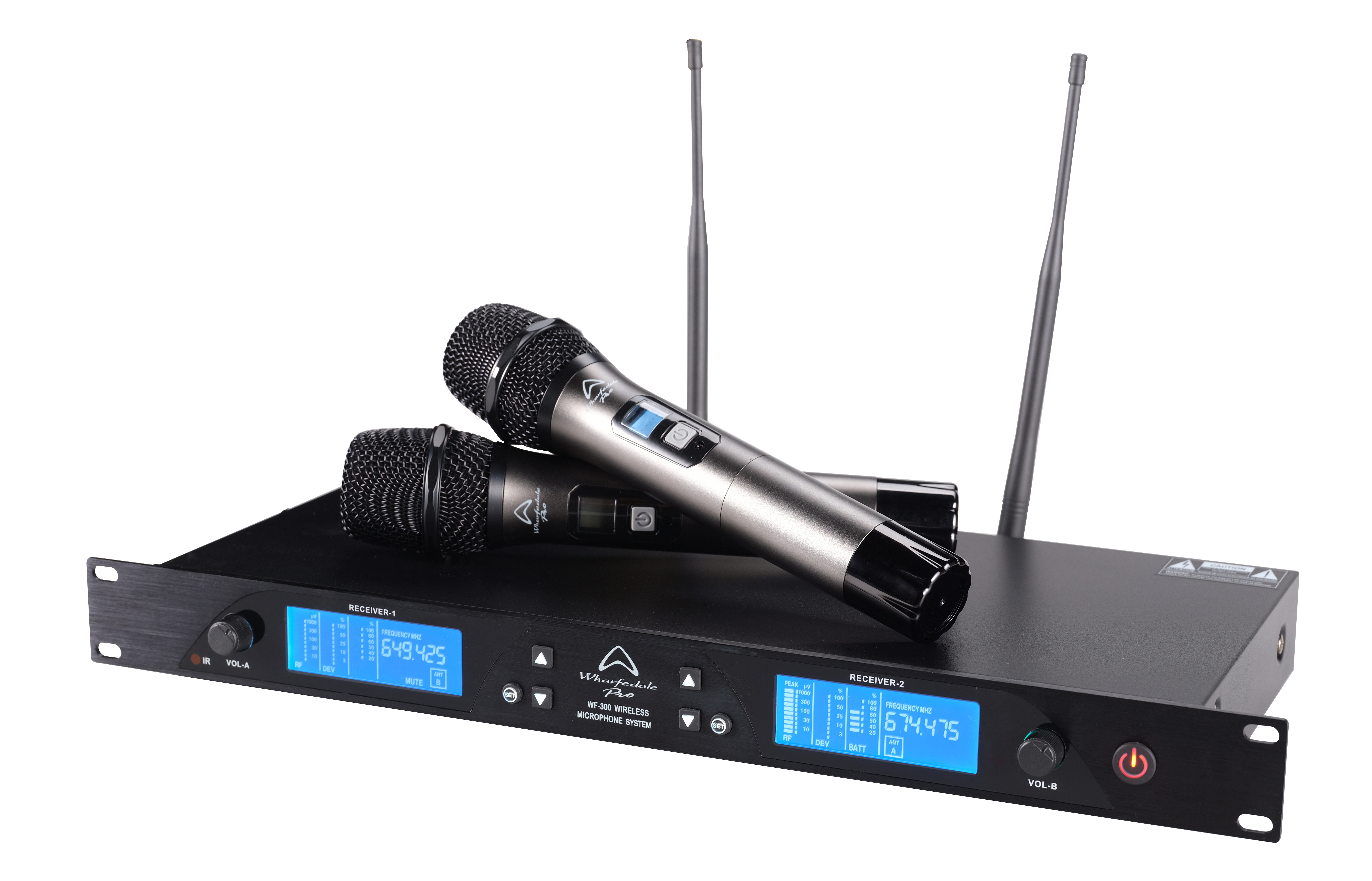

The physical construction of WF-300 is also second-to-none. The 19” brushed steel receiver looks great in any rack and features two large, backlit LCD’s allowing the user to monitor the system, even at a distance.

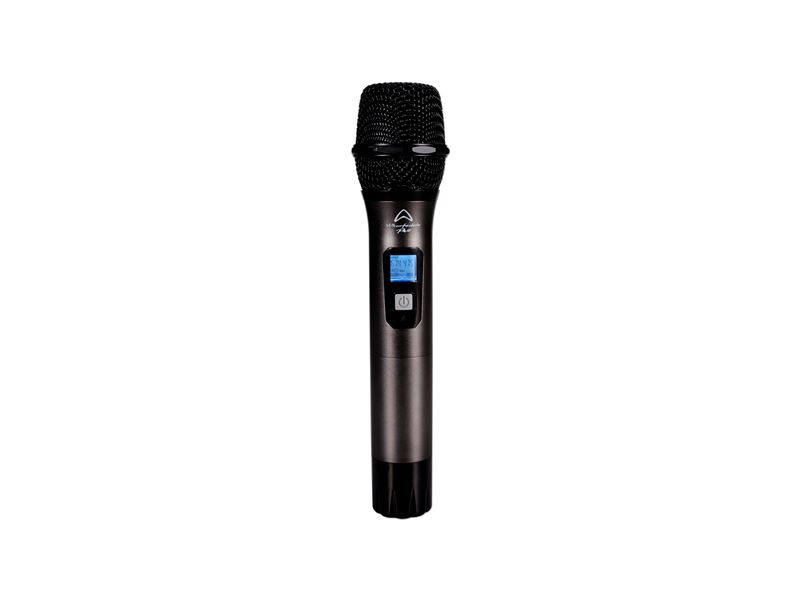

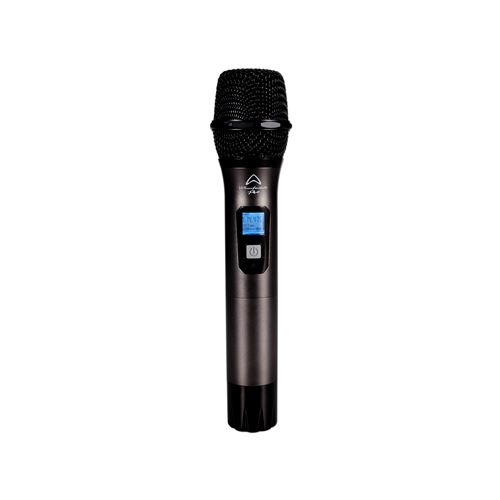

The microphones themselves are made from robust alloy with a dent-resistant spring-steel grille. The LCD display inside the mic also helps the user to monitor the battery level and channel selections. The mics also feature an internal gyroscope which senses movement making automute/unmute a seamless experience for the performer.
System : | WF-300 |
Working frequency: | 600-690 MHz or 863-865 MHz Model Dependant broadband FM |
Channel frequency | 600-690 MHz model : 2 channels x 100 frequencies |
863-865 MHz model : 2 channels x 4 frequencies | |
Channel frequency: | 450K(600-690 MHz),250K(863-865 MHz) |
T.H.D | 0.01% |
Operational distance | 100 dB |
Maximum excursion: | 45 KHz |
Frequency response: | 60 Hz-18 KHz (3 dB) |
S/N | >105 dB |
T.H.D | 0.005 |
Operation distance: | about 100 m (line of sight) |
Working environment temperature: | -10 C –+50 C |
Receiver / Rack | |
IF | 110 MHz, 10.7 MHz |
Antenna receiver: | BNC/50 |
Sensitivity: | 12 dBuV(80 dB S/N) |
Sensitivity adjustable range: | 12-32 dBuV |
Erratic control: | 75 dB |
Maximum output frequency | +10 dBv |
Transmitter / Mic | |
Type: | 2 x dynamic handheld mics included |
Antenna: | Integrated |
EQ Modes | 5 presets |
RF output: | 10 mW~30 mW |
Maximum Deviation: | ± 25 KHz |
Battery: | 2pcs of 1.5v AA per mic |
Battery Life: | 6~8 hours |
