WHARFEDALE PRO CPD Series Dual Channel 230 Watts @ 8 Ohms Amplifier

CPD-1000

Wharfedale Pro

Whatsapp for enquiry Email for enquiry

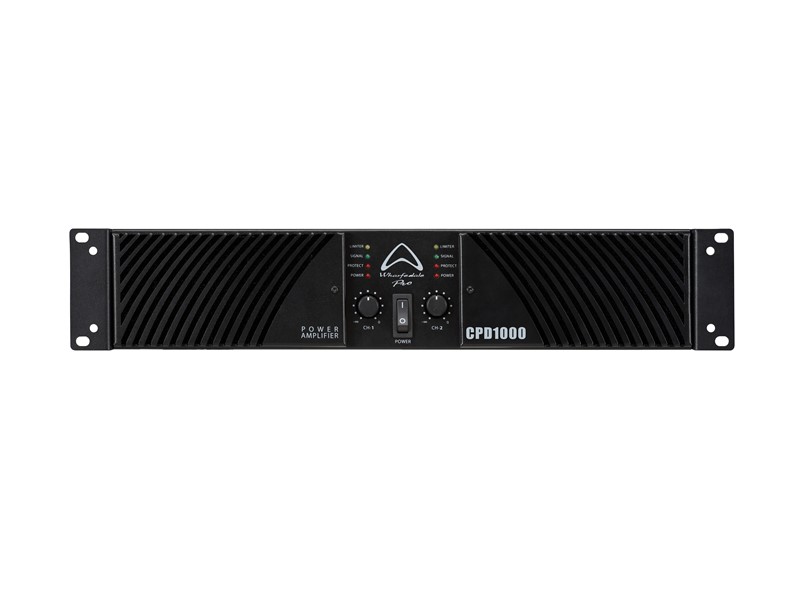

CPD-1000

2 x 350 watts
4 Ohm
  • 2 channels
  • 8 Ohm 2 x 230 Watts
  • 4 Ohm 2 x 350 Watts
  • 8 Ohm Bridged 1 x 700 Watts

The CPD1000 is part of Wharfedale Pro’s latest line of professional power amplifiers driving earth shaking audio from the front of your venue, all the way to the back.

For using in stereo the amplifier delivers 250W RMS at 8 Ohms and 350W RMS at 4 Ohms; a suitable power for small to medium sized complete PA systems. In bridged mode at 4 Ohms the amplifier generates 1000W RMS, perfect for powering a subwoofer integrated into a larger PA system.

Maximum headroom audio fidelity and durability are of course vital, whilst additionally we pride ourselves on unbeatable value. The CPD series is manufactured under our strict quality assurance as are all Wharfedale Pro products, making an amp you can trust from price to performance.

MASSIVE TRANSFORMERS

CPD series are built around a massive heavy-duty toroidal transformer.

This delivers smooth and consistent power into the amplifier electronic circuits, resulting in stable and reliable output power, even in environments where AC may fluctuate.


Previous
Next

EASY CLEANING

Amplifiers often work in hot and dusty environments and, over time, the fans of an amplifier can easily suck this in.  Dirty cooling fans reduce efficiency and can lead to overheating.

Its for this reason that we made the CPD series easy to clean. Simply unscrew the front grille, bush off the air filters, and put the grille back on.

This easy maintenance means that a CPD amplifier can survive in the most hostile of working environments.  That’s cool !

CPD SERIES

EARTH SHAKING AUDIO

  • Class H Technology (CPD2600 / CPD3600 / CPD4800)
  • Class AB Technology (CPD1000 / CPD1600)
  • Suitable for mobile use, touring, rental and installation
  • Stereo, Parallel and Bridge modes
  • 2 x XLR inputs
  • 2 x speakON compatible outputs
  • Switchable limiter
  • Status and clip LEDs
  • Thermal, overcurrent, DC and output short protect circuitry
  • Continuously variable speed fan


Model Name CPD1000
Stereo Power Output : RMS
8 Ω x 2 230 w
4 Ω x 2 350 w
Bridged Mono Power Output : RMS
8 Ω 700 w
Frequency Response 20 Hz – 30 KHz
Topology Class AB
Inputs 2 x XLR
Outputs 2 x NL4
2 x XLR
Input Sensitivity & impedance
Sensitivity 0 dBu (0.775 Vrms)
Balanced XLR input 20 KΩ
Maximum Input Level 22 dBu (9.7 Vrms)
Voltage Gain 35 dB
Slew Rate >40 V / us
Crosstalk <-70 dB
S/N >100 dB
Distortion (1 W) <0.02%
Damping Factor >300
Controls
Front panel AC Switch, CH 1 and CH 2 Gain Knobs
Rear panel Parallel, Stereo & Bridge Mode Switch; Limiter Switch
Protections Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute
Indicators Power, Protect, Signal, Peak
Cooling Variable Speed Fan
Dimensions 88 x 483 x 330 mm
Net Weight 11 kg / 24.25 lbs
Gross Weight 12.5 kg / 27.55 lbs
