CPD-2600
2 x 1000 watts
4 Ohm
- 2 channels
- 8 Ohm 2 x 650 Watts
- 4 Ohm 2 x 1000 Watts
- 8 Ohm Bridged 1 x 1940 Watts
2 x 1000 watts
- 2 channels
- 8 Ohm 2 x 650 Watts
- 4 Ohm 2 x 1000 Watts
- 8 Ohm Bridged 1 x 1940 Watts

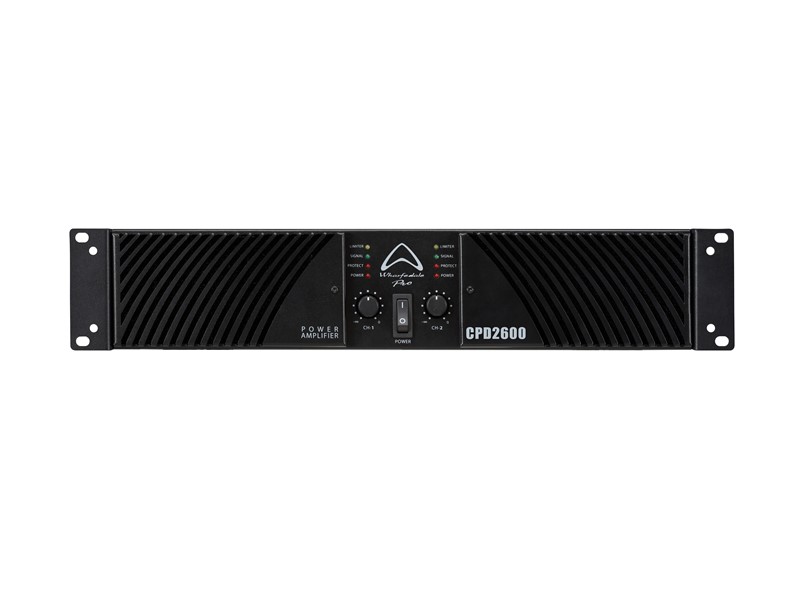

CPD 2600
The CPD2600 is part of Wharfedale Pro’s latest line of professional power amplifiers driving earth shaking audio from the front of your venue, all the way to the back.
For using in stereo the amplifier delivers 650W RMS per channel at 8 Ohms and 1000W RMS per channel at 4 Ohms; a suitable power for small to large sized complete PA systems. In bridged mode at 4 Ohms the amplifier generates 2600W RMS. This huge power means the amplifier can also integrate itself with larger touring rigs and installs where long throw, extremely high power audio is needed.
MASSIVE TRANSFORMERS
CPD series are built around a massive heavy-duty toroidal transformer.
This delivers smooth and consistent power into the amplifier electronic circuits, resulting in stable and reliable output power, even in environments where AC may fluctuate.
EASY CLEANING
Amplifiers often work in hot and dusty environments and, over time, the fans of an amplifier can easily suck this in. Dirty cooling fans reduce efficiency and can lead to overheating.
Its for this reason that we made the CPD series easy to clean. Simply unscrew the front grille, bush off the air filters, and put the grille back on.
This easy maintenance means that a CPD amplifier can survive in the most hostile of working environments. That’s cool !
CPD SERIES
EARTH SHAKING AUDIO
- Class H Technology (CPD2600 / CPD3600 / CPD4800)
- Class AB Technology (CPD1000 / CPD1600)
- Suitable for mobile use, touring, rental and installation
- Stereo, Parallel and Bridge modes
- 2 x XLR inputs
- 2 x speakON compatible outputs
- Switchable limiter
- Status and clip LEDs
- Thermal, overcurrent, DC and output short protect circuitry
- Continuously variable speed fan
| Model Name | CPD2600 |
| Stereo Power Output : RMS | |
| 8 Ω x 2 | 650 w |
| 4 Ω x 2 | 1000 w |
| Bridged Mono Power Output : RMS | |
| 8 Ω | 1940 w |
| Frequency Response | 20 Hz – 30 KHz |
| Topology | Class H |
| Inputs | 2 x XLR |
| Outputs | 2 x NL4 |
| 2 x XLR | |
| Input Sensitivity & impedance | |
| Sensitivity | 0 dBu (0.775 Vrms) |
| Balanced XLR input | 20 KΩ |
| Maximum Input Level | 22 dBu (9.7 Vrms) |
| Voltage Gain | 39 dB |
| Slew Rate | >40 V / us |
| Crosstalk | <-70 dB |
| S/N | >100 dB |
| Distortion (1 W) | <0.02% |
| Damping Factor | >300 |
| Controls | |
| Front panel | AC Switch, CH 1 and CH 2 Gain Knobs |
| Rear panel | Parallel, Stereo & Bridge Mode Switch; Limiter Switch |
| Protections | Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute |
| Indicators | Power, Protect, Signal, Peak |
| Cooling | Variable Speed Fan |
| Dimensions | 88 x 483 x 450 mm |
| Net Weight | 19 kg / 41.88 lbs |
| Gross Weight | 22.5 kg / 49.60 lbs |
