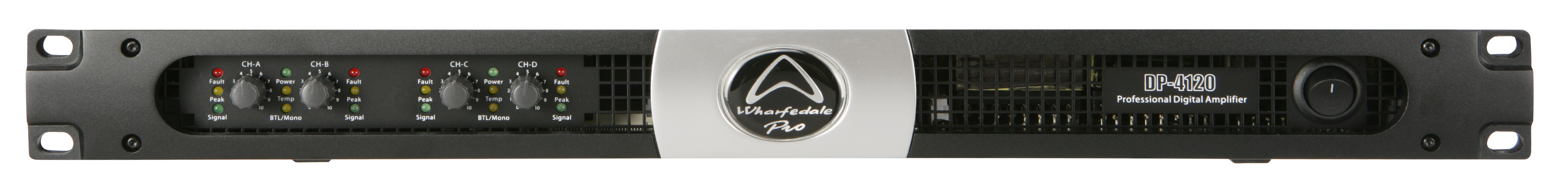

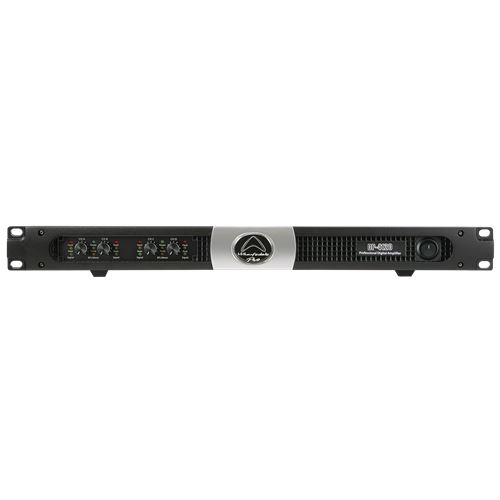

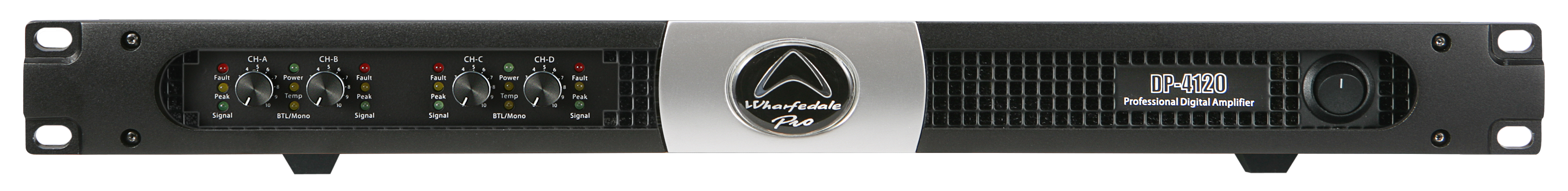

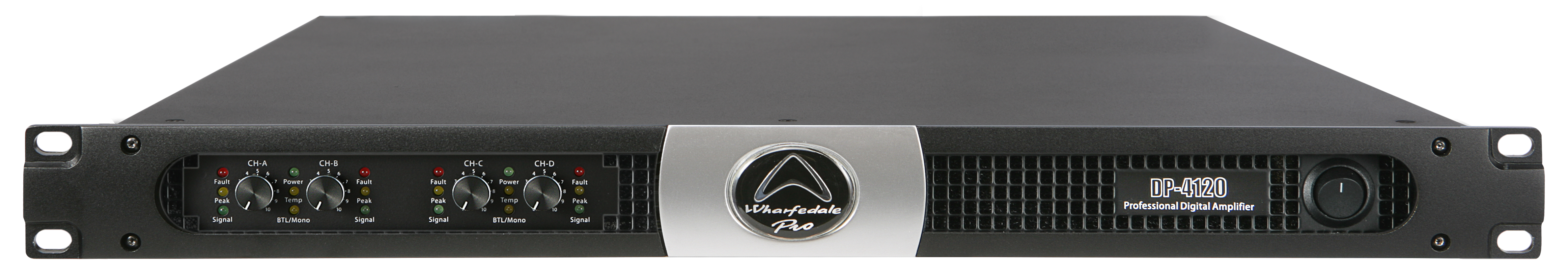

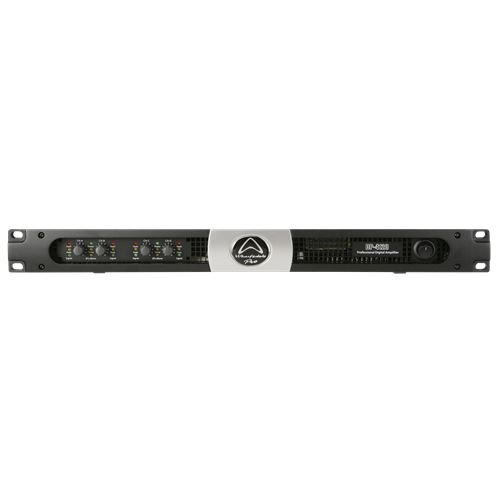

DP-4120
4 x 3468 watts2 Ohm- 4 channels
- 8 Ohm 4 x 1200 Watts
- 4 Ohm 4 x 2040 Watts
- 2 Ohm 4 x 3468 Watts
- 16 Ohm Bridged 2 x 2400 Watts
- 8 Ohm Bridged 2 x 4080 Watts
- 4 Ohm Bridged 2 x 6936 Watts
- 100 V Hi-Z : 4 x 2500 Watts
- 70 V Hi-Z : 4 x 2400 Watts
4 x 3468 watts
2 Ohm
- 4 channels
- 8 Ohm 4 x 1200 Watts
- 4 Ohm 4 x 2040 Watts
- 2 Ohm 4 x 3468 Watts
- 16 Ohm Bridged 2 x 2400 Watts
- 8 Ohm Bridged 2 x 4080 Watts
- 4 Ohm Bridged 2 x 6936 Watts
- 100 V Hi-Z : 4 x 2500 Watts
- 70 V Hi-Z : 4 x 2400 Watts
DP SERIES
LIGHT ON WEIGHT. HEAVY ON POWER
Powerful Class D multi-channel amplifiers – stable down to 2 ohms…..
Suitable for professional live sound reinforcement or fixed installations, the top of the range 4-channel DP-4120 delivers extreme power from a light weight design.
Its advanced switch mode power supply and super-efficient Class D topology delivers high power with low distortion.
With 4 discrete channels and multiple operating modes its simple to configure into the most complex of installations or touring rigs.
STABLE DOWN TO 2 OHMS
Huge output power and stable down to 2 Ohms
The power output figures of DP series are staggering. The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.
DP amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.
- Super light weight
- 4 channel models
- Stable down to 2Ω
- Drive multiple 8Ω and 16Ω loudspeakers
- 1 * Stereo model generating 6800 watts @ 8 Ω BTL.
- Ultra-quiet variable speed fans and advanced protection circuitry
- 70 V / 100 V compatible models
| Model | DP-4120 | |
| Rated Power | 8 Ω / Stereo | 4 x 1200 W |
| (THD=1%, | 4 Ω / Stereo | 4 x 2040 W |
| Each chan works | 2 Ω / Stereo | 4 x 3468 W |
| simultaneously with | ||
| continuous sinusoidal | ||
| 1 KHz) | ||
| 16 Ω / Bridge | 2 x 2400 W | |
| 8 Ω / Bridge | 2 x 4080 W | |
| 4 Ω / Bridge | 2 x 6936 W | |
| 100 V Hi-Z | 4 x 2500 W | |
| 70 V Hi-Z | 4 x 2400 W | |
| Output RMS voltage | 100.0 V | |
| Max Input Level | ||
| Default Gain | 22 dB | |
| (Rated Power,1 KHz) | ||
| Gain | 22 dB~40 dB | |
| (Rated Power,1 KHz) | ||
| THD+N | Typical value:0.05% (10% Rated Power,8 Ω) | |
| Cross-Talk | ≥90 dB (20 Hz-1 KHz, below Rated Power,8 Ω) | |
| Frequency Response | Typical value:+0,-0.5 dB (10% Rated Power,20 Hz-20 KHz,8 Ω) | |
| Input Impedance | 20 kΩ (Balanced), 10 kΩ (Unbalanced) | |
| Damping Factor | ≥1000 (20 Hz-200 Hz,8 Ω) | |
| SNR | ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω) | |
| Main Power | 90~260 VAC,50/60 Hz | |
| Protection | Power under-voltage, Amplifier output DC, Thermal, Temp Power Control, Overload Power Control | |
| Size(W×H×D) mm | 483 x 45 x 376 | |
| Net Weight | 12.2 kg |
