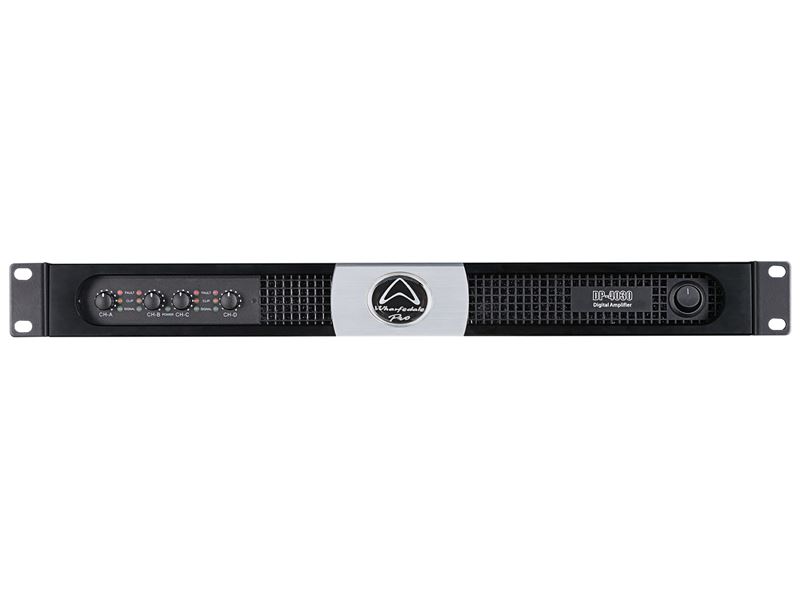

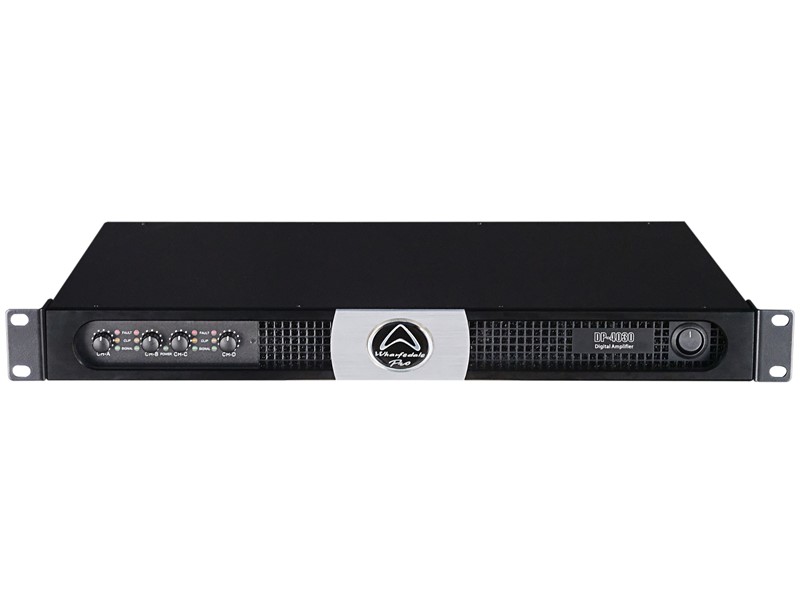

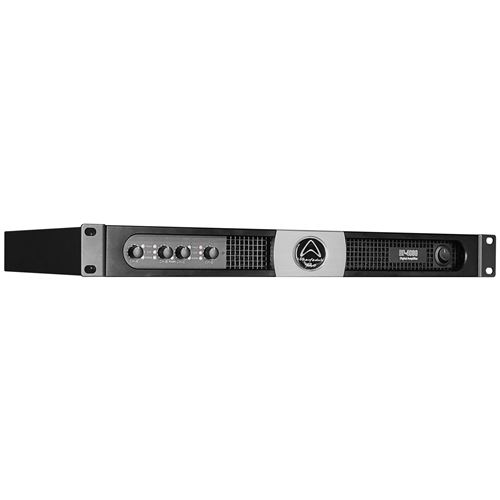

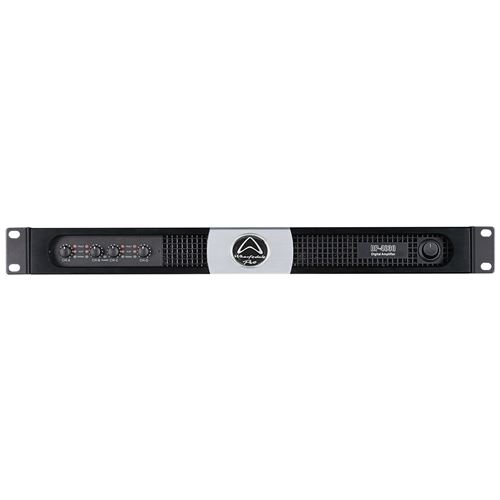

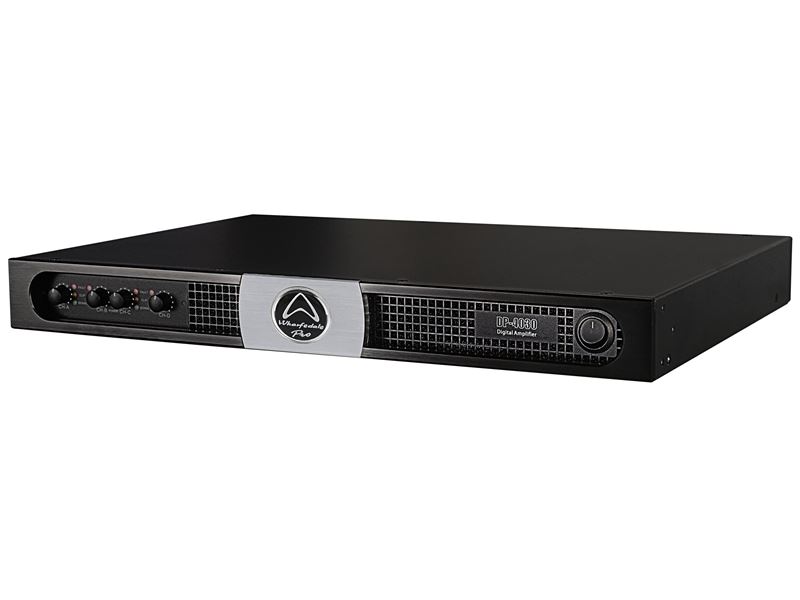

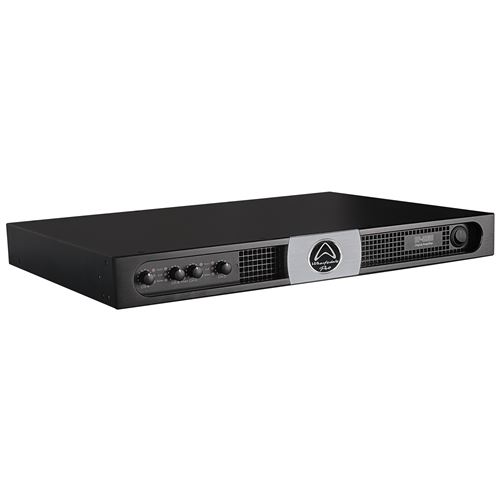

DP-4030
- 4 channels
- 8 Ohm 4 x 300 Watts
- 4 Ohm 4 x 450 Watts
- 2 Ohm 4 x 675 Watts
- 16 Ohm Bridged 2 x 600 Watts
- 8 Ohm Bridged 2 x 900 Watts
- 4 Ohm Bridged 2 x 1350 Watts
- 100 V Hi-Z : No
- 70 V Hi-Z : No
DP SERIES
LIGHT ON WEIGHT. HEAVY ON POWER
Powerful Class D multi-channel amplifiers – stable down to 2 ohms…..

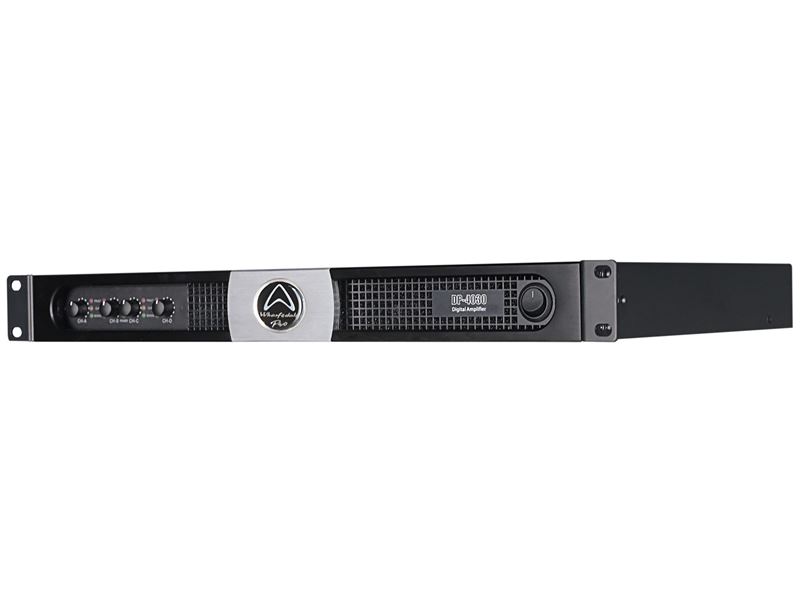

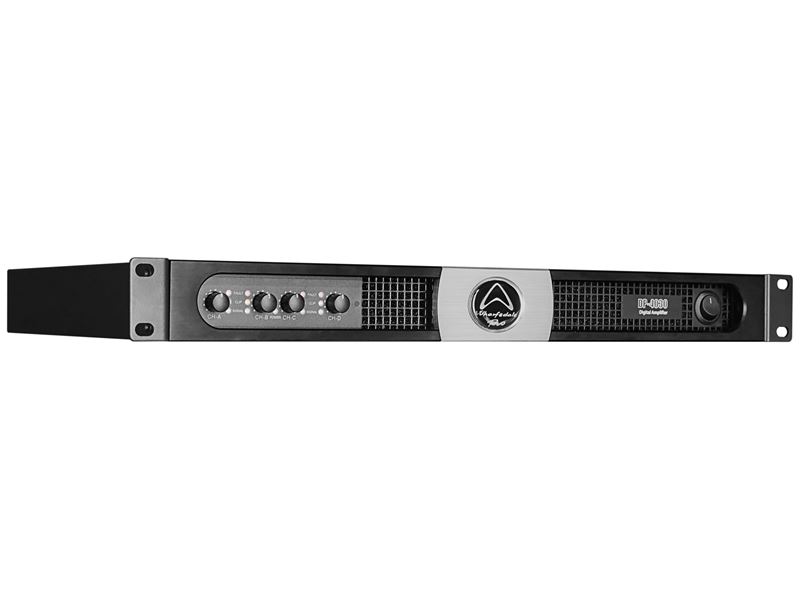

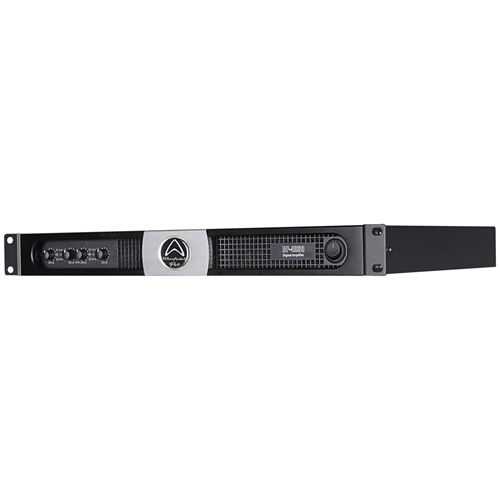

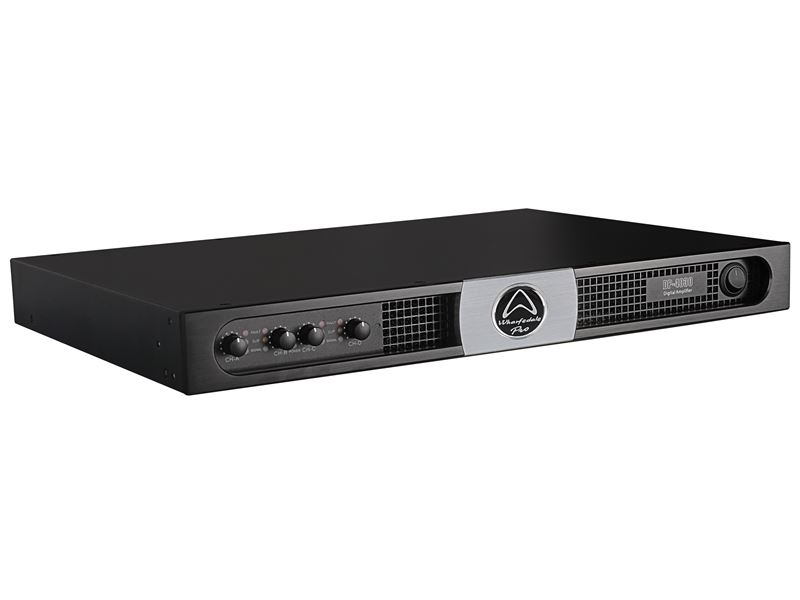

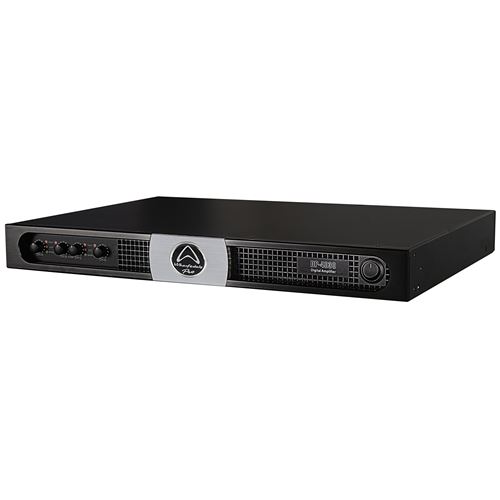

The new DP-4030 is a ‘no frills’ Class D 4-channel amplifier.
DP-4030 joins as the entry level model in the DP series amplifier family. With straight forward operation and familiar functionality, DP-4030 is perfect for fixed installations where affordable, reliable and efficient multi-channel amplification is needed.
This 1 unit rack weighs in at only 4.5 Kg but packs a powerful and manageable punch of 4 x 675 W @ 2 Ohms.
DP-4030 is also at stable at 2 Ohms, enabling even more loudspeakers to be driven in the system by a single amplifier.

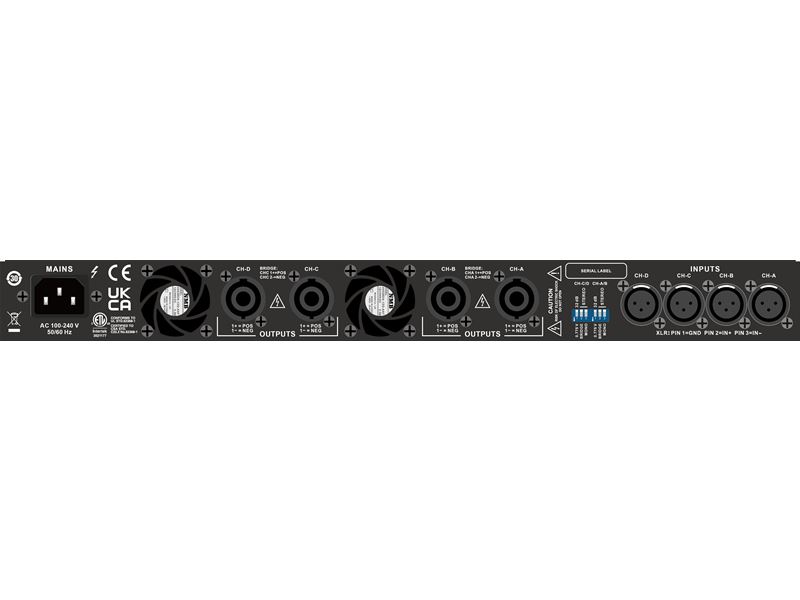

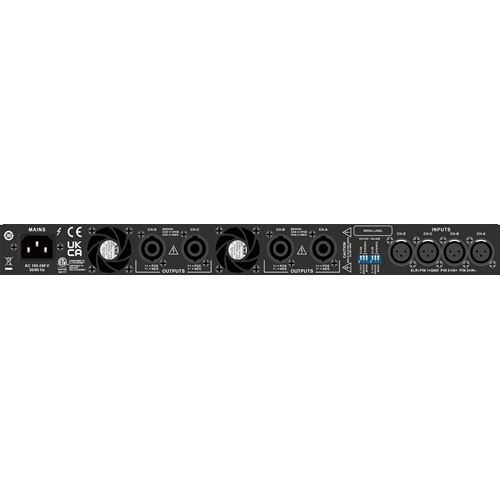

Around the back, speakON compatible outputs and XLR balanced inputs make connection to the system simple. Well protected DIP switches on the rear panel also allow for the different input / output configurations to be set. These include Stereo, Mono and Bridge modes along with the input sensitivity which can be switched between 0.775 Vrms (35 dB) or 32 dB.
DP-4030 has been designed as a reliable, value for money, versatile amplification solution. It’s that simple.
STABLE DOWN TO 2 OHMS
Huge output power and stable down to 2 Ohms
The power output figures of DP series are staggering. The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.
DP amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.
- Super light weight
- 4 channel models
- Stable down to 2Ω
- Drive multiple 8Ω and 16Ω loudspeakers
- 1 * Stereo model generating 6800 watts @ 8 Ω BTL.
- Ultra-quiet variable speed fans and advanced protection circuitry
- 70 V / 100 V compatible models
| Model | DP-4030 | |
| Rated Power | 8 Ω / Stereo | 4 x 300 W |
| (THD=1%, | 4 Ω / Stereo | 4 x 450 W |
| Each chan works | 2 Ω / Stereo | 4 x 675 W |
| simultaneously with | ||
| continuous sinusoidal | ||
| 1 KHz) | ||
| 16 Ω / Bridge | 2 x 600 W | |
| 8 Ω / Bridge | 2 x 900 W | |
| 4 Ω / Bridge | 2 x 1350 W | |
| 100 V Hi-Z | – | |
| 70 V Hi-Z | – | |
| Output RMS voltage | 49.0 V | |
| Max Input Level | ||
| Default Gain | 35 dB | |
| (Rated Power,1 KHz) | ||
| Gain | 35 dB or 32 dB | |
| (Rated Power,1 KHz) | ||
| THD+N | ||
| Cross-Talk | Typical: 75 dB | |
| (Below Rated Power,20 Hz-1 KHz,8 Ω) | ||
| Frequency Response | ||
| Input Impedance | ||
| Damping Factor | Typical: 300 | |
| (20 Hz-200 Hz,8 Ω) | ||
| SNR | Typical:100 dB | |
| (A weighted, | ||
| 20 Hz-20 KHz,8 Ω) | ||
| Main Power | 100-240 VAC | |
| ±10%, 50/60 Hz | ||
| Protection | Over temp limit | |
| Overload and DC protection | ||
| Size(W×H×D) mm | 480 x 45 x 297 | |
| Net Weight | 4.5 Kg |
