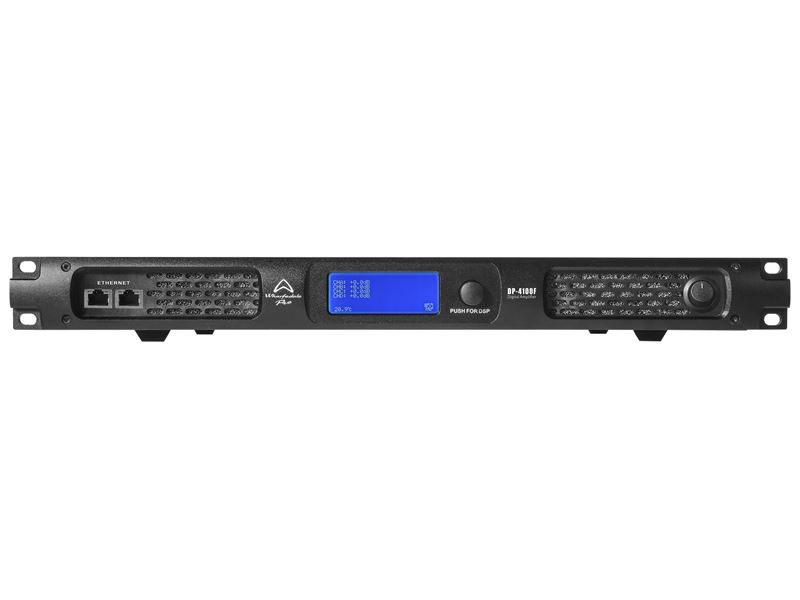

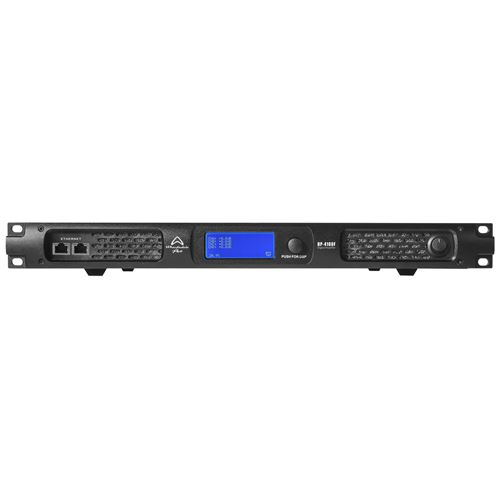

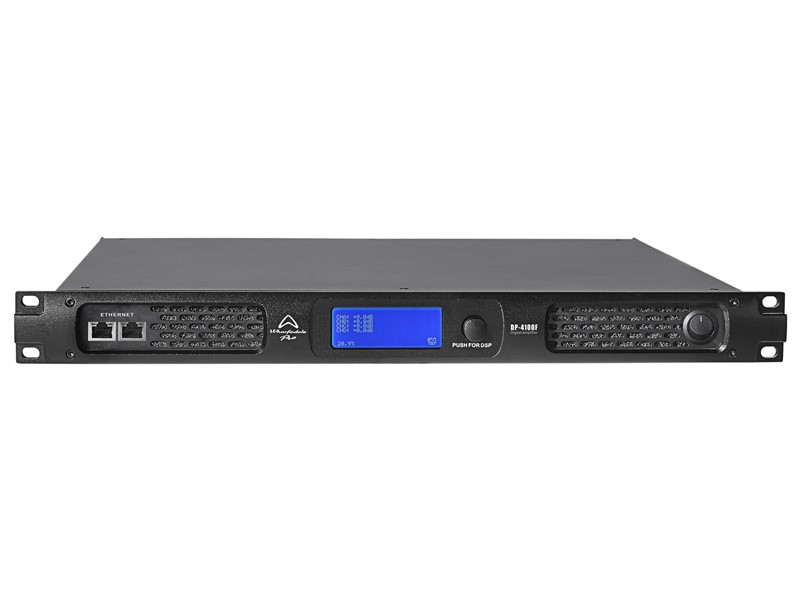

DP-4100F
2 x 5780 watts
- 4 channels
- 8 Ohm 4 x 1000 W
- 4 Ohm 4 x 1700 W
- 2 Ohm 4 x 2890 W
- 16 Ohm Bridged 2 x 2000 W
- 8 Ohm Bridged 2 x 3400 W
- 4 Ohm Bridged 2 x 5780 W
- 100 V Hi-Z : No
- 70 V Hi-Z 4 x 1700 W
DP-F Series amplifiers
Think dif-FIR-ently about amplifiers !
Four new models of amplifiers join the powerful DP Series of multi channel amps.
The new DP-F models have been engineered for mid sized venues, rental and touring applications. Enormous output power and stability at 2 ohms are features that already make DP amps special - but the new DP-F models also feature Ethernet control and the FIR DSP functionality already found in the DP-N series
The DSP now has FIR filtering with 512 taps. This refined and powerful FIR filtering brings linear phase response to the system, resulting in a more controllable and faithful output.
DP-F series also feature a wide range AC power input and are happy with huge voltage fluctuations between 90 v and 260 v. In addition, DP-F series can drive 70 V line systems!
Think dif-FIR-ently about amps!
FIR FILTERS
FIR Filtering gives
- Independent control of magnitude and phase.
- More detailed equalisation.
- Optimization of frequency and power response.
STABLE DOWN TO 2 OHMS
Huge output power and stable down to 2 Ohms
The power output figures of DP-F series are staggering. The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.
DP-F amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.
ETHERNET X 2
Control is via the Ethernet network connectors on the front.
With the supplied control software all parameters can be edited and all performance functions can be remotely monitored.
- Huge Class D power in a 1U rack
- 4 discrete amplification channels
- Internal DSP and computer control
- Stable down to 2 Ω. Drive multiple speakers or line array elements
- FIR filtering with 512 taps
- 90 V to 260 V AC working voltage
- Ethernet Network Connectors x 2
- 70 V / 100 V compatible models
| Model | DP-4100F | |
| Rated Power (THD=1%,Each channel works simultaneously with continuous sinusoidal 1 KHz) | 8 Ω / Stereo | 4 x 1000 W |
| 4 Ω / Stereo | 4 x 1700 W | |
| 2 Ω / Stereo | 4 x 2890 W | |
| 16 Ω / Bridge | 2 x 2000 W | |
| 8 Ω / Bridge | 2 x 3400 W | |
| 4 Ω / Bridge | 2 x 5780 W | |
| 100 V Hi-Z | – | |
| 70 V Hi-Z | 4 x 1700 W | |
| Output RMS voltage | 89.4 V | |
| Maximum Input Level | 8.7 Vrms(+21 dBu)(Default Gain) | |
| Default Gain (Rated Power,1 KHz) | 21 dB | |
| Gain(Rated Power,1 KHz) | 21 dB~39 dB | |
| THD+N | Typical value:0.05%(10% Rated Power,8 Ω) | |
| Cross-Talk | ≥90 dB(20 Hz-1 KHz,Below Rated Power,8 Ω) | |
| Frequency Response | Typical value:+0,-0.5 dB(10% Rated Power,20 Hz-20 KHz,8 Ω) | |
| Input Impedance | 20 kΩ(Balance),10 kΩ(Unbalance) | |
| Damping Factor | ≥1000(20 Hz-200 Hz,8 Ω) | |
| SNR | ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω) | |
| Main Power | 90~260 VAC,50/60 Hz | |
| Protection | Power under-voltage protection、Amplifier output DC protection、Thermal Protection、 Temperature Power Control、Overload Power Control | |
| Size(W×H×D) | 483 x 45 x 376 mm | |
| Net Weight | 9.1 kg |
