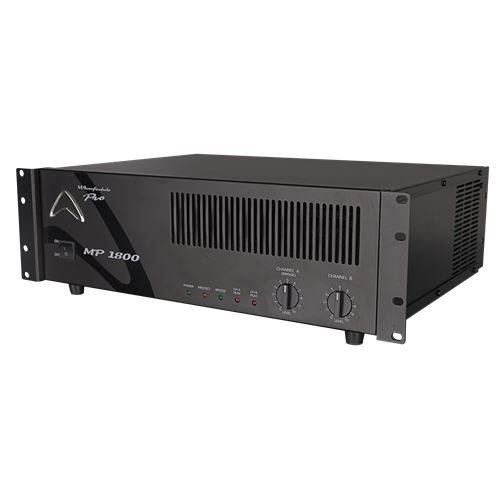

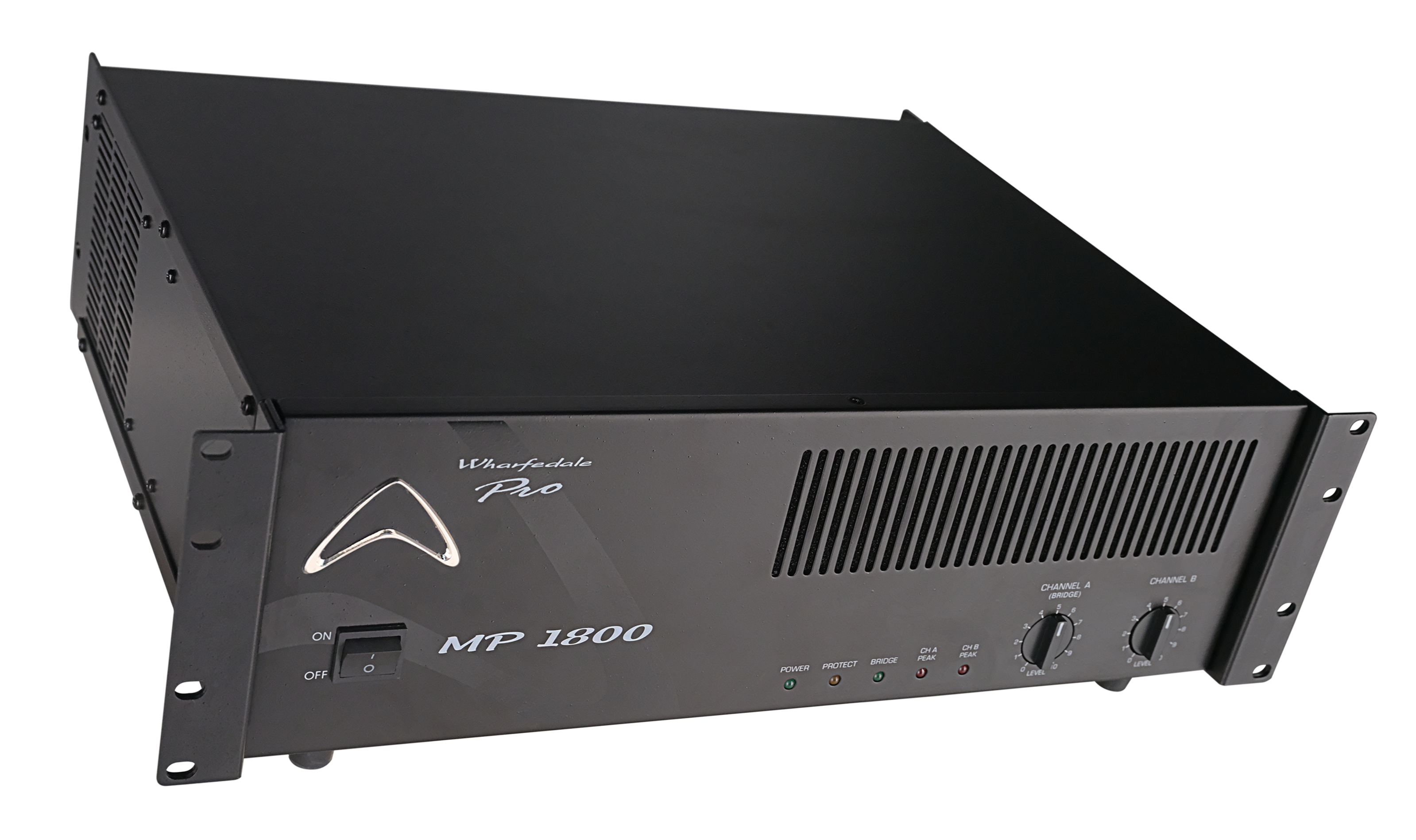

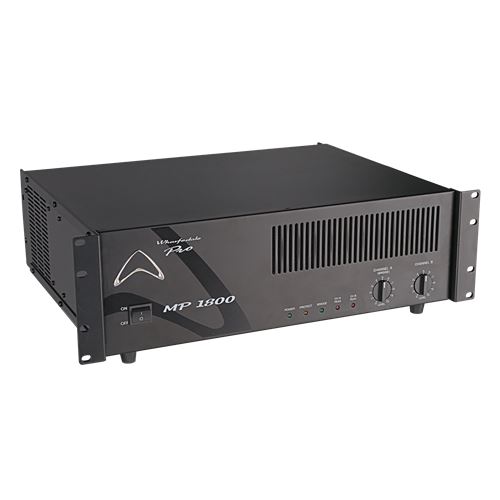

MP-1800
- 8 Ohm 2 x 300 Watts
- 4 Ohm 2 x 600 Watts
- 2 Ohm 2 x 900 Watts
- 8 Ohm Bridged 1 x 1200 Watts
- 4 Ohm Bridged 1 x 1800 Watts
Sonic accuracy and durability are the most important features of a professional power amplifier, which have been considered in all elements of the MP1800. Each model in the MP Series uses an all all-steel chassis along with state of the art electronic components, all housed within a unique amplifier design that provides high power and clean signal reproduction in a variety of applications and loudspeaker configurations.
BUILT TO LAST
The steel casing and sturdy construction are only the beginning.
Internally MP amps uses extremely reliable components and comparatively simple amplification circuitry.
This means that should something happen, MP amp is simple to repair.
STABLE DOWN TO 2 OHM

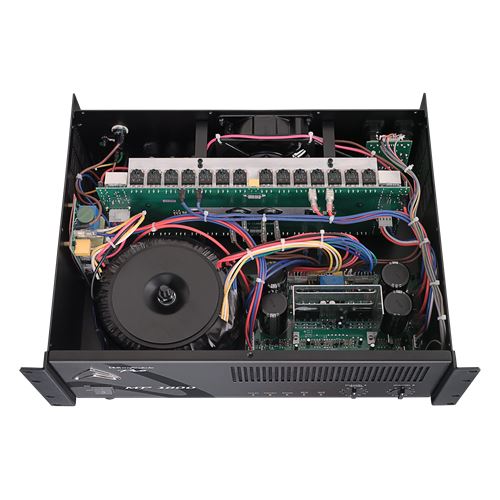

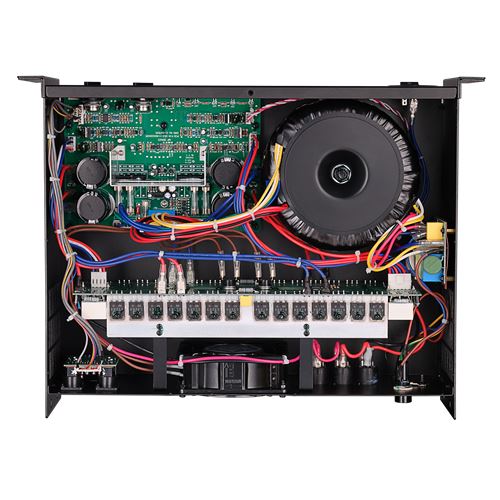

Over 1/3rd of the internal chassis is taken up with a massive toroidal transformer.
This gives an MP amp the power supply stability to function in the most extreme AC conditions.
MP amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme and constant power.
- Go down…to 2Ω
- Drive multiple loudspeakers
- Class AB topology – MP1800
- Class H topology – MP2800
- Suitable for touring, rental and installation
- 2 x XLR, 2 x 6.3mm jack inputs
- 3 x speakON compatible outputs
- Peak and protect LEDs
- Rear panel ground lift switch

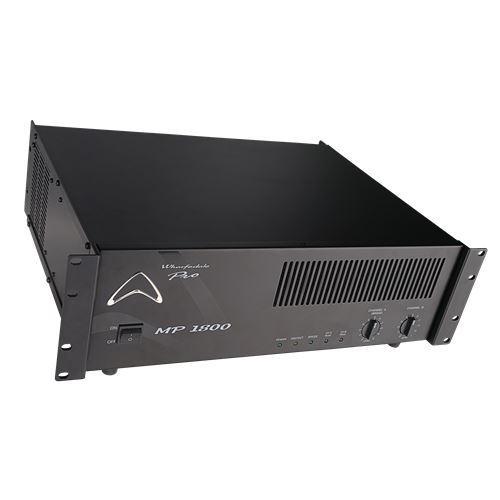

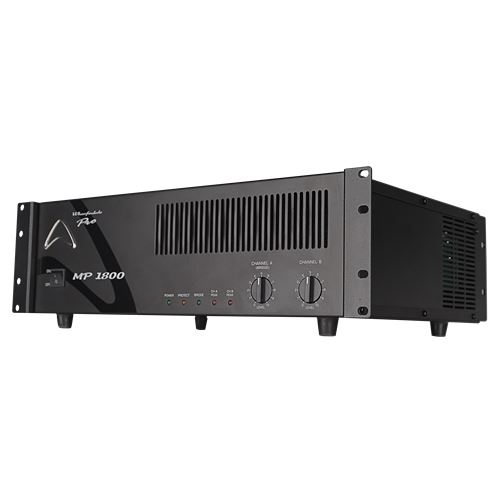

- All steel construction
- Continuously variable speed fan
- Stereo and Bridge modes
| Model Name | MP1800 |
| Stereo Power Output | |
| 8 Ω x 2 | 300 W |
| 4 Ω x 2 | 600 W |
| 2 Ω x 2 | 900 W |
| Bridged Mono Power Output | |
| 8 Ω | 1200 W |
| 4 Ω | 1800 W |
| Frequency Response | 5 Hz – 30 KHz |
| Topology | Class AB |
| Inputs | 2 x XLR, 2 x 6.3 mm Jack |
| Outputs | 3 x NL4 (speakON compatible) |
| Input Sensitivity & impedance | |
| Sensitivity | +0 dBu (0.775 Vrms) |
| Balanced XLR input | 20 KΩ |
| Maximum Input Level | 22 dBu (9.7 Vrms) |
| Slew Rate | >30 V / us |
| Crosstalk | <-70 dB |
| S/N | >100 dB |
| Distortion (1 W) | <0.05% |
| Damping Factor | >300 |
| Controls | |

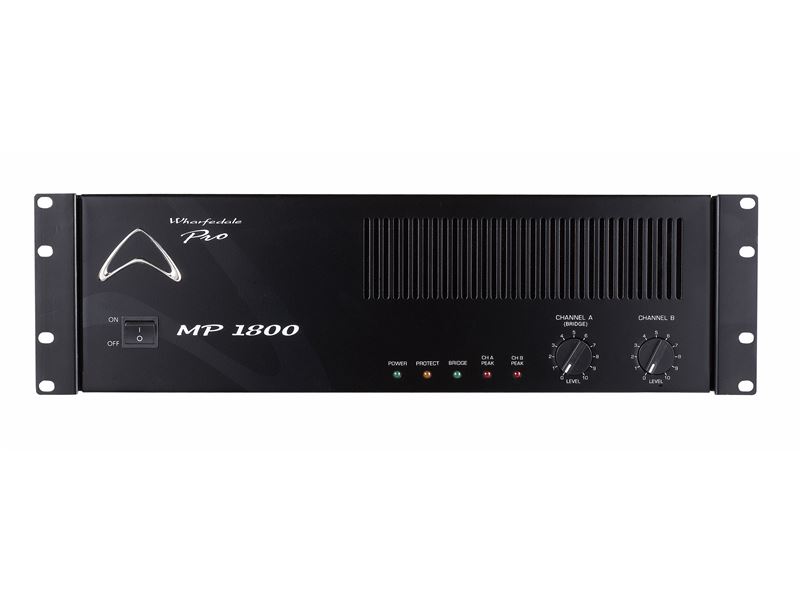

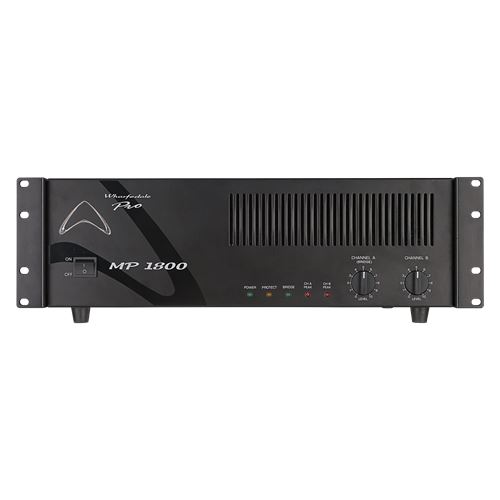

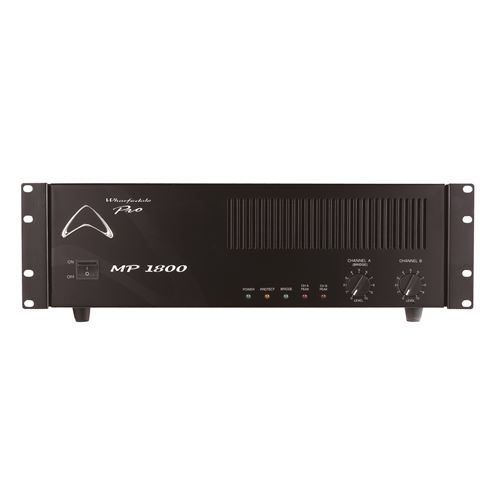

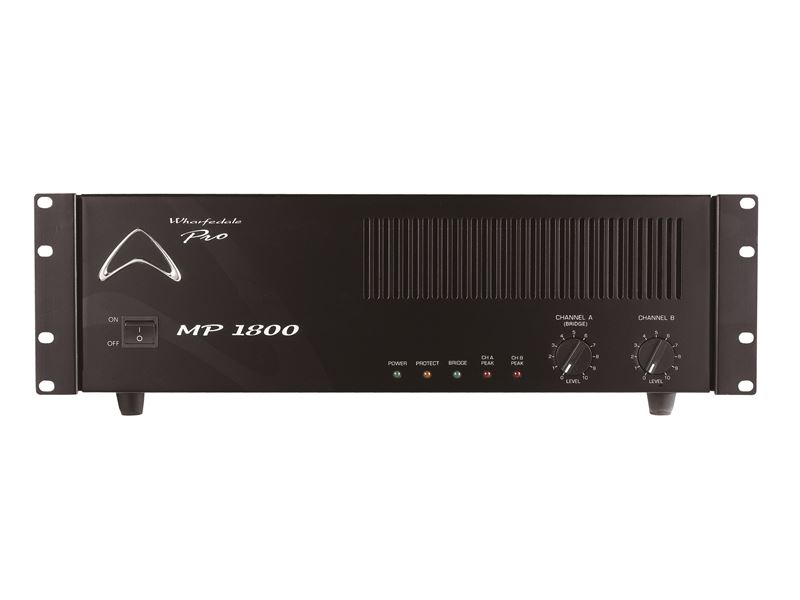

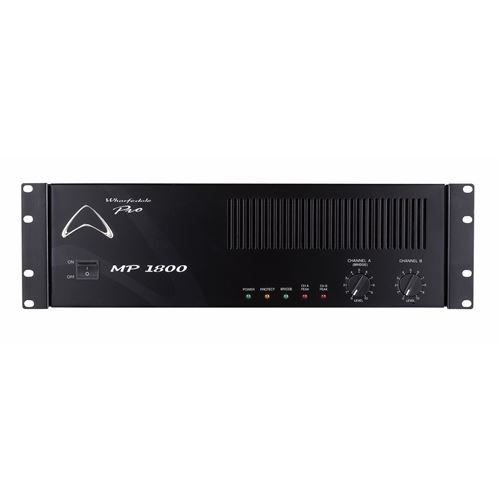

| Front panel | AC Switch, CH A and CH B Gain Knobs |

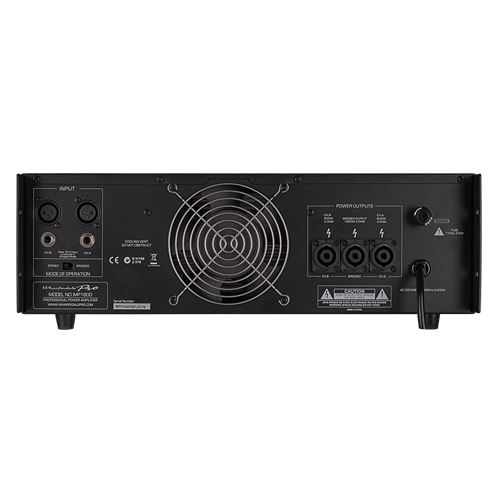

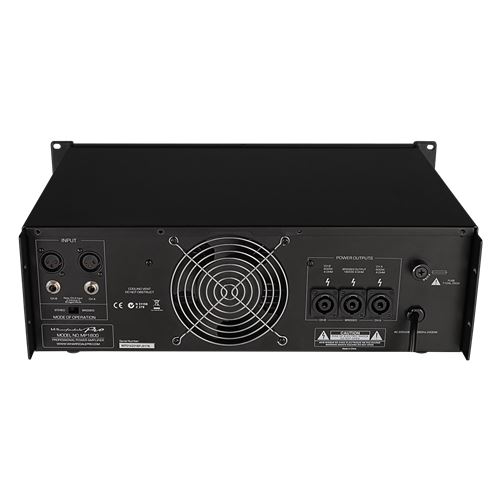

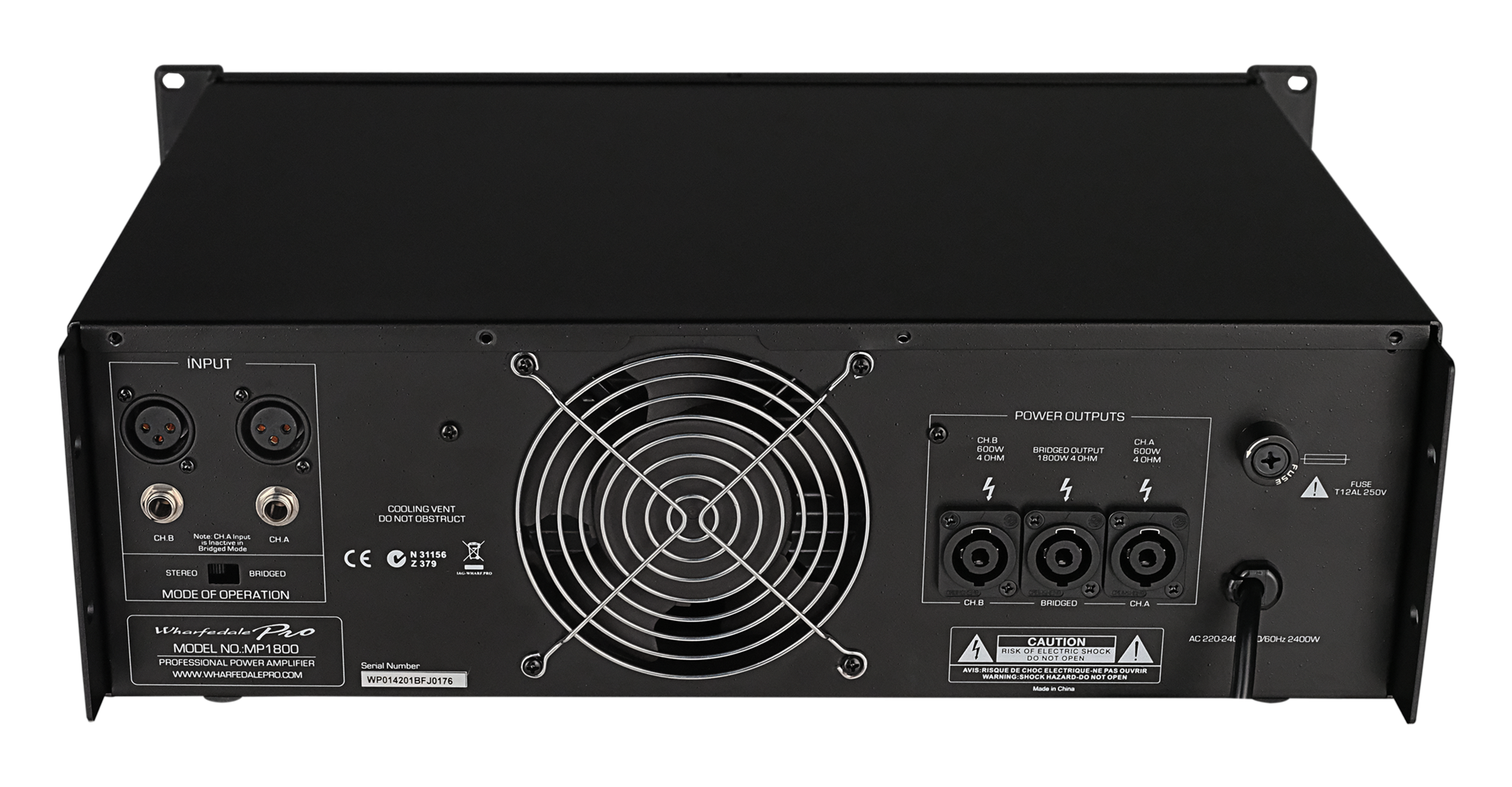

| Rear panel | Stereo & Bridge Mode Switch |
| Protections | Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute |
| Indicators | Power, Protect, Bridge, Peak |
| Cooling | Variable Speed Fan |
| Dimensions | 132 x 494 x 464 mm |
| Net Weight | 23.5 kg / 51.80 lbs |
| Gross Weight | 25 kg / 55.11 lbs |
