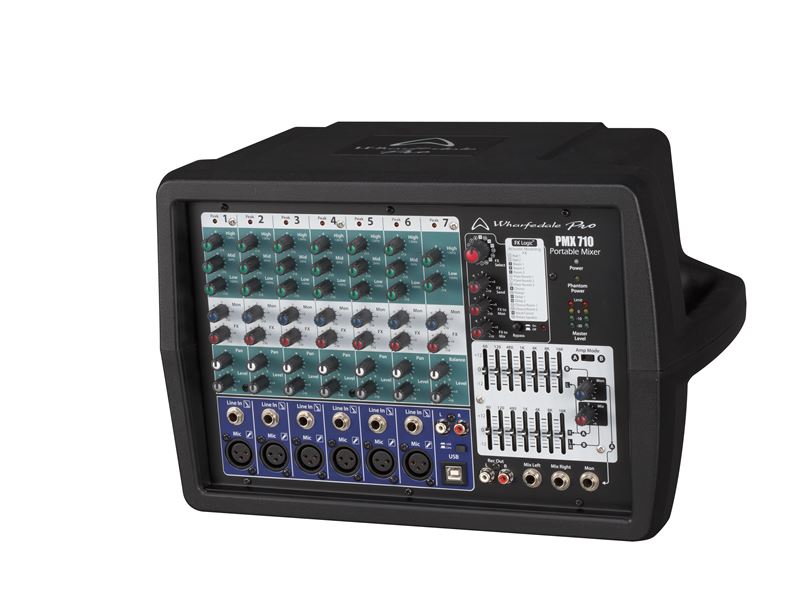

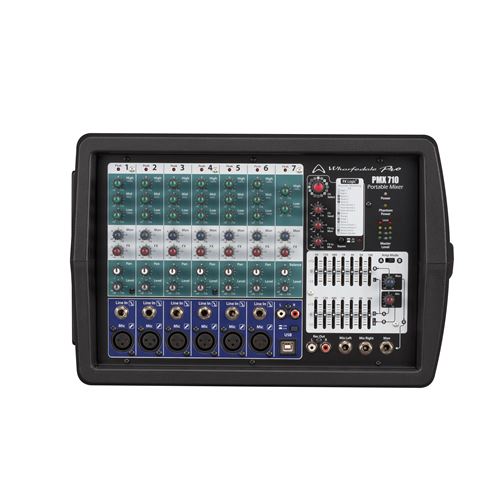

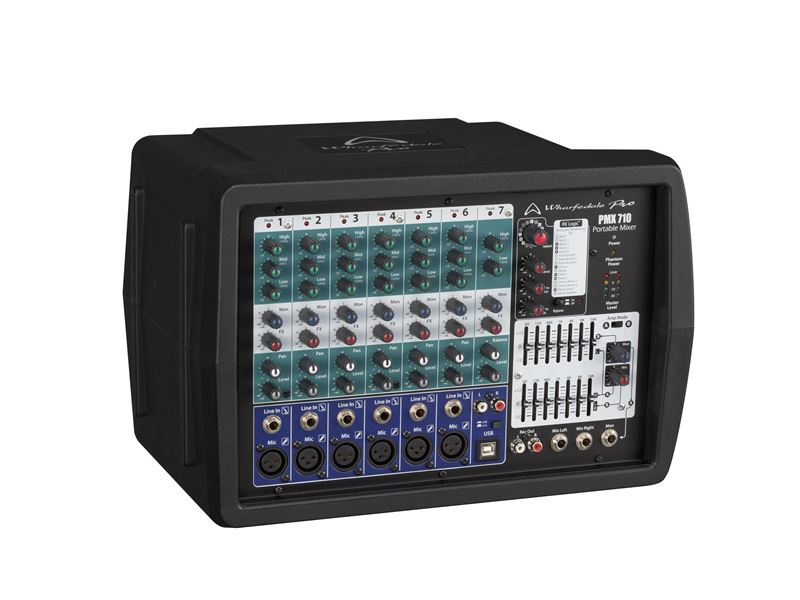

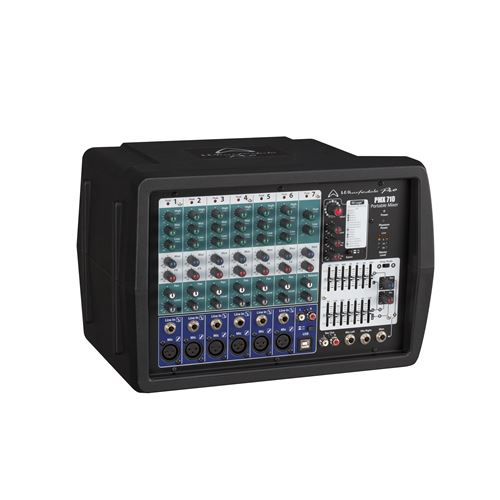

PMX-710
- 6 x XLR mic inputs
- 8 x line inputs
- 3-Band EQ
- Dual 7-band graphic EQ
- Monitor mix output
- 250 watts RMS x 2 @ 4 Ohms
- 16 internal FX
- USB interface

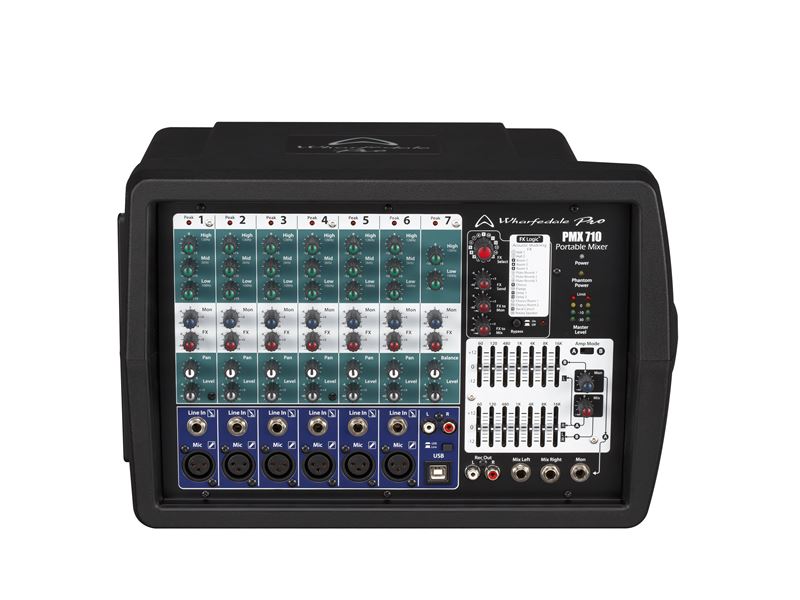

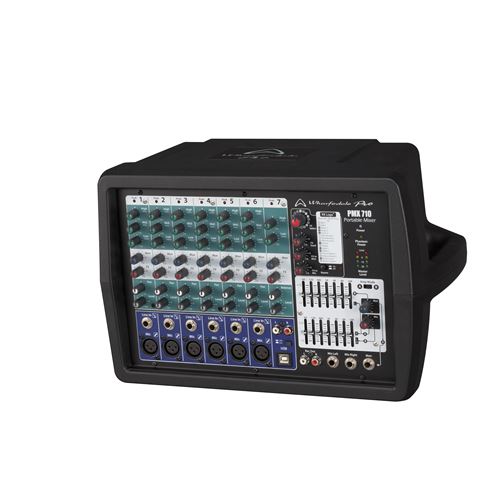

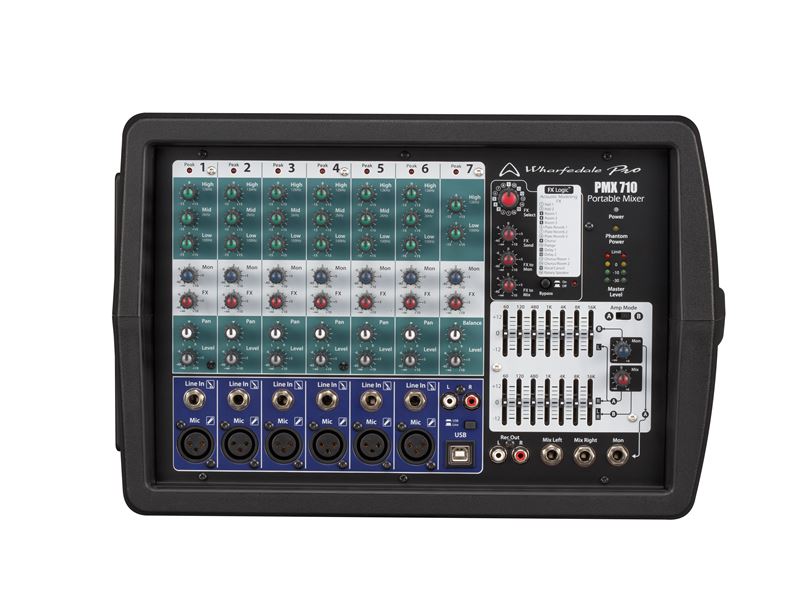

The PMX 710 from Wharfedale Pro is a class-leading lightweight, compact and portable powered mixer. Class D amplification technology means the amplifier is portable yet powerful with built-in digital FX this is a time and space saving powered mixer perfect for the mobile performer.
The Wharfedale Pro PMX Series is the result of many years experience in the use, design and manufacture of professional audio products. We take great pride in engineering and building every Wharfedale Pro product and wish to thank you for entrusting us with your sound.
From the time that Gilbert Briggs built his first loudspeaker in 1932, to the present day, Wharfedale have maintained the same standard of quality in components, workmanship and performance.
Please take the time to read this manual completely in order to ensure that you get the most from your PMX portable powered mixer.
ABOUT THE PMX SERIES
Designed to be a perfect balance of portability and power the PMX Series is suitable for use in a wide range of portable sound applications. Everything you need to mix and amplify microphones and line level sources is included in one box, with an ergonomic carry handle to aid transportation.
The one box concept speeds up your setup time and allows you to start your performance quicker than ever before.
All models feature built in digital FX processing, expanding your creativity and improving your sound quality without the need for additional expensive and often cumbersome processors. A graphic EQ allows fine tuning of the overall mix.
PMX710 - USB AUDIO INTERFACE
The top of the range PMX710 features a built-in USB audio interface. This enables a stereo in/out which can be used for playback of audio files from your PC or Mac, and can also record the master output of the PMX710. 16-bit / 48 KHz communication ensures CD quality for your audio, whether working in a live or studio environment.
In addition, the PMX710 is a ‘Class compliant’ audio device. You don’t need any special ‘Wharfedale Pro’ driver software to make it work perfectly with a Windows, Mac or Linux computer.
Simply connect the PMX710 to the computer with the USB cable and it will simply use the internal driver software of your host computer. With the PMX710 connected and turned on, just select the USB audio driver in your system settings/device manager and suddenly you’ve got a digital audio connection to and from your computer.
2-channels into the computer and 2-channels out. All over a single USB cable.
| Model Name | PMX 710 |
| Channels | 7 |
| Inputs | 6 x XLR, 6 x 6.3 mm jack, 2 x RCA Phono, USB |
| Outputs | 2 x NL4 (speakON compatible) combi jack, |
| 2 x RCA, 3 x 6.3 mm jack | |
| Power | 250 W RMS x 2 4 Ω |
| Topology | SMPS+ Class D |
| Channel EQ | 3 Band |
| FX | 16 Effects (Hall1; Hall2; Room1; Room2; Room3; Plate Reverb1; Plate Reverb2; Plate Reverb3; Chorus; Flange; Delay1; Delay2; Chorus/Room1; Chorus/Room2; Vocal Cancel; Rotary Speaker) |
| Phantom Power | Yes |
| USB | Yes |
| Noise | ±15 dB maximum |
| Graphic equalizer | Dual 7 band graphic EQ (60 Hz, 120 Hz, 480 Hz, |
| 1 KHz, 4 KHz, 8 KHz, 16 KHz) ±12 dB gain | |
| Display | Power, limit, signal and status LEDs |
| Dimensions (H x W x D) | 392 x 261 x 243 mm |
| Net Weight | 5.7 kg / 12.67 lbs |
