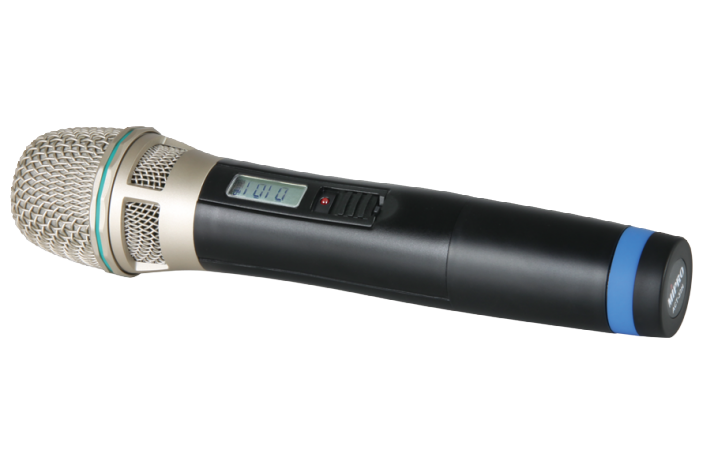

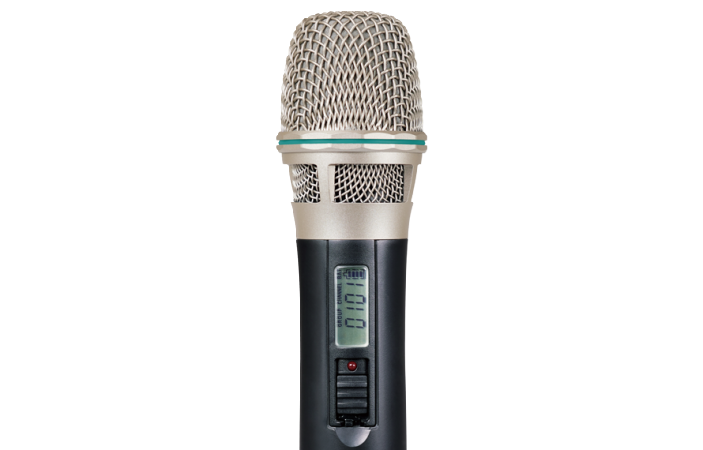

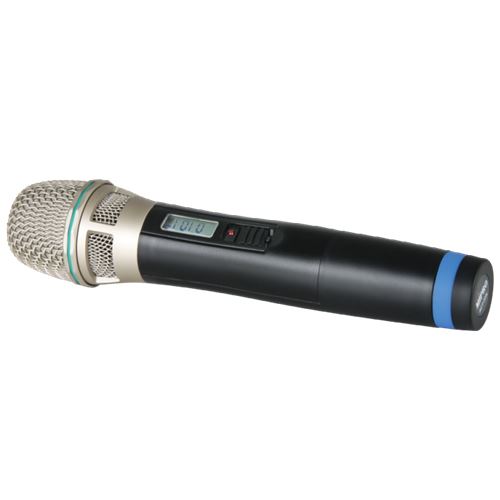

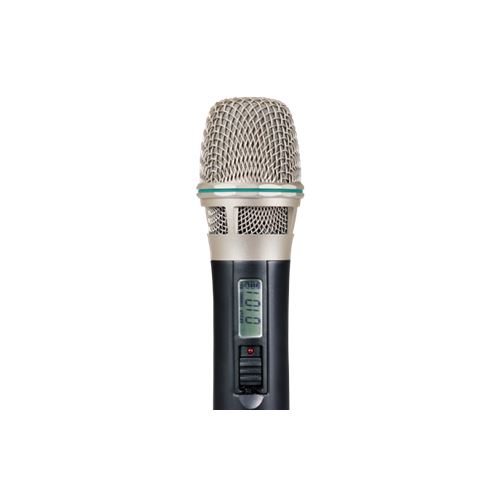

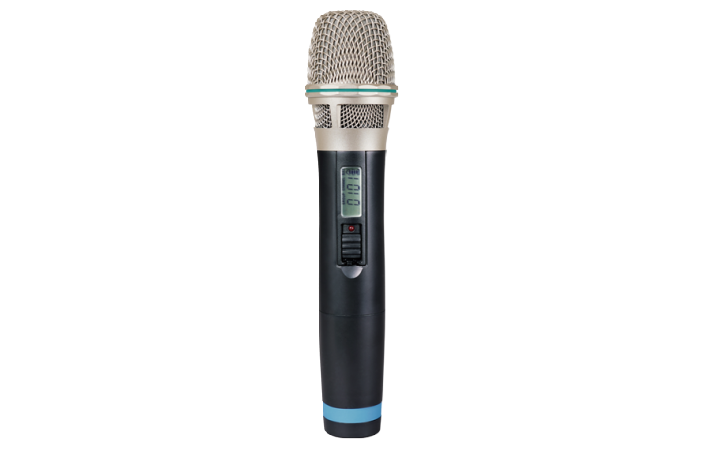

ACT-32H Handheld Microphone
- Extremely rugged, ergonomically designed housing.
- The unique flat top multi-layered steel grille protects the capsule against impact, rolling, pop noise and ensures sound clarity.
- The unique flat top multi-layered steel grille for condenser capsules and round top for dynamic capsules protect the capsule against impact, rolling and pop noise. The upper grille is able to be detached easily for cleaning and hygiene practices.
- Premium true condenser microphone capsule provides high fidelity, wide frequency response, high dynamic range, rapid transient response, clarity and accurate sound reproduction.
- Proprietary lockable silent on/off switch to avoid accidental power-off during performance.
- Impact-resistant battery compartment holds 2 AA batteries.
- Interchangeable colored rings for microphone channel identification on stage.
- LCD displays group, channel, battery level & error message codes.
- Low spurious PLL-synthesized technology enhances frequency stability and reliability. Patented “Built-in” antenna design.
- World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
ACT-32H Handheld Microphone
Built-in Volume Control | N/A |
Housing | Rugged Plastic |
Oscillation Mode | PLL Synthesized |
Frequency Range | UHF 480~934MHz |
Bandwidth | 24MHz |
Channel Set-Up | ACT Sync |
RF Output Power | 10~30mW (country dependent) |
Spurious Emissions | <-55dBc |
Max. Input Level | 140dB SPL |
Display | LCD displays group, channel, battery status & error codes. |
Battery | 2 AA alkaline |
Dimensions | 50(Ø)×233(L)mm / 2.0(Ø)x9.2(L)" |
Weight | Approx. 246g / 8.68oz (excluding batteries) |
Patents & Approvals | Patented. Telecom and safety regulations approved. |
Note | Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.
|
