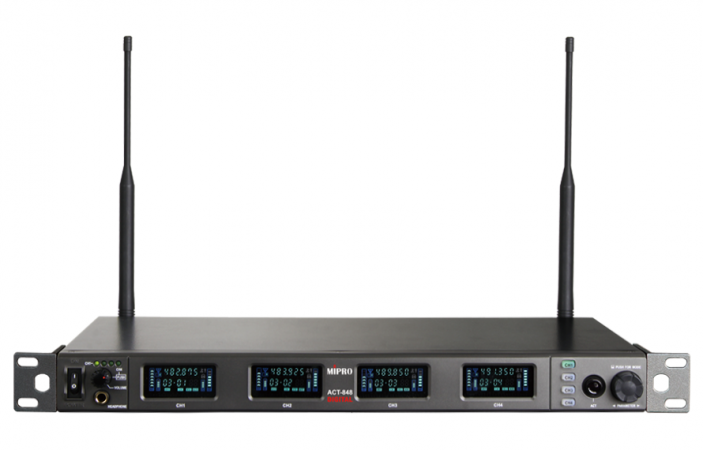

ACT-848 Receiver
- Share the EIA standard metal chassis, and a newly designed VFD screen, monitor headphone jack, rotary control knob and buttons are equipped on the control panel which is consistent with the same operations and display modes of the other series. The analog audio output, AES/EBU digital output, Dante or AVB network interface output and MIPRO RCS2.Net interface connectors on the rear panel.
- Exclusive 72 MHz wideband digital diversity circuit greatly improves the reception range and increases interference-free compatible channels. Full-range sound quality is not affected by the strength of RF signals or operating distance.
- Proprietary 256-bit encryption prevents eavesdropping.
- MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
- There are 7 preset groups with a total of 224 pre-saved channels. The user-defined group allows users to choose and save up to 16 channels from 2,881 available frequencies.
- Each channel has separate audio output and 3 switchable levels, and the preset output level equals the sensitivity of the microphone capsule at 0 dB. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
- The DSP audio processor and D/A converter make the sound quality almost the same as the wired microphone.
- Equips the Dante or AVB digital network interface. Optional MIPRO RCS2.Net software connects to MIPRO DVU drive connector and allows real-time network remote-controlling and monitoring up to 64 channels. Additional new FSA software connects to MIPRO DVU drive connector and allows users to calculate interference-free compatible channels and link to the network.
- Paired with ACT-800H handheld and ACT-800T bodypack transmitter.

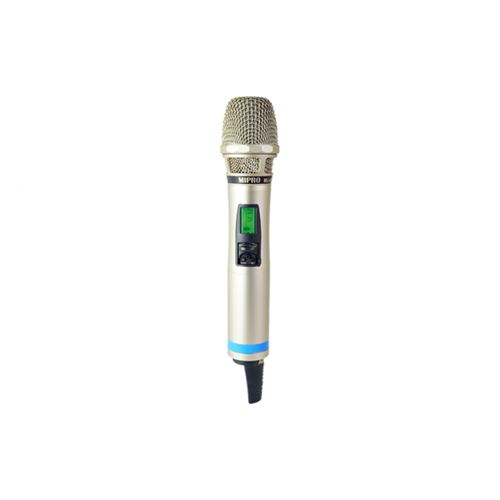

ACT-800H Handheld Microphone
- The microphone with metal housing features aesthetically designed in the most elegant “Guanyin vase” shape and the most comfortable handheld size. The surface is special champagne gold color and presents the ultra-low handling noise and a luxurious professional appearance. (Customized matte black color is available)
- The unique metal grille of the microphone capsule module can be divided into the upper grille and the lower grille. The upper grille can be detached for cleaning; the lower grille is connected with the housing by an external thread. The robust metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound.
- The patented power switch module integrates mute, set buttons, LCD and power switch lock hook for convenience to operate and prevents the power switch from accidental operation.
- The patented battery compartment can be inserted with two AA-type batteries or one rechargeable battery, charging via USB Type-C with the foolproof and safe charging circuit.
- A color-coded channel identification ring is put on the end of the housing. A patented antenna cover on the bottom of the housing built in a high-efficiency wideband transmitting antenna and USB-C charging socket.
- Pair with all MIPRO’s new interchangeable microphone modules featuring high dynamic range for loud singing without distortion. Also accepts some other brands’ microphone modules with similar specifications.
- Designed and made in Taiwan ensures high quality and value.

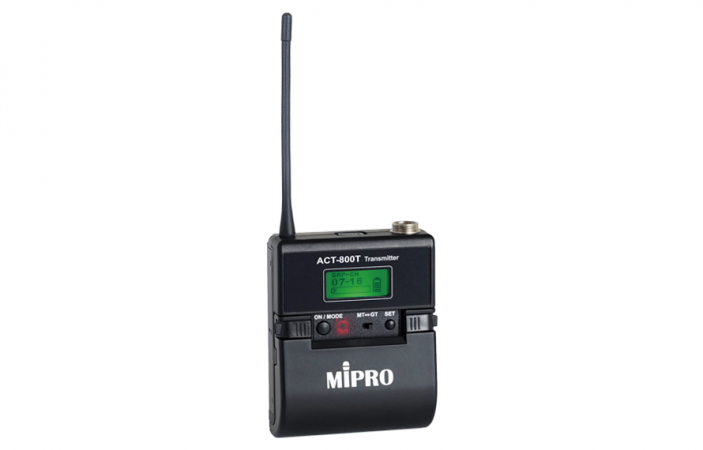

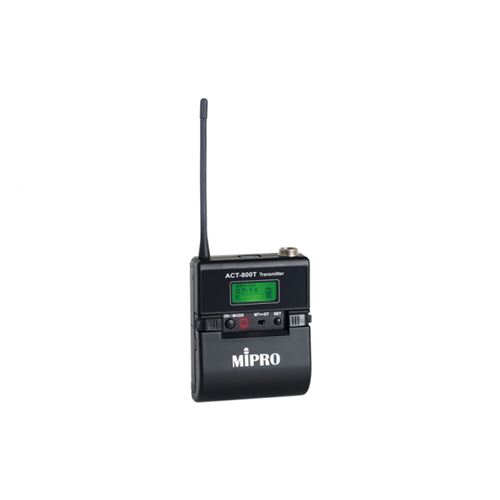

ACT-800T Bodypack
- Newly designed compact and lightweight housing for easy wearing.
- The panel integrates a backlit LCD and setup buttons for easy operation and view of all operating information.
- On top of the housing is equipped with an antenna, mute button and mini XLR connector. The Mini XLR audio input connector accepts either a screw-lock or a TA4F quick-lock plug. A remote-control mute jack is for easy activation of the mute function.
- The audio input can be switched to low impedance Mic-in “MT” or high impedance Line-in “GT” to match up the input impedance. The high dynamic range audio input prevents saturation distortion.
- The input polarization can be selected for matching various capsules.
- The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
- The patented battery compartment can be inserted with two AA-type batteries or one rechargeable battery, charging via USB Type-C with the foolproof and safe charging circuit.
- A belt clip for easy wearing.
| Model | ACT-848 |
| Name | 1U Quad-Channel Wideband Digital Receiver |
| Chassis | EIA-Standard 19" 1U metal chassis |
| Monitor Output | Monitor headphone jack with volume control |
| Network Interface | Dante |
| Display | A newly designed color VFD |
| Frequency Range | UHF 480 ~ 934 MHz (country dependent) |
| Bandwidth | 72 MHz |
| Receiving Mode | Digital diversity receiving |
| Sensitivity | 12 dBμV @ S/N > 100 dB |
| Audio Processing | DSP audio processor eliminates the compander noise that exists in analog systems. |
| Frequency Response | 20 Hz ~ 20 kHz (< -2 dB) |
| Dynamic Range | > 120 dBA |
| Latency | 2.9 ms |
| Audio Output | AES / EBU digital interface. Analog balanced output, +16 dB / 0dB / -6 dB switchable. |
| EQ | Presets 10 digital audio and anti-feedback EQ |
| PC Interface | USB interface. MIPRO ACT-BUS for remote-control of up to 64 channels. FSA compatible channels calculator software allows users to manually set compatible channels. (Sold separately) |
| Antenna | Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems. |
| Power Supply | External 100~240V AC switching power supply |
| Dimensions | 420 × 44 × 219 mm (W×H×D) |
| Weight | Approx. 2.3 kg |
| Note | Refer to the actual product in the event of product discrepancy. |
| Model | ACT-800H |
| Name | UHF Wideband Digital Handheld Wireless Microphone |
| Frequency Range | UHF 480 ~ 934 MHz (country dependent) |
| Bandwidth | 72 MHz |
| RF Power Output | 10 mW / 50 mW switchable (country dependent) |
| Transmitting Antenna | A wideband transmitting antenna is installed on the end of the housing. |
| Mic Capsule Modules | MU-90A condenser or MU-59A dynamic. Accepts some other brands’ with similar specifications. |
| Battery | One 18500 lithium-ion battery or two AA alkaline |
| Charging Type | USB Type-C with the foolproof and safe charging circuit. |
| Dimensions | 51 × 272 mm (Ø×L) |
| Weight | Approx. 330 g |
| Note | Refer to the actual product in the event of product discrepancy. |
| Model | ACT-800T |
| Name | UHF Wideband Digital Bodypack Transmitter |
| Frequency Range | UHF 480 ~ 934 MHz (country dependent) |
| Bandwidth | 72 MHz |
| Mic Capsule Modules | Paired lavalier mic MU-55L or optional other MIPRO’s lavalier and headworn mic capsule modules. |
| Max. Audio Input | 6.5 dBV |
| Input Impedance Setting | Low impedance Mic-in “MT” and high impedance Line-in “GT” are switchable. |
| RF Power Output | 10 mW / 50 mW switchable (country dependent) |
| Battery | One 18500 lithium-ion battery or two AA alkaline |
| Charging Type | USB Type-C with the foolproof and safe charging circuit. |
| Dimensions | 63 × 80 × 25 mm (W×H×D) |
| Weight | Approx. 97 g |
| Note | Refer to the actual product in the event of product discrepancy. |
