Now even more simple, flexible and reliable: The 100 series has become the first choice for both sound designers and occasional users because of its simple operating concept – and because the system makes no compromises in terms of live sound.
-

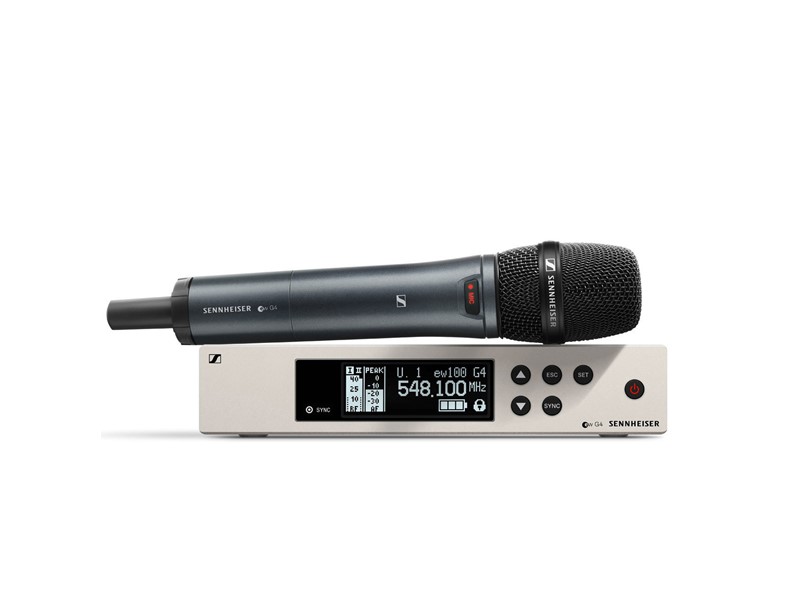

Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.
-
State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminum transmitter with integrated mute switch
-
True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
-
Easy and flexible wireless synchronization between transmitter and receiver via infrared
-
Fast frequency allocation for up to 12 receivers via new linking functionality
-
Up to 20 compatible channels
-
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
-
Transmission Range: up to 100 meters / 300 feet
-
High RF output power (up to 30 mW) depending on country regulations
Reliability and performance
Eventually, you’ll get to a level in your career as an engineer or musician when the size stage you’re performing on demands more than an entry-level wireless system. You simply need more reach, more power and more reliability than what a 2.4 GHz system will allow. Enter the evolution wireless G4 100 Series—the next level in your journey as a stage professional.
Feature-rich and built to last
The evolution wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, it’s easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.
What's in the Box
- EM 100 G4 true diversity receiver
- SKM 100 G4-S handheld transmitter
- MMD 935-1 microphone head (935-S variants only)
- MMD 945-1 microphone head (945-S variants only)
- rackmount set
- MZQ 1 microphone clamp
- power supply
- 2 AA batteries
- 2 rod antennas
- RJ 10 cable
- quick guide
- safety guide
- manufacturer declaration sheet
- frequency supplement sheet
EM 100 G4
- Frequency range
- 1G8: 1785 - 1800 MHzA: 516 - 558 MHzA1: 470 - 516 MHzAS: 520 - 558 MHzB: 626 - 668 MHzC: 734 - 776 MHzD: 780 - 822 MHzE: 823 - 865 MHzG: 566 - 608 MHzGB: 606 - 648 MHz
- Dimensions
- Approx. 190 x 212 x 43 mm
- Compander
- Sennheiser HDX
- THD, total harmonic distortion
- ≤ 0.9 %
- Weight
- Approx. 980 g
- Audio output
- 6.3 mm jack socket (unbalanced): +12 dBuXLR socket (balanced): +18 dBu
- Signal-to-noise ratio
- ≥ 110 dBA
- Switching bandwidth
- up to 42 MHz
- Peak deviation
- ±48 kHz
- Nominal deviation
- ±24 kHz
- Modulation
- Wideband FM
- Power supply
- 12 V DC
- Antenna connector
- 2 BNC sockets
- Current consumption
- 300 mA
- Adjacent channel rejection
- Typically ≥ 65 dB
- Intermodulation attenuation
- Typically ≥ 65 dB
- Receiving frequency
- Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- RF sensitivity
- < 2.5 μV for 52 dBA eff S/N
- Squelch
- low: 5 dBµV middle: 15 dBµV high: 25 dBμV
- Equalizer
- Preset 1: FlatPreset 2: Low Cut (-3 dB at 180 Hz)Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range
- -10 °C to +55 °C
- Receiver Principle
- True diversity
- Blocking
- ≥ 70 dB
SKM 100 G4-S
- Dimensions
- Approx. Ø 50 x 265 mm
- Compander
- Sennheiser HDX
- THD, total harmonic distortion
- ≤ 0.9 %
- Weight
- (incl. batteries) approx. 450 g
- Signal-to-noise ratio
- ≥ 110 dBA
- RF output power
- Max. 30 mW
- Switching bandwidth
- up to 42 MHz
- Peak deviation
- ±48 kHz
- Nominal deviation
- ±24 kHz
- Operating time
- Typically 8 h
- Modulation
- Wideband FM
- Power supply
- 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption
- at nominal voltage: typ. 180 mAwith transmitter switched off: ≤ 25 µA
- Input impedance
- 40 kΩ
- Max. Input voltage
- 3 Veff
- Powering
- 3 V battery / 2.4 V rechargeable battery
- Transmission frequency
- Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- AF frequency response
- 80 – 18,000 Hz
- Temperature Range
- -10 °C to +55 °C
- Frequency stability
- ≤ ±15 ppm
MMD 935-1
- Sound pressure level (SPL)
- 154 dB SPL
- Transducer principle
- dynamic
-
- Pick-up pattern
-
cardioid
-
- Sensitivity
-
2.5 mV/Pa
