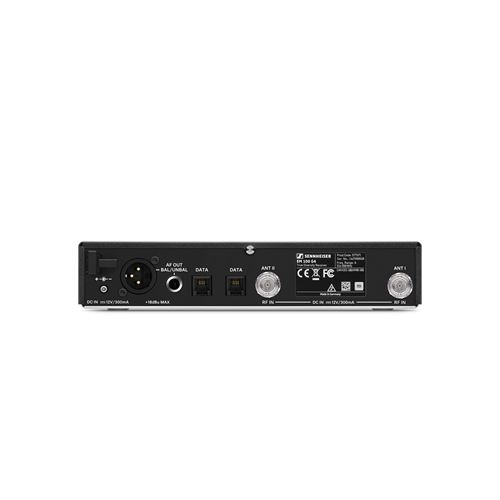

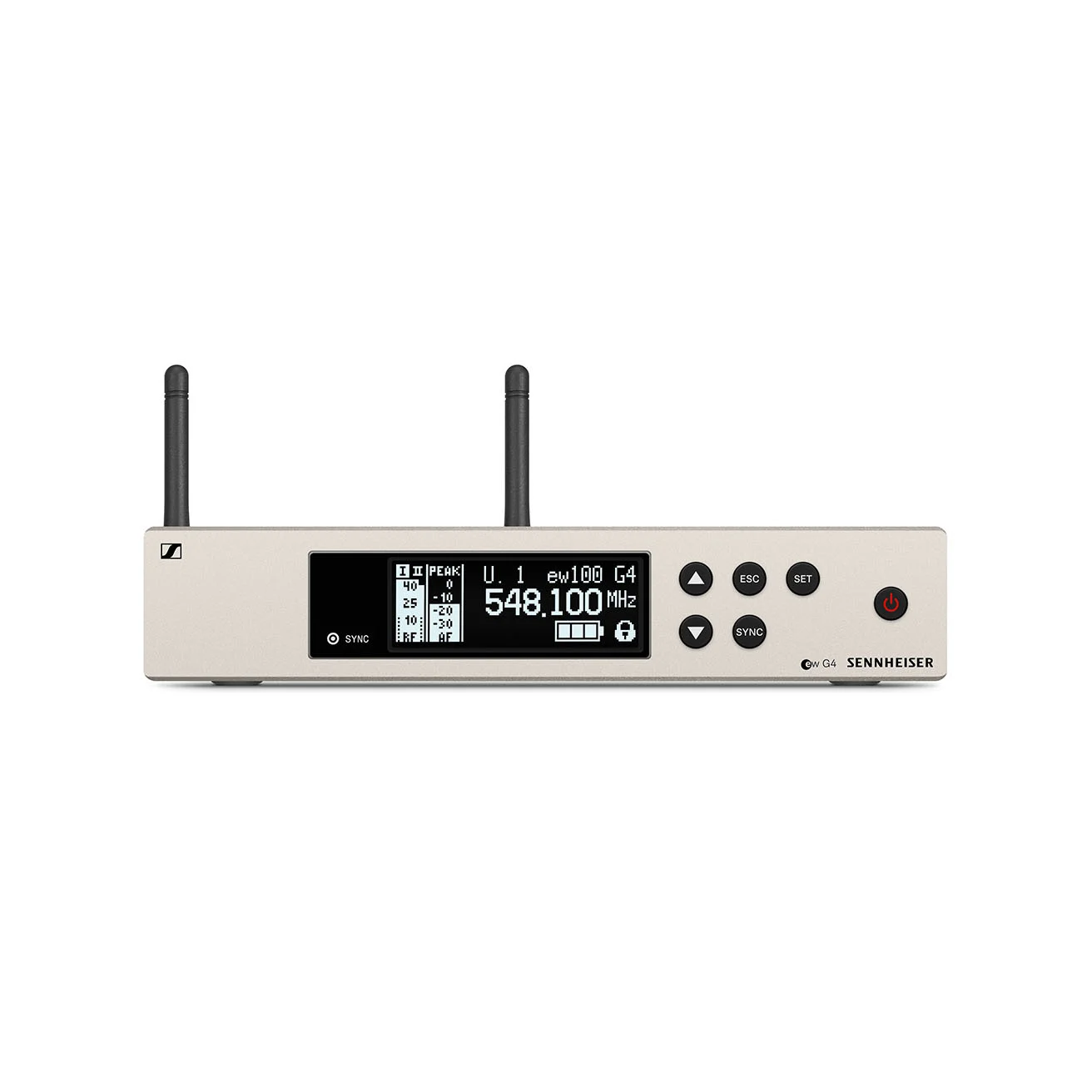

SENNHEISER | EM 100 G4 | SENNHEISER G4 100 Series Rackmount True Diversity Receiver c/w GA3 Rackmount

True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control with evolution wireless G4 100 Series systems.

True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control.
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Fast frequency allocation for up to 12 receivers via new linking functionality
Up to 20 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 30 mW) depending on country regulations

What's in the Box
- EM 100 G4 true diversity receiver
- 2 rod antennas
- power supply
- RJ 10 cable
- rackmount set
- quick guide
- safety guide
- manufacturer declaration sheet
- frequency supplement sheet

Frequency range: 1G8: 1785 - 1800 MHz
A: 516 - 558 MHz
A1: 470 - 516 MHz
AS: 520 - 558 MHz
B: 626 - 668 MHz
C: 734 - 776 MHz
D: 780 - 822 MHz
E: 823 - 865 MHz
G: 566 - 608 MHz
GB: 606 - 648 MHz
JB: 806 - 810 MHz
K+: 925 - 937,5 MHz

Audio output: 6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu

Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

Equalizer: Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)

SENNHEISER G4 100 Series Rackmount True Diversity Receiver c/w GA3 Rackmount
