  5. SENNHEISER G4 100 Series Bodypack Transmitter

• AVAILABLE NOW

SENNHEISER | SK 100 G4

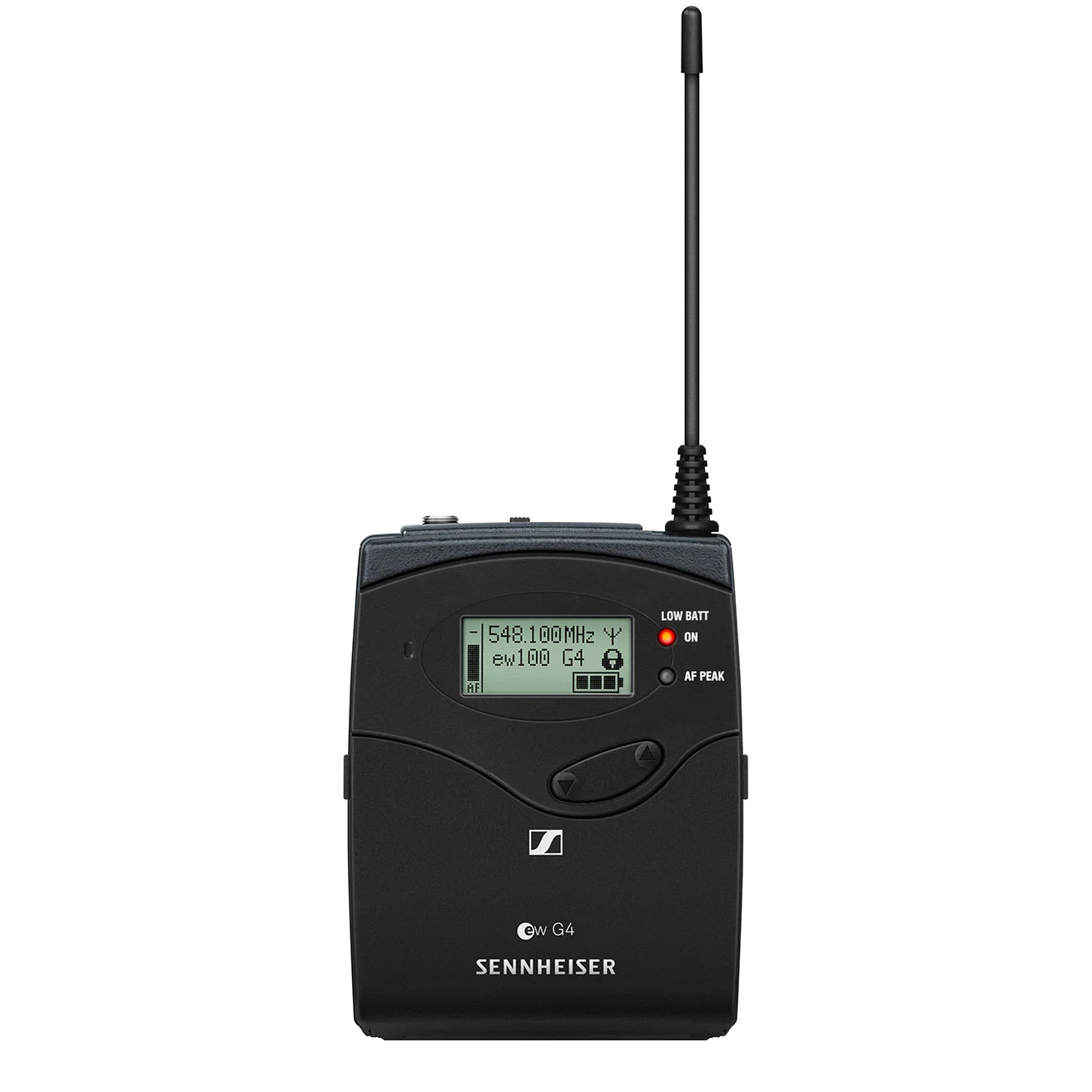

SENNHEISER G4 100 Series Bodypack Transmitter

SK 100 G4

SENNHEISER

Whatsapp for enquiry Email for enquiry






Robust bodypack transmitter for daily use on stage with evolution wireless G4 100 G4 systems.

  • Robust bodypack transmitter for daily use on stage.

  • Easy and flexible wireless synchronization between transmitter and receiver via infrared

  • Fast frequency allocation for up to 12 receivers via new linking functionality

  • Up to 20 compatible channels

  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

  • Transmission Range: up to 100 meters / 300 feet

  • High RF output power (up to 30 mW) depending on country regulations

What's in the Box
  • SK 100 G4 bodypack transmitter
  • 2 AA batteries
  • quick guide
  • safety guide
  • manufacturer declaration sheet


  • Frequency range
    A: 516 - 558 MHz
    1G8: 1785 - 1800 MHz
    A1: 470 - 516 MHz
    AS: 520 - 558 MHz
    B: 626 - 668 MHz
    C: 734 - 776 MHz
    D: 780 - 822 MHz
    E: 823 - 865 MHz
    G: 566 - 608 MHz
    GB: 606 - 648 MHz
    JB: 806 - 810 MHz
    K+: 925 - 937,5 MHz
    •
  • Dimensions
    Approx. 82 x 64 x 24 mm
    •
  • Compander
    Sennheiser HDX
    •
  • THD, total harmonic distortion
    ≤ 0.9 %
    •
  • Weight
    (incl. batteries) approx. 160 g
    •
  • Signal-to-noise ratio
    ≥ 110 dBA
    •
  • RF output power
    Max. 30 mW
    •
  • Switching bandwidth
    up to 42 MHz
    •
  • Peak deviation
    ±48 kHz
    •
  • Nominal deviation
    ±24 kHz
    •
  • Operating time
    Typically 8 h
    •
  • Modulation
    Wideband FM
    •
  • Power supply
    2 AA batteries, 1.5 V or BA 2015 accupack
    •
  • Current consumption
    at nominal voltage: typ. 180 mA
    with transmitter switched off: ≤ 25 μA
    •
  • Input impedance
    40 kΩ, unbalanced / 1 MΩ
    •
  • Max. Input voltage
    3 Veff
    •
  • Powering
    3 V battery / 2.4 V rechargeable battery
    •
  • Transmission frequency
    Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
    •
  • AF frequency response
    Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
    •
  • Temperature Range
    -10 °C to +55 °C
    •
  • Frequency stability
    ≤ ±15 ppm
    •
